C# OPCDA 封装
2025-09-30
C#
00

目录

摘要
1. 读取功能
2. 写入功能
3. 断开连接
4. 连接服务器
正文

摘要

1. 读取功能

  • 同步读取
    • 单个地址读：允许用户读取指定地址上的数据。
    • 给定地址列表读：允许用户一次性读取多个指定地址上的数据。
    • 读全部：读取所有可用的数据项，通常用于初始化或状态监控。
  • 异步读取
    • 单个地址读：允许用户异步方式读取指定地址上的数据，以避免阻塞应用程序。
    • 给定地址列表读：通过异步操作，提高读取多个地址时的性能。
    • 读全部：同样以异步方式读取所有可用的数据项，用于高效的数据更新和监控。

2. 写入功能

  • 同步写
    • 单个写：将数据写入到指定的单个地址。
    • 多个写：将数据写入到多个指定地址，实现批量更新。
  • 异步写
    • 单个写：以异步方式写入数据至指定地址，提升响应速度。
    • 多个写：异步批量写入至多个地址，以提高写入性能并减小对应用程序主线程的影响。

3. 断开连接

  • 管理与 OPC DA 服务器的连接，确保能够安全断开，并进行必要的清理。

4. 连接服务器

  • 连接：负责与指定的 OPC DA 服务器建立连接。
  • 初始化属性：在建立连接后，初始化相关的通信属性和参数，以确保系统在使用时处于正常工作状态。
  • 绑定事件：将必要的事件处理程序绑定到 OPC DA 服务器事件，以处理数据变化、连接丢失等情况。

正文


C#
public class OpcHelper
{
    OPCServer MyOpcServer;
    OPCGroup MyOpcGroup;

    public string Ip { get; set; }
    public string ProgId { get; set; } = "Kepware.KEPServerEX.V6";

    public bool IsActive { get; set; } = true;

    //控制对组的异步通知。已订阅的组从服务器接收数据更改。
    public bool IsSubscribed { get; set; } = false;

    //当数据变化超过deadband设置时，就会触发datachange事件。或者是，只有当数据变化超过deadband设置时才会触发datachange事件
    public int DeadBand { get; set; } = 0;

    //可能触发数据更改事件的最快速率。缓慢的进程可能会导致数据更改以低于此速率触发，但它们永远不会超过此速率。速率单位为毫秒。
    public int UpdateRate { get; set; } = 100;

    //用于保存要访问的数据
    private Dictionary<string, OPCItem> _dicOpcItem { get; set; } = new Dictionary<string, OPCItem>();

    private event Action<Dictionary<string, object>> ReadFinishEvent;
    private List<string> _ReadAddress { get; set; }

    private event Action<bool> WriteFinishEvent;

    public event Action<Dictionary<string, object>> DataChangeEvent;
    public bool IsDataChangeEvent { get; set; } = false;//是否启用DataChange事件
    public bool Connect()
    {
        try
        {
            MyOpcServer = new OPCServer();
            MyOpcServer.Connect(ProgId, Ip);
            MyOpcGroup = MyOpcServer.OPCGroups.Add("DefaultGroup");

            MyOpcGroup.IsActive = IsActive;
            MyOpcGroup.IsSubscribed = IsSubscribed;


            MyOpcGroup.DeadBand = DeadBand;
            MyOpcGroup.UpdateRate = UpdateRate;

            MyOpcGroup.AsyncReadComplete += MyOpcGroup_AsyncReadComplete;
            MyOpcGroup.AsyncWriteComplete += MyOpcGroup_AsyncWriteComplete;

            if (IsDataChangeEvent)
            {
                MyOpcGroup.DataChange += MyOpcGroup_DataChange;
            }

            return true;
        }
        catch (Exception ex)
        {
            //do log
            return false;
        }
    }

    /// <summary>
    /// 数据改变事件
    /// </summary>
    /// <param name="TransactionID"></param>
    /// <param name="NumItems"></param>
    /// <param name="ClientHandles"></param>
    /// <param name="ItemValues"></param>
    /// <param name="Qualities"></param>
    /// <param name="TimeStamps"></param>
    private void MyOpcGroup_DataChange(int TransactionID, int NumItems
        , ref Array ClientHandles, ref Array ItemValues, ref Array Qualities, ref Array TimeStamps)
    {
        if (DataChangeEvent != null)
        {
            Dictionary<string, object> dic = new Dictionary<string, object>();
            foreach (var item in _dicOpcItem)
            {
                dic.Add(item.Key, item.Value.Value);
            }
            DataChangeEvent(dic);
        }
    }


    //添加读写的节点信息
    public bool AddOpcItems(string Address)
    {
        if (_dicOpcItem.ContainsKey(Address))
        {
            return false;
        }
        OPCItem item = MyOpcGroup.OPCItems.AddItem(Address, 0);
        _dicOpcItem.Add(Address, item);
        return true;
    }

    //删除读写的节点
    public bool RemoveOpcItems(string Address)
    {
        if (_dicOpcItem.ContainsKey(Address))
        {
            _dicOpcItem[Address] = null;
            _dicOpcItem.Remove(Address);
        }
        return true;
    }

    //同步读取某一个节点数据
    public object ReadValueSyn(string Address)
    {
        object ItemValues;
        object Qualities;
        object TimeStamps;
        OPCItem item = _dicOpcItem[Address];
        item.Read(1, out ItemValues, out Qualities, out TimeStamps);
        return ItemValues;
    }

    //同步读取指定列表节点数据
    public Dictionary<string, object> ReadAllSyn(Dictionary<string, object> dic)
    {
        object ItemValues;
        object Qualities;
        object TimeStamps;
        foreach (var item in dic)
        {
            OPCItem it = _dicOpcItem[item.Key].Value;
            it.Read(1, out ItemValues, out Qualities, out TimeStamps);
            dic[item.Key] = ItemValues;
        }
        return dic;
    }

    //同步读取所有节点数据
    public Dictionary<string, object> ReadAllSyn()
    {
        object ItemValues;
        object Qualities;
        object TimeStamps;
        Dictionary<string, object> dic = new Dictionary<string, object>();
        foreach (var item in _dicOpcItem)
        {
            OPCItem it = item.Value;
            it.Read(1, out ItemValues, out Qualities, out TimeStamps);
            dic.Add(item.Key, ItemValues);
        }
        return dic;
    }

    //同步写
    public void WriteValueSync(string Address, object Value)
    {
        int[] tmp = new int[] { 0, _dicOpcItem[Address].ServerHandle };
        Array serverHandles = (Array)tmp;
        Array Errors;
        int cancelID;
        object[] v = new object[] { "", Value };
        Array values = (Array)v;
        MyOpcGroup.SyncWrite(1, ref serverHandles, ref values, out Errors);
    }

    //同步按组写
    public void WriteValueSync(Dictionary<string, object> dic)
    {
        int[] tmp = new int[dic.Count + 1];
        int idx = 1;
        foreach (var item in dic)
        {
            tmp[idx] = _dicOpcItem[item.Key].ServerHandle;
            idx++;
        }
        object[] v = new object[dic.Count + 1];
        idx = 1;
        foreach (var item in dic)
        {
            v[idx] = item.Value;
            idx++;
        }
        Array serverHandles = (Array)tmp;
        Array Errors;
        Array values = (Array)v;
        MyOpcGroup.SyncWrite(dic.Count, ref serverHandles, ref values, out Errors);
    }

    /// <summary>
    /// 异步读取信息
    /// </summary>
    public void ReadValueAsync(List<string> Address, Action<Dictionary<string, object>> action)
    {
        _ReadAddress = Address;
        ReadFinishEvent = action;
        int[] tmp = new int[Address.Count + 1];
        for (int i = 1; i < tmp.Length; i++)
        {
            tmp[i] = _dicOpcItem[Address[i - 1]].ServerHandle;
        }
        Array serverHandles = (Array)tmp;
        Array Errors;
        int cancelID;
        MyOpcGroup.AsyncRead(1, ref serverHandles, out Errors, 1, out cancelID);
    }

    /// <summary>
    /// 异步读的完成回调
    /// </summary>
    /// <param name="TransactionID"></param>
    /// <param name="NumItems"></param>
    /// <param name="ClientHandles"></param>
    /// <param name="ItemValues"></param>
    /// <param name="Qualities"></param>
    /// <param name="TimeStamps"></param>
    /// <param name="Errors"></param>
    private void MyOpcGroup_AsyncReadComplete(int TransactionID, int NumItems, ref Array ClientHandles
        , ref Array ItemValues, ref Array Qualities, ref Array TimeStamps, ref Array Errors)
    {
        if (ReadFinishEvent != null)
        {
            Dictionary<string, object> dic = new Dictionary<string, object>();
            for (int i = 0; i < _ReadAddress.Count; i++)
            {
                dic.Add(_ReadAddress[i], _dicOpcItem[_ReadAddress[i]].Value);
            }
            ReadFinishEvent(dic);
        }
    }

    public void WriteValueAsync(Dictionary<string, object> dic, Action<bool> action)
    {
        this.WriteFinishEvent = action;
        int[] tmp = new int[dic.Count + 1];
        int idx = 1;
        foreach (var item in dic)
        {
            tmp[idx] = _dicOpcItem[item.Key].ServerHandle;
            idx++;
        }
        object[] v = new object[dic.Count + 1];
        idx = 1;
        foreach (var item in dic)
        {
            v[idx] = item.Value;
            idx++;
        }
        Array serverHandles = (Array)tmp;
        Array Errors;
        Array values = (Array)v;
        MyOpcGroup.AsyncWrite(dic.Count, ref serverHandles, ref values, out Errors, 1, out var cancelId);
    }

    /// <summary>
    /// 写完成回调
    /// </summary>
    /// <param name="TransactionID"></param>
    /// <param name="NumItems"></param>
    /// <param name="ClientHandles"></param>
    /// <param name="Errors"></param>
    private void MyOpcGroup_AsyncWriteComplete(int TransactionID, int NumItems, ref Array ClientHandles, ref Array Errors)
    {
        if (WriteFinishEvent != null)
        {
            int[] tmp = new int[Errors.Length];
            Errors.CopyTo(tmp, 0);
            int ret = Array.Find(tmp, x => x == 1);
            WriteFinishEvent(ret == 0);
        }
    }

    /// <summary>
    /// 断开连接
    /// </summary>
    public void DisConnect()
    {
        MyOpcServer.Disconnect();
    }
}

在这个基础上可以考虑合并读取

给每个方法加上事件

界面开发

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace opcda01
{
    public partial class FrmOpc : Form
    {
        OpcHelper opc = new OpcHelper();
        public FrmOpc()
        {
            InitializeComponent();
            lsvMain.Columns.Add("B1");
            lsvMain.Columns.Add("B2");
            lsvMain.Columns.Add("B3");
            lsvMain.Columns.Add("F1");
            lsvMain.Columns.Add("I1");
            lsvMain.Columns.Add("L1");
            lsvMain.Columns.Add("S1");
            lsvMain.Columns.Add("S2");
            ListViewItem item = new ListViewItem();
            item.Text = "";
            item.SubItems.Add("");
            item.SubItems.Add("");
            item.SubItems.Add("");
            item.SubItems.Add("");
            item.SubItems.Add("");
            item.SubItems.Add("");
            item.SubItems.Add("");
            lsvMain.Items.Add(item);
        }

        private void btnConnect_Click(object sender, EventArgs e)
        {
            opc.Ip = "127.0.0.1";
            opc.IsSubscribed= true;
            opc.IsDataChangeEvent= true;
            opc.Connect();
            opc.AddOpcItems("Chanel1.Device1.B1");
            opc.AddOpcItems("Chanel1.Device1.B2");
            opc.AddOpcItems("Chanel1.Device1.B3");
            opc.AddOpcItems("Chanel1.Device1.F1");
            opc.AddOpcItems("Chanel1.Device1.I1");
            opc.AddOpcItems("Chanel1.Device1.L1");
            opc.AddOpcItems("Chanel1.Device1.S1");
            opc.AddOpcItems("Chanel1.Device1.S2");

        }

        private void btnRead_Click(object sender, EventArgs e)
        {
            var ret = opc.ReadValueSyn("Chanel1.Device1.B1");
            lsvMain.Items[0].SubItems[0].Text = ret.ToString();
        }

        private void btnReadAll_Click(object sender, EventArgs e)
        {
            Dictionary<string, object> dic = opc.ReadAllSyn();
            int idx = 0;
            foreach (var item in dic)
            {
                lsvMain.Items[0].SubItems[idx].Text = item.Value.ToString();
                idx++;
            }
        }

        private void btnWrite_Click(object sender, EventArgs e)
        {
            opc.WriteValueSync("Chanel1.Device1.S2", "Hello");
        }

        private void btnWriteBatch_Click(object sender, EventArgs e)
        {
            Dictionary<string, object> dic = new Dictionary<string, object>();
            dic.Add("Chanel1.Device1.S1","A");
            dic.Add("Chanel1.Device1.S2", "B");
            opc.WriteValueSync(dic);
        }

        private void btnReadValueAsync_Click(object sender, EventArgs e)
        {
            List<string> Address = new List<string>()
            {
                "Chanel1.Device1.B1",
                "Chanel1.Device1.B2",
                "Chanel1.Device1.F1"
            };
            opc.ReadValueAsync(Address, (obj)=> {
                var d = obj;
            });

        }

        private void btnWriteAsync_Click(object sender, EventArgs e)
        {
            Dictionary<string, object> dic = new Dictionary<string, object>();
            dic.Add("Chanel1.Device1.S1", "A");
            dic.Add("Chanel1.Device1.S2", "B");
            opc.WriteValueAsync(dic, (obj) =>
            {
                var d = obj;
            });
        }

        private void btnDataChange_Click(object sender, EventArgs e)
        {
            opc.DataChangeEvent -= Opc_DataChangeEvent;
            opc.DataChangeEvent += Opc_DataChangeEvent;
        }

        private void Opc_DataChangeEvent(Dictionary<string, object> dic)
        {
            int idx = 0;
            foreach (var item in dic)
            {
                this.Invoke(() =>
                {
                    lsvMain.Items[0].SubItems[idx].Text = item.Value.ToString();
                });
                idx++;
            }
            //这个是用来刷chart图的
            int l = int.Parse(dic["Chanel1.Device1.L1"].ToString());
            chart1.Invoke(Draw,new object[] {l});

        }
    }
}

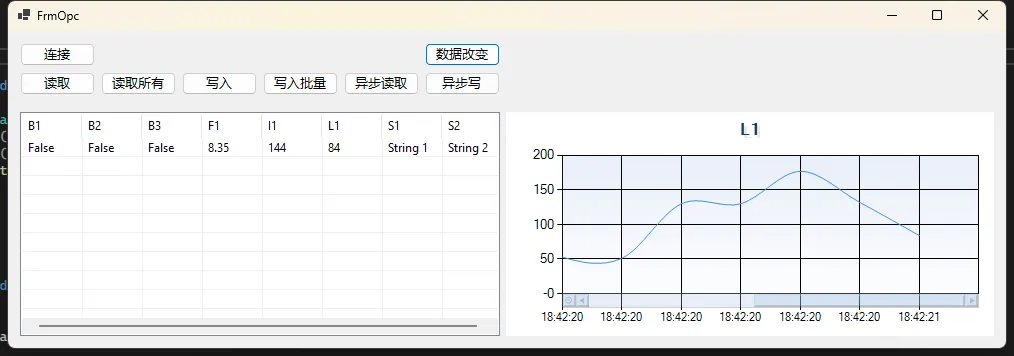

考虑加一个chart图，跟踪L1

安装WinForms.DataVisualization

  • 申明Chart
  • 申明Title
  • 申明ChartArea
  • 申明 Series
  • 指定Series的类型
C#
private void InitChart()
{
    Title title = new Title();
    //标题内容
    title.Text = "L1";
    //标题的字体
    title.Font = new System.Drawing.Font("Microsoft Sans Serif", 12, FontStyle.Bold);
    //标题字体颜色
    title.ForeColor = Color.FromArgb(26, 59, 105);
    //标题阴影颜色
    title.ShadowColor = Color.FromArgb(32, 0, 0, 0);
    //标题阴影偏移量
    title.ShadowOffset = 3;

    chart1.Titles.Add(title);

    Series series = new Series();
    series.ChartType = SeriesChartType.Spline;
    chart1.Series.Add(series);

    ChartArea chartArea = new ChartArea();

    //背景色
    chartArea.BackColor = Color.FromArgb(64, 165, 191, 228);
    //背景渐变方式
    chartArea.BackGradientStyle = GradientStyle.TopBottom;
    //渐变和阴影的辅助背景色
    chartArea.BackSecondaryColor = Color.White;
    //边框颜色
    chartArea.BorderColor = Color.FromArgb(64, 64, 64, 64);
    //阴影颜色
    chartArea.ShadowColor = Color.Transparent;

    //设置X轴和Y轴线条的颜色和宽度
    chartArea.AxisX.LineColor = Color.FromArgb(64, 64, 64, 64);
    chartArea.AxisX.LineWidth = 1;
    chartArea.AxisY.LineColor = Color.FromArgb(64, 64, 64, 64);
    chartArea.AxisY.LineWidth = 1;

    chart1.ChartAreas.Add(chartArea);

    chart1.ChartAreas[0].AxisX.LabelStyle.Format = "HH:mm:ss";
    chart1.ChartAreas[0].AxisX.ScaleView.Size = 5;
    chart1.ChartAreas[0].AxisX.ScrollBar.IsPositionedInside = true;
    chart1.ChartAreas[0].AxisX.ScrollBar.Enabled = true;
    chart1.Series[0].IsXValueIndexed = true;
    chart1.Series[0].XValueType = System.Windows.Forms.DataVisualization
        .Charting.ChartValueType.Time;
    chart1.Dock=DockStyle.Fill;
    pnlChart.Controls.Add(chart1);
}

private void Draw(int value)
{
    PointMessage point = new PointMessage()
    {
        Dt = DateTime.Now,
        Value =value
    };

    if (chart1.Series[0].Points.Count >= 10)
    {
        chart1.Series[0].Points.RemoveAt(0);
    }

    chart1.Series[0].Points.AddXY(point.Dt, point.Value);

    chart1.ChartAreas[0].AxisX.ScaleView.Position = chart1.Series[0].Points.Count - 5;
}

基础类

C#
public class PointMessage
{
    public DateTime Dt { get; set; }
    public int Value { get; set; }
}

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
