在现代工业4.0时代，数据采集系统已成为企业数字化转型的核心基础设施。无论是工厂生产线的传感器监控、物联网设备的状态采集，还是金融系统的实时交易数据处理，一个高效、稳定的数据采集系统都至关重要。

然而，许多C#开发者在构建此类系统时常常遇到这些痛点：数据处理延迟高、内存占用过大、异常数据处理不当、缺乏有效的质量控制机制。本文将通过一个完整的实战案例，教你如何用C#构建一个专业级的数据采集系统，彻底解决这些技术难题。

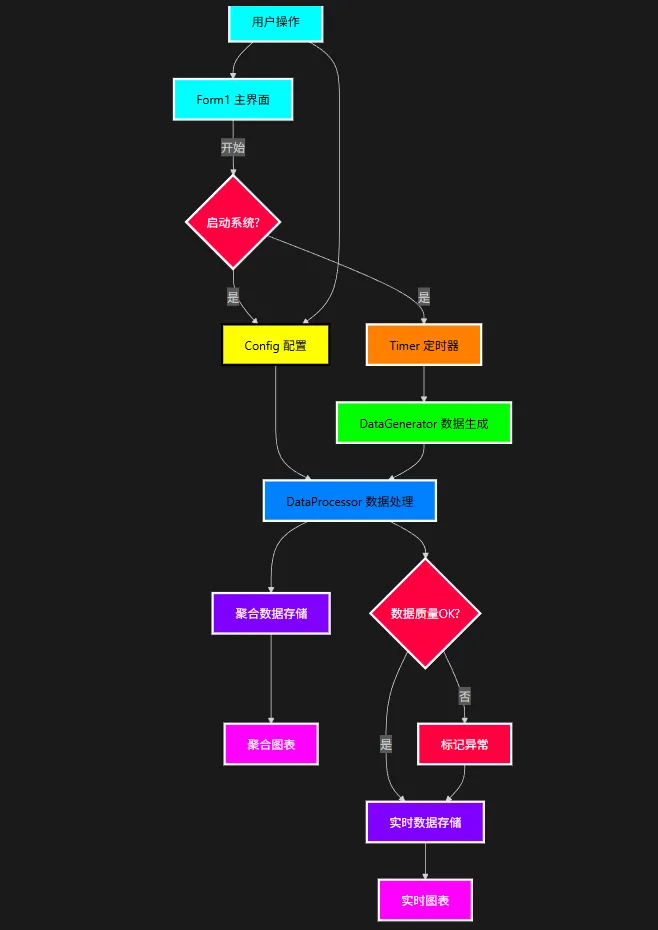

🎯 系统架构设计：三层数据流水线

核心架构思路

我们采用生产者-消费者模式结合Channel异步通信，构建了一个三层数据处理管道：

Markdown
数据生成层 → 数据处理层 → 数据聚合层 → UI展示层

这种设计的优势在于：

• ✅ 解耦性强：各层职责单一，便于维护和扩展
• ✅ 性能优异：基于Channel的异步处理，支持高并发
• ✅ 容错能力：单层故障不会影响整个系统运行

🔥 核心技术实现详解

1️⃣ 智能数据生成器：模拟真实传感器

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppDataAcquisitionSystem
{
    public class DataGenerator
    {
        private readonly Random _random;
        private double _baseValue;
        private double _trend;

        public DataGenerator()
        {
            _random = new Random();
            _baseValue = 50.0;
            _trend = 0.0;
        }

        public async Task<DataPoint> GenerateDataPointAsync()
        {
            // 模拟真实的传感器数据：基础值 + 趋势 + 噪声 + 偶尔的异常值
            var noise = _random.NextDouble() * 2 - 1; // -1 到 1 的噪声
            var spike = _random.NextDouble() < 0.05 ? _random.NextDouble() * 20 - 10 : 0; // 5%概率出现异常值

            _trend += (_random.NextDouble() - 0.5) * 0.1;
            _trend = Math.Max(-2, Math.Min(2, _trend));

            _baseValue += _trend;
            _baseValue = Math.Max(0, Math.Min(100, _baseValue)); // 限制基础值范围

            var value = _baseValue + noise + spike;

            return new DataPoint
            {
                Timestamp = DateTime.Now,
                Value = value,
                Quality = DataQuality.Good,
                Source = "Sensor-001"
            };
        }
    }
}

💡 实战技巧：

• 通过_trend变量实现数据的自然波动，更贴近真实传感器
• 异常值概率控制在5%，模拟实际环境中的偶发异常
• 数据范围限制避免了数值溢出问题

2️⃣ 高性能数据处理器：Channel + 异步流处理

C#
public class DataProcessor
{
    private readonly Channel<DataPoint> _rawDataChannel;
    private readonly Channel<DataPoint> _processedDataChannel;
    private readonly Channel<AggregatedData> _aggregatedDataChannel;

    public async Task StartProcessingAsync(CancellationToken cancellationToken = default)
    {
        // 🚀 并行处理：数据处理和聚合同时进行
        var processingTask = ProcessDataAsync(cancellationToken);
        var aggregationTask = AggregateDataAsync(cancellationToken);

        await Task.WhenAll(processingTask, aggregationTask);
    }

    private async Task ProcessDataAsync(CancellationToken cancellationToken)
    {
        await foreach (var dataPoint in _rawDataChannel.Reader.ReadAllAsync(cancellationToken))
        {
            var processedPoint = ProcessSingleDataPoint(dataPoint);
            if (processedPoint != null)
            {
                await _processedDataChannel.Writer.WriteAsync(processedPoint, cancellationToken);
            }
        }
    }
}

🔧 关键技术点：

• Channel优势：相比传统队列，Channel提供了更好的异步支持和背压控制
• 异步流处理：IAsyncEnumerable让数据流处理更加优雅
• 并行设计：处理和聚合同时进行，最大化系统吞吐量

3️⃣ 智能质量控制：多维度数据验证

C#
private DataQuality PerformQualityCheck(DataPoint dataPoint)
{
    // 🛡️ 基础数值检查
    if (double.IsNaN(dataPoint.Value) || double.IsInfinity(dataPoint.Value))
        return DataQuality.Bad;

    // 📊 数值范围验证
    if (Math.Abs(dataPoint.Value) > 1000)
        return DataQuality.Bad;

    // ⚡ 变化率检查 - 防止突变数据
    if (_lastValue != null)
    {
        var timeDiff = (dataPoint.Timestamp - _lastValue.Timestamp).TotalSeconds;
        if (timeDiff > 0)
        {
            var changeRate = Math.Abs(dataPoint.Value - _lastValue.Value) / timeDiff;
            if (changeRate > 100) // 变化率阈值
                return DataQuality.Uncertain;
        }
    }

    return DataQuality.Good;
}

4️⃣ 实时数据聚合：滑动窗口算法

C#
private async Task AggregateDataAsync(CancellationToken cancellationToken)
{
    await foreach (var dataPoint in _processedDataChannel.Reader.ReadAllAsync(cancellationToken))
    {
        _windowBuffer.Add(dataPoint);

        if (_windowBuffer.Count >= _config.WindowSize)
        {
            var aggregated = CalculateAggregatedData(_windowBuffer);
            await _aggregatedDataChannel.Writer.WriteAsync(aggregated, cancellationToken);

            // 🎯 滑动窗口优化：保留部分历史数据
            var keepCount = _config.WindowSize / 2;
            _windowBuffer.RemoveRange(0, _windowBuffer.Count - keepCount);
        }
    }
}

💡 滑动窗口优势：

• 保持数据连续性，避免窗口边界效应
• 内存使用优化，防止缓冲区无限增长
• 实时性与准确性的完美平衡

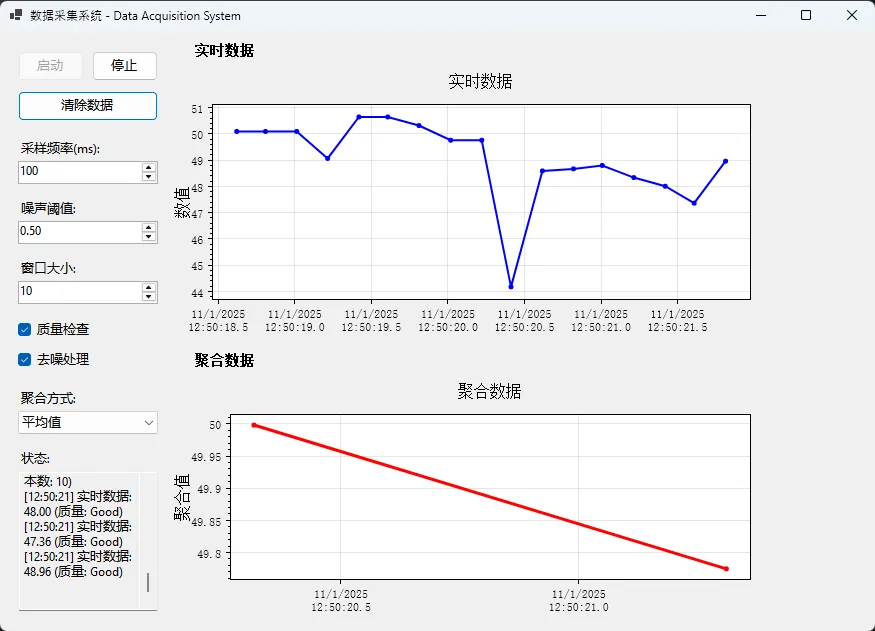

📊 UI界面：实时可视化展示

ScottPlot集成实现

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using ScottPlot;
using Timer = System.Threading.Timer;

namespace AppDataAcquisitionSystem
{
    public partial class Form1 : Form
    {
        private DataGenerator _dataGenerator;
        private DataProcessor _dataProcessor;
        private AcquisitionConfig _config;
        private Timer _acquisitionTimer;
        private CancellationTokenSource _cancellationTokenSource;

        // 数据存储
        private List<DataPoint> _realTimeData;
        private List<AggregatedData> _aggregatedData;

        // 图表数据
        private List<double> _realTimeValues;
        private List<DateTime> _realTimeTimes;
        private List<double> _aggregatedValues;
        private List<DateTime> _aggregatedTimes;

        private const int MaxDisplayPoints = 100;

        public Form1()
        {
            InitializeComponent();
            InitializeSystem();
            InitializePlots();
            AttachEventHandlers();
        }

        private void InitializeSystem()
        {
            _realTimeData = new List<DataPoint>();
            _aggregatedData = new List<AggregatedData>();
            _realTimeValues = new List<double>();
            _realTimeTimes = new List<DateTime>();
            _aggregatedValues = new List<double>();
            _aggregatedTimes = new List<DateTime>();

            _dataGenerator = new DataGenerator();
            UpdateConfiguration();
        }

        private void InitializePlots()
        {
            plotRealTime.Font = new Font("SimSun", 12);
            // 配置实时数据图表
            plotRealTime.Plot.Title("实时数据");
            plotRealTime.Plot.Font.Set("SimSun");
            plotRealTime.Plot.XLabel("时间");
            plotRealTime.Plot.YLabel("数值");

            // 配置聚合数据图表
            plotAggregated.Font = new Font("SimSun", 12);
            plotAggregated.Plot.Title("聚合数据");
            plotAggregated.Plot.Font.Set("SimSun");
            plotAggregated.Plot.XLabel("时间");
            plotAggregated.Plot.YLabel("聚合值");
        }

        private void AttachEventHandlers()
        {
            btnStart.Click += BtnStart_Click;
            btnStop.Click += BtnStop_Click;
            btnClear.Click += BtnClear_Click;

            // 配置变更事件
            nudSampleRate.ValueChanged += (s, e) => UpdateConfiguration();
            nudNoiseThreshold.ValueChanged += (s, e) => UpdateConfiguration();
            nudWindowSize.ValueChanged += (s, e) => UpdateConfiguration();
            chkQualityCheck.CheckedChanged += (s, e) => UpdateConfiguration();
            chkDenoising.CheckedChanged += (s, e) => UpdateConfiguration();
            cmbAggregationType.SelectedIndexChanged += (s, e) => UpdateConfiguration();
        }

        private void UpdateConfiguration()
        {
            _config = new AcquisitionConfig
            {
                SampleRateMs = (int)nudSampleRate.Value,
                NoiseThreshold = (double)nudNoiseThreshold.Value,
                WindowSize = (int)nudWindowSize.Value,
                EnableQualityCheck = chkQualityCheck.Checked,
                EnableDenoising = chkDenoising.Checked,
                AggregationType = (AggregationType)cmbAggregationType.SelectedIndex
            };
        }

        private async void BtnStart_Click(object sender, EventArgs e)
        {
            try
            {
                btnStart.Enabled = false;
                btnStop.Enabled = true;

                UpdateConfiguration();
                _dataProcessor = new DataProcessor(_config);
                _cancellationTokenSource = new CancellationTokenSource();

                // 启动数据处理
                var processingTask = _dataProcessor.StartProcessingAsync(_cancellationTokenSource.Token);

                // 启动数据读取任务
                var readingTask = StartDataReadingAsync(_cancellationTokenSource.Token);

                // 启动数据采集定时器
                _acquisitionTimer = new Timer(OnDataAcquisitionTimer, null, 0, _config.SampleRateMs);

                UpdateStatus("系统已启动");

                await Task.WhenAny(processingTask, readingTask);
            }
            catch (Exception ex)
            {
                UpdateStatus($"启动失败: {ex.Message}");
                btnStart.Enabled = true;
                btnStop.Enabled = false;
            }
        }

        private void BtnStop_Click(object sender, EventArgs e)
        {
            StopAcquisition();
        }

        private void BtnClear_Click(object sender, EventArgs e)
        {
            _realTimeData.Clear();
            _aggregatedData.Clear();
            _realTimeValues.Clear();
            _realTimeTimes.Clear();
            _aggregatedValues.Clear();
            _aggregatedTimes.Clear();

            plotRealTime.Plot.Clear();
            plotAggregated.Plot.Clear();
            plotRealTime.Refresh();
            plotAggregated.Refresh();

            UpdateStatus("数据已清除");
        }

        private void StopAcquisition()
        {
            try
            {
                _acquisitionTimer?.Dispose();
                _cancellationTokenSource?.Cancel();
                _dataProcessor?.StopProcessing();

                btnStart.Enabled = true;
                btnStop.Enabled = false;

                UpdateStatus("系统已停止");
            }
            catch (Exception ex)
            {
                UpdateStatus($"停止失败: {ex.Message}");
            }
        }

        private async void OnDataAcquisitionTimer(object state)
        {
            try
            {
                var dataPoint = await _dataGenerator.GenerateDataPointAsync();
                await _dataProcessor.AddRawDataAsync(dataPoint);
            }
            catch (Exception ex)
            {
                BeginInvoke(new Action(() => UpdateStatus($"数据采集错误: {ex.Message}")));
            }
        }

        private async Task StartDataReadingAsync(CancellationToken cancellationToken)
        {
            // 启动处理后数据读取
            var processedTask = ReadProcessedDataAsync(cancellationToken);
            var aggregatedTask = ReadAggregatedDataAsync(cancellationToken);

            await Task.WhenAll(processedTask, aggregatedTask);
        }

        private async Task ReadProcessedDataAsync(CancellationToken cancellationToken)
        {
            try
            {
                await foreach (var dataPoint in _dataProcessor.ProcessedDataReader.ReadAllAsync(cancellationToken))
                {
                    BeginInvoke(new Action(() =>
                    {
                        _realTimeData.Add(dataPoint);
                        _realTimeValues.Add(dataPoint.Value);
                        _realTimeTimes.Add(dataPoint.Timestamp);

                        // 限制显示点数
                        if (_realTimeValues.Count > MaxDisplayPoints)
                        {
                            _realTimeValues.RemoveAt(0);
                            _realTimeTimes.RemoveAt(0);
                        }

                        UpdateRealTimePlot();
                        UpdateStatus($"实时数据: {dataPoint.Value:F2} (质量: {dataPoint.Quality})");
                    }));
                }
            }
            catch (OperationCanceledException)
            {
                // 正常取消
            }
        }

        private async Task ReadAggregatedDataAsync(CancellationToken cancellationToken)
        {
            try
            {
                await foreach (var aggregatedData in _dataProcessor.AggregatedDataReader.ReadAllAsync(cancellationToken))
                {
                    BeginInvoke(new Action(() =>
                    {
                        _aggregatedData.Add(aggregatedData);
                        _aggregatedValues.Add(aggregatedData.Value);
                        _aggregatedTimes.Add(aggregatedData.WindowEnd);

                        // 限制显示点数
                        if (_aggregatedValues.Count > MaxDisplayPoints)
                        {
                            _aggregatedValues.RemoveAt(0);
                            _aggregatedTimes.RemoveAt(0);
                        }

                        UpdateAggregatedPlot();
                        UpdateStatus($"聚合数据 ({aggregatedData.Type}): {aggregatedData.Value:F2} (样本数: {aggregatedData.SampleCount})");
                    }));
                }
            }
            catch (OperationCanceledException)
            {
                // 正常取消
            }
        }

        private void UpdateRealTimePlot()
        {
            if (_realTimeValues.Count == 0) return;

            plotRealTime.Plot.Clear();

            var times = _realTimeTimes.Select(t => t.ToOADate()).ToArray();
            var values = _realTimeValues.ToArray();

            var scatter = plotRealTime.Plot.Add.Scatter(times, values);
            scatter.Color = Colors.Blue;
            scatter.LineWidth = 2;

            plotRealTime.Plot.Axes.DateTimeTicksBottom();
            plotRealTime.Plot.Axes.AutoScale();
            plotRealTime.Refresh();
        }

        private void UpdateAggregatedPlot()
        {
            if (_aggregatedValues.Count == 0) return;

            plotAggregated.Plot.Clear();

            var times = _aggregatedTimes.Select(t => t.ToOADate()).ToArray();
            var values = _aggregatedValues.ToArray();

            var scatter = plotAggregated.Plot.Add.Scatter(times, values);
            scatter.Color = Colors.Red;
            scatter.LineWidth = 3;

            plotAggregated.Plot.Axes.DateTimeTicksBottom();
            plotAggregated.Plot.Axes.AutoScale();
            plotAggregated.Refresh();
        }

        private void UpdateStatus(string message)
        {
            if (InvokeRequired)
            {
                BeginInvoke(new Action(() => UpdateStatus(message)));
                return;
            }

            txtStatus.AppendText($"[{DateTime.Now:HH:mm:ss}] {message}\r\n");
            txtStatus.ScrollToCaret();
        }

        protected override void OnFormClosing(FormClosingEventArgs e)
        {
            StopAcquisition();
            base.OnFormClosing(e);
        }
    }
}

⚡ 性能优化核心技巧

1️⃣ 内存管理优化

C#
private const int MaxDisplayPoints = 100;

// 限制显示点数，防止内存泄漏
if (_realTimeValues.Count > MaxDisplayPoints)
{
    _realTimeValues.RemoveAt(0);
    _realTimeTimes.RemoveAt(0);
}

2️⃣ 异步操作最佳实践

C#
// ✅ 正确的取消令牌使用
_cancellationTokenSource = CancellationTokenSource.CreateLinkedTokenSource(cancellationToken);

// ✅ 优雅的资源清理
protected override void OnFormClosing(FormClosingEventArgs e)
{
    StopAcquisition(); // 确保所有异步任务正确停止
    base.OnFormClosing(e);
}

🛠️ 实际应用场景

这套数据采集系统可以广泛应用于：

1. 工业物联网：传感器数据实时监控
2. 金融系统：股价、交易数据采集
3. 环境监测：温湿度、空气质量数据
4. 性能监控：服务器、应用性能指标采集

🔍 常见问题与解决方案

Q1: Channel使用中的背压问题？

A: 使用有界Channel并设置合理的容量限制：

C#
var options = new BoundedChannelOptions(1000)
{
    FullMode = BoundedChannelFullMode.Wait,
    SingleReader = true,
    SingleWriter = false
};
_channel = Channel.CreateBounded<DataPoint>(options);

Q2: 大量数据时的性能瓶颈？

A: 采用批处理策略：

C#
private readonly List<DataPoint> _batchBuffer = new List<DataPoint>();
private const int BatchSize = 50;

// 批量处理提高效率
if (_batchBuffer.Count >= BatchSize)
{
    await ProcessBatchAsync(_batchBuffer);
    _batchBuffer.Clear();
}

🎉 总结与展望

通过本文的实战案例，我们掌握了构建高效数据采集系统的三大核心技术：

1. Channel异步通信：实现高并发、低延迟的数据传输
2. 多层处理管道：质量控制、去噪处理、数据聚合的完整流程
3. 实时可视化展示：ScottPlot与WinForms的完美结合

这套架构不仅解决了传统数据采集系统的性能瓶颈，还提供了强大的扩展性。你可以轻松添加新的数据源、处理算法或可视化组件。

---

💬 互动讨论：

1. 你在项目中遇到过哪些数据采集的技术挑战？
2. 对于异常数据的处理，你有什么更好的策略？

如果这篇文章对你的C#开发工作有帮助，请转发给更多同行，让我们一起提升.NET技术水平！关注我，获取更多C#实战干货！

🔖 收藏级代码模板已整理完毕，建议收藏备用！
