SkiaSharp 是一个强大的跨平台 2D 图形库，提供了灵活且高效的图像处理能力。本文将深入探讨 SkiaSharp 中图像裁剪的各种技术和方法。

Nuget 安装包

C#
SkiaSharp
SkiaSharp.Views.WindowsForms

基本图像裁剪

核心功能

• 图像打开：支持打开JPG、JPEG、PNG和BMP格式的图像文件
• 交互式选择区域：用户可以通过鼠标在图像上拖拽选择要裁剪的矩形区域
• 实时预览：选择过程中实时显示选择框和区域尺寸信息
• 图像裁剪：使用SkiaSharp库执行图像裁剪操作
• 裁剪结果保存：支持将裁剪后的图像保存为新文件

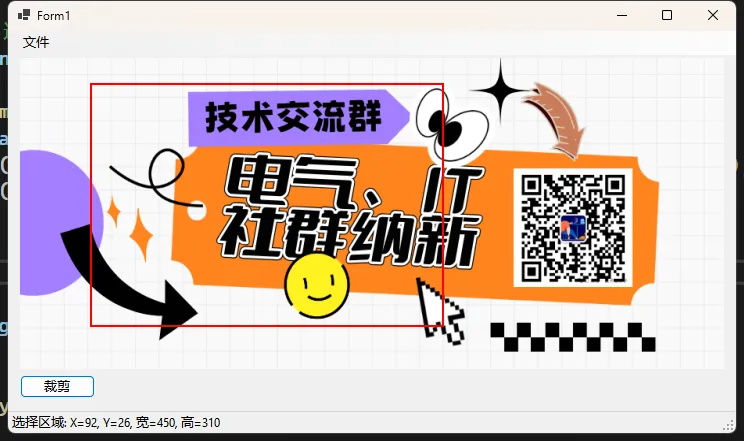

矩形区域裁剪

C#
using System.Windows.Forms;
using SkiaSharp;

namespace AppCut
{
    public partial class Form1 : Form
    {
        private string currentImagePath;
        private Image displayImage;
        private Rectangle cropSelection = Rectangle.Empty;
        private Point startPoint;
        private bool isSelecting = false;
        public Form1()
        {
            InitializeComponent();
        }

        private void openMenuItem_Click(object sender, EventArgs e)
        {
            using (OpenFileDialog openFileDialog = new OpenFileDialog())
            {
                openFileDialog.Filter = "图像文件|*.jpg;*.jpeg;*.png;*.bmp|所有文件|*.*";
                openFileDialog.Title = "选择图像文件";

                if (openFileDialog.ShowDialog() == DialogResult.OK)
                {
                    try
                    {
                        // 清除之前的选择
                        cropSelection = Rectangle.Empty;

                        // 加载并显示图像
                        currentImagePath = openFileDialog.FileName;
                        displayImage = Image.FromFile(currentImagePath);
                        pictureBox1.Image = displayImage;

                        // 更新UI状态
                        statusLabel.Text = $"已加载图像: {Path.GetFileName(currentImagePath)}";
                        btnCrop.Enabled = false;
                        saveMenuItem.Enabled = false;
                    }
                    catch (Exception ex)
                    {
                        MessageBox.Show($"无法加载图像: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
                    }
                }
            }
        }

        private void pictureBox1_MouseMove(object sender, MouseEventArgs e)
        {
            if (isSelecting && displayImage != null)
            {
                Point currentPoint = ConvertCoordinates(e.Location);

                // 计算选择矩形
                int x = Math.Min(startPoint.X, currentPoint.X);
                int y = Math.Min(startPoint.Y, currentPoint.Y);
                int width = Math.Abs(currentPoint.X - startPoint.X);
                int height = Math.Abs(currentPoint.Y - startPoint.Y);

                cropSelection = new Rectangle(x, y, width, height);

                // 更新状态栏显示选择区域信息
                statusLabel.Text = $"选择区域: X={x}, Y={y}, 宽={width}, 高={height}";

                pictureBox1.Invalidate();
            }
        }

        private void pictureBox1_MouseDown(object sender, MouseEventArgs e)
        {
            if (displayImage != null)
            {
                // 开始新的选择
                isSelecting = true;
                startPoint = ConvertCoordinates(e.Location);
                cropSelection = Rectangle.Empty;
                pictureBox1.Invalidate();
            }
        }

        private void pictureBox1_MouseUp(object sender, MouseEventArgs e)
        {
            if (isSelecting && displayImage != null)
            {
                isSelecting = false;

                // 确保选择区域有效
                if (cropSelection.Width > 10 && cropSelection.Height > 10)
                {
                    btnCrop.Enabled = true;
                }
                else
                {
                    cropSelection = Rectangle.Empty;
                    statusLabel.Text = "选择区域太小，请重新选择一个更大的区域";
                }
            }
        }

        private void pictureBox1_Paint(object sender, PaintEventArgs e)
        {
            if (displayImage != null && !cropSelection.IsEmpty)
            {
                // 绘制选择矩形
                using (Pen pen = new Pen(Color.Red, 2))
                {
                    // 转换回屏幕坐标
                    Rectangle displayRect = GetDisplayRectangle();
                    float ratioX = (float)displayRect.Width / displayImage.Width;
                    float ratioY = (float)displayRect.Height / displayImage.Height;

                    int x = displayRect.X + (int)(cropSelection.X * ratioX);
                    int y = displayRect.Y + (int)(cropSelection.Y * ratioY);
                    int width = (int)(cropSelection.Width * ratioX);
                    int height = (int)(cropSelection.Height * ratioY);

                    e.Graphics.DrawRectangle(pen, x, y, width, height);
                }
            }
        }

        // 将屏幕坐标转换为图像坐标
        private Point ConvertCoordinates(Point screenPoint)
        {
            Rectangle displayRect = GetDisplayRectangle();

            if (displayRect.Width <= 0 || displayRect.Height <= 0)
                return new Point(0, 0);

            float ratioX = (float)displayImage.Width / displayRect.Width;
            float ratioY = (float)displayImage.Height / displayRect.Height;

            int imageX = (int)((screenPoint.X - displayRect.X) * ratioX);
            int imageY = (int)((screenPoint.Y - displayRect.Y) * ratioY);

            // 确保坐标在图像范围内
            imageX = Math.Max(0, Math.Min(imageX, displayImage.Width - 1));
            imageY = Math.Max(0, Math.Min(imageY, displayImage.Height - 1));

            return new Point(imageX, imageY);
        }

        // 获取图像在pictureBox1中的实际显示矩形
        private Rectangle GetDisplayRectangle()
        {
            if (displayImage == null)
                return Rectangle.Empty;

            float imageRatio = (float)displayImage.Width / displayImage.Height;
            float boxRatio = (float)pictureBox1.Width / pictureBox1.Height;

            int x, y, width, height;

            if (imageRatio > boxRatio)
            {
                // 图像更宽，适应宽度
                width = pictureBox1.Width;
                height = (int)(width / imageRatio);
                x = 0;
                y = (pictureBox1.Height - height) / 2;
            }
            else
            {
                // 图像更高，适应高度
                height = pictureBox1.Height;
                width = (int)(height * imageRatio);
                y = 0;
                x = (pictureBox1.Width - width) / 2;
            }

            return new Rectangle(x, y, width, height);
        }

        private void btnCrop_Click(object sender, EventArgs e)
        {
            if (displayImage != null && !cropSelection.IsEmpty)
            {
                try
                {
                    // 创建一个临时文件来保存裁剪结果
                    string tempOutputPath = Path.Combine(Path.GetTempPath(), "cropped_" + Path.GetFileName(currentImagePath));

                    // 将Rectangle转换为SKRectI
                    SKRectI cropRect = new SKRectI(
                        cropSelection.Left,
                        cropSelection.Top,
                        cropSelection.Right,
                        cropSelection.Bottom
                    );

                    // 执行裁剪
                    CropImage(currentImagePath, tempOutputPath, cropRect);

                    // 显示裁剪结果
                    displayImage.Dispose();
                    displayImage = Image.FromFile(tempOutputPath);
                    pictureBox1.Image = displayImage;

                    // 更新当前图像路径为临时路径
                    currentImagePath = tempOutputPath;

                    // 更新UI状态
                    cropSelection = Rectangle.Empty;
                    btnCrop.Enabled = false;
                    saveMenuItem.Enabled = true;
                    statusLabel.Text = "裁剪完成，可以保存结果";
                }
                catch (Exception ex)
                {
                    MessageBox.Show($"裁剪操作失败: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
                }
            }
        }

        private void saveMenuItem_Click(object sender, EventArgs e)
        {
            if (displayImage != null)
            {
                using (SaveFileDialog saveFileDialog = new SaveFileDialog())
                {
                    saveFileDialog.Filter = "PNG 图像|*.png|JPEG 图像|*.jpg|BMP 图像|*.bmp";
                    saveFileDialog.Title = "保存裁剪后的图像";
                    saveFileDialog.DefaultExt = "png";

                    if (saveFileDialog.ShowDialog() == DialogResult.OK)
                    {
                        try
                        {
                            // 复制临时文件到用户选择的位置
                            File.Copy(currentImagePath, saveFileDialog.FileName, true);
                            statusLabel.Text = $"已保存到: {saveFileDialog.FileName}";
                        }
                        catch (Exception ex)
                        {
                            MessageBox.Show($"保存文件失败: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
                        }
                    }
                }
            }
        }

        public void CropImage(string inputPath, string outputPath, SKRectI cropRect)
        {
            // 加载源图像
            using (SKBitmap sourceBitmap = SKBitmap.Decode(inputPath))
            {
                // 创建裁剪后的图像
                using (SKBitmap croppedBitmap = new SKBitmap(cropRect.Width, cropRect.Height))
                {
                    // 使用 DrawBitmap 进行裁剪
                    using (SKCanvas canvas = new SKCanvas(croppedBitmap))
                    {
                        canvas.DrawBitmap(
                            sourceBitmap,
                            new SKRect(cropRect.Left, cropRect.Top, cropRect.Right, cropRect.Bottom),
                            new SKRect(0, 0, cropRect.Width, cropRect.Height)
                        );
                    }

                    // 保存裁剪后的图像
                    using (SKImage image = SKImage.FromBitmap(croppedBitmap))
                    using (SKData data = image.Encode(SKEncodedImageFormat.Png, 100))
                    {
                        File.WriteAllBytes(outputPath, data.ToArray());
                    }
                }
            }
        }
    }
}

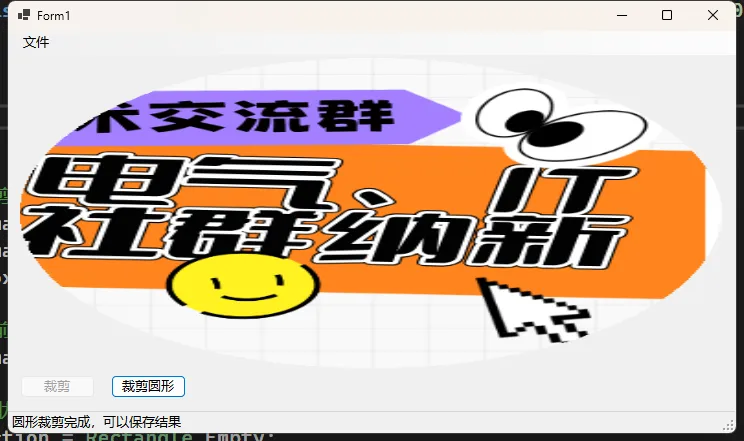

圆形裁剪

C#
// 圆形裁剪方法
public SKBitmap CropCircular(SKBitmap sourceBitmap)
{
    int diameter = Math.Min(sourceBitmap.Width, sourceBitmap.Height);
    int radius = diameter / 2;

    // 创建圆形位图
    SKBitmap circularBitmap = new SKBitmap(diameter, diameter);

    using (SKCanvas canvas = new SKCanvas(circularBitmap))
    {
        // 清除背景为透明
        canvas.Clear(SKColors.Transparent);

        // 创建圆形裁剪路径
        using (SKPath clipPath = new SKPath())
        {
            clipPath.AddCircle(radius, radius, radius);
            canvas.ClipPath(clipPath);

            // 计算居中绘制的源矩形
            SKRect sourceRect = new SKRect(
                (sourceBitmap.Width - diameter) / 2f,
                (sourceBitmap.Height - diameter) / 2f,
                (sourceBitmap.Width + diameter) / 2f,
                (sourceBitmap.Height + diameter) / 2f
            );

            // 绘制图像
            canvas.DrawBitmap(sourceBitmap, sourceRect, new SKRect(0, 0, diameter, diameter));
        }
    }

    return circularBitmap;
}

裁剪注意事项

性能优化

• 对大图像使用 Subset 方法
• 避免不必要的内存分配
• 使用 SKImage.Encode 进行高效编码

错误处理

• 添加输入验证
• 处理可能的异常情况
• 检查图像尺寸和裁剪区域

最佳实践

• 预先计算裁剪区域
• 考虑目标分辨率和宽高比
• 保留原始图像的高质量
• 适当处理内存释放

结语

SkiaSharp 提供了强大且灵活的图像裁剪功能，通过合理使用 API，可以实现各种复杂的图像处理需求。
