还在为复杂的报表打印而头疼吗？这个有周末闲着把老早写的一个打印类重写了，好处就是可以用json定义结构了，不过发现写到最后还是有些小麻烦，人也懒了，等有时间再优化吧。Excel导出太慢，Crystal Reports太重，自己画Graphics太复杂？今天分享一个轻量级的C# WinForms表格打印解决方案，让你用JSON配置就能搞定各种复杂的表格打印需求！
这套方案不仅支持动态数据绑定、单元格合并，还能轻松添加二维码和条形码，最关键的是配置简单、性能优秀。无论是物料标签、采购单据还是各种业务报表，都能快速搞定。
🎯 传统打印方案的痛点分析
常见问题汇总
- Graphics绘制繁琐：每个表格都要写一堆坐标计算代码
- Excel导出缓慢：大量数据处理时性能瓶颈明显
- 报表工具笨重：Crystal Reports等需要额外许可费用
- 维护成本高：表格样式调整需要重新编译发布
业务场景需求
实际开发中，我们经常需要打印：

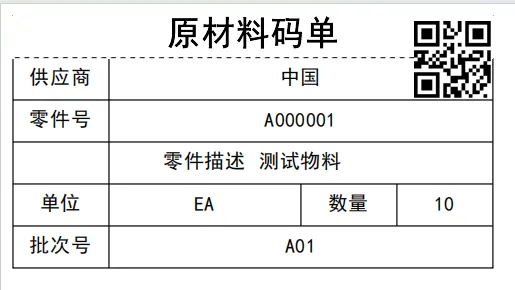

- 物料标签（带条码/二维码）

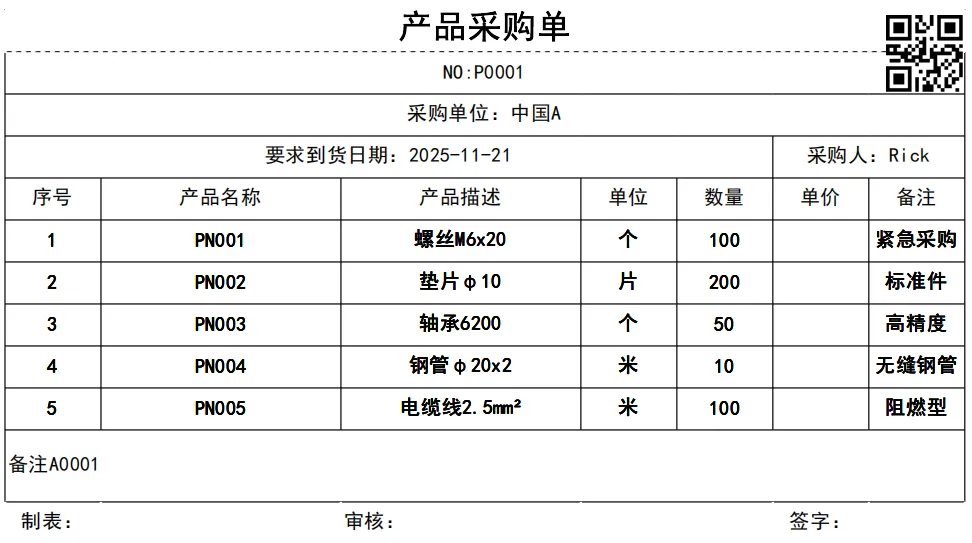

- 采购订单（动态行数）
- 出库单据（复杂表头）
- 质检报告（数据格式化）

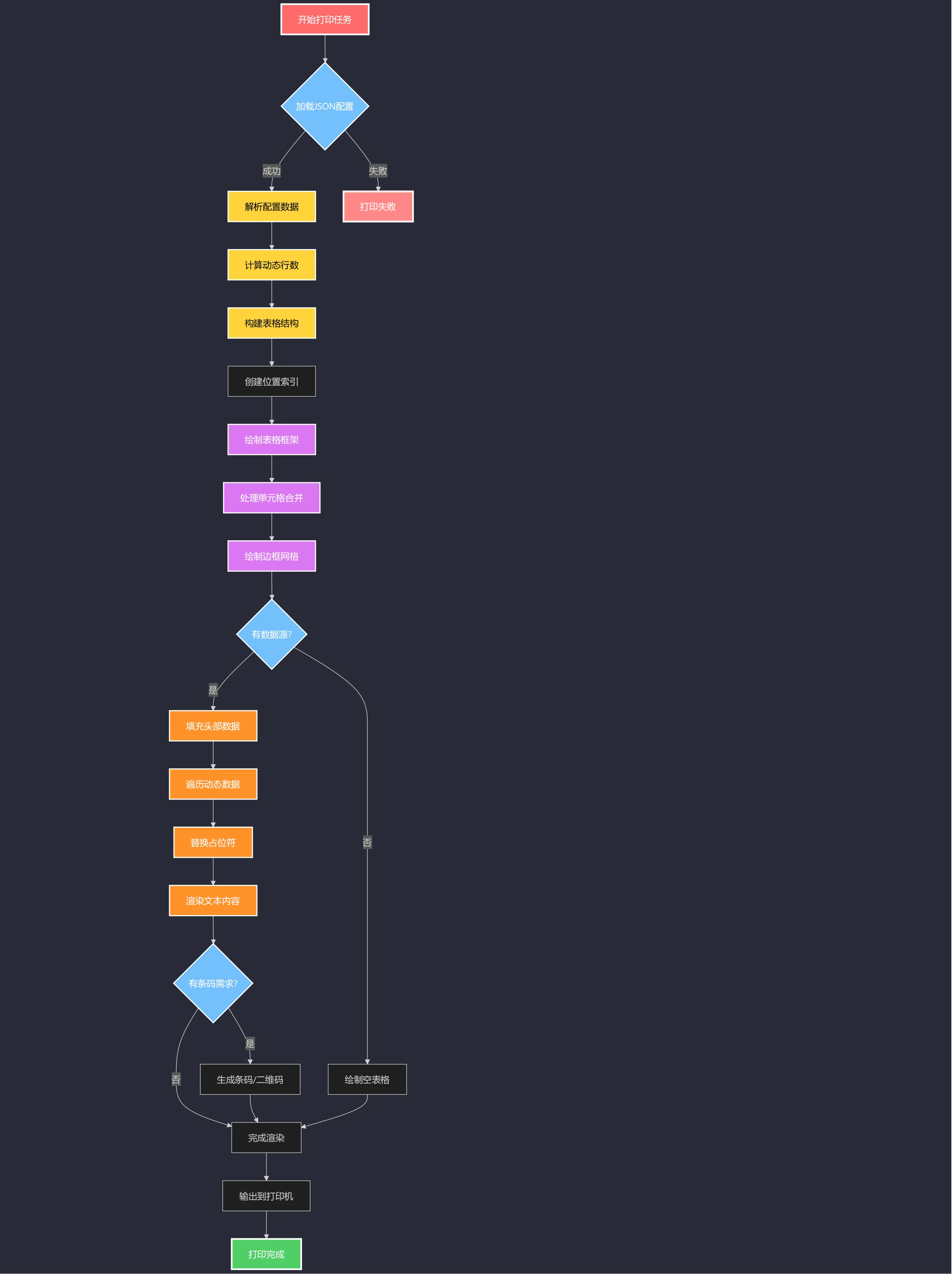

🚩 基本流程
💡 JSON配置驱动的解决方案
🔧 核心设计理念
这套方案采用配置与逻辑分离的设计思路：
- JSON配置文件：定义表格结构、样式、数据绑定
- 渲染引擎：负责解析配置并绘制表格
- 数据适配器：处理动态数据和占位符替换
📊 架构组件说明
C#// 核心类结构
public class TableDocument // 主渲染引擎
public class TableConfig // 配置数据模型
public class Position // 单元格位置管理
public class Row/Column // 行列定义
🔥 实战代码解析
1️⃣ 基础配置结构
JSON{
"Printer": {
"Name": "Microsoft Print to PDF",
"PaperSize": "A4"
},
"StartPosition": { "X": 10, "Y": 10 },
"RowsCount": 7,
"ColumnsCount": 7,
"ColumnsWidths": [80, 200, 200, 80, 80, 80, 80]
}
关键特性：
- 支持自定义纸张大小
- 灵活的起始位置设置
- 动态列宽配置
2️⃣ 动态数据绑定
JSON{
"RowIndex": "6",
"Is_Items": true, // 标记为动态数据行
"Cells": [
{
"Title": "$seq_no$", // 序号占位符
"ColumnIndex": "1"
},
{
"Title": "$part_no$", // 物料编号
"ColumnIndex": "2"
}
]
}
占位符语法：
$property$：简单属性绑定$date_field,date,yyyy-MM-dd$：日期格式化$seq_no$：自动序号生成
3️⃣ 核心渲染逻辑
C#public async Task DrawTableAsync(Graphics graphics, object headerData,
IEnumerable<object> items, TableConfig config)
{
// 1. 清理状态并重新计算布局
ClearState();
await OrganizeConfigAsync(config, items.Count());
// 2. 构建表格结构
DrawStructure(config, items.Count());
// 3. 绘制表格边框和网格线
Draw(graphics, config);
// 4. 填充数据内容
await RenderCellData(graphics, headerData, items, config);
}
4️⃣ 智能单元格合并
C#private (int rowSpan, int colSpan) GetMergeSpan(string[]? merge, int? seqNo)
{
if (merge == null || merge.Length < 4) return (0, 0);
// 支持动态计算合并范围
string startRow = merge[0];
if (seqNo.HasValue && startRow.Contains("+"))
{
startRow = Calculate(startRow.Replace("seq_no", seqNo.Value.ToString())).ToString();
}
return (rowSpan, colSpan);
}
5️⃣ 条码/二维码集成
C#public void DrawQRCode(Graphics graphics, string code, Position position,
Point offset, int width = 64, int height = 64)
{
var writer = new BarcodeWriter
{
Options = new EncodingOptions {
Width = width, Height = height,
Margin = 0, PureBarcode = true
},
Format = BarcodeFormat.QR_CODE
};
using var bitmap = writer.Write(code);
DrawImageInCell(graphics, position, bitmap, offset);
}
🎨 高级功能特性
💪 动态行数计算
JSON{
"RowIndex": "5+Items.Count+1", // 支持表达式计算
"Cells": [
{
"Title": "总计行内容",
"Merge": ["5+Items.Count+1", "1", "5+Items.Count+1", "7"]
}
]
}
🎯 灵活的边框控制
JSON{
"Borders": [
{
"Direction": "Bottom",
"Width": 1,
"Style": "Dot", // 支持虚线样式
"Color": "#000000"
}
]
}
📝 字体样式配置
JSON{
"Font": {
"Name": "SimHei",
"Size": 20,
"Bold": true,
"Italic": false
},
"Alignment": "Center", // 水平对齐
"LineAlignment": "Center" // 垂直对齐
}
⚡ 性能优化亮点
🚀 缓存机制
C#private readonly Dictionary<(string? h, string? v), StringFormat> _stringFormatCache = new();
private StringFormat GetCachedStringFormat(string? alignment, string? lineAlignment)
{
var key = (alignment, lineAlignment);
if (_stringFormatCache.TryGetValue(key, out var sf)) return sf;
// 创建并缓存StringFormat对象
sf = new StringFormat { /* 配置对象 */ };
_stringFormatCache[key] = sf;
return sf;
}
💡 智能位置索引
C#private readonly Dictionary<(int Row, int Col), Position> _positionMap = new();
public Position? GetPosition(int rowIndex, int columnIndex)
{
_positionMap.TryGetValue((rowIndex, columnIndex), out var p);
return p;
}
🏳️🌈 完整核心类
C#using Microsoft.CodeAnalysis.CSharp.Scripting;
using System;
using System.Collections.Generic;
using System.Data;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Linq;
using System.Text.Json;
using System.Text.RegularExpressions;
using System.Threading.Tasks;
using ZXing;
using ZXing.Windows.Compatibility;
namespace PrinterLibrary
{
public class TableDocument
{
public List<Column> Columns { get; } = new();
public List<Row> Rows { get; } = new();
public List<Position> Positions { get; } = new(); // 单元格位置索引
public Dictionary<Position, Position> MergeCell { get; } = new(); // 合并单元格信息
private readonly Dictionary<(int Row, int Col), Position> _positionMap = new();
private readonly Dictionary<(string? h, string? v), StringFormat> _stringFormatCache = new();
public void ClearState()
{
Columns.Clear();
Rows.Clear();
Positions.Clear();
MergeCell.Clear();
_positionMap.Clear();
_stringFormatCache.Clear();
}
public Position? GetPosition(int rowIndex, int columnIndex)
{
_positionMap.TryGetValue((rowIndex, columnIndex), out var p);
return p;
}
public int GetColumnWidth(int columnIndex) => Columns[columnIndex].Width;
public int GetRowHeight(int rowIndex) => Rows[rowIndex].Height;
public void DrawImageInCell(Graphics graphics, Position position, Image image, Point offset)
{
var rect = new Rectangle(position.Point.X + offset.X, position.Point.Y + offset.Y, image.Width, image.Height);
graphics.DrawImage(image, rect);
}
public Image ResizeImage(Image image, int width, int height)
{
var resized = new Bitmap(width, height);
using var g = Graphics.FromImage(resized);
g.InterpolationMode = InterpolationMode.HighQualityBicubic;
g.SmoothingMode = SmoothingMode.HighQuality;
g.PixelOffsetMode = PixelOffsetMode.HighQuality;
g.DrawImage(image, new Rectangle(0, 0, width, height));
return resized;
}
public void DrawQRCode(Graphics graphics, string code, Position position, Point offset, int width = 64, int height = 64)
{
var writer = new BarcodeWriter
{
Options = new ZXing.Common.EncodingOptions { Width = width, Height = height, Margin = 0, PureBarcode = true },
Format = ZXing.BarcodeFormat.QR_CODE
};
using var bitmap = writer.Write(code);
DrawImageInCell(graphics, position, bitmap, offset);
}
public void Draw128Code(Graphics graphics, string code, Position position, int width, int height, Point offset, bool pureBarcode = false)
{
var writer = new BarcodeWriter
{
Options = new ZXing.Common.EncodingOptions { Width = width, Height = height, Margin = 0, PureBarcode = pureBarcode },
Format = ZXing.BarcodeFormat.CODE_128
};
using var bitmap = writer.Write(code);
DrawImageInCell(graphics, position, bitmap, offset);
}
private void DrawCellText(Graphics graphics, Position pos, string text, Font font, Brush brush,
int mergeRowSpan, int mergeColSpan, StringFormat stringFormat)
{
int rectHeight = GetRowHeight(pos.RowIndex);
for (int i = 0; i < mergeRowSpan; i++) rectHeight += GetRowHeight(pos.RowIndex + i);
int rectWidth = GetColumnWidth(pos.ColumnIndex);
for (int i = 1; i < mergeColSpan; i++) rectWidth += GetColumnWidth(pos.ColumnIndex + i);
var layout = new RectangleF(pos.Point.X, pos.Point.Y, rectWidth, rectHeight);
graphics.DrawString(text, font, brush, layout, stringFormat);
}
public static SizeF MeasureTextSize(Graphics graphics, string text, Font font) => graphics.MeasureString(text, font);
public void Draw(Graphics graphics, TableConfig config)
{
graphics.SmoothingMode = SmoothingMode.None;
int startX = config.StartPosition.X;
int startY = config.StartPosition.Y;
using var pen = new Pen(Color.Black, 1);
// 构建坐标(Position)而不立即绘制格子
int currentY = startY;
for (int r = 0; r < Rows.Count; r++)
{
int currentX = startX;
for (int c = 0; c < Columns.Count; c++)
{
var pos = new Position(r, c, new Point(currentX, currentY));
Positions.Add(pos);
_positionMap[(r, c)] = pos;
currentX += Columns[c].Width;
}
currentY += Rows[r].Height;
}
// 计算合并区域矩形（用于跳过内部边界线）
var mergedRects = new List<Rectangle>();
foreach (var kv in MergeCell)
{
int startRowZero = kv.Key.RowIndex - 1;
int startColZero = kv.Key.ColumnIndex - 1;
int endRow = kv.Value.RowIndex - 1; // inclusive zero-based
int endCol = kv.Value.ColumnIndex - 1; // inclusive zero-based
var startPos = GetPosition(startRowZero, startColZero);
if (startPos == null) continue;
int w = 0; int h = 0;
for (int c = startColZero; c <= endCol; c++) w += GetColumnWidth(c);
for (int r = startRowZero; r <= endRow; r++) h += GetRowHeight(r);
mergedRects.Add(new Rectangle(startPos.Point.X, startPos.Point.Y, w, h));
}
// 列边界坐标
var colBoundaries = new int[Columns.Count + 1];
colBoundaries[0] = startX;
for (int i = 0; i < Columns.Count; i++) colBoundaries[i + 1] = colBoundaries[i] + Columns[i].Width;
// 行边界坐标
var rowBoundaries = new int[Rows.Count + 1];
rowBoundaries[0] = startY;
for (int i = 0; i < Rows.Count; i++) rowBoundaries[i + 1] = rowBoundaries[i] + Rows[i].Height;
int totalWidth = colBoundaries[^1] - startX;
int totalHeight = rowBoundaries[^1] - startY;
// 绘制外框
graphics.DrawRectangle(pen, startX, startY, totalWidth, totalHeight);
// 垂直线（内部列分隔）
for (int ci = 1; ci < colBoundaries.Length - 1; ci++)
{
int x = colBoundaries[ci];
// 分段绘制，遇到合并区域内部则跳过
int segmentStartY = startY;
for (int ri = 0; ri < rowBoundaries.Length - 1; ri++)
{
int yTop = rowBoundaries[ri];
int yBottom = rowBoundaries[ri + 1];
if (IsVerticalLineInsideMerged(x, yTop, yBottom, mergedRects))
{
// 跳过该段
continue;
}
graphics.DrawLine(pen, x, yTop, x, yBottom);
}
}
// 水平线（内部行分隔）
for (int ri = 1; ri < rowBoundaries.Length - 1; ri++)
{
int y = rowBoundaries[ri];
for (int ci = 0; ci < colBoundaries.Length - 1; ci++)
{
int xLeft = colBoundaries[ci];
int xRight = colBoundaries[ci + 1];
if (IsHorizontalLineInsideMerged(y, xLeft, xRight, mergedRects))
{
continue;
}
graphics.DrawLine(pen, xLeft, y, xRight, y);
}
}
// 行与单元格边框
foreach (var row in config.Rows)
{
if (!int.TryParse(row.RowIndex, out int intRowIndex)) continue;
if (row.Borders != null)
{
foreach (var br in row.Borders)
{
using var penBorder = CreatePen(br);
switch (br.Direction)
{
case "Top":
{
var leftX = startX;
var rightX = colBoundaries[^1];
int y = rowBoundaries[intRowIndex - 1];
graphics.DrawLine(penBorder, leftX, y, rightX, y);
break;
}
case "Bottom":
{
var leftX = startX;
var rightX = colBoundaries[^1];
int y = rowBoundaries[intRowIndex];
graphics.DrawLine(penBorder, leftX, y, rightX, y);
break;
}
case "Left":
{
int x = startX;
int y1 = rowBoundaries[intRowIndex - 1];
int y2 = rowBoundaries[intRowIndex];
graphics.DrawLine(penBorder, x, y1, x, y2);
break;
}
case "Right":
{
int x = colBoundaries[^1];
int y1 = rowBoundaries[intRowIndex - 1];
int y2 = rowBoundaries[intRowIndex];
graphics.DrawLine(penBorder, x, y1, x, y2);
break;
}
}
}
}
foreach (var cell in row.Cells)
{
if (cell.Borders == null || cell.Borders.Count == 0) continue;
if (!int.TryParse(cell.ColumnIndex, out int colIndex)) continue;
int cellLeft = colBoundaries[colIndex - 1];
int cellRight = colBoundaries[colIndex];
int cellTop = rowBoundaries[intRowIndex - 1];
int cellBottom = rowBoundaries[intRowIndex];
foreach (var br in cell.Borders)
{
if (br.Direction != "Left" && br.Direction != "Right") continue;
using var penBorder = CreatePen(br);
if (br.Direction == "Left")
{
graphics.DrawLine(penBorder, cellLeft, cellTop, cellLeft, cellBottom);
}
else
{
graphics.DrawLine(penBorder, cellRight, cellTop, cellRight, cellBottom);
}
}
}
}
}
private bool IsVerticalLineInsideMerged(int x, int yTop, int yBottom, List<Rectangle> mergedRects)
{
foreach (var rect in mergedRects)
{
if (x > rect.Left && x < rect.Right && yTop >= rect.Top && yBottom <= rect.Bottom)
{
return true; // 该垂直线段位于合并区域内部
}
}
return false;
}
private bool IsHorizontalLineInsideMerged(int y, int xLeft, int xRight, List<Rectangle> mergedRects)
{
foreach (var rect in mergedRects)
{
if (y > rect.Top && y < rect.Bottom && xLeft >= rect.Left && xRight <= rect.Right)
{
return true; // 该水平线段位于合并区域内部
}
}
return false;
}
private static Pen CreatePen(TableConfig.Border br)
{
Brush brush = br.Style switch
{
"Dot" => new HatchBrush(HatchStyle.DashedHorizontal, ColorTranslator.FromHtml(br.Color), Color.White),
_ => new SolidBrush(ColorTranslator.FromHtml(br.Color))
};
if (br.Width == 0)
{
brush.Dispose();
return new Pen(Color.White, 2);
}
return new Pen(brush, br.Width);
}
public async Task DrawTableAsync(Graphics graphics, object dy, IEnumerable<object> items, TableConfig config)
{
dy ??= new object();
items ??= Enumerable.Empty<object>();
int itemCount = items.Count();
ClearState();
await OrganizeConfigAsync(config, itemCount);
DrawStructure(config, itemCount);
Draw(graphics, config);
var headerType = dy.GetType();
var headerProps = headerType.GetProperties().ToDictionary(p => p.Name, p => p);
var itemPropCache = new Dictionary<Type, Dictionary<string, System.Reflection.PropertyInfo>>();
int currentDynamicCursor = 0;
foreach (var row in config.Rows.OrderBy(r => int.Parse(r.RowIndex)))
{
int rowIndex = int.Parse(row.RowIndex);
if (row.Is_Items)
{
currentDynamicCursor = rowIndex;
int seq = 1;
foreach (var it in items)
{
var t = it.GetType();
if (!itemPropCache.TryGetValue(t, out var dict))
{
dict = t.GetProperties().ToDictionary(p => p.Name, p => p);
itemPropCache[t] = dict;
}
foreach (var cell in row.Cells)
{
if (!int.TryParse(cell.ColumnIndex, out int cIndex)) continue;
var pos = GetPosition(currentDynamicCursor - 1, cIndex - 1);
if (pos == null) continue;
string title = cell.Title ?? string.Empty;
var fmt = GetCachedStringFormat(cell.Alignment, cell.LineAlignment);
title = ReplacePlaceHolderForItem(title, it, dict, seq);
var (mergeRowSpan, mergeColSpan) = GetMergeSpan(cell.Merge, seq);
DrawCellText(graphics, pos, title, CellFont(cell), Brushes.Black, mergeRowSpan, mergeColSpan, fmt);
}
currentDynamicCursor++;
seq++;
}
}
else
{
foreach (var cell in row.Cells)
{
if (!int.TryParse(cell.ColumnIndex, out int cIndex)) continue;
var pos = GetPosition(rowIndex - 1, cIndex - 1);
if (pos == null) continue;
string title = cell.Title ?? string.Empty;
var fmt = GetCachedStringFormat(cell.Alignment, cell.LineAlignment);
title = ReplacePlaceHolderForHeader(title, dy, headerProps);
var (mergeRowSpan, mergeColSpan) = GetMergeSpan(cell.Merge, null);
DrawCellText(graphics, pos, title, CellFont(cell), Brushes.Black, mergeRowSpan, mergeColSpan, fmt);
}
}
}
foreach (var barcode in config.BarCodes ?? Enumerable.Empty<TableConfig.BarCode>())
{
if (!int.TryParse(barcode.RowIndex, out int rIdx) || !int.TryParse(barcode.ColumnIndex, out int cIdx)) continue;
var pos = GetPosition(rIdx - 1, cIdx - 1);
if (pos == null) continue;
string raw = barcode.Tilte ?? string.Empty;
string replaced = ReplacePlaceHolderForHeader(raw, dy, headerProps);
barcode.Sizes ??= new Size(64, 64);
if (barcode.BarcodeType == "QRCODE")
{
DrawQRCode(graphics, replaced, pos, new Point(15, 5), barcode.Sizes.Value.Width, barcode.Sizes.Value.Height);
}
else if (barcode.BarcodeType == "CODE128")
{
Draw128Code(graphics, replaced, pos, barcode.Sizes.Value.Width, barcode.Sizes.Value.Height, new Point(2, 2));
}
}
}
private (int rowSpan, int colSpan) GetMergeSpan(string[]? merge, int? seqNo)
{
if (merge == null || merge.Length < 4) return (0, 0);
string startRow = merge[0];
string startCol = merge[1];
string endRow = merge[2];
string endCol = merge[3];
if (seqNo.HasValue)
{
if (startRow.Contains("+")) startRow = Calculate(startRow.Replace("seq_no", seqNo.Value.ToString())).ToString();
if (endRow.Contains("+")) endRow = Calculate(endRow.Replace("seq_no", seqNo.Value.ToString())).ToString();
}
int sr = int.Parse(startRow);
int er = int.Parse(endRow);
int sc = int.Parse(startCol);
int ec = int.Parse(endCol);
int rowSpan = er - sr;
int colSpan = ec - sc + 1;
return (rowSpan, colSpan);
}
private string ReplacePlaceHolderForItem(string title, object item, Dictionary<string, System.Reflection.PropertyInfo> props, int seq)
{
var matches = Regex.Matches(title, @"\$(.*?)\$");
foreach (Match m in matches.Cast<Match>())
{
string expr = m.Groups[1].Value;
if (expr == "seq_no")
{
title = title.Replace($"${expr}$", seq.ToString());
continue;
}
var parts = expr.Split(',');
string propName = parts[0];
if (!props.TryGetValue(propName, out var pi)) continue;
var valueObj = pi.GetValue(item);
string value = valueObj?.ToString() ?? string.Empty;
if (parts.Length > 1 && parts[1] == "date" && parts.Length > 2)
{
if (DateTime.TryParse(value, out var dt)) value = dt.ToString(parts[2]);
}
title = title.Replace($"${expr}$", value);
}
return title;
}
private string ReplacePlaceHolderForHeader(string title, object header, Dictionary<string, System.Reflection.PropertyInfo> props)
{
var matches = Regex.Matches(title, @"\$(.*?)\$");
foreach (Match m in matches.Cast<Match>())
{
string expr = m.Groups[1].Value;
var parts = expr.Split(',');
string propName = parts[0];
if (!props.TryGetValue(propName, out var pi)) continue;
var valueObj = pi.GetValue(header);
string value = valueObj?.ToString() ?? string.Empty;
if (parts.Length > 1 && parts[1] == "date" && parts.Length > 2)
{
if (DateTime.TryParse(value, out var dt)) value = dt.ToString(parts[2]);
}
title = title.Replace($"${expr}$", value);
}
return title;
}
private Font CellFont(TableConfig.Cell cell)
{
if (cell.Font == null) return new Font("SimHei", 12, FontStyle.Regular);
FontStyle style = FontStyle.Regular;
if (cell.Font.Bold) style |= FontStyle.Bold;
if (cell.Font.Italic) style |= FontStyle.Italic;
return new Font(cell.Font.Name, cell.Font.Size, style);
}
public void DrawStructure(TableConfig config, int itemCount)
{
// 行构建
for (int i = 0; i < config.RowsCount + itemCount; i++)
{
var found = config.Rows.FirstOrDefault(x => x.RowIndex == (i + 1).ToString());
if (found != null)
{
int h = 35;
if (!string.IsNullOrEmpty(found.Height) && int.TryParse(found.Height, out int parsed)) h = parsed;
Rows.Add(new Row(h));
}
else
{
Rows.Add(new Row(35));
}
}
// 列构建
foreach (var w in config.ColumnsWidths) Columns.Add(new Column(w));
// 追加动态行
var dynamicTemplate = config.Rows.FirstOrDefault(x => x.Is_Items);
if (dynamicTemplate != null)
{
for (int i = 0; i < itemCount - 1; i++)
{
var clone = JsonSerializer.Deserialize<TableConfig.Row>(JsonSerializer.Serialize(dynamicTemplate));
if (clone != null) config.Rows.Add(clone);
}
}
int dynSeq = 0;
foreach (var row in config.Rows)
{
var merges = row.Cells.Where(c => c.Merge != null).ToList();
foreach (var merge in merges)
{
if (merge.Merge.Length < 4) continue;
string startRowStr = merge.Merge[0];
string startColStr = merge.Merge[1];
string endRowStr = merge.Merge[2];
string endColStr = merge.Merge[3];
if (row.Is_Items)
{
if (startRowStr.Contains("+")) startRowStr = Calculate(startRowStr.Replace("seq_no", dynSeq.ToString())).ToString();
if (endRowStr.Contains("+")) endRowStr = Calculate(endRowStr.Replace("seq_no", dynSeq.ToString())).ToString();
}
int startRowIndex = int.Parse(startRowStr);
int startColumnIndex = int.Parse(startColStr);
int endRowIndex = int.Parse(endRowStr);
int endColumnIndex = int.Parse(endColStr);
MergeCell[new Position(startRowIndex, startColumnIndex)] = new Position(endRowIndex, endColumnIndex);
}
if (row.Is_Items) dynSeq++;
}
}
public async Task OrganizeConfigAsync(TableConfig config, int itemCount)
{
foreach (var row in config.Rows)
{
if (row.RowIndex.Contains("Items.Count"))
{
string expr = row.RowIndex.Replace("Items.Count", itemCount.ToString());
row.RowIndex = (await CSharpScript.EvaluateAsync(expr)).ToString();
}
}
foreach (var row in config.Rows)
{
foreach (var cell in row.Cells.Where(c => c.Merge != null))
{
if (cell.Merge[0].Contains("Items.Count"))
{
string expr = cell.Merge[0].Replace("Items.Count", itemCount.ToString());
cell.Merge[0] = (await CSharpScript.EvaluateAsync(expr)).ToString();
}
if (cell.Merge[2].Contains("Items.Count"))
{
string expr = cell.Merge[2].Replace("Items.Count", itemCount.ToString());
cell.Merge[2] = (await CSharpScript.EvaluateAsync(expr)).ToString();
}
}
}
foreach (var bc in config.BarCodes ?? Enumerable.Empty<TableConfig.BarCode>())
{
if (bc.RowIndex != null && bc.RowIndex.Contains("Items.Count"))
{
string expr = bc.RowIndex.Replace("Items.Count", itemCount.ToString());
bc.RowIndex = (await CSharpScript.EvaluateAsync(expr)).ToString();
}
}
}
private StringFormat GetCachedStringFormat(string? alignment, string? lineAlignment)
{
var key = (alignment, lineAlignment);
if (_stringFormatCache.TryGetValue(key, out var sf)) return sf;
sf = new StringFormat
{
Alignment = alignment switch { "Left" => StringAlignment.Near, "Right" => StringAlignment.Far, _ => StringAlignment.Center },
LineAlignment = lineAlignment switch { "Top" => StringAlignment.Near, "Bottom" => StringAlignment.Far, _ => StringAlignment.Center }
};
_stringFormatCache[key] = sf;
return sf;
}
public string RemoveCommentsFromJson(string json)
{
string singleLine = @"(//.*?$)";
string multiLine = @"/\*[\s\S]*?\*/";
return Regex.Replace(json, $"{singleLine}|{multiLine}", string.Empty, RegexOptions.Multiline);
}
private int Calculate(string formula)
{
try
{
var table = new DataTable();
table.Columns.Add("expression", typeof(string), formula);
var row = table.NewRow();
table.Rows.Add(row);
return Convert.ToInt32(row["expression"]);
}
catch
{
return 0;
}
}
}
}
📋 实际使用示例
物料标签打印
C#// 定义数据对象
var materialData = new
{
barcode = "A0001",
supplier = "中国制造",
part_no = "A000001",
part_description = "精密螺丝M6x20",
unit = "EA",
qty = 100,
batch_no = "A01"
};
// 加载配置并打印
var config = JsonSerializer.Deserialize<TableConfig>(
File.ReadAllText("templates/物料标签.json"));
await tableDocument.DrawTableAsync(graphics, materialData, null, config);
采购单列表打印
C#var purchaseOrder = new
{
main = new {
purchase_no = "P0001",
supplier = "供应商A",
requested_arrival_time = DateTime.Now
},
items = new List<dynamic> {
new { part_no = "PN001", description = "螺丝", qty = "100" },
new { part_no = "PN002", description = "垫片", qty = "200" }
}
};
await tableDocument.DrawTableAsync(graphics, purchaseOrder.main,
purchaseOrder.items, config);
🔧 最佳实践建议
✅ 配置文件管理
- 模板化设计：为不同业务场景创建标准模板
- 版本控制：配置文件纳入Git管理，方便回滚
- 环境隔离：开发/测试/生产环境使用不同配置
⚠️ 常见陷阱避免
- 内存泄漏：及时释放Graphics和Bitmap资源
- 字体缺失：生产环境确保字体文件存在
- 打印机兼容：测试不同品牌打印机的效果差异
- 数据格式化：日期、数字格式要考虑本地化需求
🎯 扩展方向
- 导出PDF：集成iTextSharp实现PDF生成
- 批量打印：支持多个数据源批量处理
- 模板编辑器：开发可视化配置工具
- 云端配置：支持从API获取打印模板
🌟 总结与思考
这套基于JSON配置的表格打印方案具有三个核心优势：配置灵活（JSON驱动，无需编译）、功能完整（支持合并、条码、样式）、性能优秀（缓存机制，直接绘制）。
相比传统方案，它既避免了Excel的性能问题，又比Crystal Reports更轻量，最重要的是维护成本大幅降低。当业务需求变更时，只需修改JSON配置文件即可，无需重新发布程序。
在实际项目中，建议将不同的打印模板做成标准化组件，这样不仅提高了代码复用率，还让新同事能够快速上手。
你在项目中是如何处理复杂打印需求的？有没有遇到过特殊的业务场景？欢迎在评论区分享你的经验和解决方案！
觉得这个方案对你有帮助的话，记得转发给团队的小伙伴们，让更多人受益！🚀
本文作者:技术老小子
本文链接:
版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
目录
