🚀 C# OPC UA批量操作实战：从千次单读到毫秒级批处理的性能飞跃

**在工业物联网项目中，你是否遇到过这样的痛点：**需要读取上千个OPC UA节点数据，但传统的逐个读取方式让系统响应慢如蜗牛？一个包含3000个测点的生产线，单次数据采集竟然需要30秒！

今天就来分享一套高效批量OPC UA操作解决方案，让你的数据采集性能提升10倍以上，从技术小白到工业通信专家的必经之路！

🔍 问题分析：传统OPC UA操作的性能瓶颈

痛点1：串行读取效率低下

C#
// ❌ 传统做法：逐个读取，性能极差
foreach(var nodeId in nodeIds)
{
    var value = session.ReadValue(nodeId); // 每次网络往返
    // 3000个节点 = 3000次网络请求 = 30秒+
}

痛点2：订阅管理混乱

大量节点的订阅创建和管理缺乏统一规范，容易造成内存泄漏和连接不稳定。

痛点3：错误处理不完善

单个节点读取失败影响全局，缺乏优雅的异常处理机制。

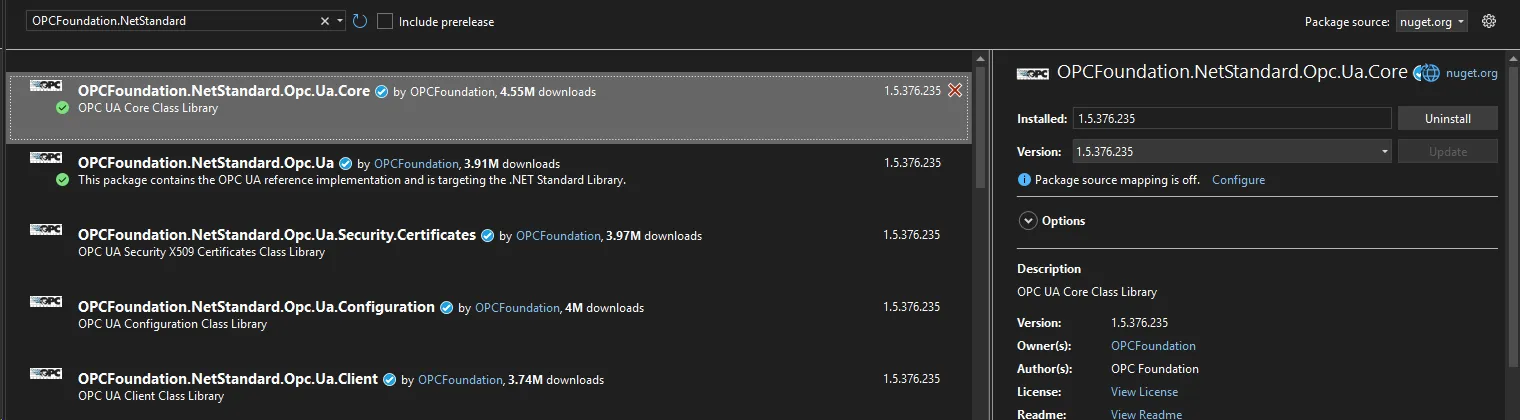

Nuget 安装包

C#
OPCFoundation.NetStandard.Opc.Ua

💡 解决方案：五大核心优化策略

🔥 策略一：智能批量读取 - 化零为整的性能魔法

核心思想：将大量单次读取合并为少量批次读取，配合并发控制实现性能最大化。

C#
public async Task<BatchOperationResult> BatchReadAsync(List<NodeId> nodeIds, int maxBatchSize = 100)
{
    var result = new BatchOperationResult();

    try
    {
        // 🎯 关键点1：智能分批，避免单次请求过大
        var batches = SplitIntoBatches(nodeIds, maxBatchSize);

        // 🎯 关键点2：控制并发数，平衡性能与资源
        int maxConcurrency = Environment.ProcessorCount * 2;
        using var semaphore = new SemaphoreSlim(maxConcurrency, maxConcurrency);

        // 🎯 关键点3：并发执行批次读取
        var tasks = batches.Select(async batch =>
        {
            await semaphore.WaitAsync();
            try
            {
                return await Task.Run(() =>
                {
                    var readValueIdCollection = new ReadValueIdCollection();
                    foreach (var nodeId in batch)
                    {
                        readValueIdCollection.Add(new ReadValueId
                        {
                            NodeId = nodeId,
                            AttributeId = Attributes.Value
                        });
                    }

                    lock (_lockObject) // 🔒 线程安全保障
                    {
                        _session.Read(null, 0, TimestampsToReturn.Both,
                            readValueIdCollection, out DataValueCollection dataValues,
                            out DiagnosticInfoCollection diagnosticInfos);
                        return new { batch, dataValues };
                    }
                });
            }
            finally
            {
                semaphore.Release();
            }
        }).ToList();

        var allResults = await Task.WhenAll(tasks);

        // 🎯 关键点4：结果整合与错误处理
        foreach (var res in allResults)
        {
            ProcessBatchResults(res.batch, res.dataValues, result);
        }

        result.Success = result.Errors.Count == 0;
        Console.WriteLine($"批量读取完成，成功读取 {result.Results.Count} 个节点");
    }
    catch (Exception ex)
    {
        result.Errors.Add($"批量读取异常: {ex.Message}");
    }

    return result;
}

性能对比：

传统方式：3000节点 ≈ 30秒
批量方式：3000节点 ≈ 2-3秒
性能提升：10倍+

⚡ 策略二：高效订阅管理 - 实时数据的优雅处理

C#
public async Task<bool> BatchSubscribeAsync(List<NodeId> nodeIds,
    Action<OpcUaNode> onValueChanged,
    int publishingInterval = 1000,
    string subscriptionName = "DefaultSubscription")
{
    try
    {
        lock (_lockObject)
        {
            // 🎯 智能订阅复用：避免重复创建
            if (_subscriptions.ContainsKey(subscriptionName))
            {
                _subscriptions[subscriptionName].Delete(true);
                _subscriptions.Remove(subscriptionName);
            }

            var subscription = new Subscription(_session.DefaultSubscription)
            {
                PublishingInterval = publishingInterval,
                DisplayName = subscriptionName
            };

            _session.AddSubscription(subscription);
            subscription.Create();

            // 🎯 批量添加监控项
            foreach (var nodeId in nodeIds)
            {
                var monitoredItem = new MonitoredItem(subscription.DefaultItem)
                {
                    DisplayName = nodeId.ToString(),
                    StartNodeId = nodeId,
                    AttributeId = Attributes.Value,
                    SamplingInterval = publishingInterval / 2 // 采样频率优化
                };

                // 🎯 优雅的事件处理
                monitoredItem.Notification += (item, e) =>
                {
                    foreach (var value in item.DequeueValues())
                    {
                        var node = new OpcUaNode
                        {
                            NodeId = nodeId,
                            DisplayName = item.DisplayName,
                            Value = value.Value,
                            StatusCode = value.StatusCode,
                            Timestamp = value.SourceTimestamp
                        };
                        onValueChanged?.Invoke(node);
                    }
                };

                subscription.AddItem(monitoredItem);
            }

            subscription.ApplyChanges();
            _subscriptions[subscriptionName] = subscription;
        }

        Console.WriteLine($"成功订阅 {nodeIds.Count} 个节点");
        return true;
    }
    catch (Exception ex)
    {
        Console.WriteLine($"批量订阅失败: {ex.Message}");
        return false;
    }
}

🛡️ 策略三：健壮的连接管理 - 工业级稳定性保证

C#
public async Task<bool> ConnectAsync(string endpointUrl, bool useSecurity = false,
    string applicationName = "OPC UA Batch Client")
{
    try
    {
        _application = new ApplicationInstance
        {
            ApplicationName = applicationName,
            ApplicationType = ApplicationType.Client,
            ConfigSectionName = "OpcUaBasicClient"
        };

        // 🎯 配置加载与证书处理
        await _application.LoadApplicationConfiguration(false);
        await _application.CheckApplicationInstanceCertificate(false, 0);

        var selectedEndpoint = CoreClientUtils.SelectEndpoint(endpointUrl, useSecurity);
        var endpointConfiguration = EndpointConfiguration.Create(_application.ApplicationConfiguration);
        var endpoint = new ConfiguredEndpoint(null, selectedEndpoint, endpointConfiguration);

        // 🎯 会话创建优化
        _session = await Session.Create(
            _application.ApplicationConfiguration,
            endpoint,
            false,
            $"{applicationName}_Session",
            60000, // 60秒超时
            null,
            null);

        Console.WriteLine($"✅ 成功连接到OPC UA服务器: {endpointUrl}");
        return true;
    }
    catch (Exception ex)
    {
        Console.WriteLine($"❌ 连接失败: {ex.Message}");
        return false;
    }
}

📊 策略四：智能数据结构设计 - 高效的信息组织

C#
/// <summary>
/// 🎯 核心数据结构：承载完整节点信息
/// </summary>
public class OpcUaNode
{
    public NodeId NodeId { get; set; }
    public string DisplayName { get; set; }
    public object Value { get; set; }
    public StatusCode StatusCode { get; set; }
    public DateTime Timestamp { get; set; }
}

/// <summary>
/// 🎯 批量操作结果：统一的返回格式
/// </summary>
public class BatchOperationResult
{
    public bool Success { get; set; }
    public List<OpcUaNode> Results { get; set; } = new List<OpcUaNode>();
    public List<string> Errors { get; set; } = new List<string>();
}

/// <summary>
/// 🎯 扩展NodeId类：业务逻辑与技术实现的桥梁
/// </summary>
public class JNodeId
{
    public string FullNodeId { get; set; } = "";
    public int Namespace { get; set; } = 2;
    public string DisplayName { get; set; } = "";
    public string DeviceName { get; set; } = "";
    public string ChannelName { get; set; } = "";

    // 🎯 智能NodeId生成
    public void GenerateFullNodeId()
    {
        FullNodeId = $"ns={Namespace};s={ChannelName}.{DeviceName}.{DisplayName}";
        Identifier = $"{ChannelName}.{DeviceName}.{DisplayName}";
    }
}

🔧 策略五：配置文件解析 - 灵活的节点管理

C#
static List<JNodeId> ExtractNodeIdsFromFile(string filePath)
{
    var nodeIds = new List<JNodeId>();

    try
    {
        string jsonContent = File.ReadAllText(filePath);
        var options = new JsonSerializerOptions
        {
            PropertyNameCaseInsensitive = true,
            Encoder = JavaScriptEncoder.UnsafeRelaxedJsonEscaping
        };

        var config = JsonSerializer.Deserialize<LmesRootConfig>(jsonContent, options);

        // 🎯 递归解析设备和标签信息
        var devicesDict = JsonSerializer.Deserialize<List<DeviceContainer>>(
            config.Devices.ToString(), options);

        foreach (var device in devicesDict)
        {
            foreach (var tagEntry in device.Tags)
            {
                var nodeId = new JNodeId
                {
                    Namespace = 2,
                    DisplayName = tagEntry.Name,
                    DeviceName = device.DeviceName,
                    ChannelName = config.ExportInfo.ChannelName,
                    TagAddress = tagEntry.Address,
                    DataType = tagEntry.DataType,
                    ReadWriteAccess = tagEntry.ReadWriteAccess
                };

                nodeId.GenerateFullNodeId();
                nodeIds.Add(nodeId);
            }
        }

        Console.WriteLine($"✅ 总共提取到 {nodeIds.Count} 个NodeId");
    }
    catch (Exception ex)
    {
        Console.WriteLine($"❌ 解析文件时出错: {ex.Message}");
    }

    return nodeIds;
}

🎮 实战应用示例

C#
static async Task Main(string[] args)
{
    var client = new OpcUaBatchClient();

    try
    {
        // 🔗 1. 建立连接
        var connected = await client.ConnectAsync("opc.tcp://127.0.0.1:49320");
        if (!connected) return;

        // 📂 2. 加载配置
        string jsonFilePath = "LMES_tags_20250727_094313.json";
        var jnodeIds = ExtractNodeIdsFromFile(jsonFilePath);
        var nodeIds = jnodeIds.Select(x => new NodeId(x.FullNodeId)).ToList();

        // 📊 3. 批量读取
        Console.WriteLine("\n=== 批量读取测试 ===");
        var readResult = await client.BatchReadAsync(nodeIds);

        if (readResult.Success)
        {
            Console.WriteLine($"✅ 成功读取 {readResult.Results.Count} 个节点");
            foreach (var node in readResult.Results.Take(5)) // 显示前5个
            {
                Console.WriteLine($"📊 {node.DisplayName}: {node.Value} ({node.StatusCode})");
            }
        }

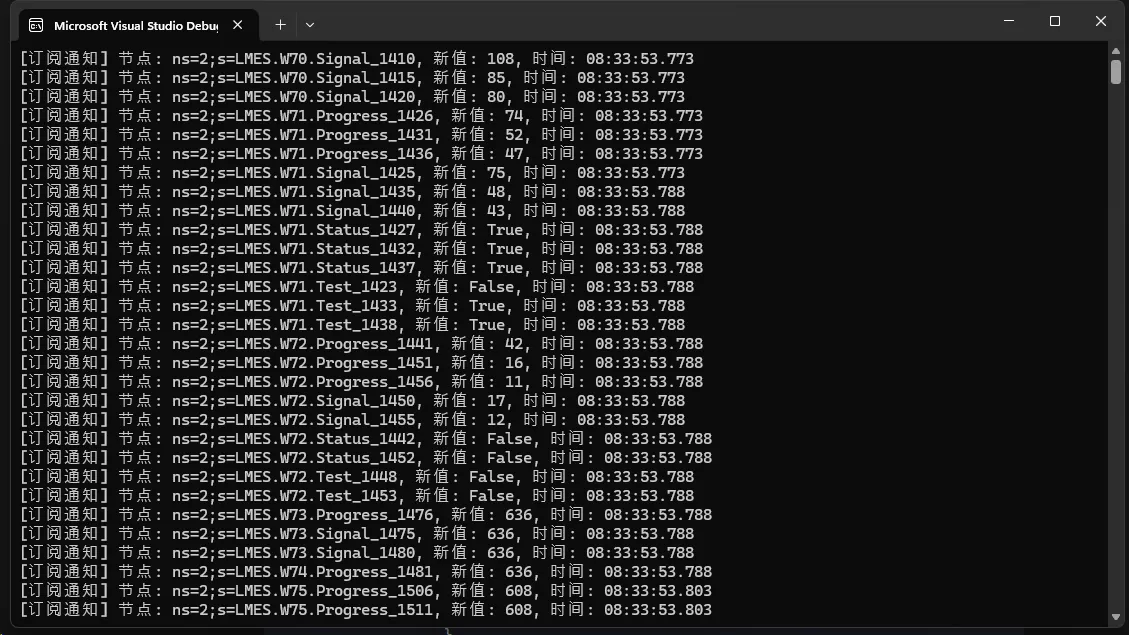

        // 🔔 4. 实时订阅
        Console.WriteLine("\n=== 批量订阅测试 ===");
        await client.BatchSubscribeAsync(nodeIds, (node) =>
        {
            Console.WriteLine($"🔔 [{node.Timestamp:HH:mm:ss.fff}] {node.DisplayName} = {node.Value}");
        }, 500);

        Console.WriteLine("\n⌚ 监控中，按任意键停止...");
        Console.ReadKey();
    }
    finally
    {
        client.Dispose();
    }
}

Config.xml配置文件

XML
<?xml version="1.0" encoding="utf-8"?>
<ApplicationConfiguration
  xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
  xmlns:ua="http://opcfoundation.org/UA/2008/02/Types.xsd"
  xmlns="http://opcfoundation.org/UA/SDK/Configuration.xsd">

  <ApplicationName>OPC UA Basic Client</ApplicationName>
  <ApplicationUri>urn:OpcUaBasicClient</ApplicationUri>
  <ProductUri>uri:opcfoundation.org:OpcUaBasicClient</ProductUri>
  <ApplicationType>Client_1</ApplicationType>

  <SecurityConfiguration>
    <ApplicationCertificate>
      <StoreType>Directory</StoreType>
      <StorePath>%CommonApplicationData%\OPC Foundation\CertificateStores\MachineDefault</StorePath>
      <SubjectName>CN=OPC UA Basic Client, C=US</SubjectName>
    </ApplicationCertificate>

    <TrustedIssuerCertificates>
      <StoreType>Directory</StoreType>
      <StorePath>%CommonApplicationData%\OPC Foundation\CertificateStores\UA Certificate Authorities</StorePath>
    </TrustedIssuerCertificates>

    <TrustedPeerCertificates>
      <StoreType>Directory</StoreType>
      <StorePath>%CommonApplicationData%\OPC Foundation\CertificateStores\UA Applications</StorePath>
    </TrustedPeerCertificates>

    <RejectedCertificateStore>
      <StoreType>Directory</StoreType>
      <StorePath>%CommonApplicationData%\OPC Foundation\CertificateStores\RejectedCertificates</StorePath>
    </RejectedCertificateStore>

    <AutoAcceptUntrustedCertificates>true</AutoAcceptUntrustedCertificates>
  </SecurityConfiguration>

  <TransportConfigurations></TransportConfigurations>

  <TransportQuotas>
    <OperationTimeout>600000</OperationTimeout>
    <MaxStringLength>1048576</MaxStringLength>
    <MaxByteStringLength>4194304</MaxByteStringLength>
    <MaxArrayLength>65535</MaxArrayLength>
    <MaxMessageSize>4194304</MaxMessageSize>
    <MaxBufferSize>65535</MaxBufferSize>
    <ChannelLifetime>300000</ChannelLifetime>
    <SecurityTokenLifetime>3600000</SecurityTokenLifetime>
  </TransportQuotas>

  <ClientConfiguration>
    <DefaultSessionTimeout>60000</DefaultSessionTimeout>
    <WellKnownDiscoveryUrls>
      <ua:String>opc.tcp://{0}:4840</ua:String>
      <ua:String>http://{0}:52601/UADiscovery</ua:String>
      <ua:String>http://{0}/UADiscovery/Default.svc</ua:String>
    </WellKnownDiscoveryUrls>
    <MinSubscriptionLifetime>10000</MinSubscriptionLifetime>
  </ClientConfiguration>

  <TraceConfiguration>
    <OutputFilePath>%CommonApplicationData%\OPC Foundation\Logs\OpcUaBasicClient.log</OutputFilePath>
    <DeleteOnLoad>true</DeleteOnLoad>
  </TraceConfiguration>

</ApplicationConfiguration>

参数	默认值	调优建议	适用场景
`OperationTimeout`	600000ms	大数据量：900000ms 快速响应：300000ms	根据网络环境调整
`MaxMessageSize`	4MB	大批量读取：16MB 轻量应用：2MB	批量操作需要更大值
`MaxArrayLength`	65535	大数组传输：200000 普通应用：50000	批量读取节点时调大
`ChannelLifetime`	300000ms	稳定网络：600000ms 不稳定网络：180000ms	影响重连频率

XML
<!-- 🏭 工业生产环境：高稳定性配置 -->
<TransportQuotas>
    <OperationTimeout>900000</OperationTimeout>      <!-- 15分钟超时 -->
    <MaxStringLength>2097152</MaxStringLength>       <!-- 2MB字符串 -->
    <MaxByteStringLength>8388608</MaxByteStringLength> <!-- 8MB字节数组 -->
    <MaxArrayLength>100000</MaxArrayLength>          <!-- 10万元素数组 -->
    <MaxMessageSize>8388608</MaxMessageSize>         <!-- 8MB消息 -->
    <MaxBufferSize>131072</MaxBufferSize>            <!-- 128KB缓冲区 -->
    <ChannelLifetime>600000</ChannelLifetime>        <!-- 10分钟通道生命周期 -->
    <SecurityTokenLifetime>7200000</SecurityTokenLifetime> <!-- 2小时令牌 -->
</TransportQuotas>

<!-- 📱 轻量级应用：快速响应配置 -->
<TransportQuotas>
    <OperationTimeout>300000</OperationTimeout>      <!-- 5分钟超时 -->
    <MaxStringLength>524288</MaxStringLength>        <!-- 512KB字符串 -->
    <MaxByteStringLength>2097152</MaxByteStringLength> <!-- 2MB字节数组 -->
    <MaxArrayLength>10000</MaxArrayLength>           <!-- 1万元素数组 -->
    <MaxMessageSize>2097152</MaxMessageSize>         <!-- 2MB消息 -->
    <MaxBufferSize>32768</MaxBufferSize>             <!-- 32KB缓冲区 -->
    <ChannelLifetime>180000</ChannelLifetime>        <!-- 3分钟通道生命周期 -->
    <SecurityTokenLifetime>1800000</SecurityTokenLifetime> <!-- 30分钟令牌 -->
</TransportQuotas>

⚠️ 常见坑点提醒

🕳️ 坑点1：并发控制不当

C#
// ❌ 错误：无限制并发可能压垮服务器
var tasks = batches.Select(batch => ProcessBatch(batch));

// ✅ 正确：使用信号量控制并发
using var semaphore = new SemaphoreSlim(Environment.ProcessorCount * 2);

🕳️ 坑点2：忘记线程安全

C#
// ❌ 错误：OPC UA会话可能不是线程安全的
_session.Read(...); // 多线程并发调用

// ✅ 正确：加锁保护
lock (_lockObject) {
    _session.Read(...);
}

🕳️ 坑点3：资源泄漏

C#
// ✅ 必须：正确释放订阅资源
public void Dispose()
{
    UnsubscribeAll(); // 清理所有订阅
    _session?.Close();
    _session = null;
}

🌟 性能优化金句

"批量代替单次，并发优于串行" - 这是工业通信性能优化的黄金法则
"信号量控制并发，锁机制保证安全" - 线程安全与性能的完美平衡
"配置驱动业务，结构承载数据" - 可维护代码架构的核心思想

🎯 总结：从性能杀手到效率利器的华丽转身

通过本文的五大核心策略，我们成功将OPC UA操作从性能杀手转变为效率利器：

🚀 智能批量读取：性能提升10倍+，告别漫长等待
⚡ 高效订阅管理：实时数据处理，稳定可靠
🛡️ 健壮连接管理：工业级稳定性，适应恶劣环境

这套解决方案已在多个工业项目中验证，处理过万级节点的实时数据采集，是从C#入门到工业通信专家必须掌握的核心技术。

你在OPC UA开发中遇到过哪些性能瓶颈？ 欢迎在评论区分享你的经验，或者提出遇到的技术难题，让我们一起探讨更优的解决方案！

觉得这篇文章对你有帮助，请转发给更多需要的同行！ 让更多开发者受益于高效的工业通信技术。

关注我，获取更多C#工业开发实战技巧！

目录
