🚀 C# MVVM模式在工业监控系统中的完整实战：从零到生产级应用
编辑
2025-09-25
C#
00

目录

🎯 核心问题分析：为什么选择MVVM？
传统开发的三大痛点
MVVM模式的解决方案
🏗️ 架构设计：构建生产级MVVM框架
核心组件架构图
💡 核心实现：关键技术深度解析
🔥 1. 自动化属性通知：Fody.PropertyChanged的妙用
⚡ 2. 线程安全的UI更新机制
🎮 3. 智能命令系统：RelayCommand的深度定制
📊 4. 高性能数据绑定配置
完整代码
🚨 生产环境踩坑指南
❌ 常见错误与解决方案
🎯 核心要点总结

在工业4.0时代，设备监控系统的开发需求日益增长。你是否遇到过这样的困扰：界面逻辑与业务逻辑混杂、数据更新卡顿、多线程操作导致界面假死？今天，我将通过一个完整的工业设备监控系统，为你深度解析C# MVVM模式的生产级应用，解决实际开发中的核心痛点。

本文将带你构建一个具备实时数据采集、多线程安全更新、命令模式交互的完整监控系统，让你的WinForms应用达到企业级标准。

🎯 核心问题分析：为什么选择MVVM？

传统开发的三大痛点

  1. 界面与逻辑耦合严重 - 按钮点击事件中混杂大量业务逻辑
  2. 多线程UI更新复杂 - 跨线程操作经常导致InvalidOperationException
  3. 代码维护困难 - 功能扩展时需要修改多处代码

MVVM模式的解决方案

  • 分离关注点 - View负责显示，ViewModel处理逻辑，Model管理数据
  • 数据绑定机制 - 自动同步View与ViewModel
  • 命令模式 - 统一管理用户交互逻辑

🏗️ 架构设计：构建生产级MVVM框架

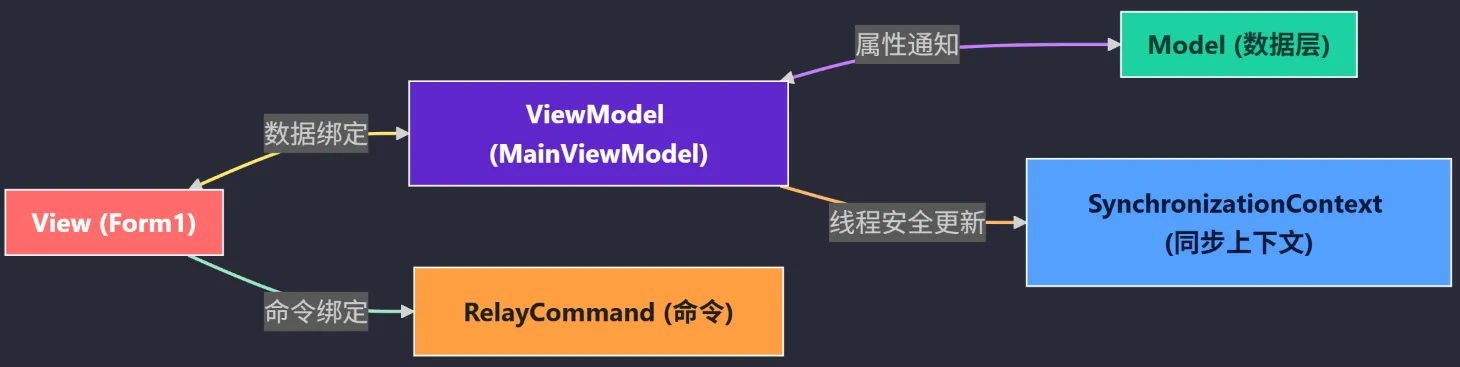

核心组件架构图


💡 核心实现：关键技术深度解析

🔥 1. 自动化属性通知：Fody.PropertyChanged的妙用

C#
[AddINotifyPropertyChangedInterface]
public class MainViewModel : INotifyPropertyChanged
{
    // 神奇之处：无需手动实现PropertyChanged通知
    public string DeviceStatus { get; set; } = "离线";
    public double Temperature { get; set; } = 25.0;
    public bool IsRunning { get; set; } = false;

    // Fody在编译时自动注入通知代码
    public event PropertyChangedEventHandler PropertyChanged;
}

技术亮点：

  • 编译时代码织入 - Fody自动为每个属性添加PropertyChanged通知
  • 零运行时开销 - 编译后的代码与手动编写的性能相同
  • 代码简洁性 - 减少90%的样板代码

⚡ 2. 线程安全的UI更新机制

C#
// 线程安全的属性更新核心方法
private void UpdatePropertiesSafe(Action updateAction)
{
    if (_syncContext != null)
    {
        // 将更新操作调度到UI线程执行
        _syncContext.Post(_ => updateAction(), null);
    }
    else
    {
        updateAction();
    }
}

// 实际应用示例
private async Task SimulateDataCollection(CancellationToken cancellationToken)
{
    while (!cancellationToken.IsCancellationRequested && IsDataCollecting)
    {
        // 在后台线程中进行数据处理
        var newData = await GetSensorDataAsync();

        // 线程安全地更新UI绑定的属性
        UpdatePropertiesSafe(() =>
        {
            Temperature = newData.Temperature;
            Pressure = newData.Pressure;
            LastUpdate = DateTime.Now;
        });

        await Task.Delay(CollectionInterval, cancellationToken);
    }
}

关键技术点：

  • SynchronizationContext捕获 - 在构造函数中获取UI线程上下文
  • Post方法调度 - 异步将操作调度到UI线程，避免阻塞
  • 批量更新优化 - 一次调度更新多个属性，提高性能

🎮 3. 智能命令系统：RelayCommand的深度定制

C#
public class RelayCommand : ICommand
{
    private readonly Action<object> _execute;
    private readonly Predicate<object> _canExecute;

    public RelayCommand(Action<object> execute, Predicate<object> canExecute = null)
    {
        _execute = execute ?? throw new ArgumentNullException(nameof(execute));
        _canExecute = canExecute;
    }

    public event EventHandler CanExecuteChanged;

    public bool CanExecute(object parameter)
    {
        return _canExecute == null || _canExecute(parameter);
    }

    public void Execute(object parameter)
    {
        _execute(parameter);
    }

    // 关键扩展：手动触发状态变化通知
    public void RaiseCanExecuteChanged()
    {
        CanExecuteChanged?.Invoke(this, EventArgs.Empty);
    }
}

智能状态管理：

C#
private void UpdateButtonStates()
{
    // 根据设备状态智能更新按钮可用性
    CanConnect = !IsConnected;
    CanDisconnect = IsConnected;
    CanStart = IsConnected && !IsRunning;
    CanStop = IsConnected && IsRunning;

    // 批量通知所有命令更新状态
    _connectCmd?.RaiseCanExecuteChanged();
    _disconnectCmd?.RaiseCanExecuteChanged();
    _startCmd?.RaiseCanExecuteChanged();
    _stopCmd?.RaiseCanExecuteChanged();
}

📊 4. 高性能数据绑定配置

C#
private void SetupDataBindings()
{
    // 温度数据绑定 - 自动格式化为一位小数
    lblTemperature.DataBindings.Add("Text", _viewModel,
        nameof(_viewModel.Temperature),
        true, DataSourceUpdateMode.OnPropertyChanged, "0", "N1");

    // 时间戳绑定 - 精确到毫秒显示
    lblLastUpdate.DataBindings.Add("Text", _viewModel,
        nameof(_viewModel.LastUpdate),
        true, DataSourceUpdateMode.OnPropertyChanged, null, "HH:mm:ss.fff");

    // 按钮状态绑定 - 实时响应ViewModel变化
    btnConnect.DataBindings.Add("Enabled", _viewModel,
        nameof(_viewModel.CanConnect),
        false, DataSourceUpdateMode.OnPropertyChanged);
}

性能优化技巧：

  • OnPropertyChanged模式 - 仅在属性变化时更新，避免轮询
  • 格式化字符串 - 在绑定层面处理数据格式，减少转换开销
  • 批量绑定设置 - 统一管理所有绑定关系，便于维护

完整代码

C#
using PropertyChanged;
using System;
using System.ComponentModel;
using System.Windows.Input;
using System.Threading.Tasks;
using System.Threading;

namespace AppFody
{
    [AddINotifyPropertyChangedInterface]
    public class MainViewModel : INotifyPropertyChanged
    {
        // 同步上下文，用于线程安全的属性更新
        private readonly SynchronizationContext _syncContext;
        private CancellationTokenSource _cancellationTokenSource;

        // 设备状态属性
        public string DeviceStatus { get; set; } = "离线";
        public double Temperature { get; set; } = 25.0;
        public double Pressure { get; set; } = 0.0;
        public int MotorSpeed { get; set; } = 0;
        public bool IsRunning { get; set; } = false;
        public bool IsConnected { get; set; } = false;
        public string ErrorMessage { get; set; } = "";
        public DateTime LastUpdate { get; set; } = DateTime.Now;


        public double Voltage { get; set; } = 0.0;
        public double Current { get; set; } = 0.0;
        public double Power { get; set; } = 0.0;
        public double Vibration { get; set; } = 0.0;
        public int ProductCount { get; set; } = 0;
        public double Efficiency { get; set; } = 0.0;
        public string AlarmStatus { get; set; } = "正常";

        // 按钮启用状态属性
        public bool CanConnect { get; set; } = true;
        public bool CanDisconnect { get; set; } = false;
        public bool CanStart { get; set; } = false;
        public bool CanStop { get; set; } = false;
        public bool CanReset { get; set; } = false;
        public bool CanStartDataCollection { get; set; } = false;
        public bool CanStopDataCollection { get; set; } = false;

        // 数据采集状态
        public bool IsDataCollecting { get; set; } = false;
        public string DataCollectionStatus { get; set; } = "未启动";
        public int CollectionInterval { get; set; } = 1000;

        // 私有命令字段
        private RelayCommand _connectCmd;
        private RelayCommand _disconnectCmd;
        private RelayCommand _startCmd;
        private RelayCommand _stopCmd;
        private RelayCommand _resetCmd;
        private RelayCommand _startDataCollectionCmd;
        private RelayCommand _stopDataCollectionCmd;

        // 命令属性
        public ICommand ConnectCommand => _connectCmd;
        public ICommand DisconnectCommand => _disconnectCmd;
        public ICommand StartCommand => _startCmd;
        public ICommand StopCommand => _stopCmd;
        public ICommand ResetCommand => _resetCmd;
        public ICommand StartDataCollectionCommand => _startDataCollectionCmd;
        public ICommand StopDataCollectionCommand => _stopDataCollectionCmd;

        // PropertyChanged 事件
        public event PropertyChangedEventHandler PropertyChanged;

        public MainViewModel()
        {
            // 捕获当前同步上下文（通常是UI线程的同步上下文）
            _syncContext = SynchronizationContext.Current ?? new SynchronizationContext();
            _cancellationTokenSource = new CancellationTokenSource();

            InitializeCommands();
            UpdateButtonStates();
        }

        private void InitializeCommands()
        {
            _connectCmd = new RelayCommand(
                execute: _ => ConnectToDevice(),
                canExecute: _ => CanConnect
            );

            _disconnectCmd = new RelayCommand(
                execute: _ => DisconnectFromDevice(),
                canExecute: _ => CanDisconnect
            );

            _startCmd = new RelayCommand(
                execute: _ => StartDevice(),
                canExecute: _ => CanStart
            );

            _stopCmd = new RelayCommand(
                execute: _ => StopDevice(),
                canExecute: _ => CanStop
            );

            _resetCmd = new RelayCommand(
                execute: _ => ResetDevice(),
                canExecute: _ => CanReset
            );

            _startDataCollectionCmd = new RelayCommand(
                execute: _ => StartDataCollection(),
                canExecute: _ => CanStartDataCollection
            );

            _stopDataCollectionCmd = new RelayCommand(
                execute: _ => StopDataCollection(),
                canExecute: _ => CanStopDataCollection
            );
        }

        // 线程安全的属性更新方法
        private void UpdatePropertySafe<T>(Action<T> updateAction, T value)
        {
            if (_syncContext != null)
            {
                _syncContext.Post(_ => updateAction(value), null);
            }
            else
            {
                updateAction(value);
            }
        }

        // 线程安全的多属性更新方法
        private void UpdatePropertiesSafe(Action updateAction)
        {
            if (_syncContext != null)
            {
                _syncContext.Post(_ => updateAction(), null);
            }
            else
            {
                updateAction();
            }
        }

        private async void ConnectToDevice()
        {
            try
            {
                DeviceStatus = "连接中...";
                ErrorMessage = "";
                CanConnect = false;
                UpdateButtonStates();

                await Task.Delay(2000);

                UpdatePropertiesSafe(() =>
                {
                    IsConnected = true;
                    DeviceStatus = "已连接";
                    Temperature = 25.5;
                    Pressure = 1.2;
                    Voltage = 220.0;
                    Current = 0.0;
                    Power = 0.0;
                    Vibration = 0.1;
                    AlarmStatus = "正常";
                    LastUpdate = DateTime.Now;
                    UpdateButtonStates();
                });

                // 开始基础数据更新
                _ = Task.Run(() => SimulateBasicDataUpdate(_cancellationTokenSource.Token));
            }
            catch (Exception ex)
            {
                UpdatePropertiesSafe(() =>
                {
                    ErrorMessage = $"连接失败: {ex.Message}";
                    DeviceStatus = "连接失败";
                    IsConnected = false;
                    UpdateButtonStates();
                });
            }
        }

        private void DisconnectFromDevice()
        {
            _cancellationTokenSource?.Cancel();
            _cancellationTokenSource = new CancellationTokenSource();

            IsConnected = false;
            IsRunning = false;
            IsDataCollecting = false;
            DeviceStatus = "离线";
            DataCollectionStatus = "未启动";
            ResetAllParameters();
            UpdateButtonStates();
        }

        private async void StartDevice()
        {
            if (!IsConnected) return;

            DeviceStatus = "启动中...";
            UpdateButtonStates();

            await Task.Delay(1000);

            UpdatePropertiesSafe(() =>
            {
                IsRunning = true;
                DeviceStatus = "运行中";
                MotorSpeed = 1500;
                Current = 15.5;
                Power = Current * Voltage / 1000; // kW
                Efficiency = 85.0;
                UpdateButtonStates();
            });
        }

        private async void StopDevice()
        {
            if (!IsConnected) return;

            DeviceStatus = "停止中...";
            UpdateButtonStates();

            await Task.Delay(1000);

            UpdatePropertiesSafe(() =>
            {
                IsRunning = false;
                DeviceStatus = "已停止";
                MotorSpeed = 0;
                Current = 0.0;
                Power = 0.0;
                Efficiency = 0.0;
                UpdateButtonStates();
            });
        }

        private void ResetDevice()
        {
            if (!IsConnected) return;

            IsRunning = false;
            IsDataCollecting = false;
            DataCollectionStatus = "未启动";
            ResetAllParameters();
            DeviceStatus = "已重置";
            ErrorMessage = "";

            UpdateButtonStates();
        }

        private void StartDataCollection()
        {
            if (!IsConnected) return;

            IsDataCollecting = true;
            DataCollectionStatus = "采集中";
            UpdateButtonStates();

            // 开始高频数据采集
            _ = Task.Run(() => SimulateDataCollection(_cancellationTokenSource.Token));
        }

        private void StopDataCollection()
        {
            IsDataCollecting = false;
            DataCollectionStatus = "已停止";
            UpdateButtonStates();
        }

        private void ResetAllParameters()
        {
            Temperature = 0;
            Pressure = 0;
            MotorSpeed = 0;
            Voltage = 0;
            Current = 0;
            Power = 0;
            Vibration = 0;
            ProductCount = 0;
            Efficiency = 0;
            AlarmStatus = "正常";
        }

        private void UpdateButtonStates()
        {
            CanConnect = !IsConnected;
            CanDisconnect = IsConnected;
            CanStart = IsConnected && !IsRunning;
            CanStop = IsConnected && IsRunning;
            CanReset = IsConnected;
            CanStartDataCollection = IsConnected && !IsDataCollecting;
            CanStopDataCollection = IsConnected && IsDataCollecting;

            // 触发命令的 CanExecuteChanged 事件
            _connectCmd?.RaiseCanExecuteChanged();
            _disconnectCmd?.RaiseCanExecuteChanged();
            _startCmd?.RaiseCanExecuteChanged();
            _stopCmd?.RaiseCanExecuteChanged();
            _resetCmd?.RaiseCanExecuteChanged();
            _startDataCollectionCmd?.RaiseCanExecuteChanged();
            _stopDataCollectionCmd?.RaiseCanExecuteChanged();
        }

        private async Task SimulateBasicDataUpdate(CancellationToken cancellationToken)
        {
            var random = new Random();

            while (!cancellationToken.IsCancellationRequested && IsConnected)
            {
                try
                {
                    if (!IsDataCollecting)
                    {
                        UpdatePropertiesSafe(() =>
                        {
                            if (IsRunning)
                            {
                                Temperature = 25 + random.NextDouble() * 50;
                                Pressure = 1.0 + random.NextDouble() * 2.0;
                                MotorSpeed = 1450 + random.Next(0, 100);
                                Voltage = 220 + random.NextDouble() * 10 - 5;
                                Current = 15 + random.NextDouble() * 5;
                                Power = Current * Voltage / 1000;
                                Vibration = 0.5 + random.NextDouble() * 2.0;
                                Efficiency = 80 + random.NextDouble() * 15;
                            }

                            LastUpdate = DateTime.Now;
                        });
                    }

                    await Task.Delay(2000, cancellationToken); // 基础更新间隔2秒
                }
                catch (OperationCanceledException)
                {
                    break;
                }
                catch (Exception ex)
                {
                    UpdatePropertySafe<string>(msg => ErrorMessage = msg, $"基础数据更新错误: {ex.Message}");
                    break;
                }
            }
        }

        private async Task SimulateDataCollection(CancellationToken cancellationToken)
        {
            var random = new Random();

            while (!cancellationToken.IsCancellationRequested && IsConnected && IsDataCollecting)
            {
                try
                {
                    UpdatePropertiesSafe(() =>
                    {
                        if (IsRunning)
                        {
                            // 高频数据采集 - 使用时间函数模拟真实波动
                            var timeMs = DateTime.Now.Millisecond;
                            var timeSec = DateTime.Now.Second;

                            Temperature = 30 + Math.Sin(timeMs / 1000.0 * Math.PI) * 20 + random.NextDouble() * 5;
                            Pressure = 1.5 + Math.Cos(timeMs / 800.0 * Math.PI) * 0.8 + random.NextDouble() * 0.2;
                            MotorSpeed = 1500 + (int)(Math.Sin(timeMs / 600.0 * Math.PI) * 50) + random.Next(-20, 20);

                            Voltage = 220 + Math.Sin(timeMs / 1200.0 * Math.PI) * 8 + random.NextDouble() * 3;
                            Current = 15 + Math.Cos(timeMs / 900.0 * Math.PI) * 3 + random.NextDouble() * 1;
                            Power = Current * Voltage / 1000;

                            Vibration = 0.8 + Math.Abs(Math.Sin(timeMs / 300.0 * Math.PI)) * 1.5 + random.NextDouble() * 0.3;
                            Efficiency = 85 + Math.Sin(timeSec / 10.0 * Math.PI) * 10 + random.NextDouble() * 3;

                            // 产品计数
                            if (timeMs % 100 < 50 && random.NextDouble() > 0.7)
                            {
                                ProductCount++;
                            }

                            // 报警模拟
                            if (Temperature > 70)
                                AlarmStatus = "温度报警";
                            else if (Vibration > 2.0)
                                AlarmStatus = "振动报警";
                            else if (Pressure > 2.5)
                                AlarmStatus = "压力报警";
                            else
                                AlarmStatus = "正常";
                        }
                        else
                        {
                            // 设备停止时的数据
                            Temperature = Math.Max(25, Temperature - 0.5);
                            Pressure = Math.Max(0, Pressure - 0.1);
                            MotorSpeed = 0;
                            Current = 0;
                            Power = 0;
                            Vibration = Math.Max(0.1, Vibration - 0.05);
                            Efficiency = 0;
                            AlarmStatus = "正常";
                        }

                        LastUpdate = DateTime.Now;
                    });

                    await Task.Delay(CollectionInterval, cancellationToken);
                }
                catch (OperationCanceledException)
                {
                    break;
                }
                catch (Exception ex)
                {
                    UpdatePropertySafe<string>(msg => ErrorMessage = msg, $"数据采集错误: {ex.Message}");
                    break;
                }
            }

            UpdatePropertySafe<string>(status => DataCollectionStatus = status, "已停止");
        }

        protected virtual void OnPropertyChanged(string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }

        // 释放资源
        public void Dispose()
        {
            _cancellationTokenSource?.Cancel();
            _cancellationTokenSource?.Dispose();
        }
    }
}

C#
using System;
using System.Windows.Input;

namespace AppFody
{
    public class RelayCommand : ICommand
    {
        private readonly Action<object> _execute;
        private readonly Predicate<object> _canExecute;

        public RelayCommand(Action<object> execute, Predicate<object> canExecute = null)
        {
            _execute = execute ?? throw new ArgumentNullException(nameof(execute));
            _canExecute = canExecute;
        }

        public event EventHandler CanExecuteChanged;

        public bool CanExecute(object parameter)
        {
            return _canExecute == null || _canExecute(parameter);
        }

        public void Execute(object parameter)
        {
            _execute(parameter);
        }

        /// <summary>
        /// 手动触发 CanExecuteChanged 事件
        /// </summary>
        public void RaiseCanExecuteChanged()
        {
            CanExecuteChanged?.Invoke(this, EventArgs.Empty);
        }
    }
}

C#
using System;
using System.ComponentModel;
using System.Drawing;
using System.Windows.Forms;

namespace AppFody
{
    public partial class Form1 : Form
    {
        private MainViewModel _viewModel;

        public Form1()
        {
            InitializeComponent();
            _viewModel = new MainViewModel();
            SetupDataBindings();
            SetupEventHandlers();
        }

        private void SetupDataBindings()
        {
            // 基础状态绑定
            lblDeviceStatus.DataBindings.Add("Text", _viewModel, nameof(_viewModel.DeviceStatus),
                false, DataSourceUpdateMode.OnPropertyChanged);

            lblTemperature.DataBindings.Add("Text", _viewModel, nameof(_viewModel.Temperature),
                true, DataSourceUpdateMode.OnPropertyChanged, "0", "N1");

            lblPressure.DataBindings.Add("Text", _viewModel, nameof(_viewModel.Pressure),
                true, DataSourceUpdateMode.OnPropertyChanged, "0", "N2");

            lblMotorSpeed.DataBindings.Add("Text", _viewModel, nameof(_viewModel.MotorSpeed),
                false, DataSourceUpdateMode.OnPropertyChanged);

            lblLastUpdate.DataBindings.Add("Text", _viewModel, nameof(_viewModel.LastUpdate),
                true, DataSourceUpdateMode.OnPropertyChanged, null, "HH:mm:ss.fff");

            lblErrorMessage.DataBindings.Add("Text", _viewModel, nameof(_viewModel.ErrorMessage),
                false, DataSourceUpdateMode.OnPropertyChanged);

            // 新增参数绑定
            lblVoltage.DataBindings.Add("Text", _viewModel, nameof(_viewModel.Voltage),
                true, DataSourceUpdateMode.OnPropertyChanged, "0", "N1");

            lblCurrent.DataBindings.Add("Text", _viewModel, nameof(_viewModel.Current),
                true, DataSourceUpdateMode.OnPropertyChanged, "0", "N1");

            lblPower.DataBindings.Add("Text", _viewModel, nameof(_viewModel.Power),
                true, DataSourceUpdateMode.OnPropertyChanged, "0", "N2");

            lblVibration.DataBindings.Add("Text", _viewModel, nameof(_viewModel.Vibration),
                true, DataSourceUpdateMode.OnPropertyChanged, "0", "N2");

            lblProductCount.DataBindings.Add("Text", _viewModel, nameof(_viewModel.ProductCount),
                false, DataSourceUpdateMode.OnPropertyChanged);

            lblEfficiency.DataBindings.Add("Text", _viewModel, nameof(_viewModel.Efficiency),
                true, DataSourceUpdateMode.OnPropertyChanged, "0", "N1");

            lblAlarmStatus.DataBindings.Add("Text", _viewModel, nameof(_viewModel.AlarmStatus),
                false, DataSourceUpdateMode.OnPropertyChanged);

            // 数据采集状态绑定
            lblDataCollectionStatus.DataBindings.Add("Text", _viewModel, nameof(_viewModel.DataCollectionStatus),
                false, DataSourceUpdateMode.OnPropertyChanged);

            nudCollectionInterval.DataBindings.Add("Value", _viewModel, nameof(_viewModel.CollectionInterval),
                false, DataSourceUpdateMode.OnPropertyChanged);

            // 按钮状态绑定
            btnConnect.DataBindings.Add("Enabled", _viewModel, nameof(_viewModel.CanConnect),
                false, DataSourceUpdateMode.OnPropertyChanged);

            btnDisconnect.DataBindings.Add("Enabled", _viewModel, nameof(_viewModel.CanDisconnect),
                false, DataSourceUpdateMode.OnPropertyChanged);

            btnStart.DataBindings.Add("Enabled", _viewModel, nameof(_viewModel.CanStart),
                false, DataSourceUpdateMode.OnPropertyChanged);

            btnStop.DataBindings.Add("Enabled", _viewModel, nameof(_viewModel.CanStop),
                false, DataSourceUpdateMode.OnPropertyChanged);

            btnReset.DataBindings.Add("Enabled", _viewModel, nameof(_viewModel.CanReset),
                false, DataSourceUpdateMode.OnPropertyChanged);

            btnStartDataCollection.DataBindings.Add("Enabled", _viewModel, nameof(_viewModel.CanStartDataCollection),
                false, DataSourceUpdateMode.OnPropertyChanged);

            btnStopDataCollection.DataBindings.Add("Enabled", _viewModel, nameof(_viewModel.CanStopDataCollection),
                false, DataSourceUpdateMode.OnPropertyChanged);

            // 订阅 PropertyChanged 事件以更新 UI 样式
            _viewModel.PropertyChanged += OnViewModelPropertyChanged;
        }

        private void OnViewModelPropertyChanged(object sender, PropertyChangedEventArgs e)
        {
            // 确保在UI线程上执行
            if (InvokeRequired)
            {
                // 使用BeginInvoke提高性能，避免阻塞
                BeginInvoke(new Action<object, PropertyChangedEventArgs>(OnViewModelPropertyChanged), sender, e);
                return;
            }

            try
            {
                switch (e.PropertyName)
                {
                    case nameof(_viewModel.DeviceStatus):
                        UpdateStatusColor();
                        break;
                    case nameof(_viewModel.IsRunning):
                        UpdateRunningIndicator();
                        break;
                    case nameof(_viewModel.Temperature):
                        UpdateTemperatureColor();
                        break;
                    case nameof(_viewModel.AlarmStatus):
                        UpdateAlarmColor();
                        break;
                    case nameof(_viewModel.IsDataCollecting):
                        UpdateDataCollectionIndicator();
                        break;
                    case nameof(_viewModel.Vibration):
                        UpdateVibrationColor();
                        break;
                }
            }
            catch (Exception ex)
            {
                // 防止UI更新错误影响整个应用
                Console.WriteLine($"UI更新错误: {ex.Message}");
            }
        }

        private void UpdateStatusColor()
        {
            if (lblDeviceStatus.IsDisposed) return;

            switch (_viewModel.DeviceStatus)
            {
                case "离线":
                case "连接失败":
                    lblDeviceStatus.ForeColor = Color.Gray;
                    break;
                case "连接中...":
                case "启动中...":
                case "停止中...":
                    lblDeviceStatus.ForeColor = Color.Orange;
                    break;
                case "已连接":
                case "已停止":
                case "已重置":
                    lblDeviceStatus.ForeColor = Color.Blue;
                    break;
                case "运行中":
                    lblDeviceStatus.ForeColor = Color.Green;
                    break;
                default:
                    lblDeviceStatus.ForeColor = Color.Black;
                    break;
            }
        }

        private void UpdateRunningIndicator()
        {
            if (this.IsDisposed) return;

            if (_viewModel.IsRunning)
            {

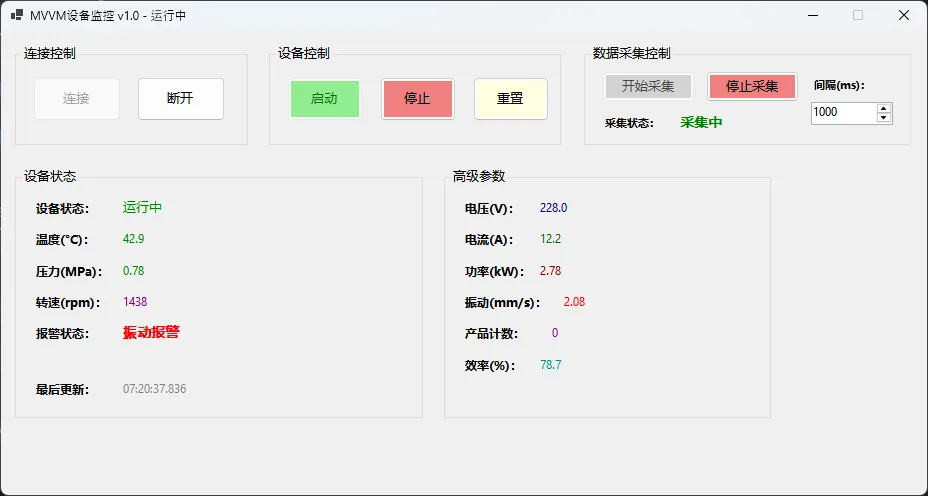

                this.Text = "MVVM设备监控 v1.0 - 运行中";
            }
            else
            {
                this.Text = "MVVM设备监控 v1.0";
            }
        }

        private void UpdateTemperatureColor()
        {
            if (lblTemperature.IsDisposed) return;

            if (_viewModel.Temperature > 70)
                lblTemperature.ForeColor = Color.Red;
            else if (_viewModel.Temperature > 50)
                lblTemperature.ForeColor = Color.Orange;
            else if (_viewModel.Temperature > 30)
                lblTemperature.ForeColor = Color.Green;
            else
                lblTemperature.ForeColor = Color.Blue;
        }

        private void UpdateAlarmColor()
        {
            if (lblAlarmStatus.IsDisposed) return;

            switch (_viewModel.AlarmStatus)
            {
                case "正常":
                    lblAlarmStatus.ForeColor = Color.Green;
                    lblAlarmStatus.Font = new Font(lblAlarmStatus.Font, FontStyle.Regular);
                    break;
                case "温度报警":
                case "振动报警":
                case "压力报警":
                    lblAlarmStatus.ForeColor = Color.Red;
                    lblAlarmStatus.Font = new Font(lblAlarmStatus.Font, FontStyle.Bold);
                    break;
                default:
                    lblAlarmStatus.ForeColor = Color.Orange;
                    lblAlarmStatus.Font = new Font(lblAlarmStatus.Font, FontStyle.Regular);
                    break;
            }
        }

        private void UpdateDataCollectionIndicator()
        {
            if (lblDataCollectionStatus.IsDisposed || btnStartDataCollection.IsDisposed || btnStopDataCollection.IsDisposed)
                return;

            if (_viewModel.IsDataCollecting)
            {
                lblDataCollectionStatus.ForeColor = Color.Green;
                lblDataCollectionStatus.Font = new Font(lblDataCollectionStatus.Font, FontStyle.Bold);
                btnStartDataCollection.BackColor = Color.LightGray;
                btnStopDataCollection.BackColor = Color.LightCoral;
            }
            else
            {
                lblDataCollectionStatus.ForeColor = Color.Gray;
                lblDataCollectionStatus.Font = new Font(lblDataCollectionStatus.Font, FontStyle.Regular);
                btnStartDataCollection.BackColor = Color.LightBlue;
                btnStopDataCollection.BackColor = Color.LightGray;
            }
        }

        private void UpdateVibrationColor()
        {
            if (lblVibration.IsDisposed) return;

            if (_viewModel.Vibration > 2.0)
                lblVibration.ForeColor = Color.Red;
            else if (_viewModel.Vibration > 1.5)
                lblVibration.ForeColor = Color.Orange;
            else
                lblVibration.ForeColor = Color.Green;
        }

        private void SetupEventHandlers()
        {
            btnConnect.Click += (s, e) => ExecuteCommand(_viewModel.ConnectCommand);
            btnDisconnect.Click += (s, e) => ExecuteCommand(_viewModel.DisconnectCommand);
            btnStart.Click += (s, e) => ExecuteCommand(_viewModel.StartCommand);
            btnStop.Click += (s, e) => ExecuteCommand(_viewModel.StopCommand);
            btnReset.Click += (s, e) => ExecuteCommand(_viewModel.ResetCommand);
            btnStartDataCollection.Click += (s, e) => ExecuteCommand(_viewModel.StartDataCollectionCommand);
            btnStopDataCollection.Click += (s, e) => ExecuteCommand(_viewModel.StopDataCollectionCommand);

            // 采集间隔变化事件
            nudCollectionInterval.ValueChanged += (s, e) =>
            {
                if (!nudCollectionInterval.IsDisposed)
                {
                    _viewModel.CollectionInterval = (int)nudCollectionInterval.Value;
                }
            };
        }

        private void ExecuteCommand(System.Windows.Input.ICommand command)
        {
            try
            {
                if (command?.CanExecute(null) == true)
                {
                    command.Execute(null);
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show($"命令执行错误: {ex.Message}", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
            }
        }

        protected override void OnFormClosing(FormClosingEventArgs e)
        {
            try
            {
                if (_viewModel != null)
                {
                    _viewModel.PropertyChanged -= OnViewModelPropertyChanged;

                    if (_viewModel.IsConnected)
                    {
                        _viewModel.DisconnectCommand?.Execute(null);
                    }

                    // 释放ViewModel资源
                    _viewModel.Dispose();
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"窗体关闭错误: {ex.Message}");
            }

            base.OnFormClosing(e);
        }
    }
}



🚨 生产环境踩坑指南

❌ 常见错误与解决方案

跨线程操作异常

C#
// 错误做法 - 直接在后台线程更新UI属性
Task.Run(() => {
    Temperature = newValue; // 抛出InvalidOperationException
});

// 正确做法 - 使用同步上下文调度
Task.Run(() => {
    _syncContext.Post(_ => Temperature = newValue, null);
});

内存泄漏风险

C#
// 潜在风险 - PropertyChanged事件未正确解除订阅
_viewModel.PropertyChanged += OnViewModelPropertyChanged;

// 安全做法 - 在窗体关闭时解除订阅
protected override void OnFormClosing(FormClosingEventArgs e)
{
    _viewModel.PropertyChanged -= OnViewModelPropertyChanged;
    _viewModel.Dispose(); // 释放资源
    base.OnFormClosing(e);
}

UI更新性能问题

C#
// 性能优化 - 使用BeginInvoke避免阻塞
private void OnViewModelPropertyChanged(object sender, PropertyChangedEventArgs e)
{
    if (InvokeRequired)
    {
        // BeginInvoke异步调度，避免阻塞调用线程
        BeginInvoke(new Action<object, PropertyChangedEventArgs>(OnViewModelPropertyChanged), sender, e);
        return;
    }

    // 在UI线程中安全更新界面
    UpdateUIElement(e.PropertyName);
}

🎯 核心要点总结

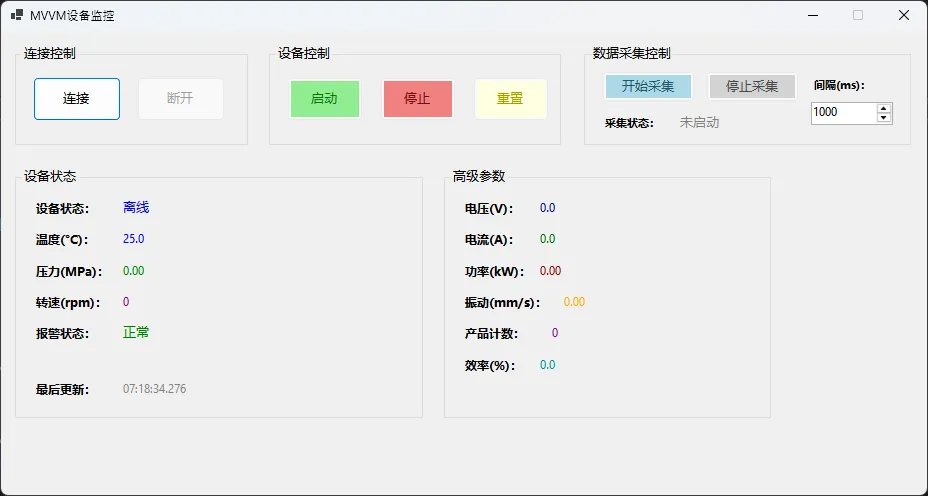

通过这个完整的工业监控系统案例，我们深度实践了C# MVVM模式的生产级应用。三个关键收获：

  1. 架构分离的威力 - MVVM模式让代码结构清晰，职责明确，大幅提升了代码的可维护性和可测试性
  2. 线程安全的重要性 - 使用SynchronizationContext确保UI更新的线程安全，避免了多线程环境下的常见问题
  3. 自动化工具的价值 - Fody.PropertyChanged等工具极大减少了样板代码，让开发者专注于业务逻辑实现

这套架构不仅适用于工业监控，同样可以应用于金融交易系统、物联网数据展示、实时监控大屏等场景。掌握了这些核心技术，你就拥有了构建高质量WinForms应用的完整武器库。

你在实际项目中遇到过哪些MVVM实现难点？欢迎在评论区分享你的经验，一起探讨更多实战技巧！如果觉得这篇文章对你有帮助，请转发给更多需要的同行朋友！ 🚀

相关信息

通过网盘分享的文件：AppFody.zip 链接: https://pan.baidu.com/s/11B_oUHvmOF-gV-XJDy9ETg?pwd=4w6y 提取码: 4w6y --来自百度网盘超级会员v9的分享

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
