在工业物联网时代，传感器数据采集系统面临着巨大挑战：如何在高频率数据写入的同时保证系统稳定性？

想象一下，你的工厂有数十个传感器，每秒产生上千条数据，传统的实时写入数据库方式会让你的系统瞬间崩溃。今天，我将通过一个完整的C#项目，展示如何优雅地解决这个问题，构建一个能够处理高频数据的工业级监控系统。

本文将深入剖析批量写入策略、异步处理机制和SQLite性能优化，让你的数据采集系统既稳定又高效！

🔥 高频数据采集的核心挑战

痛点分析

在实际的工业应用中，传感器数据采集系统经常遇到以下问题：

  1. 频繁数据库操作导致性能瓶颈 - 每条数据都立即写入数据库会造成大量I/O开销
  2. 数据丢失风险 - 系统崩溃时未写入的数据会丢失
  3. UI界面卡顿 - 数据处理阻塞主线程导致界面响应缓慢
  4. 资源消耗过大 - 不合理的线程和连接管理导致系统资源紧张

解决方案概览

我们的解决方案采用了生产者-消费者模式，通过以下关键技术实现高效的数据处理：

  • ConcurrentQueue队列缓冲 - 解耦数据生产和存储
  • 批量写入机制 - 减少数据库操作次数
  • 异步处理 - 避免阻塞主线程
  • 智能刷新策略 - 平衡性能和数据安全

💡 核心架构设计

🏗️ 系统架构图

Markdown
传感器数据 → 内存队列 → 批量处理线程 → SQLite数据库
     ↓           ↓            ↓
   实时显示 ← UI更新线程 ← 数据统计查询

🎯 关键组件解析

1. 数据模型设计

C#
public class SensorData
{
    public string SensorId { get; set; }    // 传感器ID
    public double Value { get; set; }       // 测量值
    public DateTime Timestamp { get; set; } // 时间戳
    public string Unit { get; set; }        // 单位
}

public class SensorConfig
{
    public string Name { get; set; }        // 传感器名称
    public string Unit { get; set; }        // 单位
    public double MinValue { get; set; }    // 最小值
    public double MaxValue { get; set; }    // 最大值
}

2. 高频数据管理器

C#
public class HighFrequencyDataManager : IDisposable
{
    private readonly ConcurrentQueue<SensorData> _dataQueue;
    private readonly Task _batchProcessingTask;
    private readonly CancellationTokenSource _cancellationTokenSource;
    private int _batchSize;
    private readonly int _flushInterval;

    public HighFrequencyDataManager(string databasePath, int batchSize = 1000, int flushIntervalMs = 1000)
    {
        _batchSize = batchSize;
        _flushInterval = flushIntervalMs;
        _connectionString = $"Data Source={databasePath};";
        _dataQueue = new ConcurrentQueue<SensorData>();
        _cancellationTokenSource = new CancellationTokenSource();

        InitializeDatabase();
        // 启动后台批量处理任务
        _batchProcessingTask = Task.Run(BatchProcessingLoop, _cancellationTokenSource.Token);
    }
}

🚀 批量写入核心实现

🔧 智能批量处理循环

这是整个系统的核心，实现了高效的数据批量处理：

C#
private async Task BatchProcessingLoop()
{
    var batchData = new List<SensorData>();
    var lastFlushTime = DateTime.Now;

    while (!_cancellationTokenSource.Token.IsCancellationRequested)
    {
        try
        {
            // 从队列中取出数据，直到达到批量大小
            while (_dataQueue.TryDequeue(out var data) && batchData.Count < _batchSize)
            {
                batchData.Add(data);
            }

            // 智能刷新策略：达到批量大小或超过时间间隔
            var shouldFlush = batchData.Count >= _batchSize ||
                            (batchData.Count > 0 && (DateTime.Now - lastFlushTime).TotalMilliseconds >= _flushInterval);

            if (shouldFlush)
            {
                await SaveBatchToDatabase(batchData);
                batchData.Clear();
                lastFlushTime = DateTime.Now;
            }

            await Task.Delay(10, _cancellationTokenSource.Token);
        }
        catch (Exception ex)
        {
            Console.WriteLine($"批量处理错误: {ex.Message}");
            await Task.Delay(1000, _cancellationTokenSource.Token);
        }
    }
}

关键技巧解析：

  • 双重触发条件：既考虑批量大小，也考虑时间间隔，确保数据及时入库
  • 异常恢复机制：出错后延迟重试，避免死循环
  • 优雅关闭：通过CancellationToken实现线程安全的停止

⚡ 高性能批量插入

C#
private async Task SaveBatchToDatabase(List<SensorData> batchData)
{
    if (batchData.Count == 0) return;

    using (var connection = new SqliteConnection(_connectionString))
    {
        await connection.OpenAsync();
        using (var transaction = connection.BeginTransaction())
        {
            try
            {
                // SQLite参数限制处理
                const int maxParametersPerBatch = 999;
                const int parametersPerRow = 4;
                var maxRowsPerBatch = maxParametersPerBatch / parametersPerRow;

                // 分批插入，避免参数过多
                for (int i = 0; i < batchData.Count; i += maxRowsPerBatch)
                {
                    var batchSize = Math.Min(maxRowsPerBatch, batchData.Count - i);
                    var batch = batchData.GetRange(i, batchSize);

                    // 动态构建批量插入语句
                    var valueClause = string.Join(", ",
                        Enumerable.Range(0, batch.Count).Select(j =>
                            $"(@SensorId{j}, @Value{j}, @Timestamp{j}, @Unit{j})"));

                    var insertCommand = $@"
                        INSERT INTO SensorData (SensorId, Value, Timestamp, Unit)
                        VALUES {valueClause}";

                    using (var command = new SqliteCommand(insertCommand, connection, transaction))
                    {
                        // 批量绑定参数
                        for (int j = 0; j < batch.Count; j++)
                        {
                            var data = batch[j];
                            command.Parameters.AddWithValue($"@SensorId{j}", data.SensorId);
                            command.Parameters.AddWithValue($"@Value{j}", data.Value);
                            command.Parameters.AddWithValue($"@Timestamp{j}", data.Timestamp);
                            command.Parameters.AddWithValue($"@Unit{j}", data.Unit ?? string.Empty);
                        }
                        await command.ExecuteNonQueryAsync();
                    }
                }
                await transaction.CommitAsync();
            }
            catch
            {
                await transaction.RollbackAsync();
                throw;
            }
        }
    }
}

性能优化要点：

  • 事务包装：将多次插入包装在一个事务中，大幅提升性能
  • 参数化查询：防止SQL注入，提高执行效率
  • 分批处理：突破SQLite 999参数限制
  • 异步操作：避免阻塞调用线程

🎛️ WinForms界面实现

📊 实时数据展示

C#
private void SensorSimulationTimer_Tick(object sender, EventArgs e)
{
    var dataList = new List<SensorData>();

    // 模拟多传感器数据生成
    foreach (var sensor in _sensors)
    {
        var data = new SensorData
        {
            SensorId = sensor.Key,
            Value = Math.Round(_random.NextDouble() *
                   (sensor.Value.MaxValue - sensor.Value.MinValue) +
                   sensor.Value.MinValue, 2),
            Timestamp = DateTime.Now,
            Unit = sensor.Value.Unit
        };
        dataList.Add(data);
    }

    // 异步写入数据管理器
    _dataManager.AddDataBatch(dataList);
    _totalDataCount += dataList.Count;

    // 更新UI显示
    UpdateRealtimeData(dataList);
}

🔄 线程安全的UI更新

C#
private void UpdateRealtimeData(List<SensorData> dataList)
{
    // 跨线程操作UI的标准做法
    if (InvokeRequired)
    {
        Invoke(new Action<List<SensorData>>(UpdateRealtimeData), dataList);
        return;
    }

    // 格式化显示数据
    var displayData = dataList.Select(d => new
    {
        SensorId = d.SensorId,
        SensorName = _sensors.ContainsKey(d.SensorId) ? _sensors[d.SensorId].Name : d.SensorId,
        Value = d.Value.ToString("F2"),
        Unit = d.Unit,
        Timestamp = d.Timestamp.ToString("yyyy-MM-dd HH:mm:ss.fff")
    }).ToList();

    dataGridView.DataSource = displayData;
}

📈 性能监控与统计查询

🔍 实时性能监控

C#
private void UiUpdateTimer_Tick(object sender, EventArgs e)
{
    // 显示总数据量
    countLabel.Text = _totalDataCount.ToString("N0");

    // 计算写入速率
    var elapsed = DateTime.Now - _startTime;
    var rate = elapsed.TotalSeconds > 0 ? _totalDataCount / elapsed.TotalSeconds : 0;
    rateLabel.Text = $"{rate:F1} 条/秒";

    // 显示运行时间
    timeLabel.Text = elapsed.ToString(@"hh\:mm\:ss");
}

📊 历史数据统计

C#
public SensorStatistics GetStatistics(string sensorId, DateTime startTime, DateTime endTime)
{
    using (var connection = new SqliteConnection(_connectionString))
    {
        connection.Open();
        var query = @"
            SELECT
                COUNT(*) as Count,
                AVG(Value) as AvgValue,
                MAX(Value) as MaxValue,
                MIN(Value) as MinValue
            FROM SensorData
            WHERE SensorId = @SensorId
                AND Timestamp >= @StartTime
                AND Timestamp <= @EndTime";

        using (var command = new SqliteCommand(query, connection))
        {
            command.Parameters.AddWithValue("@SensorId", sensorId);
            command.Parameters.AddWithValue("@StartTime", startTime);
            command.Parameters.AddWithValue("@EndTime", endTime);

            using (var reader = command.ExecuteReader())
            {
                if (reader.Read())
                {
                    return new SensorStatistics
                    {
                        Count = (int)reader.GetInt64("Count"),
                        AvgValue = reader.IsDBNull("AvgValue") ? 0 : reader.GetDouble("AvgValue"),
                        MaxValue = reader.IsDBNull("MaxValue") ? 0 : reader.GetDouble("MaxValue"),
                        MinValue = reader.IsDBNull("MinValue") ? 0 : reader.GetDouble("MinValue")
                    };
                }
            }
        }
    }
    return new SensorStatistics();
}

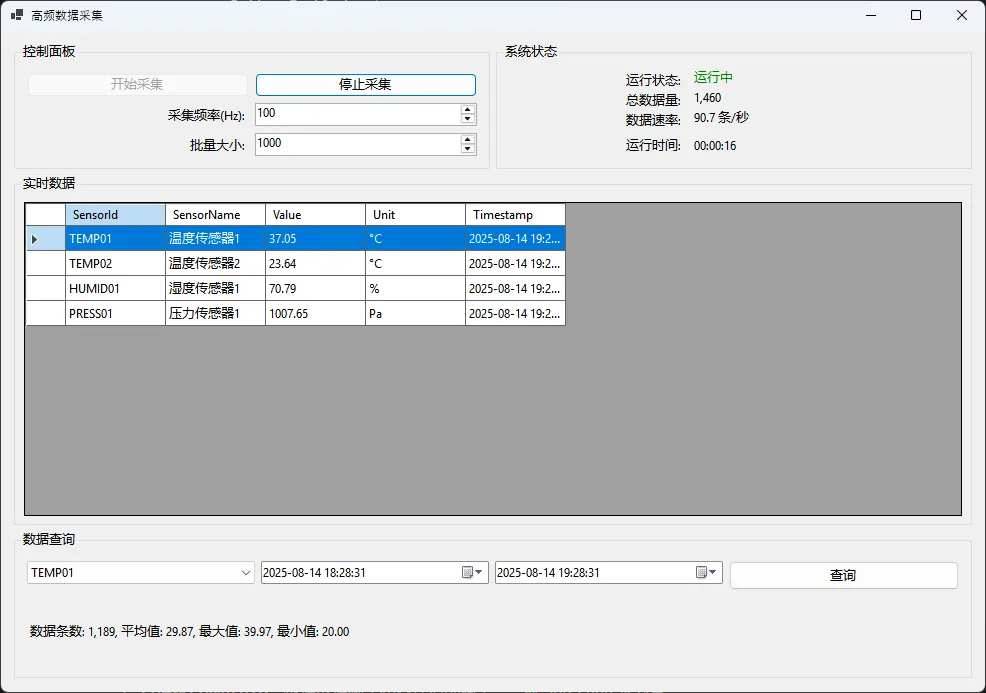

完整代码

C#
using Timer = System.Windows.Forms.Timer;

namespace AppSqliteHighFrequencyData
{
    public partial class Form1 : Form
    {
        private HighFrequencyDataManager _dataManager;
        private Timer _sensorSimulationTimer;
        private Timer _uiUpdateTimer;
        private Random _random = new Random();
        private long _totalDataCount = 0;
        private DateTime _startTime = DateTime.Now;

        // 传感器配置
        private readonly Dictionary<string, SensorConfig> _sensors = new Dictionary<string, SensorConfig>
        {
            ["TEMP01"] = new SensorConfig { Name = "温度传感器1", Unit = "°C", MinValue = 20, MaxValue = 40 },
            ["TEMP02"] = new SensorConfig { Name = "温度传感器2", Unit = "°C", MinValue = 18, MaxValue = 42 },
            ["HUMID01"] = new SensorConfig { Name = "湿度传感器1", Unit = "%", MinValue = 30, MaxValue = 80 },
            ["PRESS01"] = new SensorConfig { Name = "压力传感器1", Unit = "Pa", MinValue = 1000, MaxValue = 1200 }
        };

        public Form1()
        {
            InitializeComponent();
            InitializeDataManager();
            InitializeUI();
        }

        private void InitializeDataManager()
        {
            var databasePath = "sensor_data.db";
            _dataManager = new HighFrequencyDataManager(databasePath, 1000, 1000);
        }

        private void InitializeUI()
        {

            sensorCombo.Items.AddRange(_sensors.Keys.ToArray());
            sensorCombo.SelectedIndex = 0;

            startTimePicker.Value = DateTime.Now.AddHours(-1);
            endTimePicker.Value = DateTime.Now;

            _uiUpdateTimer = new Timer { Interval = 1000, Enabled = true };
            _uiUpdateTimer.Tick += UiUpdateTimer_Tick;

            UpdateStatus("已停止", Color.Red);
        }

        private void StartButton_Click(object sender, EventArgs e)
        {
            startButton.Enabled = false;
            stopButton.Enabled = true;

            var frequency = (int)frequencyNumeric.Value;
            var interval = 1000 / frequency;

            _startTime = DateTime.Now;
            _totalDataCount = 0;

            var batchSize = (int)batchSizeNumeric.Value;
            _dataManager.UpdateBatchSize(batchSize);

            _sensorSimulationTimer = new Timer { Interval = interval, Enabled = true };
            _sensorSimulationTimer.Tick += SensorSimulationTimer_Tick;

            UpdateStatus("运行中", Color.Green);
        }

        private void StopButton_Click(object sender, EventArgs e)
        {
            startButton.Enabled = true;
            stopButton.Enabled = false;

            _sensorSimulationTimer?.Stop();
            _sensorSimulationTimer?.Dispose();
            _sensorSimulationTimer = null;

            UpdateStatus("已停止", Color.Red);
        }

        private void SensorSimulationTimer_Tick(object sender, EventArgs e)
        {
            var dataList = new List<SensorData>();

            foreach (var sensor in _sensors)
            {
                var data = new SensorData
                {
                    SensorId = sensor.Key,
                    Value = Math.Round(_random.NextDouble() * (sensor.Value.MaxValue - sensor.Value.MinValue) + sensor.Value.MinValue, 2),
                    Timestamp = DateTime.Now,
                    Unit = sensor.Value.Unit
                };
                dataList.Add(data);
            }

            _dataManager.AddDataBatch(dataList);
            _totalDataCount += dataList.Count;
            UpdateRealtimeData(dataList);
        }

        private void UpdateRealtimeData(List<SensorData> dataList)
        {
            if (InvokeRequired)
            {
                Invoke(new Action<List<SensorData>>(UpdateRealtimeData), dataList);
                return;
            }
            var displayData = dataList.Select(d => new
            {
                SensorId = d.SensorId,
                SensorName = _sensors.ContainsKey(d.SensorId) ? _sensors[d.SensorId].Name : d.SensorId,
                Value = d.Value.ToString("F2"),
                Unit = d.Unit,
                Timestamp = d.Timestamp.ToString("yyyy-MM-dd HH:mm:ss.fff")
            }).ToList();

            dataGridView.DataSource = displayData;
        }

        private void UiUpdateTimer_Tick(object sender, EventArgs e)
        {
            countLabel.Text = _totalDataCount.ToString("N0");

            var elapsed = DateTime.Now - _startTime;
            var rate = elapsed.TotalSeconds > 0 ? _totalDataCount / elapsed.TotalSeconds : 0;
            rateLabel.Text = $"{rate:F1} 条/秒";
            timeLabel.Text = elapsed.ToString(@"hh\:mm\:ss");
        }

        private async void QueryButton_Click(object sender, EventArgs e)
        {
            queryButton.Enabled = false;
            statsLabel.Text = "查询中...";

            var sensorId = sensorCombo.SelectedItem.ToString();
            var startTime = startTimePicker.Value;
            var endTime = endTimePicker.Value;

            try
            {
                var stats = await Task.Run(() => _dataManager.GetStatistics(sensorId, startTime, endTime));

                statsLabel.Text = $"数据条数: {stats.Count:N0}, 平均值: {stats.AvgValue:F2}, 最大值: {stats.MaxValue:F2}, 最小值: {stats.MinValue:F2}";
            }
            catch (Exception ex)
            {
                statsLabel.Text = $"查询出错: {ex.Message}";
            }
            finally
            {
                queryButton.Enabled = true;
            }
        }

        private void UpdateStatus(string status, Color color)
        {
            statusLabel.Text = status;
            statusLabel.ForeColor = color;
        }

        protected override void OnFormClosing(FormClosingEventArgs e)
        {
            _sensorSimulationTimer?.Stop();
            _sensorSimulationTimer?.Dispose();
            _uiUpdateTimer?.Stop();
            _uiUpdateTimer?.Dispose();
            _dataManager?.Dispose();
            base.OnFormClosing(e);
        }
    }
}



C#
using System;
using System.Collections.Concurrent;
using System.Collections.Generic;
using System.Data;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Microsoft.Data.Sqlite;

namespace AppSqliteHighFrequencyData
{
    public class HighFrequencyDataManager : IDisposable
    {
        private readonly string _connectionString;
        private readonly ConcurrentQueue<SensorData> _dataQueue;
        private readonly Task _batchProcessingTask;
        private readonly System.Threading.CancellationTokenSource _cancellationTokenSource;
        private int _batchSize;
        private readonly int _flushInterval;

        public HighFrequencyDataManager(string databasePath, int batchSize = 1000, int flushIntervalMs = 1000)
        {
            _batchSize = batchSize;
            _flushInterval = flushIntervalMs;
            _connectionString = $"Data Source={databasePath};";
            _dataQueue = new ConcurrentQueue<SensorData>();
            _cancellationTokenSource = new System.Threading.CancellationTokenSource();
            InitializeDatabase();
            _batchProcessingTask = Task.Run(BatchProcessingLoop, _cancellationTokenSource.Token);
        }


        public void UpdateBatchSize(int newBatchSize)
        {
            _batchSize = newBatchSize;
        }

        private void InitializeDatabase()
        {
            using (var connection = new SqliteConnection(_connectionString))
            {
                connection.Open();

                var createTableCommand = @"
                    CREATE TABLE IF NOT EXISTS SensorData (
                        Id INTEGER PRIMARY KEY AUTOINCREMENT,
                        SensorId TEXT NOT NULL,
                        Value REAL NOT NULL,
                        Timestamp DATETIME NOT NULL,
                        Unit TEXT
                    );

                    CREATE INDEX IF NOT EXISTS IX_SensorData_SensorId_Timestamp
                    ON SensorData(SensorId, Timestamp);
                ";

                using (var command = new SqliteCommand(createTableCommand, connection))
                {
                    command.ExecuteNonQuery();
                }
            }
        }

        public void AddDataBatch(List<SensorData> dataList)
        {
            foreach (var data in dataList)
            {
                _dataQueue.Enqueue(data);
            }
        }

        private async Task BatchProcessingLoop()
        {
            var batchData = new List<SensorData>();
            var lastFlushTime = DateTime.Now;

            while (!_cancellationTokenSource.Token.IsCancellationRequested)
            {
                try
                {
                    while (_dataQueue.TryDequeue(out var data) && batchData.Count < _batchSize)
                    {
                        batchData.Add(data);
                    }
                    var shouldFlush = batchData.Count >= _batchSize ||
                                    (batchData.Count > 0 && (DateTime.Now - lastFlushTime).TotalMilliseconds >= _flushInterval);

                    if (shouldFlush)
                    {
                        await SaveBatchToDatabase(batchData);
                        batchData.Clear();
                        lastFlushTime = DateTime.Now;
                    }
                    await Task.Delay(10, _cancellationTokenSource.Token);
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"批量处理错误: {ex.Message}");
                    await Task.Delay(1000, _cancellationTokenSource.Token);
                }
            }

            if (batchData.Count > 0)
            {
                await SaveBatchToDatabase(batchData);
            }
        }

        private async Task SaveBatchToDatabase(List<SensorData> batchData)
        {
            if (batchData.Count == 0) return;

            using (var connection = new SqliteConnection(_connectionString))
            {
                await connection.OpenAsync();

                using (var transaction = connection.BeginTransaction())
                {
                    try
                    {
                        const int maxParametersPerBatch = 999; // SQLite parameter limit
                        const int parametersPerRow = 4;
                        var maxRowsPerBatch = maxParametersPerBatch / parametersPerRow;

                        for (int i = 0; i < batchData.Count; i += maxRowsPerBatch)
                        {
                            var batchSize = Math.Min(maxRowsPerBatch, batchData.Count - i);
                            var batch = batchData.GetRange(i, batchSize);

                            var valueClause = string.Join(", ",
                                Enumerable.Range(0, batch.Count).Select(j =>
                                    $"(@SensorId{j}, @Value{j}, @Timestamp{j}, @Unit{j})"));

                            var insertCommand = $@"
                        INSERT INTO SensorData (SensorId, Value, Timestamp, Unit)
                        VALUES {valueClause}";

                            using (var command = new SqliteCommand(insertCommand, connection, transaction))
                            {
                                for (int j = 0; j < batch.Count; j++)
                                {
                                    var data = batch[j];
                                    command.Parameters.AddWithValue($"@SensorId{j}", data.SensorId);
                                    command.Parameters.AddWithValue($"@Value{j}", data.Value);
                                    command.Parameters.AddWithValue($"@Timestamp{j}", data.Timestamp);
                                    command.Parameters.AddWithValue($"@Unit{j}", data.Unit ?? string.Empty);
                                }

                                await command.ExecuteNonQueryAsync();
                            }
                        }

                        await transaction.CommitAsync();
                    }
                    catch
                    {
                        await transaction.RollbackAsync();
                        throw;
                    }
                }
            }
        }



        public SensorStatistics GetStatistics(string sensorId, DateTime startTime, DateTime endTime)
        {
            using (var connection = new SqliteConnection(_connectionString))
            {
                connection.Open();

                var query = @"
            SELECT
                COUNT(*) as Count,
                AVG(Value) as AvgValue,
                MAX(Value) as MaxValue,
                MIN(Value) as MinValue
            FROM SensorData
            WHERE SensorId = @SensorId
                AND Timestamp >= @StartTime
                AND Timestamp <= @EndTime";

                using (var command = new SqliteCommand(query, connection))
                {
                    command.Parameters.AddWithValue("@SensorId", sensorId);
                    command.Parameters.AddWithValue("@StartTime", startTime);
                    command.Parameters.AddWithValue("@EndTime", endTime);

                    using (var reader = command.ExecuteReader())
                    {
                        if (reader.Read())
                        {
                            return new SensorStatistics
                            {
                                Count = (int)reader.GetInt64("Count"),
                                AvgValue = reader.IsDBNull("AvgValue") ? 0 : reader.GetDouble("AvgValue"),
                                MaxValue = reader.IsDBNull("MaxValue") ? 0 : reader.GetDouble("MaxValue"),
                                MinValue = reader.IsDBNull("MinValue") ? 0 : reader.GetDouble("MinValue")
                            };
                        }
                    }
                }
            }

            return new SensorStatistics();
        }


        public void Dispose()
        {
            _cancellationTokenSource?.Cancel();
            _batchProcessingTask?.Wait(5000);
            _cancellationTokenSource?.Dispose();
        }
    }
}


C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppSqliteHighFrequencyData
{
    public class SensorData
    {
        public string SensorId { get; set; }
        public double Value { get; set; }
        public DateTime Timestamp { get; set; }
        public string Unit { get; set; }
    }

    public class SensorConfig
    {
        public string Name { get; set; }
        public string Unit { get; set; }
        public double MinValue { get; set; }
        public double MaxValue { get; set; }
    }

    public class SensorStatistics
    {
        public int Count { get; set; }
        public double AvgValue { get; set; }
        public double MaxValue { get; set; }
        public double MinValue { get; set; }
    }
}

⚠️ 常见坑点与最佳实践

🚫 避免这些错误

忘记Dispose资源

C#
// ❌ 错误做法：资源泄漏
public void BadExample()
{
    var timer = new Timer();
    // 忘记释放timer
}

// ✅ 正确做法：实现IDisposable
protected override void OnFormClosing(FormClosingEventArgs e)
{
    _sensorSimulationTimer?.Stop();
    _sensorSimulationTimer?.Dispose();
    _uiUpdateTimer?.Stop();
    _uiUpdateTimer?.Dispose();
    _dataManager?.Dispose();
    base.OnFormClosing(e);
}

直接在UI线程进行数据库操作

C#
// ❌ 错误做法：阻塞UI线程
private void BadQueryButton_Click(object sender, EventArgs e)
{
    var stats = _dataManager.GetStatistics(sensorId, startTime, endTime);
    statsLabel.Text = stats.ToString();
}

// ✅ 正确做法：异步操作
private async void QueryButton_Click(object sender, EventArgs e)
{
    queryButton.Enabled = false;
    try
    {
        var stats = await Task.Run(() => _dataManager.GetStatistics(sensorId, startTime, endTime));
        statsLabel.Text = $"数据条数: {stats.Count:N0}...";
    }
    finally
    {
        queryButton.Enabled = true;
    }
}



💡 优化建议

  1. 合理设置批量大小：根据数据频率和内存情况调整，一般500-2000条为宜
  2. 添加索引优化查询：为经常查询的字段建立复合索引
  3. 监控队列长度：避免内存队列无限增长
  4. 实现数据备份：定期备份SQLite数据库文件

🎯 总结

通过本文的详细解析，我们实现了一个高性能、稳定可靠的传感器数据采集系统。核心要点包括：

  1. 批量处理机制：显著提升数据库写入性能，减少I/O开销
  2. 异步架构设计：保证UI响应性，提升用户体验
  3. 资源管理优化：合理的线程和连接管理，避免资源泄漏

这套方案不仅适用于传感器监控，还可以扩展到日志采集、实时分析等多个场景。在实际项目中，你还可以考虑添加数据压缩、分库分表、集群部署等高级特性。

你在项目中遇到过哪些高频数据处理的挑战？ 欢迎在评论区分享你的经验，让我们一起探讨更多优化方案！

如果这篇文章对你有帮助，请转发给更多需要的同行。关注我，获取更多C#开发实战技巧！

相关信息

通过网盘分享的文件：AppSqliteHighFrequencyData.zip 链接: https://pan.baidu.com/s/1IT91akmqHL66CkDkoUJkhw?pwd=nnjq 提取码: nnjq --来自百度网盘超级会员v9的分享

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
