概述
TabControl是WPF中常用的导航控件，通过合理使用布局技术，可以实现响应式的标签页界面。本文将详细介绍如何创建一个响应式的TabControl控件，并结合Grid、StackPanel等布局控件实现自适应效果。
TabControl 基本属性
布局和外观属性
TabStripPlacement: 设置选项卡标签的位置（Top/Bottom/Left/Right）TabStripHeaderBackground: 设置选项卡头部的背景色Background: 设置整个TabControl的背景色BorderBrush: 设置边框颜色BorderThickness: 设置边框粗细Padding: 设置内边距Margin: 设置外边距
内容控制属性
SelectedIndex: 获取或设置当前选中的选项卡索引SelectedItem: 获取或设置当前选中的选项卡项SelectedContent: 获取当前选中选项卡的内容Items: 获取选项卡项的集合ItemsSource: 设置选项卡数据源ContentTemplate: 设置内容的模板
样式与模板属性
ItemTemplate: 定义选项卡项的模板ItemContainerStyle: 设置选项卡容器的样式ContentStringFormat: 设置内容的字符串格式Template: 设置整个TabControl的控件模板
TabControl 常用方法
选项卡操作
SelectTab(): 选择指定的选项卡GetSelectedTab(): 获取当前选中的选项卡ClearValue(): 清除指定依赖属性的值
事件处理
OnSelectionChanged: 选项卡选择改变时触发OnMouseDown: 鼠标按下事件OnMouseUp: 鼠标抬起事件OnGotFocus: 获得焦点事件OnLostFocus: 失去焦点事件
TabItem 相关属性
Header: 设置选项卡标题Content: 设置选项卡内容IsSelected: 获取或设置是否选中IsEnabled: 获取或设置是否启用

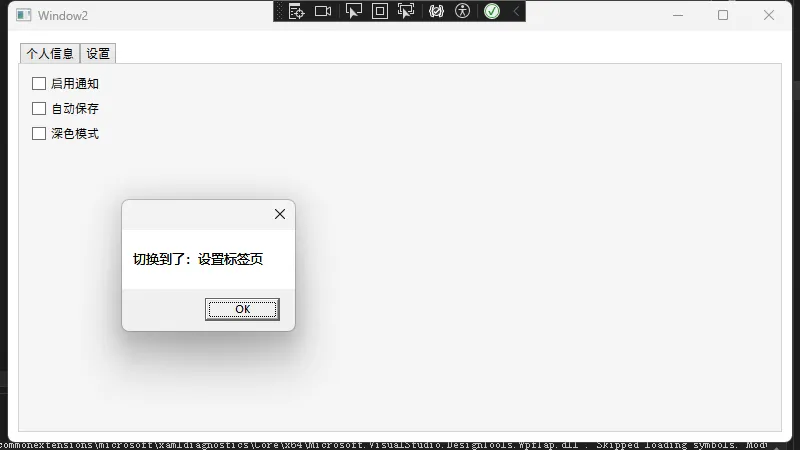

基础静态TabControl布局
XML<!-- MainWindow.xaml -->
<Window x:Class="TabControlDemo.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="TabControl示例1" Height="450" Width="800">
<Grid>
<TabControl Background="WhiteSmoke"
BorderBrush="LightGray"
BorderThickness="1"
TabStripPlacement="Top"
Margin="10"
SelectionChanged="TabControl_SelectionChanged">
<TabItem Header="个人信息" IsSelected="True">
<Grid Margin="10">
<StackPanel>
<TextBlock Text="姓名：" Margin="0,0,0,10"/>
<TextBox Width="200"
HorizontalAlignment="Left"
Margin="0,0,0,20"/>
<TextBlock Text="年龄：" Margin="0,0,0,10"/>
<TextBox Width="200"
HorizontalAlignment="Left"
Margin="0,0,0,20"/>
<Button Content="保存"
Width="100"
HorizontalAlignment="Left"/>
</StackPanel>
</Grid>
</TabItem>
<TabItem Header="设置">
<Grid Margin="10">
<StackPanel>
<CheckBox Content="启用通知"
Margin="0,0,0,10"/>
<CheckBox Content="自动保存"
Margin="0,0,0,10"/>
<CheckBox Content="深色模式"/>
</StackPanel>
</Grid>
</TabItem>
</TabControl>
</Grid>
</Window>
C#// MainWindow.xaml.cs
public partial class MainWindow : Window
{
public MainWindow()
{
InitializeComponent();
}
private void TabControl_SelectionChanged(object sender, SelectionChangedEventArgs e)
{
TabControl tabControl = sender as TabControl;
TabItem selectedTab = tabControl.SelectedItem as TabItem;
if (selectedTab != null)
{
MessageBox.Show($"切换到了：{selectedTab.Header}标签页");
}
}
}

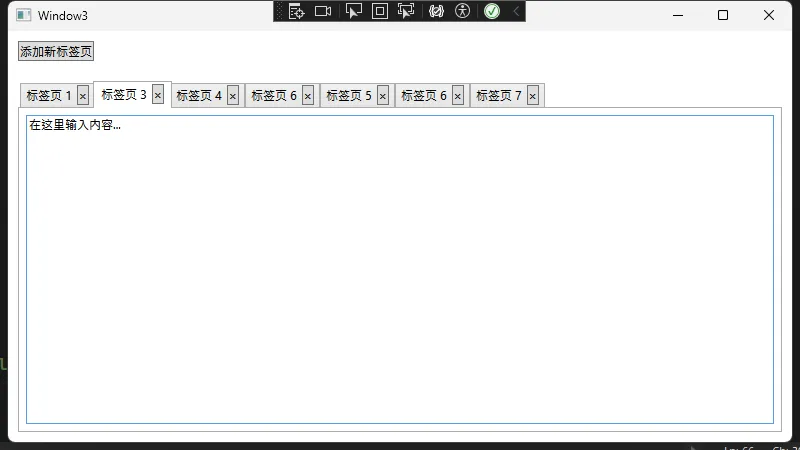

数据绑定的动态TabControl
XML<Window x:Class="AppTabControl.Window3"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:AppTabControl"
mc:Ignorable="d"
Title="Window3" Height="450" Width="800">
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<Button Content="添加新标签页"
Click="AddTab_Click"
Margin="10"
HorizontalAlignment="Left"/>
<TabControl Grid.Row="1"
x:Name="mainTabControl"
ItemsSource="{Binding TabItems}"
SelectedItem="{Binding SelectedTab}"
Background="White"
Margin="10">
<TabControl.ItemTemplate>
<DataTemplate>
<StackPanel Orientation="Horizontal">
<TextBlock Text="{Binding Header}"
VerticalAlignment="Center"/>
<Button Content="×"
Margin="5,0,0,0"
Click="CloseTab_Click"/>
</StackPanel>
</DataTemplate>
</TabControl.ItemTemplate>
<TabControl.ContentTemplate>
<DataTemplate>
<TextBox Text="{Binding Content}"
AcceptsReturn="True"
TextWrapping="Wrap"
Margin="5"/>
</DataTemplate>
</TabControl.ContentTemplate>
</TabControl>
</Grid>
</Window>
C#using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
namespace AppTabControl
{
public class TabItemModel : INotifyPropertyChanged
{
private string _header;
private string _content;
public string Header
{
get => _header;
set
{
_header = value;
OnPropertyChanged(nameof(Header));
}
}
public string Content
{
get => _content;
set
{
_content = value;
OnPropertyChanged(nameof(Content));
}
}
public event PropertyChangedEventHandler PropertyChanged;
protected virtual void OnPropertyChanged(string propertyName)
{
PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
}
}
}
C#using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Shapes;
namespace AppTabControl
{
/// <summary>
/// Interaction logic for Window3.xaml
/// </summary>
public partial class Window3 : Window
{
private ObservableCollection<TabItemModel> _tabItems;
private TabItemModel _selectedTab;
public ObservableCollection<TabItemModel> TabItems
{
get => _tabItems;
set
{
_tabItems = value;
OnPropertyChanged(nameof(TabItems));
}
}
public TabItemModel SelectedTab
{
get => _selectedTab;
set
{
_selectedTab = value;
OnPropertyChanged(nameof(SelectedTab));
}
}
public Window3()
{
InitializeComponent();
TabItems = new ObservableCollection<TabItemModel>();
DataContext = this;
// 添加一个初始标签页
AddNewTab();
}
private void AddTab_Click(object sender, RoutedEventArgs e)
{
AddNewTab();
}
private void AddNewTab()
{
var newTab = new TabItemModel
{
Header = $"标签页 {TabItems.Count + 1}",
Content = "在这里输入内容..."
};
TabItems.Add(newTab);
SelectedTab = newTab;
}
private void CloseTab_Click(object sender, RoutedEventArgs e)
{
var button = sender as Button;
var tabItem = button.DataContext as TabItemModel;
if (tabItem != null)
{
TabItems.Remove(tabItem);
}
}
public event PropertyChangedEventHandler PropertyChanged;
protected virtual void OnPropertyChanged(string propertyName)
{
PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
}
}
}

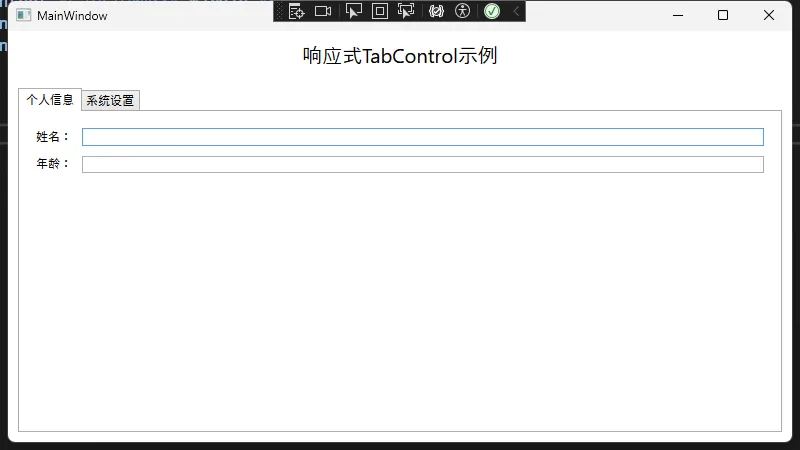

基础示例
首先，让我们看一个基础的响应式TabControl示例：
XML<Window x:Class="AppTabControl.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
xmlns:local="clr-namespace:AppTabControl"
mc:Ignorable="d"
Title="MainWindow" Height="450" Width="800">
<Grid>
<!-- 定义行列 -->
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<!-- 标题 -->
<TextBlock Text="响应式TabControl示例"
FontSize="20"
Margin="10"
HorizontalAlignment="Center"/>
<!-- TabControl -->
<TabControl Grid.Row="1" Margin="10">
<TabItem Header="个人信息">
<Grid Margin="10">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="Auto"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<!-- 表单内容 -->
<TextBlock Text="姓名：" Margin="5"/>
<TextBox Grid.Column="1" Margin="5"/>
<TextBlock Text="年龄：" Grid.Row="1" Margin="5"/>
<TextBox Grid.Row="1" Grid.Column="1" Margin="5"/>
</Grid>
</TabItem>
<TabItem Header="系统设置">
<StackPanel Margin="10">
<CheckBox Content="启用自动保存" Margin="5"/>
<CheckBox Content="开机自动启动" Margin="5"/>
<CheckBox Content="显示通知" Margin="5"/>
</StackPanel>
</TabItem>
</TabControl>
</Grid>
</Window>

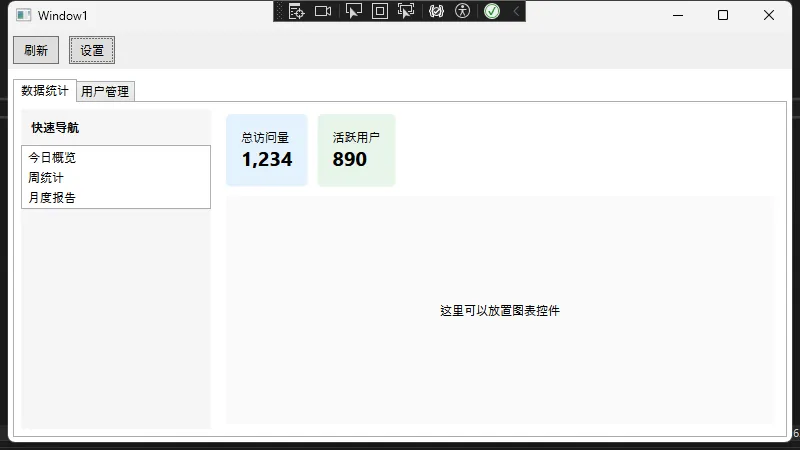

高级响应式布局
下面是一个更复杂的示例，展示如何使用Grid和ColumnDefinition的Star sizing实现响应式布局：
XML<Window x:Class="WpfApp.MainWindow"
xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
Title="高级响应式TabControl" Height="600" Width="1000">
<Grid>
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<!-- 顶部工具栏 -->
<StackPanel Orientation="Horizontal"
Background="#F0F0F0"
Margin="0,0,0,5">
<Button Content="刷新" Margin="5" Padding="10,5"/>
<Button Content="设置" Margin="5" Padding="10,5"/>
</StackPanel>
<!-- 响应式TabControl -->
<TabControl Grid.Row="1" Margin="5">
<!-- 数据展示页签 -->
<TabItem Header="数据统计">
<Grid>
<Grid.ColumnDefinitions>
<!-- 左侧面板，最小200，最大300 -->
<ColumnDefinition Width="Auto" MinWidth="200" MaxWidth="300"/>
<!-- 右侧面板，自适应剩余空间 -->
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<!-- 左侧导航面板 -->
<StackPanel Background="#F5F5F5" Margin="5">
<TextBlock Text="快速导航"
FontWeight="Bold"
Margin="10"/>
<ListBox>
<ListBoxItem Content="今日概览"/>
<ListBoxItem Content="周统计"/>
<ListBoxItem Content="月度报告"/>
</ListBox>
</StackPanel>
<!-- 右侧内容区域 -->
<Grid Grid.Column="1" Margin="5">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<!-- 数据卡片区域 -->
<WrapPanel>
<Border Background="#E3F2FD"
Margin="5" Padding="15"
CornerRadius="5">
<StackPanel>
<TextBlock Text="总访问量"/>
<TextBlock Text="1,234"
FontSize="20"
FontWeight="Bold"/>
</StackPanel>
</Border>
<Border Background="#E8F5E9"
Margin="5" Padding="15"
CornerRadius="5">
<StackPanel>
<TextBlock Text="活跃用户"/>
<TextBlock Text="890"
FontSize="20"
FontWeight="Bold"/>
</StackPanel>
</Border>
</WrapPanel>
<!-- 图表区域 -->
<Border Grid.Row="1"
Background="#FAFAFA"
Margin="5">
<TextBlock Text="这里可以放置图表控件"
VerticalAlignment="Center"
HorizontalAlignment="Center"/>
</Border>
</Grid>
</Grid>
</TabItem>
<!-- 表单页签 -->
<TabItem Header="用户管理">
<Grid>
<Grid.ColumnDefinitions>
<!-- 使用比例布局 -->
<ColumnDefinition Width="2*"/>
<ColumnDefinition Width="3*"/>
</Grid.ColumnDefinitions>
<!-- 用户列表 -->
<ListBox Margin="5">
<ListBoxItem Content="用户1"/>
<ListBoxItem Content="用户2"/>
<ListBoxItem Content="用户3"/>
</ListBox>
<!-- 用户详情 -->
<Grid Grid.Column="1" Margin="5">
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="*"/>
</Grid.RowDefinitions>
<TextBlock Text="用户详情"
FontSize="16"
FontWeight="Bold"
Margin="5"/>
<ScrollViewer Grid.Row="1">
<StackPanel Margin="5">
<TextBlock Text="基本信息"
FontWeight="Bold"
Margin="0,10,0,5"/>
<Grid>
<Grid.ColumnDefinitions>
<ColumnDefinition Width="Auto"/>
<ColumnDefinition Width="*"/>
</Grid.ColumnDefinitions>
<Grid.RowDefinitions>
<RowDefinition Height="Auto"/>
<RowDefinition Height="Auto"/>
<RowDefinition Height="Auto"/>
</Grid.RowDefinitions>
<TextBlock Text="用户名：" Margin="5"/>
<TextBox Grid.Column="1" Margin="5"/>
<TextBlock Text="邮箱："
Grid.Row="1"
Margin="5"/>
<TextBox Grid.Row="1"
Grid.Column="1"
Margin="5"/>
<TextBlock Text="角色："
Grid.Row="2"
Margin="5"/>
<ComboBox Grid.Row="2"
Grid.Column="1"
Margin="5">
<ComboBoxItem Content="管理员"/>
<ComboBoxItem Content="普通用户"/>
<ComboBoxItem Content="访客"/>
</ComboBox>
</Grid>
</StackPanel>
</ScrollViewer>
</Grid>
</Grid>
</TabItem>
</TabControl>
</Grid>
</Window>
总结
WPF的TabControl结合Grid、StackPanel等布局控件，可以轻松实现响应式布局。关键在于：
- 合理使用Grid的行列定义
- 正确运用比例布局
- 适当设置最小/最大尺寸约束
- 注意控件的嵌套层级
通过以上示例和说明，你应该能够掌握如何创建一个响应式的TabControl布局，并在实际项目中灵活运用这些技术。
