RangeSlider是一个自定义的Windows Forms控件，允许用户通过两个滑块来选择一个数值范围。这种控件在需要设置数值范围的场景中非常实用，比如价格区间筛选、年龄范围选择等。

本文将详细介绍如何实现一个具有以下特性的RangeSlider控件：

• 支持最小值和最大值设置
• 可自定义轨道颜色和高度
• 平滑的动画效果
• 精确的值计算
• 美观的UI设计

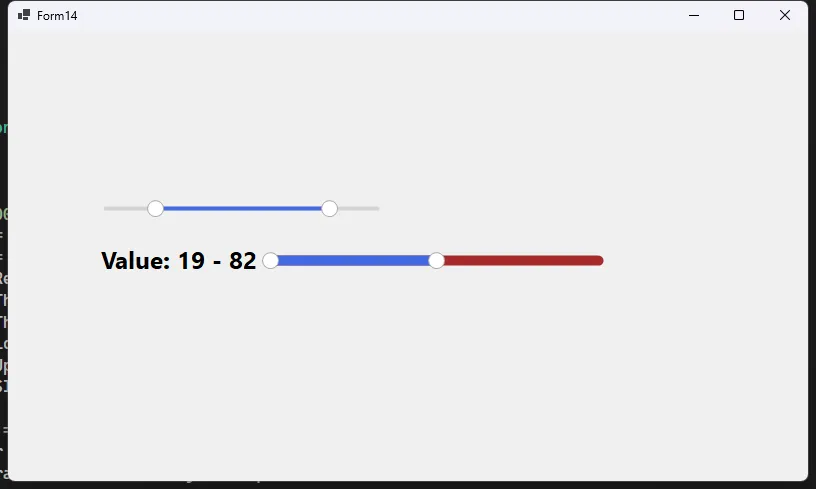

控件预览

让我们看看这个控件的效果：

完整代码

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Drawing.Drawing2D;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppControls
{

    public class RangeSlider : Control
    {
        #region 私有字段
        private int _minimum = 0;
        private int _maximum = 100;
        private int _lowerValue = 0;
        private int _upperValue = 100;
        private Rectangle _trackRectangle;
        private Rectangle _lowerThumbRect;
        private Rectangle _upperThumbRect;
        private bool _isDraggingLower;
        private bool _isDraggingUpper;
        private const int THUMB_SIZE = 16;

        private int _trackHeight = 4;
        private Color _trackColor = Color.LightGray;
        private Color _selectedTrackColor = Color.RoyalBlue;
        #endregion

        #region 属性
        [Description("最小可选值")]
        public int Minimum
        {
            get => _minimum;
            set
            {
                if (value >= _maximum) return;
                _minimum = value;
                if (_lowerValue < _minimum)
                    LowerValue = _minimum;
                Invalidate();
            }
        }

        [Description("最大可选值")]
        public int Maximum
        {
            get => _maximum;
            set
            {
                if (value <= _minimum) return;
                _maximum = value;
                if (_upperValue > _maximum)
                    UpperValue = _maximum;
                Invalidate();
            }
        }

        [Description("当前选择的最小值")]
        public int LowerValue
        {
            get => _lowerValue;
            set
            {
                if (value < _minimum || value > _upperValue) return;
                if (_lowerValue != value)
                {
                    _lowerValue = value;
                    OnValueChanged(EventArgs.Empty);
                    Invalidate();
                }
            }
        }

        [Description("当前选择的最大值")]
        public int UpperValue
        {
            get => _upperValue;
            set
            {
                if (value > _maximum || value < _lowerValue) return;
                if (_upperValue != value)
                {
                    _upperValue = value;
                    OnValueChanged(EventArgs.Empty);
                    Invalidate();
                }
            }
        }

        [Description("轨道高度")]
        [DefaultValue(4)]
        public int TrackHeight
        {
            get => _trackHeight;
            set
            {
                if (value < 1) return;
                if (_trackHeight != value)
                {
                    _trackHeight = value;
                    Invalidate();
                }
            }
        }

        [Description("轨道背景颜色")]
        public Color TrackColor
        {
            get => _trackColor;
            set
            {
                if (_trackColor != value)
                {
                    _trackColor = value;
                    Invalidate();
                }
            }
        }

        [Description("选中区域轨道颜色")]
        public Color SelectedTrackColor
        {
            get => _selectedTrackColor;
            set
            {
                if (_selectedTrackColor != value)
                {
                    _selectedTrackColor = value;
                    Invalidate();
                }
            }
        }
        #endregion

        #region 事件
        public event EventHandler ValueChanged;

        protected virtual void OnValueChanged(EventArgs e)
        {
            ValueChanged?.Invoke(this, e);
        }
        #endregion

        #region 构造函数
        public RangeSlider()
        {
            SetStyle(ControlStyles.AllPaintingInWmPaint |
                    ControlStyles.UserPaint |
                    ControlStyles.OptimizedDoubleBuffer |
                    ControlStyles.ResizeRedraw, true);

            MinimumSize = new Size(100, THUMB_SIZE + 4);
        }
        #endregion

        #region 重写方法
        protected override void OnPaint(PaintEventArgs e)
        {
            var g = e.Graphics;
            g.SmoothingMode = SmoothingMode.AntiAlias;

            // 计算轨道区域，使用自定义高度
            _trackRectangle = new Rectangle(
                THUMB_SIZE / 2,
                Height / 2 - _trackHeight / 2, // 居中显示
                Width - THUMB_SIZE,
                _trackHeight);

            // 绘制背景轨道，使用自定义颜色
            using (var trackBrush = new SolidBrush(_trackColor))
            {
                // 使用圆角矩形绘制轨道
                using (var path = CreateRoundedRectangle(_trackRectangle, _trackHeight / 2))
                {
                    g.FillPath(trackBrush, path);
                }
            }

            // 计算滑块位置
            int lowerX = ValueToPoint(_lowerValue);
            int upperX = ValueToPoint(_upperValue);

            // 绘制选中区域，使用自定义颜色
            using (var selectedBrush = new SolidBrush(_selectedTrackColor))
            {
                var selectedRect = new Rectangle(
                    lowerX,
                    _trackRectangle.Y,
                    upperX - lowerX,
                    _trackRectangle.Height);

                // 使用圆角矩形绘制选中区域
                using (var path = CreateRoundedRectangle(selectedRect, _trackHeight / 2))
                {
                    g.FillPath(selectedBrush, path);
                }
            }

            // 计算滑块矩形
            _lowerThumbRect = new Rectangle(
                lowerX - THUMB_SIZE / 2,
                Height / 2 - THUMB_SIZE / 2,
                THUMB_SIZE,
                THUMB_SIZE);

            _upperThumbRect = new Rectangle(
                upperX - THUMB_SIZE / 2,
                Height / 2 - THUMB_SIZE / 2,
                THUMB_SIZE,
                THUMB_SIZE);

            // 绘制滑块
            DrawThumb(g, _lowerThumbRect);
            DrawThumb(g, _upperThumbRect);
        }

        // 创建圆角矩形路径
        private GraphicsPath CreateRoundedRectangle(Rectangle rect, int radius)
        {
            GraphicsPath path = new GraphicsPath();
            if (radius > 0)
            {
                int diameter = radius * 2;
                Rectangle arc = new Rectangle(rect.Location, new Size(diameter, diameter));

                // 左上角
                path.AddArc(arc, 180, 90);

                // 上边
                arc.X = rect.Right - diameter;
                path.AddArc(arc, 270, 90);

                // 右边
                arc.Y = rect.Bottom - diameter;
                path.AddArc(arc, 0, 90);

                // 下边
                arc.X = rect.Left;
                path.AddArc(arc, 90, 90);

                path.CloseFigure();
            }
            else
            {
                path.AddRectangle(rect);
            }
            return path;
        }

        protected override void OnMouseDown(MouseEventArgs e)
        {
            if (_lowerThumbRect.Contains(e.Location))
            {
                _isDraggingLower = true;
            }
            else if (_upperThumbRect.Contains(e.Location))
            {
                _isDraggingUpper = true;
            }
            base.OnMouseDown(e);
        }

        protected override void OnMouseMove(MouseEventArgs e)
        {
            if (_isDraggingLower)
            {
                LowerValue = PointToValue(e.X);
            }
            else if (_isDraggingUpper)
            {
                UpperValue = PointToValue(e.X);
            }
            base.OnMouseMove(e);
        }

        protected override void OnMouseUp(MouseEventArgs e)
        {
            _isDraggingLower = false;
            _isDraggingUpper = false;
            base.OnMouseUp(e);
        }
        #endregion

        #region 辅助方法
        private void DrawThumb(Graphics g, Rectangle rect)
        {
            using (var path = new GraphicsPath())
            {
                path.AddEllipse(rect);
                using (var brush = new SolidBrush(Color.White))
                {
                    g.FillPath(brush, path);
                }
                using (var pen = new Pen(Color.DarkGray))
                {
                    g.DrawPath(pen, path);
                }
            }
        }

        private int ValueToPoint(int value)
        {
            if (_maximum == _minimum)
                return _trackRectangle.X;

            return _trackRectangle.X + (int)((value - _minimum) * _trackRectangle.Width /
                (_maximum - _minimum));
        }

        private int PointToValue(int x)
        {
            if (x < _trackRectangle.X)
                return _minimum;
            if (x > _trackRectangle.Right)
                return _maximum;

            return _minimum + (x - _trackRectangle.X) * (_maximum - _minimum) /
                _trackRectangle.Width;
        }
        #endregion
    }
}

总结

这个自定义的RangeSlider控件实现了一个美观、实用的范围选择功能，可以很方便地集成到Windows Forms应用程序中。通过属性设置，可以灵活地调整控件的外观和行为，满足不同场景的需求。

该控件的实现涉及了GDI+绘图、事件处理、属性设计等多个方面，是一个很好的自定义控件开发示例。希望这个实现能对你的开发工作有所帮助！
