C#串口通讯的异步实现：高效、可靠的设计模式

在嵌入式系统、物联网(IoT)和工业通讯领域，串口通讯仍然是一种广泛使用的通信方式。本文将深入探讨如何使用C#实现一个健壮、高效的异步串口通讯管理器。

关键设计理念

异步编程

异步编程是现代.NET应用程序的重要特性，它允许：

非阻塞的I/O操作
提高应用程序的响应性
有效利用系统资源

主要特性

我们的串口管理器将具备以下特性：

异步连接和读取
错误处理
灵活的数据接收机制
资源释放管理

代码解析

类定义与构造函数

C#
public class SerialPortManager : IDisposable
{
    private SerialPort _serialPort;
    private readonly string _portName;
    private readonly int _baudRate;
    private CancellationTokenSource _cancellationTokenSource;

    // 数据接收事件
    public event EventHandler<byte[]> DataReceived;

    public SerialPortManager(string portName, int baudRate)
    {
        _portName = portName;
        _baudRate = baudRate;
        _cancellationTokenSource = new CancellationTokenSource();
    }
}

异步连接方法

C#
public async Task StartAsync()
{
    try
    {
        await ConnectSerialPortAsync();
    }
    catch (Exception ex)
    {
        LogError($"启动失败：{ex.Message}");
        throw;
    }
}

private async Task ConnectSerialPortAsync()
{
    _serialPort = new SerialPort(_portName, _baudRate)
    {
        ReadTimeout = 500,
        WriteTimeout = 500,
        ReadBufferSize = 4096,
        WriteBufferSize = 4096
    };

    _serialPort.Open();
    _ = StartAsyncReading();
}

异步数据读取

C#
private async Task StartAsyncReading()
{
    byte[] buffer = new byte[4096];
    while (_serialPort.IsOpen && !_cancellationTokenSource.Token.IsCancellationRequested)
    {
        int bytesToRead = _serialPort.BytesToRead;
        if (bytesToRead > 0)
        {
            int readBytes = await _serialPort.BaseStream.ReadAsync(
                buffer, 0, bytesToRead, _cancellationTokenSource.Token);

            ProcessReceivedData(buffer.Take(readBytes).ToArray());
        }

        await Task.Delay(50, _cancellationTokenSource.Token);
    }
}

数据发送方法

C#
public async Task<bool> SendDataAsync(byte[] data)
{
    if (_serialPort?.IsOpen == true)
    {
        await _serialPort.BaseStream.WriteAsync(
            data, 0, data.Length, _cancellationTokenSource.Token);
        return true;
    }
    return false;
}

使用示例

C#
public async Task ExampleUsage()
{
    var serialManager = new SerialPortManager("COM3", 9600);

    // 订阅数据接收事件
    serialManager.DataReceived += (sender, data) => {
        Console.WriteLine($"接收到数据: {BitConverter.ToString(data)}");
    };

    // 启动串口
    await serialManager.StartAsync();

    // 发送数据
    byte[] dataToSend = new byte[] { 0x01, 0x02, 0x03 };
    await serialManager.SendDataAsync(dataToSend);
}

完整代码

C#
using System;
using System.IO.Ports;
using System.Threading;
using System.Threading.Tasks;

namespace AppSerialPortTry
{
    /// <summary>
    /// 串口管理器
    /// </summary>
    public class SerialPortManager : IDisposable
    {
        private SerialPort _serialPort;
        private readonly string _portName;
        private readonly int _baudRate;
        private CancellationTokenSource _cancellationTokenSource;

        // 数据接收事件
        public event EventHandler<byte[]> DataReceived;

        public SerialPortManager(string portName, int baudRate)
        {
            _portName = portName;
            _baudRate = baudRate;
            _cancellationTokenSource = new CancellationTokenSource();
        }

        /// <summary>
        /// 异步启动串口通信
        /// </summary>
        public async Task StartAsync()
        {
            try
            {
                await ConnectSerialPortAsync();
            }
            catch (Exception ex)
            {
                LogError($"启动失败：{ex.Message}");
                throw;
            }
        }

        /// <summary>
        /// 连接串口
        /// </summary>
        private async Task ConnectSerialPortAsync()
        {
            try
            {
                // 创建串口实例
                _serialPort = new SerialPort(_portName, _baudRate)
                {
                    ReadTimeout = 500,
                    WriteTimeout = 500,
                    ReadBufferSize = 4096,
                    WriteBufferSize = 4096
                };

                // 配置串口事件
                _serialPort.DataReceived += SerialPort_DataReceived;
                _serialPort.ErrorReceived += SerialPort_ErrorReceived;

                // 打开串口
                _serialPort.Open();
                LogInfo($"串口 {_portName} 连接成功");

                // 启动异步读取
                _ = StartAsyncReading();
            }
            catch (Exception ex)
            {
                LogError($"连接串口失败：{ex.Message}");
                throw;
            }
        }

        /// <summary>
        /// 异步读取数据
        /// </summary>
        private async Task StartAsyncReading()
        {
            try
            {
                byte[] buffer = new byte[4096];
                while (_serialPort != null && _serialPort.IsOpen && !_cancellationTokenSource.Token.IsCancellationRequested)
                {
                    int bytesToRead = _serialPort.BytesToRead;
                    if (bytesToRead > 0)
                    {
                        bytesToRead = Math.Min(bytesToRead, buffer.Length);
                        int readBytes = await _serialPort.BaseStream.ReadAsync(buffer, 0, bytesToRead, _cancellationTokenSource.Token);

                        if (readBytes > 0)
                        {
                            byte[] receivedData = new byte[readBytes];
                            Array.Copy(buffer, receivedData, readBytes);
                            ProcessReceivedData(receivedData);
                        }
                    }

                    await Task.Delay(50, _cancellationTokenSource.Token);
                }
            }
            catch (OperationCanceledException)
            {
                // 正常取消
            }
            catch (Exception ex)
            {
                LogError($"异步读取数据错误：{ex.Message}");
            }
        }

        /// <summary>
        /// 处理接收的数据
        /// </summary>
        private void ProcessReceivedData(byte[] data)
        {
            string hexData = BitConverter.ToString(data);
            LogInfo($"接收到数据：{hexData}");

            // 触发数据接收事件
            DataReceived?.Invoke(this, data);
        }

        /// <summary>
        /// 串口错误事件
        /// </summary>
        private void SerialPort_ErrorReceived(object sender, SerialErrorReceivedEventArgs e)
        {
            LogError($"串口错误：{e.EventType}");
        }

        /// <summary>
        /// 数据接收事件
        /// </summary>
        private void SerialPort_DataReceived(object sender, SerialDataReceivedEventArgs e)
        {
            try
            {
                // 根据不同的接收模式处理
                switch (e.EventType)
                {
                    case SerialData.Chars:
                        // 有字符可读
                        int bytesToRead = _serialPort.BytesToRead;
                        if (bytesToRead > 0)
                        {
                            byte[] buffer = new byte[bytesToRead];
                            _serialPort.Read(buffer, 0, bytesToRead);

                            // 可以触发一个事件或进行进一步处理
                            ProcessReceivedData(buffer);
                        }
                        break;

                    case SerialData.Eof:
                        LogWarning("串口接收到文件结束符");
                        break;

                    default:
                        LogInfo($"接收到未处理的事件类型: {e.EventType}");
                        break;
                }
            }
            catch (Exception ex)
            {
                LogError($"串口数据接收事件处理错误：{ex.Message}");
            }
        }

        /// <summary>
        /// 发送数据
        /// </summary>
        public async Task<bool> SendDataAsync(byte[] data)
        {
            try
            {
                if (_serialPort != null && _serialPort.IsOpen)
                {
                    await _serialPort.BaseStream.WriteAsync(data, 0, data.Length, _cancellationTokenSource.Token);
                    return true;
                }
                return false;
            }
            catch (Exception ex)
            {
                LogError($"发送数据失败：{ex.Message}");
                return false;
            }
        }

        /// <summary>
        /// 关闭串口
        /// </summary>
        public void Close()
        {
            _cancellationTokenSource.Cancel();

            if (_serialPort != null)
            {
                try
                {
                    if (_serialPort.IsOpen)
                    {
                        _serialPort.Close();
                    }

                    // 取消事件绑定
                    _serialPort.DataReceived -= SerialPort_DataReceived;
                    _serialPort.ErrorReceived -= SerialPort_ErrorReceived;
                }
                catch (Exception ex)
                {
                    LogError($"关闭串口时发生错误：{ex.Message}");
                }
            }
        }

        /// <summary>
        /// 实现 IDisposable
        /// </summary>
        public void Dispose()
        {
            Close();
            _cancellationTokenSource?.Dispose();
            _serialPort?.Dispose();
        }

        #region 日志方法

        private void LogInfo(string message)
        {
            Console.ForegroundColor = ConsoleColor.Green;
            Console.WriteLine($"[INFO] {DateTime.Now:yyyy-MM-dd HH:mm:ss} - {message}");
            Console.ResetColor();
        }

        private void LogWarning(string message)
        {
            Console.ForegroundColor = ConsoleColor.Yellow;
            Console.WriteLine($"[WARNING] {DateTime.Now:yyyy-MM-dd HH:mm:ss} - {message}");
            Console.ResetColor();
        }

        private void LogError(string message)
        {
            Console.ForegroundColor = ConsoleColor.Red;
            Console.WriteLine($"[ERROR] {DateTime.Now:yyyy-MM-dd HH:mm:ss} - {message}");
            Console.ResetColor();
        }

        #endregion
    }
}

C#
using System.IO.Ports;

namespace AppSerialPortTry
{
    internal class Program
    {

        static void Main(string[] args)
        {

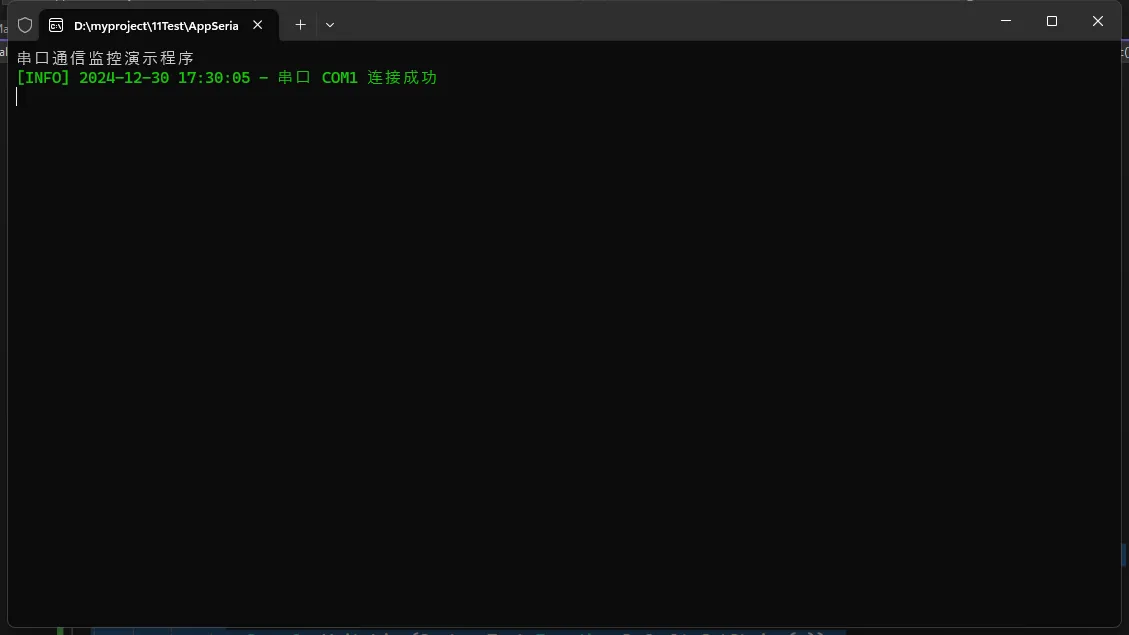

            Console.WriteLine("串口通信监控演示程序");
            RunSerialPortMonitorAsync().Wait();

            Console.ReadKey();
        }

        static async Task RunSerialPortMonitorAsync()
        {
            var serialPortManager = new SerialPortManager("COM1", 9600);
            await serialPortManager.StartAsync();

            await serialPortManager.SendDataAsync(System.Text.Encoding.Default.GetBytes(" Hello World!"));

            serialPortManager.DataReceived += (sender, e) =>
            {
                Console.WriteLine(System.Text.Encoding.Default.GetString(e));
            };
        }
    }
}

注意事项

50ms的延迟可以根据实际应用场景调整
4096字节的缓冲区大小适用于大多数中小型通讯场景
对于高频率、大数据量的通讯，可能需要进一步优化

结论

通过使用异步编程模式，我们创建了一个既灵活又高效的串口通讯管理器。这种实现方式不仅提高了代码的可读性，还显著改善了应用程序的性能和响应能力。
