🚀 C#状态机编程：工业级应用开发实战指南
编辑
2025-10-13
C#
00

目录

🎯 问题分析：为什么需要状态机？
传统代码的痛点
💡 解决方案：优雅的状态机模式
🔥 核心设计思想
🛠️ 代码实战：构建工业级状态机
第一步：定义状态和事件枚举
第二步：实现状态机核心类
1. 空闲状态 (Idle)
2. 初始化状态 (Initializing)
3. 准备状态 (Ready)
4. 运行状态 (Running)
5. 暂停状态 (Paused)
第三步：构建美观的工业界面
⚡ 实际应用场景
🏭 工业控制系统
🎮 游戏开发
📋 工作流系统
⚠️ 常见坑点提醒
1. 状态转换表设计不完整
2. 忘记处理并发访问
3. 状态转换缺乏日志记录
🚀 性能优化技巧
使用switch表达式优化状态判断
预编译状态转换表
💎 收藏级代码模板
通用状态机基类
📈 扩展建议
🎯 总结与思考

你是否在开发复杂业务流程时遇到过这样的困扰：代码中充斥着大量的if-else判断，业务状态难以维护，流程控制逻辑混乱不堪？特别是在工业控制、游戏开发、工作流系统中，状态管理往往成为项目的技术难点。

**今天，我将通过一个完整的WinForm工业设备控制系统，带你掌握C#状态机编程的精髓。**这不仅是一个编程模式的学习，更是解决复杂业务逻辑的利器。无论你是初学者还是有经验的开发者，这篇文章都会让你对状态机有全新的认识。

🎯 问题分析：为什么需要状态机？

传统代码的痛点

在没有状态机的情况下，我们通常会这样写代码：

C#
// 传统方式：充满条件判断的混乱代码
public void StartMachine()
{
    if (currentStatus == "idle")
    {
        if (isInitialized)
        {
            currentStatus = "running";
        }
        else
        {
            MessageBox.Show("请先初始化设备");
        }
    }
    else if (currentStatus == "error")
    {
        MessageBox.Show("设备故障，无法启动");
    }
    // ... 更多复杂的条件判断
}

这种代码存在以下问题：

  • 维护困难：业务逻辑散落在各个方法中
  • 扩展性差：添加新状态需要修改多处代码
  • 容易出错：状态转换逻辑容易遗漏或冲突
  • 测试复杂：难以覆盖所有状态组合

💡 解决方案：优雅的状态机模式

状态机模式通过状态转换表将复杂的业务逻辑结构化，让代码变得清晰、可维护、易扩展。

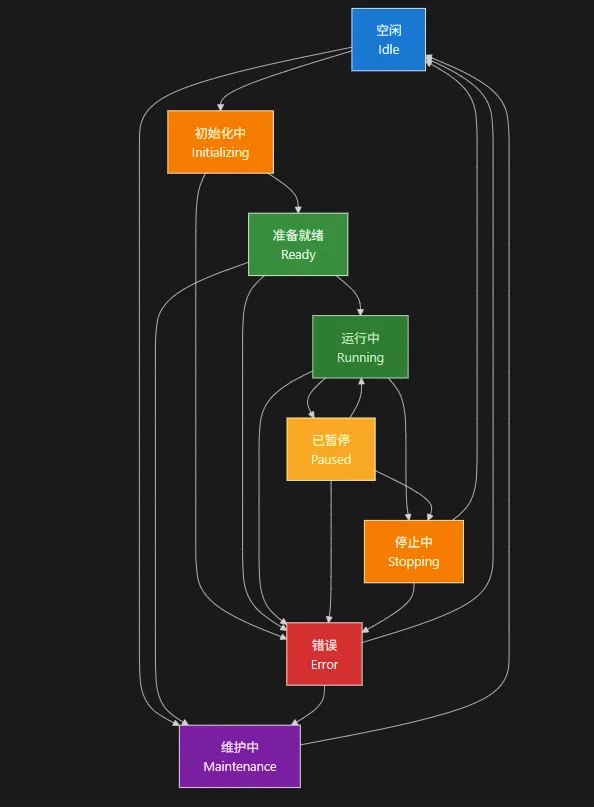

🔥 核心设计思想


🛠️ 代码实战：构建工业级状态机

第一步：定义状态和事件枚举

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppStateMachine
{
    /// <summary>
    /// 设备状态枚举
    /// </summary>
    public enum MachineState
    {
        Idle,           // 空闲
        Initializing,   // 初始化
        Ready,          // 准备就绪
        Running,        // 运行中
        Paused,         // 暂停
        Stopping,       // 停止中
        Error,          // 错误
        Maintenance     // 维护
    }

    /// <summary>
    /// 状态转换事件枚举
    /// </summary>
    public enum StateEvent
    {
        Initialize,     // 初始化
        Start,          // 启动
        Pause,          // 暂停
        Resume,         // 恢复
        Stop,           // 停止
        Reset,          // 重置
        Error,          // 错误
        Maintain,       // 维护
        Complete        // 完成
    }
}

第二步：实现状态机核心类

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppStateMachine
{
    /// <summary>
    /// 状态机核心类
    /// </summary>
    public class StateMachine
    {
        private MachineState _currentState;
        private Dictionary<(MachineState, StateEvent), MachineState> _stateTransitions;

        public MachineState CurrentState
        {
            get => _currentState;
            private set
            {
                var oldState = _currentState;
                _currentState = value;
                OnStateChanged?.Invoke(oldState, _currentState);
            }
        }

        public event Action<MachineState, MachineState> OnStateChanged;
        public event Action<string> OnLogMessage;

        public StateMachine()
        {
            _currentState = MachineState.Idle;
            InitializeStateTransitions();
        }

        /// <summary>
        /// 初始化状态转换表
        /// </summary>
        private void InitializeStateTransitions()
        {
            _stateTransitions = new Dictionary<(MachineState, StateEvent), MachineState>
            {
                // 从空闲状态的转换
                { (MachineState.Idle, StateEvent.Initialize), MachineState.Initializing },
                { (MachineState.Idle, StateEvent.Maintain), MachineState.Maintenance },

                // 从初始化状态的转换
                { (MachineState.Initializing, StateEvent.Complete), MachineState.Ready },
                { (MachineState.Initializing, StateEvent.Error), MachineState.Error },

                // 从准备状态的转换
                { (MachineState.Ready, StateEvent.Start), MachineState.Running },
                { (MachineState.Ready, StateEvent.Maintain), MachineState.Maintenance },
                { (MachineState.Ready, StateEvent.Error), MachineState.Error },

                // 从运行状态的转换
                { (MachineState.Running, StateEvent.Pause), MachineState.Paused },
                { (MachineState.Running, StateEvent.Stop), MachineState.Stopping },
                { (MachineState.Running, StateEvent.Error), MachineState.Error },

                // 从暂停状态的转换
                { (MachineState.Paused, StateEvent.Resume), MachineState.Running },
                { (MachineState.Paused, StateEvent.Stop), MachineState.Stopping },
                { (MachineState.Paused, StateEvent.Error), MachineState.Error },

                // 从停止中状态的转换
                { (MachineState.Stopping, StateEvent.Complete), MachineState.Idle },
                { (MachineState.Stopping, StateEvent.Error), MachineState.Error },

                // 从错误状态的转换
                { (MachineState.Error, StateEvent.Reset), MachineState.Idle },
                { (MachineState.Error, StateEvent.Maintain), MachineState.Maintenance },

                // 从维护状态的转换
                { (MachineState.Maintenance, StateEvent.Complete), MachineState.Idle }
            };
        }

        /// <summary>
        /// 触发状态转换事件
        /// </summary>
        public bool TriggerEvent(StateEvent stateEvent)
        {
            if (_stateTransitions.TryGetValue((CurrentState, stateEvent), out MachineState newState))
            {
                var message = $"状态转换: {GetStateDisplayName(CurrentState)} → {GetStateDisplayName(newState)} (事件: {GetEventDisplayName(stateEvent)})";
                OnLogMessage?.Invoke(message);
                CurrentState = newState;
                return true;
            }
            else
            {
                var message = $"无效的状态转换: 在状态 {GetStateDisplayName(CurrentState)} 下无法处理事件 {GetEventDisplayName(stateEvent)}";
                OnLogMessage?.Invoke(message);
                return false;
            }
        }

        /// <summary>
        /// 获取当前状态允许的事件
        /// </summary>
        public List<StateEvent> GetAllowedEvents()
        {
            var allowedEvents = new List<StateEvent>();
            foreach (var transition in _stateTransitions.Keys)
            {
                if (transition.Item1 == CurrentState)
                {
                    allowedEvents.Add(transition.Item2);
                }
            }
            return allowedEvents;
        }

        /// <summary>
        /// 获取状态显示名称
        /// </summary>
        public static string GetStateDisplayName(MachineState state)
        {
            return state switch
            {
                MachineState.Idle => "空闲",
                MachineState.Initializing => "初始化中",
                MachineState.Ready => "准备就绪",
                MachineState.Running => "运行中",
                MachineState.Paused => "已暂停",
                MachineState.Stopping => "停止中",
                MachineState.Error => "错误",
                MachineState.Maintenance => "维护中",
                _ => state.ToString()
            };
        }

        /// <summary>
        /// 获取事件显示名称
        /// </summary>
        public static string GetEventDisplayName(StateEvent stateEvent)
        {
            return stateEvent switch
            {
                StateEvent.Initialize => "初始化",
                StateEvent.Start => "启动",
                StateEvent.Pause => "暂停",
                StateEvent.Resume => "恢复",
                StateEvent.Stop => "停止",
                StateEvent.Reset => "重置",
                StateEvent.Error => "错误",
                StateEvent.Maintain => "维护",
                StateEvent.Complete => "完成",
                _ => stateEvent.ToString()
            };
        }
    }
}

1. 空闲状态 (Idle)

  • 允许操作：初始化设备 或 进入维护模式
  • 业务含义：设备空闲时，只能进行初始化或维护，不能直接启动

2. 初始化状态 (Initializing)

  • 允许操作：初始化完成 或 出现错误
  • 业务含义：初始化是异步过程，要么成功进入准备状态，要么失败进入错误状态

3. 准备状态 (Ready)

  • 允许操作：启动运行、进入维护、处理错误
  • 业务含义：设备已准备就绪，可以开始正常工作

4. 运行状态 (Running)

  • 允许操作：暂停、停止、处理错误
  • 业务含义：设备正常运行时的控制选项

5. 暂停状态 (Paused)

  • 允许操作：恢复运行、彻底停止、处理错误
  • 业务含义：暂停是可恢复的状态

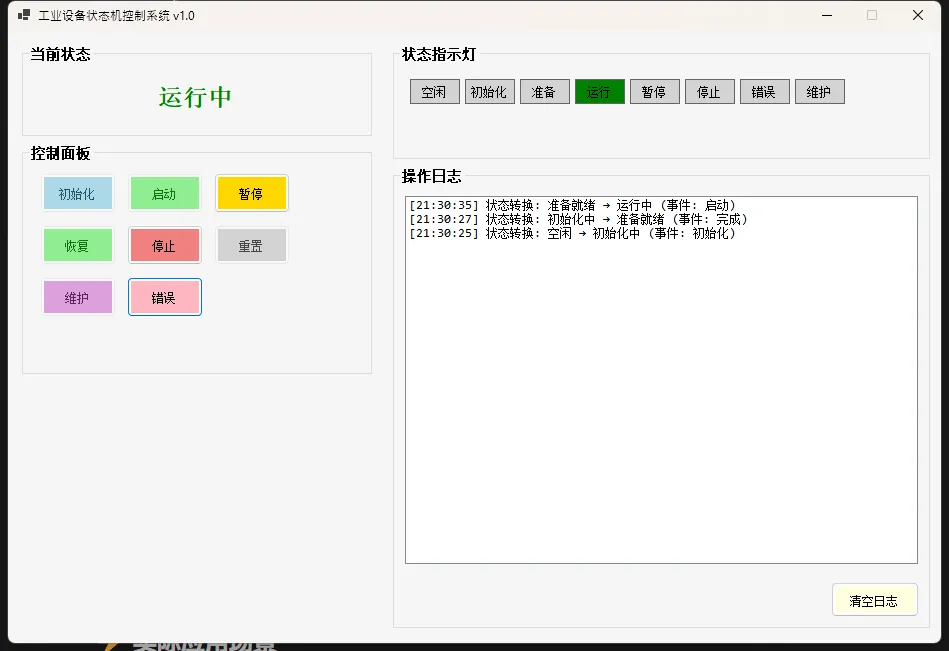

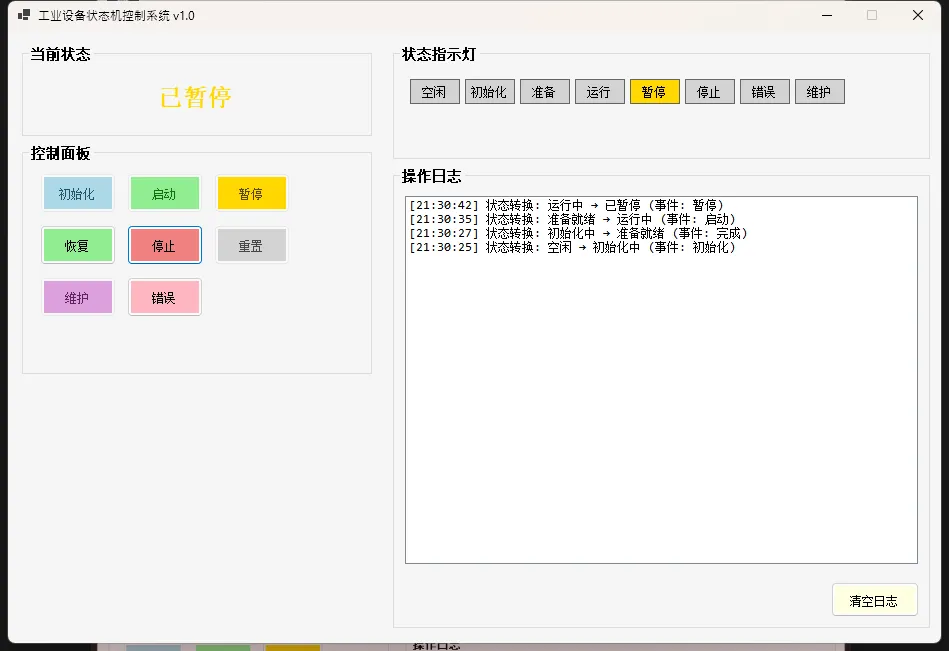

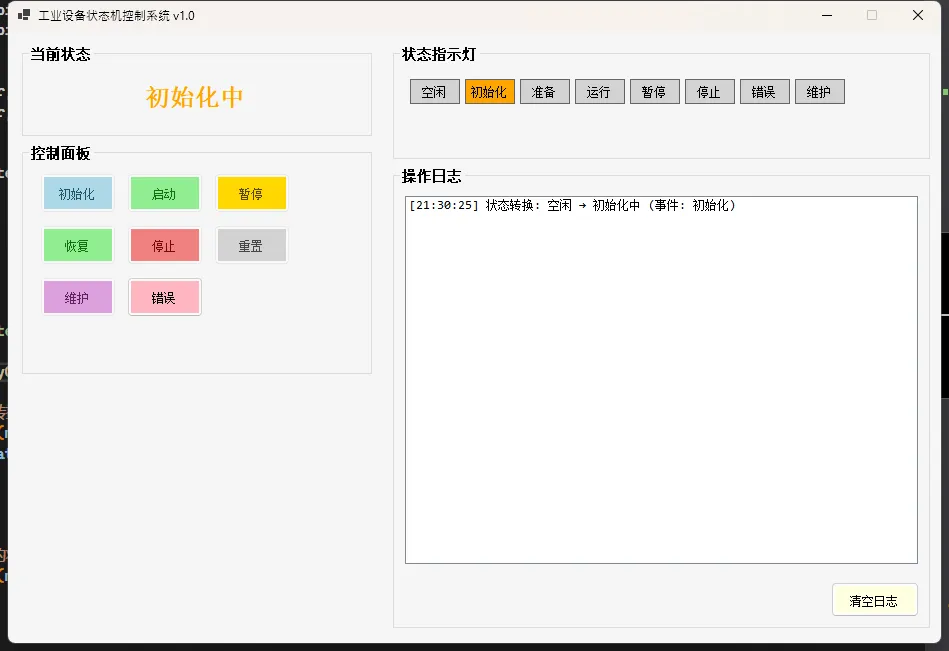

第三步：构建美观的工业界面

C#
using Timer = System.Windows.Forms.Timer;

namespace AppStateMachine
{
    public partial class Form1 : Form
    {
        private StateMachine _stateMachine;
        private Timer _simulationTimer;
        private Random _random;
        public Form1()
        {
            InitializeComponent();
            CreateStateIndicators();
            InitializeStateMachine();
            InitializeTimer();
            _random = new Random();
        }

        private void InitializeStateMachine()
        {
            _stateMachine = new StateMachine();
            _stateMachine.OnStateChanged += OnStateChanged;
            _stateMachine.OnLogMessage += OnLogMessage;

            UpdateUI();
        }


        private void CreateStateIndicators()
        {
            var states = new[]
            {
                (MachineState.Idle, "空闲"),
                (MachineState.Initializing, "初始化"),
                (MachineState.Ready, "准备"),
                (MachineState.Running, "运行"),
                (MachineState.Paused, "暂停"),
                (MachineState.Stopping, "停止"),
                (MachineState.Error, "错误"),
                (MachineState.Maintenance, "维护")
            };

            int x = 5, y = 5;
            foreach (var (state, displayName) in states)
            {
                var indicator = new System.Windows.Forms.Label
                {
                    Size = new System.Drawing.Size(50, 25),
                    Location = new System.Drawing.Point(x, y),
                    Text = displayName,
                    TextAlign = System.Drawing.ContentAlignment.MiddleCenter,
                    BorderStyle = System.Windows.Forms.BorderStyle.FixedSingle,
                    BackColor = System.Drawing.Color.LightGray,
                    Font = new System.Drawing.Font("Microsoft Sans Serif", 8F),
                    Tag = state.ToString()
                };

                panelStateIndicators.Controls.Add(indicator);
                x += 55;
                if (x > 400)
                {
                    x = 5;
                    y += 30;
                }
            }
        }


        private void InitializeTimer()
        {
            _simulationTimer = new Timer();
            _simulationTimer.Interval = 2000; // 2秒
            _simulationTimer.Tick += SimulationTimer_Tick;
        }

        private void OnStateChanged(MachineState oldState, MachineState newState)
        {
            if (InvokeRequired)
            {
                Invoke(new Action<MachineState, MachineState>(OnStateChanged), oldState, newState);
                return;
            }

            UpdateUI();

            // 自动处理某些状态
            switch (newState)
            {
                case MachineState.Initializing:
                    _simulationTimer.Start(); // 模拟初始化过程
                    break;
                case MachineState.Stopping:
                    _simulationTimer.Start(); // 模拟停止过程
                    break;
                default:
                    _simulationTimer.Stop();
                    break;
            }
        }

        private void SimulationTimer_Tick(object sender, EventArgs e)
        {
            // 模拟异步操作完成
            if (_stateMachine.CurrentState == MachineState.Initializing ||
                _stateMachine.CurrentState == MachineState.Stopping)
            {
                _stateMachine.TriggerEvent(StateEvent.Complete);
            }
        }

        private void OnLogMessage(string message)
        {
            if (InvokeRequired)
            {
                Invoke(new Action<string>(OnLogMessage), message);
                return;
            }

            var timestamp = DateTime.Now.ToString("HH:mm:ss");
            listBoxLog.Items.Insert(0, $"[{timestamp}] {message}");

            if (listBoxLog.Items.Count > 100)
            {
                listBoxLog.Items.RemoveAt(100);
            }
        }

        private void UpdateUI()
        {
            // 更新状态显示
            labelCurrentState.Text = StateMachine.GetStateDisplayName(_stateMachine.CurrentState);
            labelCurrentState.ForeColor = GetStateColor(_stateMachine.CurrentState);

            // 更新按钮状态
            var allowedEvents = _stateMachine.GetAllowedEvents();

            btnInitialize.Enabled = allowedEvents.Contains(StateEvent.Initialize);
            btnStart.Enabled = allowedEvents.Contains(StateEvent.Start);
            btnPause.Enabled = allowedEvents.Contains(StateEvent.Pause);
            btnResume.Enabled = allowedEvents.Contains(StateEvent.Resume);
            btnStop.Enabled = allowedEvents.Contains(StateEvent.Stop);
            btnReset.Enabled = allowedEvents.Contains(StateEvent.Reset);
            btnMaintenance.Enabled = allowedEvents.Contains(StateEvent.Maintain);
            btnError.Enabled = allowedEvents.Contains(StateEvent.Error);

            // 更新状态指示器
            UpdateStateIndicators();
        }

        private Color GetStateColor(MachineState state)
        {
            return state switch
            {
                MachineState.Idle => Color.Gray,
                MachineState.Initializing => Color.Orange,
                MachineState.Ready => Color.Blue,
                MachineState.Running => Color.Green,
                MachineState.Paused => Color.Gold,
                MachineState.Stopping => Color.Orange,
                MachineState.Error => Color.Red,
                MachineState.Maintenance => Color.Purple,
                _ => Color.Black
            };
        }

        private void UpdateStateIndicators()
        {
            // 重置所有指示器
            foreach (Control control in panelStateIndicators.Controls)
            {
                if (control is Label label)
                {
                    label.BackColor = Color.LightGray;
                }
            }

            // 点亮当前状态指示器
            var currentIndicator = panelStateIndicators.Controls
                .OfType<Label>()
                .FirstOrDefault(l => l.Tag?.ToString() == _stateMachine.CurrentState.ToString());

            if (currentIndicator != null)
            {
                currentIndicator.BackColor = GetStateColor(_stateMachine.CurrentState);
            }
        }

        // 事件处理方法
        private void BtnInitialize_Click(object sender, EventArgs e) => _stateMachine.TriggerEvent(StateEvent.Initialize);
        private void BtnStart_Click(object sender, EventArgs e) => _stateMachine.TriggerEvent(StateEvent.Start);
        private void BtnPause_Click(object sender, EventArgs e) => _stateMachine.TriggerEvent(StateEvent.Pause);
        private void BtnResume_Click(object sender, EventArgs e) => _stateMachine.TriggerEvent(StateEvent.Resume);
        private void BtnStop_Click(object sender, EventArgs e) => _stateMachine.TriggerEvent(StateEvent.Stop);
        private void BtnReset_Click(object sender, EventArgs e) => _stateMachine.TriggerEvent(StateEvent.Reset);
        private void BtnMaintenance_Click(object sender, EventArgs e) => _stateMachine.TriggerEvent(StateEvent.Maintain);
        private void BtnError_Click(object sender, EventArgs e) => _stateMachine.TriggerEvent(StateEvent.Error);

        private void BtnClearLog_Click(object sender, EventArgs e)
        {
            listBoxLog.Items.Clear();
        }
    }
}




⚡ 实际应用场景

🏭 工业控制系统

  • 生产线设备：启动→预热→运行→停止→维护
  • 机械臂控制：待机→标定→工作→错误处理

🎮 游戏开发

  • 角色状态：站立→移动→跳跃→攻击→死亡
  • 游戏流程：菜单→游戏中→暂停→结束

📋 工作流系统

  • 订单处理：创建→审核→生产→发货→完成
  • 审批流程：提交→初审→复审→批准→归档

⚠️ 常见坑点提醒

1. 状态转换表设计不完整

C#
// ❌ 错误：遗漏错误状态的处理
{ (MachineState.Running, StateEvent.Start), MachineState.Running }

// ✅ 正确：考虑所有可能的异常情况
{ (MachineState.Running, StateEvent.Error), MachineState.Error }

2. 忘记处理并发访问

C#
// ✅ 线程安全的状态更新
private readonly object _lockObject = new object();

public bool TriggerEvent(StateEvent stateEvent)
{
    lock (_lockObject)
    {
        // 状态转换逻辑
    }
}

3. 状态转换缺乏日志记录

C#
// ✅ 完善的日志记录，便于调试和监控
OnLogMessage?.Invoke($"[{DateTime.Now:HH:mm:ss}] 状态转换: {oldState} → {newState} (触发: {stateEvent})");

🚀 性能优化技巧

使用switch表达式优化状态判断

C#
// ✅ C# 8.0+ 推荐写法
public string GetStateDescription(MachineState state) => state switch
{
    MachineState.Idle => "设备空闲，可以开始初始化",
    MachineState.Running => "设备正常运行中",
    MachineState.Error => "设备故障，请检查并重置",
    _ => "未知状态"
};

预编译状态转换表

C#
// ✅ 使用静态只读字典提升性能
private static readonly Dictionary<(MachineState, StateEvent), MachineState> StateTransitions =
    new Dictionary<(MachineState, StateEvent), MachineState>
    {
        // 预定义所有转换规则
    };

💎 收藏级代码模板

通用状态机基类

C#
/// <summary>
/// 🎯 通用状态机基类 - 可复用的状态机框架
/// </summary>
public abstract class StateMachineBase<TState, TEvent>
    where TState : Enum
    where TEvent : Enum
{
    protected TState _currentState;
    protected Dictionary<(TState, TEvent), TState> _transitions;

    public TState CurrentState => _currentState;
    public event Action<TState, TState> OnStateChanged;

    protected abstract void InitializeTransitions();

    public virtual bool TriggerEvent(TEvent eventType)
    {
        if (_transitions.TryGetValue((_currentState, eventType), out var newState))
        {
            var oldState = _currentState;
            _currentState = newState;
            OnStateChanged?.Invoke(oldState, newState);
            return true;
        }
        return false;
    }
}

📈 扩展建议

想要进一步提升状态机的功能？可以考虑以下扩展：

  1. 异步状态转换：支持async/await的异步操作
  2. 状态持久化：将状态保存到数据库或文件
  3. 状态机可视化：生成状态转换图
  4. 条件转换：基于业务规则的条件判断

🎯 总结与思考

通过这个完整的工业设备控制系统示例，我们学习了状态机模式的三个核心要点：

  1. 结构化设计：用状态转换表替代复杂的条件判断
  2. 安全控制：只允许合法的状态转换，避免业务逻辑错误
  3. 可视化反馈：通过UI状态同步让用户清楚了解当前系统状态

状态机不仅是一种编程模式，更是一种思维方式。它教会我们如何将复杂问题分解为清晰的状态和转换，让代码更加优雅、可维护。

🤔 互动讨论：

  • 你在项目中遇到过哪些适合使用状态机的场景？
  • 对于异步状态转换，你会如何设计和实现？

觉得这篇文章对你的C#开发有帮助？请转发给更多同行，让大家一起提升代码质量！

关注我，持续分享更多C#开发实战经验和最佳实践！

相关信息

通过网盘分享的文件：AppStateMachine.zip 链接: https://pan.baidu.com/s/1Ocx9qQU4_VQUa89OjBaQvQ?pwd=hbqa 提取码: hbqa --来自百度网盘超级会员v9的分享

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
