在Windows窗体应用程序开发中，我们经常需要展示圆形的图片，比如用户头像等。本文将详细介绍如何通过继承PictureBox控件，使用GDI+技术来实现一个支持渐变边框的圆形图片控件。

控件特性

• 支持圆形显示图片
• 可自定义边框粗细
• 支持双色渐变边框
• 可调整渐变角度
• 支持多种边框线型
• 具有抗锯齿效果

完整代码实现

C#
using System;
using System.Collections.Generic;
using System.Drawing.Drawing2D;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppControls
{
    public class CircularPictureBox : PictureBox
    {
        private int borderSize = 2;
        private Color borderColor = Color.RoyalBlue;
        private Color borderColor2 = Color.HotPink;
        private DashStyle borderLineStyle = DashStyle.Solid;
        private DashCap borderCapStyle = DashCap.Flat;
        private float gradientAngle = 50F;

        public CircularPictureBox()
        {
            this.Size = new Size(100, 100);
            this.SizeMode = PictureBoxSizeMode.StretchImage;
            this.BackColor = Color.Transparent;
        }

        // 优化双缓冲设置
        protected override void OnHandleCreated(EventArgs e)
        {
            base.OnHandleCreated(e);
            this.SetStyle(ControlStyles.AllPaintingInWmPaint |
                         ControlStyles.UserPaint |
                         ControlStyles.OptimizedDoubleBuffer |
                         ControlStyles.ResizeRedraw, true);
        }

        public int BorderSize
        {
            get
            {
                return borderSize;
            }

            set
            {
                borderSize = value;
                this.Invalidate();
            }
        }

        public Color BorderColor
        {
            get
            {
                return borderColor;
            }

            set
            {
                borderColor = value;
                this.Invalidate();
            }
        }

        public Color BorderColor2
        {
            get
            {
                return borderColor2;
            }

            set
            {
                borderColor2 = value;
                this.Invalidate();
            }
        }

        public DashStyle BorderLineStyle
        {
            get
            {
                return borderLineStyle;
            }

            set
            {
                borderLineStyle = value;
                this.Invalidate();
            }
        }

        public DashCap BorderCapStyle
        {
            get
            {
                return borderCapStyle;
            }

            set
            {
                borderCapStyle = value;
                this.Invalidate();
            }
        }

        public float GradientAngle
        {
            get
            {
                return gradientAngle;
            }

            set
            {
                gradientAngle = value;
                this.Invalidate();
            }
        }

        protected override void OnResize(EventArgs e)
        {
            base.OnResize(e);
            this.Size = new Size(this.Width, this.Height);
        }

        protected override void OnPaint(PaintEventArgs pe)
        {
            base.OnPaint(pe);

            Rectangle rectSurface = this.ClientRectangle;
            Rectangle rectBorder = Rectangle.Inflate(rectSurface, -borderSize, -borderSize);
            int smoothSize = 2;
            if (borderSize > 0)
                smoothSize = borderSize;

            using (GraphicsPath pathSurface = GetCirclePath(rectSurface))
            using (GraphicsPath pathBorder = GetCirclePath(rectBorder))
            using (Pen penSurface = new Pen(this.Parent.BackColor, smoothSize))
            {
                // 设置绘图品质
                pe.Graphics.SmoothingMode = SmoothingMode.AntiAlias;

                // 设置区域
                this.Region = new Region(pathSurface);

                // 绘制图片
                if (this.Image != null)
                {
                    using (TextureBrush textureBrush = new TextureBrush(this.Image))
                    {
                        textureBrush.WrapMode = WrapMode.Clamp;

                        // 配置图片缩放
                        Matrix matrix = new Matrix();
                        if (this.SizeMode == PictureBoxSizeMode.Zoom)
                        {
                            float scale = Math.Min((float)this.Width / this.Image.Width,
                                                 (float)this.Height / this.Image.Height);
                            float x = (this.Width - (this.Image.Width * scale)) / 2;
                            float y = (this.Height - (this.Image.Height * scale)) / 2;
                            matrix.Translate(x, y);
                            matrix.Scale(scale, scale);
                        }
                        else
                        {
                            matrix.Scale((float)this.Width / this.Image.Width,
                                       (float)this.Height / this.Image.Height);
                        }
                        textureBrush.Transform = matrix;

                        pe.Graphics.FillPath(textureBrush, pathSurface);
                    }
                }

                // 绘制表面边缘
                pe.Graphics.DrawPath(penSurface, pathSurface);

                // 绘制边框
                if (borderSize >= 1)
                {
                    using (LinearGradientBrush borderGColor = new LinearGradientBrush(
                        rectBorder, borderColor, borderColor2, gradientAngle))
                    using (Pen penBorder = new Pen(borderGColor, borderSize))
                    {
                        penBorder.DashStyle = borderLineStyle;
                        penBorder.DashCap = borderCapStyle;
                        penBorder.Alignment = PenAlignment.Center;
                        pe.Graphics.DrawPath(penBorder, pathBorder);
                    }
                }
            }
        }

        private GraphicsPath GetCirclePath(Rectangle rect)
        {
            GraphicsPath path = new GraphicsPath();
            path.AddEllipse(rect);
            return path;
        }


    }
}

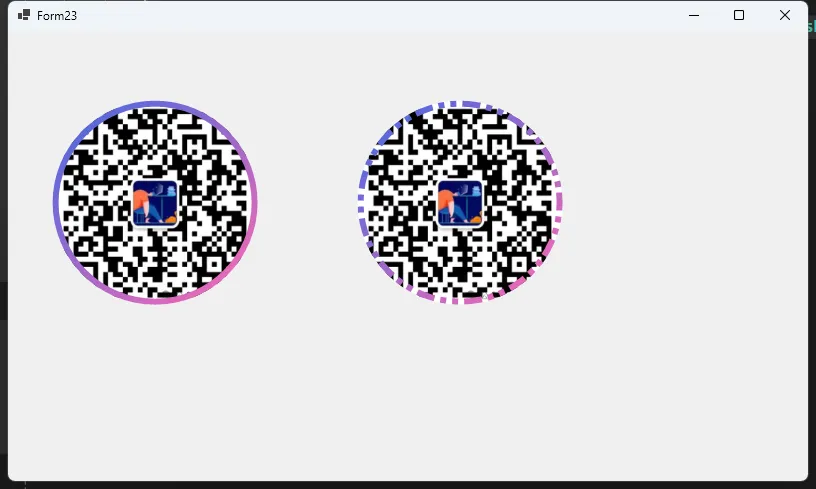

增加悬停动画

C#
using System;
using System.Collections.Generic;
using System.Drawing.Drawing2D;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppControls
{
    public class CircularPictureBox : PictureBox
    {
        private int borderSize = 2;
        private Color borderColor = Color.RoyalBlue;
        private Color borderColor2 = Color.HotPink;
        private DashStyle borderLineStyle = DashStyle.Solid;
        private DashCap borderCapStyle = DashCap.Flat;
        private float gradientAngle = 50F;

        // 添加动画相关字段
        private bool isHovered = false;
        private float currentScale = 1.0f;
        private float targetScale = 1.0f;
        private float hoverScale = 1.1f; // 悬停时的放大比例
        private Color hoverBorderColor;
        private Color hoverBorderColor2;
        private System.Windows.Forms.Timer animationTimer;
        private float glowOpacity = 0f;
        private bool enableHoverEffect = true;

        public CircularPictureBox()
        {
            this.Size = new Size(100, 100);
            this.SizeMode = PictureBoxSizeMode.StretchImage;
            this.BackColor = Color.Transparent;

            // 初始化悬停颜色
            hoverBorderColor = Color.FromArgb(255, 0, 174, 255);  // 明亮的蓝色
            hoverBorderColor2 = Color.FromArgb(255, 255, 0, 128); // 明亮的粉色

            // 初始化动画计时器
            animationTimer = new System.Windows.Forms.Timer();
            animationTimer.Interval = 16; // 约60fps
            animationTimer.Tick += AnimationTimer_Tick;

            // 添加鼠标事件
            this.MouseEnter += CircularPictureBox_MouseEnter;
            this.MouseLeave += CircularPictureBox_MouseLeave;
        }

        private void CircularPictureBox_MouseEnter(object sender, EventArgs e)
        {
            if (!enableHoverEffect) return;
            isHovered = true;
            targetScale = hoverScale;
            if (!animationTimer.Enabled)
                animationTimer.Start();
        }

        private void CircularPictureBox_MouseLeave(object sender, EventArgs e)
        {
            if (!enableHoverEffect) return;
            isHovered = false;
            targetScale = 1.0f;
            if (!animationTimer.Enabled)
                animationTimer.Start();
        }

        private void AnimationTimer_Tick(object sender, EventArgs e)
        {
            bool needsUpdate = false;

            // 更新缩放动画
            if (Math.Abs(currentScale - targetScale) > 0.001f)
            {
                currentScale += (targetScale - currentScale) * 0.2f;
                needsUpdate = true;
            }

            // 更新发光效果
            float targetGlow = isHovered ? 1f : 0f;
            if (Math.Abs(glowOpacity - targetGlow) > 0.001f)
            {
                glowOpacity += (targetGlow - glowOpacity) * 0.2f;
                needsUpdate = true;
            }

            if (needsUpdate)
            {
                this.Invalidate();
            }
            else
            {
                animationTimer.Stop();
            }
        }

        // 优化双缓冲设置
        protected override void OnHandleCreated(EventArgs e)
        {
            base.OnHandleCreated(e);
            this.SetStyle(ControlStyles.AllPaintingInWmPaint |
                         ControlStyles.UserPaint |
                         ControlStyles.OptimizedDoubleBuffer |
                         ControlStyles.ResizeRedraw, true);
        }

        public bool EnableHoverEffect
        {
            get => enableHoverEffect;
            set => enableHoverEffect = value;
        }

        public float HoverScale
        {
            get => hoverScale;
            set => hoverScale = value;
        }

        public int BorderSize
        {
            get
            {
                return borderSize;
            }

            set
            {
                borderSize = value;
                this.Invalidate();
            }
        }

        public Color BorderColor
        {
            get
            {
                return borderColor;
            }

            set
            {
                borderColor = value;
                this.Invalidate();
            }
        }

        public Color BorderColor2
        {
            get
            {
                return borderColor2;
            }

            set
            {
                borderColor2 = value;
                this.Invalidate();
            }
        }

        public DashStyle BorderLineStyle
        {
            get
            {
                return borderLineStyle;
            }

            set
            {
                borderLineStyle = value;
                this.Invalidate();
            }
        }

        public DashCap BorderCapStyle
        {
            get
            {
                return borderCapStyle;
            }

            set
            {
                borderCapStyle = value;
                this.Invalidate();
            }
        }

        public float GradientAngle
        {
            get
            {
                return gradientAngle;
            }

            set
            {
                gradientAngle = value;
                this.Invalidate();
            }
        }

        protected override void OnResize(EventArgs e)
        {
            base.OnResize(e);
            this.Size = new Size(this.Width, this.Height);
        }

        protected override void OnPaint(PaintEventArgs pe)
        {
            base.OnPaint(pe);

            // 计算缩放后的矩形
            float scaleFactor = currentScale;
            int widthDiff = (int)((this.Width * scaleFactor) - this.Width) / 2;
            int heightDiff = (int)((this.Height * scaleFactor) - this.Height) / 2;

            Rectangle scaledRect = new Rectangle(
                -widthDiff,
                -heightDiff,
                (int)(this.Width * scaleFactor),
                (int)(this.Height * scaleFactor)
            );

            Rectangle rectSurface = scaledRect;
            Rectangle rectBorder = Rectangle.Inflate(rectSurface, -borderSize, -borderSize);
            int smoothSize = 2;
            if (borderSize > 0)
                smoothSize = borderSize;

            using (GraphicsPath pathSurface = GetCirclePath(rectSurface))
            using (GraphicsPath pathBorder = GetCirclePath(rectBorder))
            using (Pen penSurface = new Pen(this.Parent.BackColor, smoothSize))
            {
                pe.Graphics.SmoothingMode = SmoothingMode.AntiAlias;
                this.Region = new Region(pathSurface);

                // 绘制发光效果
                if (glowOpacity > 0)
                {
                    using (GraphicsPath glowPath = GetCirclePath(Rectangle.Inflate(rectSurface, 5, 5)))
                    using (PathGradientBrush glowBrush = new PathGradientBrush(glowPath))
                    {
                        Color glowColor = Color.FromArgb(
                            (int)(100 * glowOpacity),
                            hoverBorderColor
                        );
                        glowBrush.CenterColor = glowColor;
                        glowBrush.SurroundColors = new Color[] { Color.FromArgb(0, glowColor) };
                        pe.Graphics.FillPath(glowBrush, glowPath);
                    }
                }

                // 绘制图片
                if (this.Image != null)
                {
                    using (TextureBrush textureBrush = new TextureBrush(this.Image))
                    {
                        textureBrush.WrapMode = WrapMode.Clamp;
                        Matrix matrix = new Matrix();
                        if (this.SizeMode == PictureBoxSizeMode.Zoom)
                        {
                            float scale = Math.Min((float)scaledRect.Width / this.Image.Width,
                                                 (float)scaledRect.Height / this.Image.Height);
                            float x = (scaledRect.Width - (this.Image.Width * scale)) / 2 + scaledRect.X;
                            float y = (scaledRect.Height - (this.Image.Height * scale)) / 2 + scaledRect.Y;
                            matrix.Translate(x, y);
                            matrix.Scale(scale, scale);
                        }
                        else
                        {
                            matrix.Scale((float)scaledRect.Width / this.Image.Width,
                                       (float)scaledRect.Height / this.Image.Height);
                            matrix.Translate(scaledRect.X, scaledRect.Y);
                        }
                        textureBrush.Transform = matrix;
                        pe.Graphics.FillPath(textureBrush, pathSurface);
                    }
                }

                // 绘制表面边缘
                pe.Graphics.DrawPath(penSurface, pathSurface);

                // 绘制边框
                if (borderSize >= 1)
                {
                    Color currentBorderColor = isHovered ? hoverBorderColor : borderColor;
                    Color currentBorderColor2 = isHovered ? hoverBorderColor2 : borderColor2;

                    using (LinearGradientBrush borderGColor = new LinearGradientBrush(
                        rectBorder, currentBorderColor, currentBorderColor2, gradientAngle))
                    using (Pen penBorder = new Pen(borderGColor, borderSize))
                    {
                        penBorder.DashStyle = borderLineStyle;
                        penBorder.DashCap = borderCapStyle;
                        penBorder.Alignment = PenAlignment.Center;
                        pe.Graphics.DrawPath(penBorder, pathBorder);
                    }
                }
            }
        }

        private GraphicsPath GetCirclePath(Rectangle rect)
        {
            GraphicsPath path = new GraphicsPath();
            path.AddEllipse(rect);
            return path;
        }

        // 确保在控件销毁时释放资源
        protected override void Dispose(bool disposing)
        {
            if (disposing)
            {
                animationTimer.Dispose();
            }
            base.Dispose(disposing);
        }


    }
}

性能优化建议

1. 在不需要重绘时避免调用Invalidate()
2. 合理设置图片的SizeMode
3. 使用using语句确保及时释放GDI+资源
4. 可以考虑添加双缓冲以提升显示效果

这个自定义控件为WinForms应用程序提供了一个美观的圆形图片显示解决方案，特别适合用于显示用户头像、圆形标志等场景。通过调整各种属性，可以实现丰富的视觉效果。
