🔥 C#性能监控实战：工业系统中的WPF+AOP+Castle.DynamicProxy完美组合

"你的C#应用慢得像老牛拉车？用户投诉系统卡顿？"

在工业管理系统中，性能问题往往是致命的。一个订单处理慢了几秒钟，可能就是几万块的损失。传统的性能监控方案要么侵入性太强，要么监控不够细致。

今天，我们用一个真实的工业订单管理系统来演示如何通过AOP（面向切面编程）+ Castle.DynamicProxy实现零侵入的性能监控，让你的系统性能一目了然！

💡 为什么选择AOP方案？

🔍 传统方案的痛点

C#
// 传统方式：代码侵入性强，维护困难
public async Task<bool> ProcessOrderAsync(Order order)
{
    var stopwatch = Stopwatch.StartNew(); // 手动插入
    try
    {
        // 业务逻辑
        await DoBusinessLogic(order);
        return true;
    }
    finally
    {
        stopwatch.Stop();
        LogPerformance(stopwatch.ElapsedMilliseconds); // 手动插入
    }
}

✨ AOP方案的优势

零侵入：业务代码保持纯净
统一管理：所有性能监控逻辑集中处理
灵活配置：通过特性控制监控范围
易维护：修改监控逻辑不影响业务代码

🛠️ 核心技术架构

性能监控特性定义+性能拦截器核心实现

C#
using System;
using System.Collections.Generic;
using System.Diagnostics;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Castle.DynamicProxy;

namespace AppIndustrialAop
{
    // 性能监控属性定义
    [AttributeUsage(AttributeTargets.Method)]
    public class PerformanceMonitorAttribute : Attribute
    {
        public string Description { get; set; }
        public PerformanceMonitorAttribute(string description = "")
        {
            Description = description;
        }
    }

    // 性能监控拦截器
    public class PerformanceInterceptor : IInterceptor
    {
        private readonly IPerformanceLogger _logger;

        public PerformanceInterceptor(IPerformanceLogger logger)
        {
            _logger = logger;
        }

        public void Intercept(IInvocation invocation)
        {
            var stopwatch = Stopwatch.StartNew();
            var methodName = $"{invocation.TargetType.Name}.{invocation.Method.Name}";

            try
            {
                // 执行目标方法
                invocation.Proceed();
            }
            catch (Exception ex)
            {
                _logger.LogError(methodName, ex);
                throw;
            }
            finally
            {
                stopwatch.Stop();
                var elapsedMs = stopwatch.ElapsedMilliseconds;

                // 记录性能数据
                _logger.LogPerformance(methodName, elapsedMs);

                // 如果执行时间超过阈值，记录警告
                if (elapsedMs > 500)
                {
                    _logger.LogWarning(methodName, elapsedMs);
                }
            }
        }
    }

}

🏭 实战案例：工业订单管理系统

🎯 业务场景

订单处理：复杂的计算和数据库操作
生产调度：设备分配和时间规划
性能要求：响应时间必须在合理范围内

📦 业务服务实现

C#
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppIndustrialAop
{
    public interface IPerformanceLogger
    {
        void LogPerformance(string methodName, long elapsedMs);
        void LogWarning(string methodName, long elapsedMs);
        void LogError(string methodName, Exception ex);
        ObservableCollection<PerformanceRecord> GetPerformanceRecords();
        List<PerformanceMetrics> GetPerformanceMetrics();
        List<MethodPerformanceStats> GetMethodStats();
    }
}

C#
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Runtime.CompilerServices;
using System.Text;
using System.Threading.Tasks;
using System.Windows;

namespace AppIndustrialAop
{
    public class PerformanceLogger : IPerformanceLogger, INotifyPropertyChanged
    {
        private readonly ObservableCollection<PerformanceRecord> _performanceRecords;
        private readonly Dictionary<string, List<long>> _methodPerformanceHistory;
        private readonly object _lock = new object();

        public PerformanceLogger()
        {
            _performanceRecords = new ObservableCollection<PerformanceRecord>();
            _methodPerformanceHistory = new Dictionary<string, List<long>>();
        }

        public void LogPerformance(string methodName, long elapsedMs)
        {
            lock (_lock)
            {
                // 记录到历史数据
                if (!_methodPerformanceHistory.ContainsKey(methodName))
                {
                    _methodPerformanceHistory[methodName] = new List<long>();
                }
                _methodPerformanceHistory[methodName].Add(elapsedMs);

                // 保持最近500条记录
                if (_methodPerformanceHistory[methodName].Count > 500)
                {
                    _methodPerformanceHistory[methodName].RemoveAt(0);
                }
            }

            Application.Current.Dispatcher.Invoke(() =>
            {
                _performanceRecords.Add(new PerformanceRecord
                {
                    MethodName = methodName,
                    ElapsedMilliseconds = elapsedMs,
                    Timestamp = DateTime.Now,
                    Status = elapsedMs > 500 ? "警告" : "正常"
                });

                // 保持最近1000条记录
                if (_performanceRecords.Count > 1000)
                {
                    _performanceRecords.RemoveAt(0);
                }
            });
        }

        public void LogWarning(string methodName, long elapsedMs)
        {
            Console.WriteLine($"⚠️ 性能警告: {methodName} 执行时间过长 ({elapsedMs}ms)");
        }

        public void LogError(string methodName, Exception ex)
        {
            Console.WriteLine($"❌ 错误: {methodName} 执行异常 - {ex.Message}");
        }

        public ObservableCollection<PerformanceRecord> GetPerformanceRecords()
        {
            return _performanceRecords;
        }

        public List<PerformanceMetrics> GetPerformanceMetrics()
        {
            lock (_lock)
            {
                var metrics = new List<PerformanceMetrics>();
                var now = DateTime.Now;

                for (int i = 0; i < 60; i++)
                {
                    var timePoint = now.AddSeconds(-i);
                    var recordsAtTime = _performanceRecords
                        .Where(r => r.Timestamp >= timePoint.AddSeconds(-1) && r.Timestamp < timePoint)
                        .ToList();

                    metrics.Add(new PerformanceMetrics
                    {
                        Timestamp = timePoint,
                        AverageResponseTime = recordsAtTime.Any() ? recordsAtTime.Average(r => r.ElapsedMilliseconds) : 0,
                        RequestCount = recordsAtTime.Count,
                        ErrorCount = recordsAtTime.Count(r => r.Status == "错误")
                    });
                }

                return metrics.OrderBy(m => m.Timestamp).ToList();
            }
        }

        public List<MethodPerformanceStats> GetMethodStats()
        {
            lock (_lock)
            {
                var stats = new List<MethodPerformanceStats>();

                foreach (var kvp in _methodPerformanceHistory)
                {
                    var values = kvp.Value;
                    if (values.Any())
                    {
                        stats.Add(new MethodPerformanceStats
                        {
                            MethodName = kvp.Key,
                            AverageTime = values.Average(),
                            MinTime = values.Min(),
                            MaxTime = values.Max(),
                            CallCount = values.Count,
                            P95Time = CalculatePercentile(values, 95),
                            P99Time = CalculatePercentile(values, 99)
                        });
                    }
                }

                return stats.OrderByDescending(s => s.AverageTime).ToList();
            }
        }

        private double CalculatePercentile(List<long> values, int percentile)
        {
            var sorted = values.OrderBy(x => x).ToList();
            int index = (int)Math.Ceiling(percentile / 100.0 * sorted.Count) - 1;
            return sorted[Math.Max(0, Math.Min(index, sorted.Count - 1))];
        }

        public event PropertyChangedEventHandler PropertyChanged;
        protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
    }

    // 4. 数据模型定义
    public class PerformanceRecord
    {
        public string MethodName { get; set; }
        public long ElapsedMilliseconds { get; set; }
        public DateTime Timestamp { get; set; }
        public string Status { get; set; }
    }

    public class PerformanceMetrics
    {
        public DateTime Timestamp { get; set; }
        public double AverageResponseTime { get; set; }
        public int RequestCount { get; set; }
        public int ErrorCount { get; set; }
    }

    public class MethodPerformanceStats
    {
        public string MethodName { get; set; }
        public double AverageTime { get; set; }
        public long MinTime { get; set; }
        public long MaxTime { get; set; }
        public int CallCount { get; set; }
        public double P95Time { get; set; }
        public double P99Time { get; set; }
    }

    public class Order : INotifyPropertyChanged
    {
        private string _orderId;
        private string _customerName;
        private int _quantity;
        private string _product;
        private DateTime _orderTime;
        private string _status;

        public string OrderId
        {
            get => _orderId;
            set { _orderId = value; OnPropertyChanged(); }
        }

        public string CustomerName
        {
            get => _customerName;
            set { _customerName = value; OnPropertyChanged(); }
        }

        public int Quantity
        {
            get => _quantity;
            set { _quantity = value; OnPropertyChanged(); }
        }

        public string Product
        {
            get => _product;
            set { _product = value; OnPropertyChanged(); }
        }

        public DateTime OrderTime
        {
            get => _orderTime;
            set { _orderTime = value; OnPropertyChanged(); }
        }

        public string Status
        {
            get => _status;
            set { _status = value; OnPropertyChanged(); }
        }

        public event PropertyChangedEventHandler PropertyChanged;
        protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
    }

    public class ProductionSchedule
    {
        public string ScheduleId { get; set; }
        public string OrderId { get; set; }
        public string Equipment { get; set; }
        public DateTime StartTime { get; set; }
        public DateTime EndTime { get; set; }
        public int EstimatedDuration { get; set; }
    }

    // 5. 业务服务接口和实现
    public interface IOrderService
    {
        Task<bool> ProcessOrderAsync(Order order);
        Task<List<Order>> GetOrdersAsync();
        Task<bool> UpdateOrderStatusAsync(string orderId, string status);
    }

    public class OrderService : IOrderService
    {
        private readonly List<Order> _orders;
        private readonly IProductionScheduleService _scheduleService;
        private readonly Random _random;

        public OrderService(IProductionScheduleService scheduleService)
        {
            _orders = new List<Order>();
            _scheduleService = scheduleService;
            _random = new Random();
        }

        [PerformanceMonitor("订单处理")]
        public virtual async Task<bool> ProcessOrderAsync(Order order)
        {
            // 模拟复杂的订单处理逻辑
            await Task.Delay(_random.Next(100, 800)); // 模拟网络延迟和数据库操作

            // 计算生产时间
            var productionTime = await CalculateProductionTimeAsync(order);

            // 创建生产调度
            var schedule = new ProductionSchedule
            {
                ScheduleId = Guid.NewGuid().ToString(),
                OrderId = order.OrderId,
                Equipment = GetAvailableEquipment(order.Product),
                StartTime = DateTime.Now.AddHours(1),
                EndTime = DateTime.Now.AddHours(1 + productionTime),
                EstimatedDuration = productionTime
            };

            // 保存到生产调度
            await _scheduleService.CreateScheduleAsync(schedule);

            // 保存订单到数据库
            await SaveOrderToDatabaseAsync(order);

            order.Status = "已调度";
            return true;
        }

        [PerformanceMonitor("生产时间计算")]
        private async Task<int> CalculateProductionTimeAsync(Order order)
        {
            // 模拟复杂的算法计算
            await Task.Delay(_random.Next(50, 300));

            // 根据产品类型和数量计算生产时间
            var baseTime = order.Product switch
            {
                "电机" => 2.0,
                "齿轮" => 1.5,
                "轴承" => 3.0,
                _ => 2.0
            };

            return (int)(order.Quantity * baseTime);
        }

        [PerformanceMonitor("数据库保存")]
        private async Task SaveOrderToDatabaseAsync(Order order)
        {
            // 模拟数据库保存操作
            await Task.Delay(_random.Next(100, 400));

            _orders.Add(order);
        }

        private string GetAvailableEquipment(string product)
        {
            var equipmentOptions = product switch
            {
                "电机" => new[] { "电机生产线A", "电机生产线B" },
                "齿轮" => new[] { "齿轮加工中心1", "齿轮加工中心2" },
                "轴承" => new[] { "轴承装配线1", "轴承装配线2" },
                _ => new[] { "通用生产线1", "通用生产线2" }
            };

            return equipmentOptions[_random.Next(equipmentOptions.Length)];
        }

        public virtual async Task<List<Order>> GetOrdersAsync()
        {
            await Task.Delay(50); // 模拟数据库查询
            return _orders.ToList();
        }

        public virtual async Task<bool> UpdateOrderStatusAsync(string orderId, string status)
        {
            await Task.Delay(30);
            var order = _orders.FirstOrDefault(o => o.OrderId == orderId);
            if (order != null)
            {
                order.Status = status;
                return true;
            }
            return false;
        }
    }

    // 6. 生产调度服务
    public interface IProductionScheduleService
    {
        Task<bool> CreateScheduleAsync(ProductionSchedule schedule);
        Task<List<ProductionSchedule>> GetSchedulesAsync();
    }

    public class ProductionScheduleService : IProductionScheduleService
    {
        private readonly List<ProductionSchedule> _schedules;

        public ProductionScheduleService()
        {
            _schedules = new List<ProductionSchedule>();
        }

        [PerformanceMonitor("创建生产调度")]
        public virtual async Task<bool> CreateScheduleAsync(ProductionSchedule schedule)
        {
            await Task.Delay(100); // 模拟调度算法计算
            _schedules.Add(schedule);
            return true;
        }

        [PerformanceMonitor("获取调度列表")]
        public virtual async Task<List<ProductionSchedule>> GetSchedulesAsync()
        {
            await Task.Delay(50);
            return _schedules.ToList();
        }
    }
}

MainViewModel

C#
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Runtime.CompilerServices;
using System.Text;
using System.Threading.Tasks;
using ScottPlot.WPF;
using ScottPlot;
using System.Windows.Threading;
using System.Windows;

namespace AppIndustrialAop
{
    public class MainViewModel : INotifyPropertyChanged
    {
        private readonly IOrderService _orderService;
        private readonly IProductionScheduleService _scheduleService;
        private readonly IPerformanceLogger _performanceLogger;
        private readonly DispatcherTimer _chartUpdateTimer;

        public ObservableCollection<Order> Orders { get; }
        public ObservableCollection<ProductionSchedule> Schedules { get; }
        public ObservableCollection<PerformanceRecord> PerformanceRecords { get; }

        // ScottPlot 图表相关
        public WpfPlot ResponseTimeChart { get; private set; }
        public WpfPlot MethodStatsChart { get; private set; }
        public WpfPlot RequestCountChart { get; private set; }

        private string _newOrderId;
        private string _newCustomerName;
        private int _newQuantity;
        private string _newProduct;

        public string NewOrderId
        {
            get => _newOrderId;
            set { _newOrderId = value; OnPropertyChanged(); }
        }

        public string NewCustomerName
        {
            get => _newCustomerName;
            set { _newCustomerName = value; OnPropertyChanged(); }
        }

        public int NewQuantity
        {
            get => _newQuantity;
            set { _newQuantity = value; OnPropertyChanged(); }
        }

        public string NewProduct
        {
            get => _newProduct;
            set { _newProduct = value; OnPropertyChanged(); }
        }

        public List<string> ProductOptions { get; } = new List<string> { "电机", "齿轮", "轴承" };

        public MainViewModel(IOrderService orderService, IProductionScheduleService scheduleService, IPerformanceLogger performanceLogger)
        {
            _orderService = orderService;
            _scheduleService = scheduleService;
            _performanceLogger = performanceLogger;

            Orders = new ObservableCollection<Order>();
            Schedules = new ObservableCollection<ProductionSchedule>();
            PerformanceRecords = _performanceLogger.GetPerformanceRecords();

            // 初始化图表
            InitializeCharts();

            // 初始化默认值
            NewOrderId = GenerateOrderId();
            NewCustomerName = "客户A";
            NewQuantity = 10;
            NewProduct = "电机";

            // 启动图表更新定时器
            _chartUpdateTimer = new DispatcherTimer
            {
                Interval = TimeSpan.FromSeconds(2)
            };
            _chartUpdateTimer.Tick += UpdateCharts;
            _chartUpdateTimer.Start();
        }

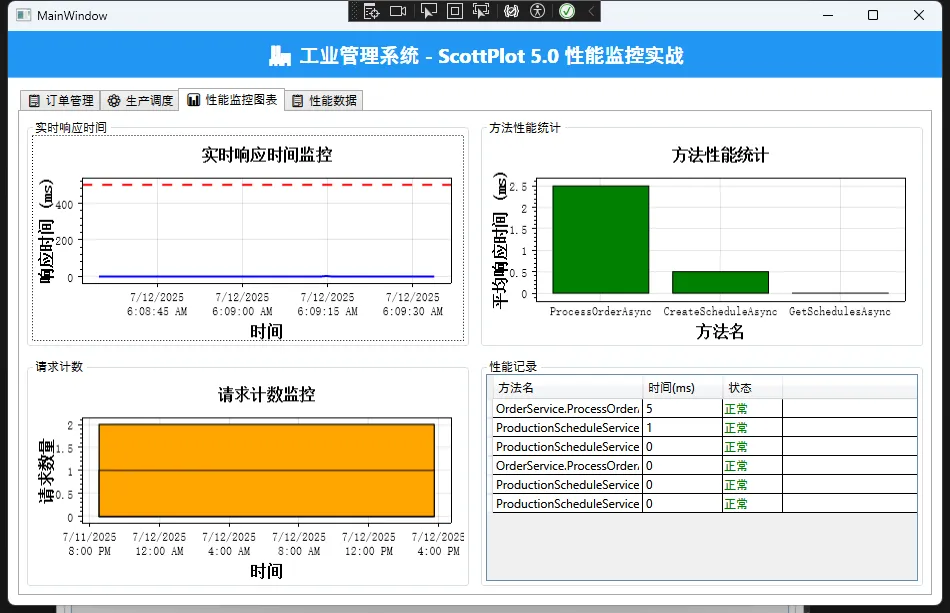

        private void InitializeCharts()
        {
            // 响应时间图表
            ResponseTimeChart = new WpfPlot();
            ResponseTimeChart.Plot.Title("实时响应时间监控");
            ResponseTimeChart.Plot.Axes.Left.Label.Text = "响应时间 (ms)";
            ResponseTimeChart.Plot.Axes.Bottom.Label.Text = "时间";
            ResponseTimeChart.Plot.Axes.Left.Min = 0;

            // 方法统计图表
            MethodStatsChart = new WpfPlot();
            MethodStatsChart.Plot.Title("方法性能统计");
            MethodStatsChart.Plot.Axes.Left.Label.Text = "平均响应时间 (ms)";
            MethodStatsChart.Plot.Axes.Bottom.Label.Text = "方法名";

            // 请求计数图表
            RequestCountChart = new WpfPlot();
            RequestCountChart.Plot.Title("请求计数监控");
            RequestCountChart.Plot.Axes.Left.Label.Text = "请求数量";
            RequestCountChart.Plot.Axes.Bottom.Label.Text = "时间";
        }

        private void UpdateCharts(object sender, EventArgs e)
        {
            UpdateResponseTimeChart();
            UpdateMethodStatsChart();
            UpdateRequestCountChart();
        }

        private void UpdateResponseTimeChart()
        {
            var metrics = _performanceLogger.GetPerformanceMetrics();
            if (!metrics.Any()) return;

            ResponseTimeChart.Plot.Clear();
            ResponseTimeChart.Plot.Font.Set("SimSun");

            var times = metrics.Select(m => m.Timestamp.ToOADate()).ToArray();
            var responseTimes = metrics.Select(m => m.AverageResponseTime).ToArray();

            var linePlot = ResponseTimeChart.Plot.Add.Scatter(times, responseTimes);
            linePlot.LineWidth = 2;
            linePlot.Color = Colors.Blue;
            linePlot.MarkerSize = 0;

            // 添加警告线
            var warningLine = ResponseTimeChart.Plot.Add.HorizontalLine(500);
            warningLine.Color = Colors.Red;
            warningLine.LineWidth = 2;
            warningLine.LinePattern = LinePattern.Dashed;

            ResponseTimeChart.Plot.Axes.Bottom.TickGenerator = new ScottPlot.TickGenerators.DateTimeAutomatic();
            ResponseTimeChart.Plot.Axes.AutoScale();
            ResponseTimeChart.Refresh();
        }

        private void UpdateMethodStatsChart()
        {
            var stats = _performanceLogger.GetMethodStats().Take(10).ToList();
            if (!stats.Any()) return;

            MethodStatsChart.Plot.Clear();
            MethodStatsChart.Plot.Font.Set("SimSun");

            var positions = Enumerable.Range(0, stats.Count).Select(i => (double)i).ToArray();
            var averageTimes = stats.Select(s => s.AverageTime).ToArray();
            var labels = stats.Select(s => s.MethodName.Split('.').Last()).ToArray();

            var barPlot = MethodStatsChart.Plot.Add.Bars(positions, averageTimes);
            barPlot.Color = Colors.Green;

            MethodStatsChart.Plot.Axes.Bottom.TickGenerator = new ScottPlot.TickGenerators.NumericManual(positions, labels);
            MethodStatsChart.Plot.Axes.Bottom.MajorTickStyle.Length = 0;
            MethodStatsChart.Plot.Axes.AutoScale();
            MethodStatsChart.Refresh();
        }

        private void UpdateRequestCountChart()
        {
            var metrics = _performanceLogger.GetPerformanceMetrics();
            if (!metrics.Any()) return;

            RequestCountChart.Plot.Clear();
            RequestCountChart.Plot.Font.Set("SimSun");

            var times = metrics.Select(m => m.Timestamp.ToOADate()).ToArray();
            var requestCounts = metrics.Select(m => (double)m.RequestCount).ToArray();

            var barPlot = RequestCountChart.Plot.Add.Bars(times, requestCounts);
            barPlot.Color = Colors.Orange;

            RequestCountChart.Plot.Axes.Bottom.TickGenerator = new ScottPlot.TickGenerators.DateTimeAutomatic();
            RequestCountChart.Plot.Axes.AutoScale();
            RequestCountChart.Refresh();
        }

        public async Task CreateOrderAsync()
        {
            var order = new Order
            {
                OrderId = NewOrderId,
                CustomerName = NewCustomerName,
                Quantity = NewQuantity,
                Product = NewProduct,
                OrderTime = DateTime.Now,
                Status = "处理中"
            };

            try
            {
                var success = await _orderService.ProcessOrderAsync(order);
                if (success)
                {
                    Orders.Add(order);
                    await RefreshSchedulesAsync();

                    // 重置表单
                    NewOrderId = GenerateOrderId();
                    NewCustomerName = "客户A";
                    NewQuantity = 10;
                    NewProduct = "电机";
                }
            }
            catch (Exception ex)
            {
                MessageBox.Show($"创建订单失败: {ex.Message}", "错误", MessageBoxButton.OK, MessageBoxImage.Error);
            }
        }

        public async Task RefreshSchedulesAsync()
        {
            var schedules = await _scheduleService.GetSchedulesAsync();
            Schedules.Clear();
            foreach (var schedule in schedules)
            {
                Schedules.Add(schedule);
            }
        }

        private string GenerateOrderId()
        {
            return $"ORD{DateTime.Now:yyyyMMddHHmmss}{new Random().Next(100, 999)}";
        }

        public event PropertyChangedEventHandler PropertyChanged;
        protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
    }
}

🔧 依赖注入配置

🎯 关键：代理服务注册

C#
private void ConfigureServices(ServiceCollection services)
{
    // 注册性能监控组件
    services.AddSingleton<IPerformanceLogger, PerformanceLogger>();
    services.AddSingleton<PerformanceInterceptor>();
    services.AddSingleton<ProxyGenerator>();

    // 🔥 核心：使用代理包装业务服务
    services.AddSingleton<IOrderService>(provider =>
    {
        var proxyGenerator = provider.GetRequiredService<ProxyGenerator>();
        var interceptor = provider.GetRequiredService<PerformanceInterceptor>();
        var scheduleService = provider.GetRequiredService<IProductionScheduleService>();

        var target = new OrderService(scheduleService);
        return proxyGenerator.CreateInterfaceProxyWithTarget<IOrderService>(target, interceptor);
    });

    services.AddSingleton<IProductionScheduleService>(provider =>
    {
        var proxyGenerator = provider.GetRequiredService<ProxyGenerator>();
        var interceptor = provider.GetRequiredService<PerformanceInterceptor>();

        var target = new ProductionScheduleService();
        return proxyGenerator.CreateInterfaceProxyWithTarget<IProductionScheduleService>(target, interceptor);
    });
}

MainWindow

C#
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;
using Castle.DynamicProxy;
using Microsoft.Extensions.DependencyInjection;

namespace AppIndustrialAop
{
    /// <summary>
    /// Interaction logic for MainWindow.xaml
    /// </summary>
    public partial class MainWindow : Window
    {
        private readonly MainViewModel _viewModel;
        public MainWindow()
        {
            InitializeComponent();

            // 配置依赖注入
            var services = new ServiceCollection();
            ConfigureServices(services);
            var serviceProvider = services.BuildServiceProvider();

            _viewModel = serviceProvider.GetRequiredService<MainViewModel>();
            DataContext = _viewModel;

            // 设置图表到UI
            SetupCharts();
        }

        private void ConfigureServices(ServiceCollection services)
        {
            // 注册性能监控日志
            services.AddSingleton<IPerformanceLogger, PerformanceLogger>();

            // 注册拦截器
            services.AddSingleton<PerformanceInterceptor>();

            // 注册代理生成器
            services.AddSingleton<ProxyGenerator>();

            // 注册业务服务（使用代理）
            services.AddSingleton<IOrderService>(provider =>
            {
                var proxyGenerator = provider.GetRequiredService<ProxyGenerator>();
                var interceptor = provider.GetRequiredService<PerformanceInterceptor>();
                var scheduleService = provider.GetRequiredService<IProductionScheduleService>();

                var target = new OrderService(scheduleService);
                return proxyGenerator.CreateInterfaceProxyWithTarget<IOrderService>(target, interceptor);
            });

            services.AddSingleton<IProductionScheduleService>(provider =>
            {
                var proxyGenerator = provider.GetRequiredService<ProxyGenerator>();
                var interceptor = provider.GetRequiredService<PerformanceInterceptor>();

                var target = new ProductionScheduleService();
                return proxyGenerator.CreateInterfaceProxyWithTarget<IProductionScheduleService>(target, interceptor);
            });

            // 注册ViewModel
            services.AddSingleton<MainViewModel>();
        }

        private void SetupCharts()
        {
            if (ResponseTimeChartContainer != null)
                ResponseTimeChartContainer.Child = _viewModel.ResponseTimeChart;

            if (MethodStatsChartContainer != null)
                MethodStatsChartContainer.Child = _viewModel.MethodStatsChart;

            if (RequestCountChartContainer != null)
                RequestCountChartContainer.Child = _viewModel.RequestCountChart;
        }

        private async void CreateOrderButton_Click(object sender, RoutedEventArgs e)
        {
            await _viewModel.CreateOrderAsync();
        }

        private async void RefreshButton_Click(object sender, RoutedEventArgs e)
        {
            await _viewModel.RefreshSchedulesAsync();
        }
    }
}

UI

XML
<Window x:Class="AppIndustrialAop.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AppIndustrialAop"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <!-- 标题栏 -->
        <Border Grid.Row="0" Background="#FF2196F3" Padding="10">
            <TextBlock Text="🏭 工业管理系统 - ScottPlot 5.0 性能监控实战"
                       FontSize="20" FontWeight="Bold" Foreground="White"
                       HorizontalAlignment="Center"/>
        </Border>

        <!-- 主要内容 -->
        <TabControl Grid.Row="1" Margin="10">

            <!-- 订单管理 -->

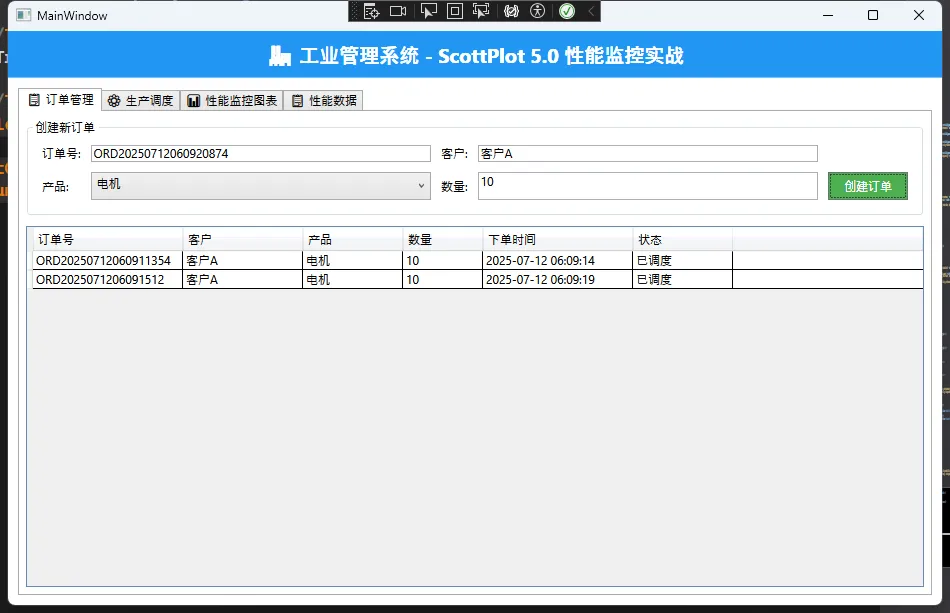

            <TabItem Header="📋 订单管理">
                <Grid>
                    <Grid.RowDefinitions>
                        <RowDefinition Height="Auto"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>

                    <!-- 创建订单表单 -->
                    <GroupBox Grid.Row="0" Header="创建新订单" Margin="5">
                        <Grid Margin="10">
                            <Grid.ColumnDefinitions>
                                <ColumnDefinition Width="Auto"/>
                                <ColumnDefinition Width="*"/>
                                <ColumnDefinition Width="Auto"/>
                                <ColumnDefinition Width="*"/>
                                <ColumnDefinition Width="Auto"/>
                            </Grid.ColumnDefinitions>
                            <Grid.RowDefinitions>
                                <RowDefinition Height="Auto"/>
                                <RowDefinition Height="Auto"/>
                            </Grid.RowDefinitions>

                            <TextBlock Grid.Row="0" Grid.Column="0" Text="订单号:" VerticalAlignment="Center" Margin="0,0,10,0"/>
                            <TextBox Grid.Row="0" Grid.Column="1" Text="{Binding NewOrderId}" Margin="0,0,10,0"/>

                            <TextBlock Grid.Row="0" Grid.Column="2" Text="客户:" VerticalAlignment="Center" Margin="0,0,10,0"/>
                            <TextBox Grid.Row="0" Grid.Column="3" Text="{Binding NewCustomerName}" Margin="0,0,10,0"/>

                            <TextBlock Grid.Row="1" Grid.Column="0" Text="产品:" VerticalAlignment="Center" Margin="0,10,10,0"/>
                            <ComboBox Grid.Row="1" Grid.Column="1" ItemsSource="{Binding ProductOptions}"
                                      SelectedItem="{Binding NewProduct}" Margin="0,10,10,0"/>

                            <TextBlock Grid.Row="1" Grid.Column="2" Text="数量:" VerticalAlignment="Center" Margin="0,10,10,0"/>
                            <TextBox Grid.Row="1" Grid.Column="3" Text="{Binding NewQuantity}" Margin="0,10,10,0"/>

                            <Button Grid.Row="1" Grid.Column="4" Content="创建订单"
                                    Click="CreateOrderButton_Click"
                                    Background="#FF4CAF50" Foreground="White"
                                    Padding="15,5" Margin="0,10,0,0"/>
                        </Grid>
                    </GroupBox>

                    <!-- 订单列表 -->
                    <DataGrid Grid.Row="1" ItemsSource="{Binding Orders}"
                              AutoGenerateColumns="False" Margin="5"
                              CanUserAddRows="False" CanUserDeleteRows="False">
                        <DataGrid.Columns>
                            <DataGridTextColumn Header="订单号" Binding="{Binding OrderId}" Width="150"/>
                            <DataGridTextColumn Header="客户" Binding="{Binding CustomerName}" Width="120"/>
                            <DataGridTextColumn Header="产品" Binding="{Binding Product}" Width="100"/>
                            <DataGridTextColumn Header="数量" Binding="{Binding Quantity}" Width="80"/>
                            <DataGridTextColumn Header="下单时间" Binding="{Binding OrderTime, StringFormat=yyyy-MM-dd HH:mm:ss}" Width="150"/>
                            <DataGridTextColumn Header="状态" Binding="{Binding Status}" Width="100"/>
                        </DataGrid.Columns>
                    </DataGrid>
                </Grid>
            </TabItem>

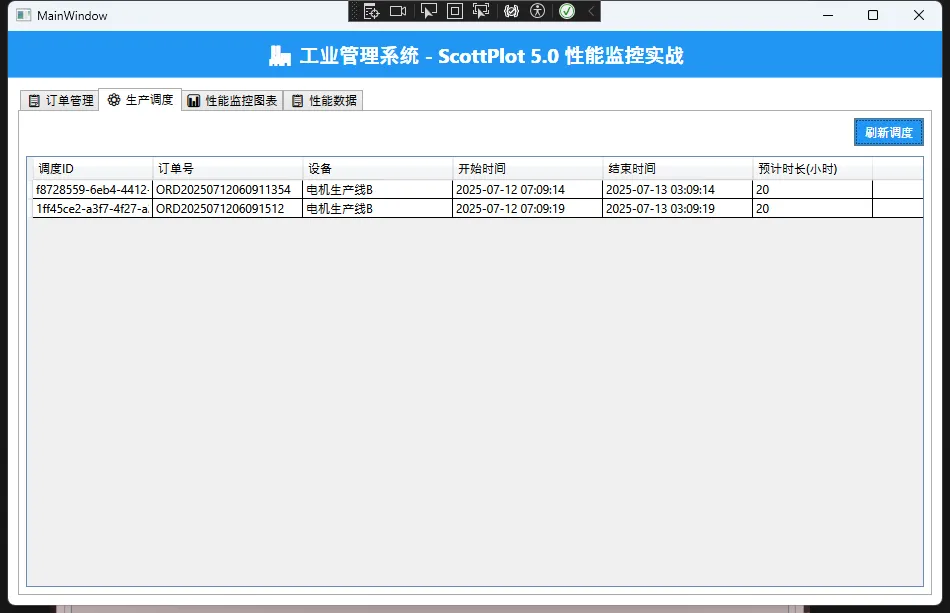

            <!-- 生产调度 -->
            <TabItem Header="⚙️ 生产调度">
                <Grid>
                    <Grid.RowDefinitions>
                        <RowDefinition Height="Auto"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>

                    <Button Grid.Row="0" Content="刷新调度" Click="RefreshButton_Click"
                            HorizontalAlignment="Right" Margin="5" Padding="10,5"
                            Background="#FF2196F3" Foreground="White"/>

                    <DataGrid Grid.Row="1" ItemsSource="{Binding Schedules}"
                              AutoGenerateColumns="False" Margin="5"
                              CanUserAddRows="False" CanUserDeleteRows="False">
                        <DataGrid.Columns>
                            <DataGridTextColumn Header="调度ID" Binding="{Binding ScheduleId}" Width="120"/>
                            <DataGridTextColumn Header="订单号" Binding="{Binding OrderId}" Width="150"/>
                            <DataGridTextColumn Header="设备" Binding="{Binding Equipment}" Width="150"/>
                            <DataGridTextColumn Header="开始时间" Binding="{Binding StartTime, StringFormat=yyyy-MM-dd HH:mm:ss}" Width="150"/>
                            <DataGridTextColumn Header="结束时间" Binding="{Binding EndTime, StringFormat=yyyy-MM-dd HH:mm:ss}" Width="150"/>
                            <DataGridTextColumn Header="预计时长(小时)" Binding="{Binding EstimatedDuration}" Width="120"/>
                        </DataGrid.Columns>
                    </DataGrid>
                </Grid>
            </TabItem>

            <!-- 性能监控图表 -->
            <TabItem Header="📊 性能监控图表">
                <Grid>
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="*"/>
                    </Grid.RowDefinitions>
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="*"/>
                        <ColumnDefinition Width="*"/>
                    </Grid.ColumnDefinitions>

                    <!-- 响应时间图表 -->
                    <GroupBox Grid.Row="0" Grid.Column="0" Header="实时响应时间" Margin="5">
                        <Border x:Name="ResponseTimeChartContainer" />
                    </GroupBox>

                    <!-- 方法统计图表 -->
                    <GroupBox Grid.Row="0" Grid.Column="1" Header="方法性能统计" Margin="5">
                        <Border x:Name="MethodStatsChartContainer" />
                    </GroupBox>

                    <!-- 请求计数图表 -->
                    <GroupBox Grid.Row="1" Grid.Column="0" Header="请求计数" Margin="5">
                        <Border x:Name="RequestCountChartContainer" />
                    </GroupBox>

                    <!-- 性能记录表格 -->
                    <GroupBox Grid.Row="1" Grid.Column="1" Header="性能记录" Margin="5">
                        <DataGrid ItemsSource="{Binding PerformanceRecords}"
                                  AutoGenerateColumns="False"
                                  CanUserAddRows="False" CanUserDeleteRows="False">
                            <DataGrid.Columns>
                                <DataGridTextColumn Header="方法名" Binding="{Binding MethodName}" Width="150"/>
                                <DataGridTextColumn Header="时间(ms)" Binding="{Binding ElapsedMilliseconds}" Width="80"/>
                                <DataGridTextColumn Header="状态" Binding="{Binding Status}" Width="60">
                                    <DataGridTextColumn.ElementStyle>
                                        <Style TargetType="TextBlock">
                                            <Style.Triggers>
                                                <Trigger Property="Text" Value="警告">
                                                    <Setter Property="Foreground" Value="Red"/>
                                                    <Setter Property="FontWeight" Value="Bold"/>
                                                </Trigger>
                                                <Trigger Property="Text" Value="正常">
                                                    <Setter Property="Foreground" Value="Green"/>
                                                </Trigger>
                                            </Style.Triggers>
                                        </Style>
                                    </DataGridTextColumn.ElementStyle>
                                </DataGridTextColumn>
                            </DataGrid.Columns>
                        </DataGrid>
                    </GroupBox>
                </Grid>
            </TabItem>

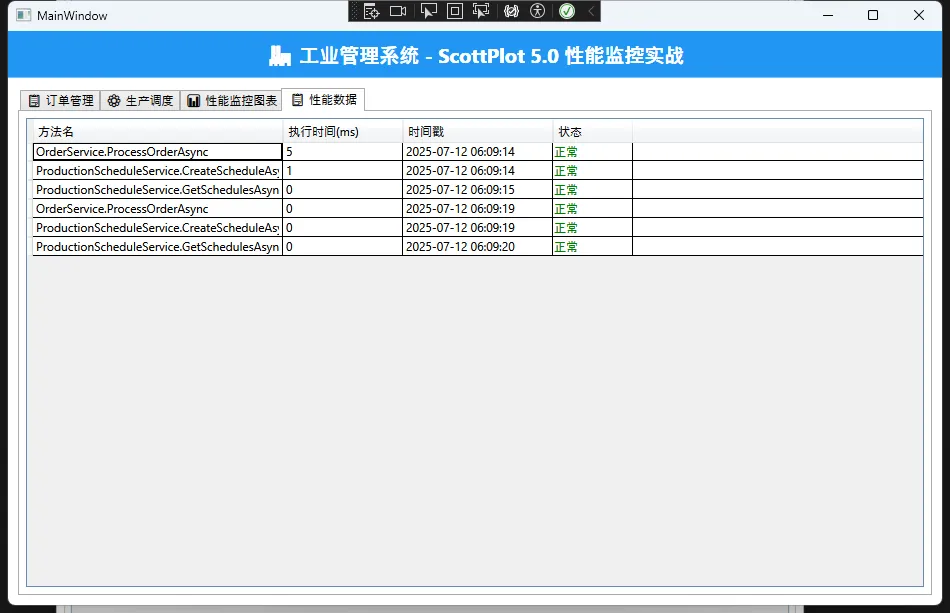

            <!-- 性能数据表格 -->
            <TabItem Header="📋 性能数据">
                <DataGrid ItemsSource="{Binding PerformanceRecords}"
                          AutoGenerateColumns="False" Margin="5"
                          CanUserAddRows="False" CanUserDeleteRows="False">
                    <DataGrid.Columns>
                        <DataGridTextColumn Header="方法名" Binding="{Binding MethodName}" Width="250"/>
                        <DataGridTextColumn Header="执行时间(ms)" Binding="{Binding ElapsedMilliseconds}" Width="120"/>
                        <DataGridTextColumn Header="时间戳" Binding="{Binding Timestamp, StringFormat=yyyy-MM-dd HH:mm:ss}" Width="150"/>
                        <DataGridTextColumn Header="状态" Binding="{Binding Status}" Width="80">
                            <DataGridTextColumn.ElementStyle>
                                <Style TargetType="TextBlock">
                                    <Style.Triggers>
                                        <Trigger Property="Text" Value="警告">
                                            <Setter Property="Foreground" Value="Red"/>
                                            <Setter Property="FontWeight" Value="Bold"/>
                                        </Trigger>
                                        <Trigger Property="Text" Value="正常">
                                            <Setter Property="Foreground" Value="Green"/>
                                        </Trigger>
                                    </Style.Triggers>
                                </Style>
                            </DataGridTextColumn.ElementStyle>
                        </DataGridTextColumn>
                    </DataGrid.Columns>
                </DataGrid>
            </TabItem>
        </TabControl>
    </Grid>
</Window>

📊 性能数据收集器

🎯 智能数据管理

C#
public class PerformanceLogger : IPerformanceLogger
{
    private readonly ObservableCollection<PerformanceRecord> _performanceRecords;
    private readonly Dictionary<string, List<long>> _methodPerformanceHistory;
    private readonly object _lock = new object();

    public void LogPerformance(string methodName, long elapsedMs)
    {
        lock (_lock)
        {
            // 📈 记录到历史数据
            if (!_methodPerformanceHistory.ContainsKey(methodName))
            {
                _methodPerformanceHistory[methodName] = new List<long>();
            }
            _methodPerformanceHistory[methodName].Add(elapsedMs);

            // 🔄 保持最近500条记录（防止内存溢出）
            if (_methodPerformanceHistory[methodName].Count > 500)
            {
                _methodPerformanceHistory[methodName].RemoveAt(0);
            }
        }

        // 🔥 UI线程安全更新
        Application.Current.Dispatcher.Invoke(() =>
        {
            _performanceRecords.Add(new PerformanceRecord
            {
                MethodName = methodName,
                ElapsedMilliseconds = elapsedMs,
                Timestamp = DateTime.Now,
                Status = elapsedMs > 500 ? "警告" : "正常"
            });

            if (_performanceRecords.Count > 1000)
            {
                _performanceRecords.RemoveAt(0);
            }
        });
    }

    // 📊 统计指标计算
    public List<MethodPerformanceStats> GetMethodStats()
    {
        lock (_lock)
        {
            var stats = new List<MethodPerformanceStats>();

            foreach (var kvp in _methodPerformanceHistory)
            {
                var values = kvp.Value;
                if (values.Any())
                {
                    stats.Add(new MethodPerformanceStats
                    {
                        MethodName = kvp.Key,
                        AverageTime = values.Average(),
                        MinTime = values.Min(),
                        MaxTime = values.Max(),
                        CallCount = values.Count,
                        P95Time = CalculatePercentile(values, 95), // 95百分位
                        P99Time = CalculatePercentile(values, 99)  // 99百分位
                    });
                }
            }

            return stats.OrderByDescending(s => s.AverageTime).ToList();
        }
    }

    // 🎯 百分位计算
    private double CalculatePercentile(List<long> values, int percentile)
    {
        var sorted = values.OrderBy(x => x).ToList();
        int index = (int)Math.Ceiling(percentile / 100.0 * sorted.Count) - 1;
        return sorted[Math.Max(0, Math.Min(index, sorted.Count - 1))];
    }
}

🎨 可视化监控界面

📈 实时图表展示

C#
public class MainViewModel : INotifyPropertyChanged
{
    private readonly DispatcherTimer _chartUpdateTimer;

    public MainViewModel(IOrderService orderService,
                        IProductionScheduleService scheduleService,
                        IPerformanceLogger performanceLogger)
    {
        _orderService = orderService;
        _scheduleService = scheduleService;
        _performanceLogger = performanceLogger;

        // 📊 初始化图表
        InitializeCharts();

        // ⏰ 启动实时更新（每2秒刷新一次）
        _chartUpdateTimer = new DispatcherTimer
        {
            Interval = TimeSpan.FromSeconds(2)
        };
        _chartUpdateTimer.Tick += UpdateCharts;
        _chartUpdateTimer.Start();
    }

    private void UpdateResponseTimeChart()
    {
        var metrics = _performanceLogger.GetPerformanceMetrics();
        if (!metrics.Any()) return;

        ResponseTimeChart.Plot.Clear();

        var times = metrics.Select(m => m.Timestamp.ToOADate()).ToArray();
        var responseTimes = metrics.Select(m => m.AverageResponseTime).ToArray();

        var linePlot = ResponseTimeChart.Plot.Add.Scatter(times, responseTimes);
        linePlot.LineWidth = 2;
        linePlot.Color = Colors.Blue;

        // ⚠️ 添加警告线
        var warningLine = ResponseTimeChart.Plot.Add.HorizontalLine(500);
        warningLine.Color = Colors.Red;
        warningLine.LinePattern = LinePattern.Dashed;

        ResponseTimeChart.Plot.Axes.AutoScale();
        ResponseTimeChart.Refresh();
    }
}

🎯 实战效果展示

📊 监控数据类型

实时响应时间曲线：直观看到系统负载变化
方法性能统计：识别性能瓶颈
请求计数监控：了解系统并发情况
百分位数据：P95、P99性能指标

🔍 性能分析能力

自动预警：超过500ms自动标记警告
历史趋势：保存最近500次调用数据
统计指标：平均值、最大值、最小值、百分位
异常捕获：方法执行异常自动记录

💡 核心优势总结

🎯 技术优势

零侵入：业务代码无需修改
高性能：拦截器开销极小
易扩展：可以轻松添加新的监控指标
线程安全：支持高并发场景

🛠️ 实用技巧

虚方法要求：被监控的方法必须是virtual的
接口代理：优先使用接口代理方式
内存管理：及时清理历史数据避免内存泄漏
UI更新：使用Dispatcher确保线程安全

🚀 扩展建议

📈 进阶功能

集成日志框架：结合NLog或Serilog
数据持久化：将性能数据保存到数据库
分布式监控：结合APM工具做全链路监控
自动化报警：集成钉钉、企业微信通知

🎯 最佳实践

合理设置监控阈值
定期清理历史数据
重要方法单独监控
结合业务指标分析

这套方案在实际项目中表现如何？有哪些踩坑经验？欢迎在评论区分享你的实战心得！

觉得这个方案对你有帮助的话，请点赞收藏并转发给更多需要的同行！让我们一起让C#应用跑得更快、更稳定！

目录
