工业4.0和物联网时代，OPC UA (OPC Unified Architecture) 已成为工业自动化和设备通信的标准协议。本文将深入探讨如何在.NET环境中实现可靠的OPC UA通信，通过一个功能完备的OPC UA客户端库及其测试程序，展示工业环境下数据采集、监控和控制的实现方法。

OPC UA简介

OPC UA是一种独立于平台的、面向服务的架构，用于工业自动化领域的数据交换。它具有以下特点：

• 平台无关性：可在各种硬件平台和操作系统上运行
• 安全性：提供认证、授权和加密机制
• 统一数据模型：提供完整的信息模型，表示复杂系统和关系
• 可扩展性：支持从简单设备到复杂系统的多种应用场景

OpcUaService类设计与实现

我们设计的OpcUaService类是对OPC UA客户端操作的封装，提供了以下核心功能：

基础连接管理

C#
// 匿名连接方式
public async Task<bool> ConnectServerAsync(string serverUrl)
{
    try
    {
        ServerUrl = serverUrl;
        _lastUsername = null;
        _lastPassword = null;
        _opcUaClient.UserIdentity = new UserIdentity(new AnonymousIdentityToken());
        await _opcUaClient.ConnectServer(serverUrl);
        IsConnected = true;
        return true;
    }
    catch (Exception ex)
    {
        IsConnected = false;
        OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
        {
            IsConnected = false,
            Message = $"连接失败: {ex.Message}"
        });
        return false;
    }
}

// 用户名密码连接方式
public async Task<bool> ConnectServerAsync(string serverUrl, string username, string password)
{
    // 实现代码...
}

数据读取

读取操作支持多种灵活的方式：

C#
// 读取单个节点
public DataValue ReadNode(string nodeId)
{
    if (!IsConnected)
        throw new InvalidOperationException("未连接到OPC UA服务器");

    return _opcUaClient.ReadNode(new NodeId(nodeId));
}

// 泛型读取方法
public T ReadNode<T>(string nodeId)
{
    // 实现代码...
}

// 异步读取
public async Task<T> ReadNodeAsync<T>(string nodeId)
{
    // 实现代码...
}

// 批量读取
public List<DataValue> ReadNodes(string[] nodeIds)
{
    // 实现代码...
}

数据写入

C#
// 写入单个节点
public bool WriteNode<T>(string nodeId, T value)
{
    if (!IsConnected)
        throw new InvalidOperationException("未连接到OPC UA服务器");

    return _opcUaClient.WriteNode(nodeId, value);
}

// 批量写入
public bool WriteNodes(string[] nodeIds, object[] values)
{
    // 实现代码...
}

数据变更订阅

订阅功能是实时监控系统的核心：

C#
// 添加节点订阅
public bool AddSubscription(string key, string nodeId,
    Action<string, MonitoredItem, MonitoredItemNotificationEventArgs> callback)
{
    return AddSubscription(key, nodeId, callback, 1000, 1000);
}

// 详细订阅实现
public bool AddSubscription(string key, string nodeId,
    Action<string, MonitoredItem, MonitoredItemNotificationEventArgs> callback,
    int publishingInterval = 1000, int samplingInterval = 1000)
{
    // 详细实现代码...

    // 创建订阅和监控项
    Subscription subscription = new Subscription(_opcUaClient.Session.DefaultSubscription);
    subscription.PublishingEnabled = true;
    subscription.PublishingInterval = publishingInterval;

    MonitoredItem monitoredItem = new MonitoredItem
    {
        StartNodeId = new NodeId(nodeId),
        AttributeId = Attributes.Value,
        DisplayName = key,
        SamplingInterval = samplingInterval
    };

    // 设置回调
    monitoredItem.Notification += (item, args) => callback(key, item, args);

    // 实现剩余代码...
}

断线重连机制

工业环境中网络不稳定是常见问题，自动重连机制至关重要：

C#
// 重连配置类
public class ReconnectionConfig
{
    public bool EnableAutoReconnect { get; set; } = true;
    public int ReconnectInterval { get; set; } = 5000;
    public int MaxReconnectAttempts { get; set; } = 0;
    public bool RestoreSubscriptionsAfterReconnect { get; set; } = true;
}

// 配置重连参数
public void ConfigureReconnection(ReconnectionConfig config)
{
    _reconnectionConfig = config ?? new ReconnectionConfig();
}

// 重连实现
private async Task ReconnectAsync()
{
    // 检查重连条件
    if (IsConnected ||
        (_reconnectionConfig.MaxReconnectAttempts > 0 &&
         _reconnectAttempts >= _reconnectionConfig.MaxReconnectAttempts))
    {
        StopReconnection();
        return;
    }

    _reconnectAttempts++;

    try
    {
        // 尝试使用原有凭据重连
        bool success;
        if (!string.IsNullOrEmpty(_lastUsername))
        {
            success = await ConnectServerAsync(ServerUrl, _lastUsername, _lastPassword);
        }
        else
        {
            success = await ConnectServerAsync(ServerUrl);
        }

        if (success)
        {
            // 重连成功后恢复订阅
            if (_reconnectionConfig.RestoreSubscriptionsAfterReconnect)
            {
                await RestoreSubscriptionsAsync();
            }

            StopReconnection();
        }

        // 其他重连逻辑...
    }
    catch (Exception ex)
    {
        // 异常处理...
    }
}

完整代码OpcUaService

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using Opc.Ua.Client;
using Opc.Ua;
using OpcUaHelper;

namespace Rick.Core.Services.OpcUa
{
    /// <summary>
    /// 通用OPC UA操作类，封装OPC UA基本操作
    /// </summary>
    public class OpcUaService: IDisposable
    {
        #region 变量与属性

        /// <summary>
        /// OPC UA客户端实例
        /// </summary>
        private OpcUaClient _opcUaClient;

        /// <summary>
        /// 订阅字典，用于管理订阅
        /// </summary>
        private Dictionary<string, Subscription> _subscriptions = new Dictionary<string, Subscription>();

        /// <summary>
        /// 连接状态
        /// </summary>
        public bool IsConnected { get; private set; } = false;

        /// <summary>
        /// 服务器地址
        /// </summary>
        public string ServerUrl { get; private set; }

        /// <summary>
        /// OPC状态变化事件
        /// </summary>
        public event EventHandler<OpcStatusEventArgs> OpcStatusChanged;

        #endregion

        #region 构造函数和初始化

        /// <summary>
        /// 构造函数
        /// </summary>
        public OpcUaService()
        {
            _opcUaClient = new OpcUaClient();
            _opcUaClient.OpcStatusChange += OpcUaClient_OpcStatusChange;
        }

        /// <summary>
        /// OPC UA状态改变事件处理
        /// </summary>
        private void OpcUaClient_OpcStatusChange(object sender, OpcUaStatusEventArgs e)
        {
            bool previousState = IsConnected;
            IsConnected = !e.Error;

            OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
            {
                IsConnected = IsConnected,
                Message = e.Error ? "连接断开" : "连接成功"
            });

            // 如果连接状态从已连接变为断开，则启动重连
            if (previousState && !IsConnected)
            {
                StartReconnection();
            }
        }

        #endregion

        #region 连接和断开

        /// <summary>
        /// 连接到OPC UA服务器(匿名方式)
        /// </summary>
        public async Task<bool> ConnectServerAsync(string serverUrl)
        {
            try
            {
                ServerUrl = serverUrl;
                _lastUsername = null;
                _lastPassword = null;
                _opcUaClient.UserIdentity = new UserIdentity(new AnonymousIdentityToken());
                await _opcUaClient.ConnectServer(serverUrl);
                IsConnected = true;
                return true;
            }
            catch (Exception ex)
            {
                IsConnected = false;
                OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
                {
                    IsConnected = false,
                    Message = $"连接失败: {ex.Message}"
                });
                return false;
            }
        }

        /// <summary>
        /// 使用用户名密码连接到OPC UA服务器
        /// </summary>
        public async Task<bool> ConnectServerAsync(string serverUrl, string username, string password)
        {
            try
            {
                ServerUrl = serverUrl;
                _lastUsername = username;
                _lastPassword = password;
                _opcUaClient.UserIdentity = new UserIdentity(username, password);
                await _opcUaClient.ConnectServer(serverUrl);
                IsConnected = true;
                return true;
            }
            catch (Exception ex)
            {
                IsConnected = false;
                OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
                {
                    IsConnected = false,
                    Message = $"连接失败: {ex.Message}"
                });
                return false;
            }
        }

        /// <summary>
        /// 断开与服务器的连接
        /// </summary>
        public void Disconnect()
        {
            try
            {
                StopReconnection();

                if (_opcUaClient != null)
                {
                    _opcUaClient.Disconnect();
                }
                IsConnected = false;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"断开连接时发生错误: {ex.Message}");
            }
        }

        #endregion

        #region 读取操作

        /// <summary>
        /// 读取单个节点的值
        /// </summary>
        /// <param name="nodeId">节点ID，例如："ns=2;s=Channel1.Device1.Tag1"</param>
        /// <returns>数据值</returns>
        public DataValue ReadNode(string nodeId)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            return _opcUaClient.ReadNode(new NodeId(nodeId));
        }

        /// <summary>
        /// 读取单个节点的值并转换为指定类型
        /// </summary>
        /// <typeparam name="T">值的类型</typeparam>
        /// <param name="nodeId">节点ID</param>
        /// <returns>指定类型的值</returns>
        public T ReadNode<T>(string nodeId)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            return _opcUaClient.ReadNode<T>(nodeId);
        }

        /// <summary>
        /// 异步读取节点值
        /// </summary>
        /// <typeparam name="T">值的类型</typeparam>
        /// <param name="nodeId">节点ID</param>
        /// <returns>指定类型的值</returns>
        public async Task<T> ReadNodeAsync<T>(string nodeId)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            return await _opcUaClient.ReadNodeAsync<T>(nodeId);
        }

        /// <summary>
        /// 批量读取多个节点的值
        /// </summary>
        /// <param name="nodeIds">节点ID列表</param>
        /// <returns>数据值列表</returns>
        public List<DataValue> ReadNodes(List<NodeId> nodeIds)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            return _opcUaClient.ReadNodes(nodeIds.ToArray());
        }

        /// <summary>
        /// 批量读取多个字符串节点ID的值
        /// </summary>
        /// <param name="nodeIds">字符串节点ID数组</param>
        /// <returns>数据值列表</returns>
        public List<DataValue> ReadNodes(string[] nodeIds)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            List<NodeId> nodes = new List<NodeId>();
            foreach (var nodeId in nodeIds)
            {
                nodes.Add(new NodeId(nodeId));
            }

            return _opcUaClient.ReadNodes(nodes.ToArray());
        }

        /// <summary>
        /// 批量读取相同类型的多个节点的值
        /// </summary>
        /// <typeparam name="T">值的类型</typeparam>
        /// <param name="nodeIds">节点ID数组</param>
        /// <returns>指定类型的值列表</returns>
        public List<T> ReadNodes<T>(string[] nodeIds)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            return _opcUaClient.ReadNodes<T>(nodeIds);
        }

        #endregion

        #region 写入操作

        /// <summary>
        /// 写入单个节点的值
        /// </summary>
        /// <typeparam name="T">值的类型</typeparam>
        /// <param name="nodeId">节点ID</param>
        /// <param name="value">要写入的值</param>
        /// <returns>写入是否成功</returns>
        public bool WriteNode<T>(string nodeId, T value)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            return _opcUaClient.WriteNode(nodeId, value);
        }

        /// <summary>
        /// 批量写入多个节点的值
        /// </summary>
        /// <param name="nodeIds">节点ID数组</param>
        /// <param name="values">要写入的值数组</param>
        /// <returns>写入是否成功</returns>
        public bool WriteNodes(string[] nodeIds, object[] values)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            if (nodeIds.Length != values.Length)
                throw new ArgumentException("节点ID数组和值数组的长度必须相同");

            return _opcUaClient.WriteNodes(nodeIds, values);
        }

        #endregion

        #region 订阅操作

        /// <summary>
        /// 添加节点订阅
        /// </summary>
        /// <param name="key">订阅的唯一标识符</param>
        /// <param name="nodeId">要订阅的节点ID</param>
        /// <param name="callback">数据变化时的回调</param>
        /// <returns>订阅是否成功</returns>
        public bool AddSubscription(string key, string nodeId, Action<string, MonitoredItem, MonitoredItemNotificationEventArgs> callback)
        {
            return AddSubscription(key, nodeId, callback, 1000, 1000);
        }

        /// <summary>
        /// 添加多个节点的订阅
        /// </summary>
        /// <param name="key">订阅的唯一标识符</param>
        /// <param name="nodeIds">要订阅的节点ID数组</param>
        /// <param name="callback">数据变化时的回调</param>
        /// <returns>订阅是否成功</returns>
        public bool AddSubscription(string key, string[] nodeIds, Action<string, MonitoredItem, MonitoredItemNotificationEventArgs> callback)
        {
            return AddSubscription(key, nodeIds, callback, 1000, 1000);
        }
        /// <summary>
        /// 移除订阅
        /// </summary>
        /// <param name="key">订阅的唯一标识符</param>
        /// <returns>移除是否成功</returns>
        public bool RemoveSubscription(string key)
        {
            if (!IsConnected)
                return false;

            try
            {
                // 从备份的订阅信息中移除
                _subscriptionInfos.Remove(key);

                if (_subscriptions.TryGetValue(key, out Subscription subscription))
                {
                    subscription.Delete(true);
                    _opcUaClient.Session.RemoveSubscription(subscription);
                    _subscriptions.Remove(key);
                    return true;
                }
                return false;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"移除订阅时发生错误: {ex.Message}");
                return false;
            }
        }

        /// <summary>
        /// 获取当前活跃的订阅数量
        /// </summary>
        /// <returns>订阅数量</returns>
        public int GetActiveSubscriptionCount()
        {
            return _subscriptions.Count;
        }

        /// <summary>
        /// 获取已保存的订阅配置数量
        /// </summary>
        /// <returns>订阅配置数量</returns>
        public int GetSavedSubscriptionCount()
        {
            return _subscriptionInfos.Count;
        }

        /// <summary>
        /// 获取所有订阅的Key列表
        /// </summary>
        /// <returns>订阅Key列表</returns>
        public List<string> GetSubscriptionKeys()
        {
            return _subscriptionInfos.Keys.ToList();
        }

        /// <summary>
        /// 暂停所有订阅（禁用发布但保留配置）
        /// </summary>
        public void PauseAllSubscriptions()
        {
            if (!IsConnected)
                return;

            try
            {
                foreach (var subscription in _subscriptions.Values)
                {
                    subscription.PublishingEnabled = false;
                    subscription.ApplyChanges();
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"暂停所有订阅时发生错误: {ex.Message}");
            }
        }

        /// <summary>
        /// 恢复所有已暂停的订阅
        /// </summary>
        public void ResumeAllSubscriptions()
        {
            if (!IsConnected)
                return;

            try
            {
                foreach (var subscription in _subscriptions.Values)
                {
                    subscription.PublishingEnabled = true;
                    subscription.ApplyChanges();
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"恢复所有暂停的订阅时发生错误: {ex.Message}");
            }
        }

        /// <summary>
        /// 移除所有订阅
        /// </summary>
        public void RemoveAllSubscriptions()
        {
            if (!IsConnected)
                return;

            try
            {
                // 清空备份的订阅信息
                _subscriptionInfos.Clear();

                foreach (var subscription in _subscriptions.Values)
                {
                    subscription.Delete(true);
                    _opcUaClient.Session.RemoveSubscription(subscription);
                }
                _subscriptions.Clear();
            }
            catch (Exception ex)
            {
                Console.WriteLine($"移除所有订阅时发生错误: {ex.Message}");
            }
        }

        /// <summary>
        /// 添加节点订阅（带自定义参数）
        /// </summary>
        /// <param name="key">订阅的唯一标识符</param>
        /// <param name="nodeId">要订阅的节点ID</param>
        /// <param name="callback">数据变化时的回调</param>
        /// <param name="publishingInterval">发布间隔（毫秒）</param>
        /// <param name="samplingInterval">采样间隔（毫秒）</param>
        /// <returns>订阅是否成功</returns>
        public bool AddSubscription(string key, string nodeId,
            Action<string, MonitoredItem, MonitoredItemNotificationEventArgs> callback,
            int publishingInterval = 1000, int samplingInterval = 1000)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            try
            {
                // 保存订阅信息，用于断线重连后恢复
                var subInfo = new SubscriptionInfo
                {
                    Key = key,
                    NodeIds = new[] { nodeId },
                    Callback = callback,
                    PublishingInterval = publishingInterval,
                    SamplingInterval = samplingInterval
                };

                _subscriptionInfos[key] = subInfo;

                // 创建一个新的订阅
                Subscription subscription = new Subscription(_opcUaClient.Session.DefaultSubscription);
                subscription.PublishingEnabled = true;
                subscription.PublishingInterval = publishingInterval;
                subscription.KeepAliveCount = 10;
                subscription.LifetimeCount = 30;
                subscription.Priority = 100;

                // 创建监控项
                MonitoredItem monitoredItem = new MonitoredItem
                {
                    StartNodeId = new NodeId(nodeId),
                    AttributeId = Attributes.Value,
                    DisplayName = key,
                    SamplingInterval = samplingInterval
                };

                // 设置回调
                monitoredItem.Notification += (item, args) => callback(key, item, args);

                // 添加监控项到订阅
                subscription.AddItem(monitoredItem);

                // 在客户端中创建订阅
                _opcUaClient.Session.AddSubscription(subscription);
                subscription.Create();

                // 添加到字典
                _subscriptions[key] = subscription;

                return true;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"添加订阅时发生错误: {ex.Message}");
                return false;
            }
        }

        /// <summary>
        /// 添加多个节点的订阅（带自定义参数）
        /// </summary>
        /// <param name="key">订阅的唯一标识符</param>
        /// <param name="nodeIds">要订阅的节点ID数组</param>
        /// <param name="callback">数据变化时的回调</param>
        /// <param name="publishingInterval">发布间隔（毫秒）</param>
        /// <param name="samplingInterval">采样间隔（毫秒）</param>
        /// <returns>订阅是否成功</returns>
        public bool AddSubscription(string key, string[] nodeIds,
            Action<string, MonitoredItem, MonitoredItemNotificationEventArgs> callback,
            int publishingInterval = 1000, int samplingInterval = 1000)
        {
            if (!IsConnected)
                throw new InvalidOperationException("未连接到OPC UA服务器");

            try
            {
                // 保存订阅信息，用于断线重连后恢复
                var subInfo = new SubscriptionInfo
                {
                    Key = key,
                    NodeIds = nodeIds,
                    Callback = callback,
                    PublishingInterval = publishingInterval,
                    SamplingInterval = samplingInterval
                };

                _subscriptionInfos[key] = subInfo;

                // 创建一个新的订阅
                Subscription subscription = new Subscription(_opcUaClient.Session.DefaultSubscription);
                subscription.PublishingEnabled = true;
                subscription.PublishingInterval = publishingInterval;
                subscription.KeepAliveCount = 10;
                subscription.LifetimeCount = 30;
                subscription.Priority = 100;

                // 遍历节点ID，为每个节点创建监控项
                for (int i = 0; i < nodeIds.Length; i++)
                {
                    MonitoredItem monitoredItem = new MonitoredItem
                    {
                        StartNodeId = new NodeId(nodeIds[i]),
                        AttributeId = Attributes.Value,
                        DisplayName = $"{key}_{i}",
                        SamplingInterval = samplingInterval
                    };

                    // 设置回调
                    monitoredItem.Notification += (item, args) => callback(key, item, args);

                    // 添加监控项到订阅
                    subscription.AddItem(monitoredItem);
                }

                // 在客户端中创建订阅
                _opcUaClient.Session.AddSubscription(subscription);
                subscription.Create();

                // 添加到字典
                _subscriptions[key] = subscription;

                return true;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"添加多节点订阅时发生错误: {ex.Message}");
                return false;
            }
        }

        #endregion


        #region IDisposable支持

        private bool disposedValue = false; // 要检测冗余调用

        /// <summary>
        /// 释放资源
        /// </summary>
        /// <param name="disposing">是否在释放托管资源</param>
        protected virtual void Dispose(bool disposing)
        {
            if (!disposedValue)
            {
                if (disposing)
                {
                    // 释放托管状态(托管对象)
                    StopReconnection();
                    RemoveAllSubscriptions();
                    Disconnect();
                    _opcUaClient = null;
                }

                // 释放未托管的资源(未托管的对象)并在以下内容中替代终结器
                // 将大型字段设置为 null

                disposedValue = true;
            }
        }

        /// <summary>
        /// 实现IDisposable接口的Dispose方法
        /// </summary>
        public void Dispose()
        {
            Dispose(true);
            GC.SuppressFinalize(this);
        }

        #endregion

        #region 断线重连

        /// <summary>
        /// 断线重连配置
        /// </summary>
        public class ReconnectionConfig
        {
            /// <summary>
            /// 是否启用自动重连
            /// </summary>
            public bool EnableAutoReconnect { get; set; } = true;

            /// <summary>
            /// 重连尝试间隔(毫秒)
            /// </summary>
            public int ReconnectInterval { get; set; } = 5000;

            /// <summary>
            /// 最大重连尝试次数，设为0表示无限次尝试
            /// </summary>
            public int MaxReconnectAttempts { get; set; } = 0;

            /// <summary>
            /// 是否在重连后恢复订阅
            /// </summary>
            public bool RestoreSubscriptionsAfterReconnect { get; set; } = true;
        }

        private ReconnectionConfig _reconnectionConfig = new ReconnectionConfig();
        private System.Threading.Timer _reconnectionTimer;
        private int _reconnectAttempts = 0;
        private string _lastUsername;
        private string _lastPassword;
        private bool _isReconnecting = false;

        // 存储订阅信息，用于断线重连后恢复
        private class SubscriptionInfo
        {
            public string Key { get; set; }
            public string[] NodeIds { get; set; }
            public Action<string, MonitoredItem, MonitoredItemNotificationEventArgs> Callback { get; set; }
            public int PublishingInterval { get; set; } = 1000;
            public int SamplingInterval { get; set; } = 1000;
        }

        private Dictionary<string, SubscriptionInfo> _subscriptionInfos = new Dictionary<string, SubscriptionInfo>();

        /// <summary>
        /// 配置断线重连参数
        /// </summary>
        /// <param name="config">重连配置</param>
        public void ConfigureReconnection(ReconnectionConfig config)
        {
            _reconnectionConfig = config ?? new ReconnectionConfig();
        }

        /// <summary>
        /// 启动断线重连
        /// </summary>
        private void StartReconnection()
        {
            if (!_reconnectionConfig.EnableAutoReconnect || _isReconnecting)
                return;

            _isReconnecting = true;
            _reconnectAttempts = 0;

            // 停止已有的重连定时器
            _reconnectionTimer?.Dispose();

            // 创建新的重连定时器
            _reconnectionTimer = new System.Threading.Timer(
                async (state) => await ReconnectAsync(),
                null,
                _reconnectionConfig.ReconnectInterval,
                _reconnectionConfig.ReconnectInterval);

            OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
            {
                IsConnected = false,
                Message = "连接断开，开始尝试重连..."
            });
        }

        /// <summary>
        /// 尝试重新连接
        /// </summary>
        private async Task ReconnectAsync()
        {
            // 如果已经连接或已达到最大尝试次数，则停止重连
            if (IsConnected ||
                (_reconnectionConfig.MaxReconnectAttempts > 0 &&
                 _reconnectAttempts >= _reconnectionConfig.MaxReconnectAttempts))
            {
                StopReconnection();
                return;
            }

            _reconnectAttempts++;

            try
            {
                bool success;

                // 使用上次连接的凭据进行重连
                if (!string.IsNullOrEmpty(_lastUsername))
                {
                    success = await ConnectServerAsync(ServerUrl, _lastUsername, _lastPassword);
                }
                else
                {
                    success = await ConnectServerAsync(ServerUrl);
                }

                if (success)
                {
                    OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
                    {
                        IsConnected = true,
                        Message = $"重连成功，共尝试 {_reconnectAttempts} 次"
                    });

                    // 重连成功后恢复订阅
                    if (_reconnectionConfig.RestoreSubscriptionsAfterReconnect)
                    {
                        await RestoreSubscriptionsAsync();
                    }

                    StopReconnection();
                }
                else if (_reconnectionConfig.MaxReconnectAttempts > 0 &&
                         _reconnectAttempts >= _reconnectionConfig.MaxReconnectAttempts)
                {
                    OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
                    {
                        IsConnected = false,
                        Message = $"重连失败，已达到最大尝试次数: {_reconnectionConfig.MaxReconnectAttempts}"
                    });

                    StopReconnection();
                }
                else
                {
                    OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
                    {
                        IsConnected = false,
                        Message = $"重连尝试 {_reconnectAttempts} 失败，将在 {_reconnectionConfig.ReconnectInterval / 1000} 秒后重试"
                    });
                }
            }
            catch (Exception ex)
            {
                OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
                {
                    IsConnected = false,
                    Message = $"重连尝试 {_reconnectAttempts} 出错: {ex.Message}"
                });
            }
        }

        /// <summary>
        /// 恢复所有订阅
        /// </summary>
        private async Task RestoreSubscriptionsAsync()
        {
            try
            {
                // 清空当前的订阅集合，因为断线后原有的订阅对象已经失效
                _subscriptions.Clear();

                int successCount = 0;
                int failureCount = 0;

                // 从备份的订阅信息中恢复所有订阅
                foreach (var info in _subscriptionInfos.Values)
                {
                    try
                    {
                        bool success;

                        if (info.NodeIds.Length == 1)
                        {
                            // 单节点订阅
                            success = AddSubscription(
                                info.Key,
                                info.NodeIds[0],
                                info.Callback,
                                info.PublishingInterval,
                                info.SamplingInterval);
                        }
                        else
                        {
                            // 多节点订阅
                            success = AddSubscription(
                                info.Key,
                                info.NodeIds,
                                info.Callback,
                                info.PublishingInterval,
                                info.SamplingInterval);
                        }

                        if (success)
                            successCount++;
                        else
                            failureCount++;
                    }
                    catch (Exception ex)
                    {
                        failureCount++;
                        Console.WriteLine($"恢复订阅 {info.Key} 时出错: {ex.Message}");
                    }
                }

                OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
                {
                    IsConnected = true,
                    Message = $"已恢复 {successCount} 个订阅，{failureCount} 个恢复失败，共 {_subscriptionInfos.Count} 个"
                });
            }
            catch (Exception ex)
            {
                OpcStatusChanged?.Invoke(this, new OpcStatusEventArgs
                {
                    IsConnected = true,
                    Message = $"恢复订阅时发生错误: {ex.Message}"
                });
            }
        }

        /// <summary>
        /// 停止重连过程
        /// </summary>
        private void StopReconnection()
        {
            _reconnectionTimer?.Dispose();
            _reconnectionTimer = null;
            _isReconnecting = false;
        }

        #endregion
    }


    /// <summary>
    /// OPC状态事件参数
    /// </summary>
    public class OpcStatusEventArgs : EventArgs
    {
        /// <summary>
        /// 是否已连接
        /// </summary>
        public bool IsConnected { get; set; }

        /// <summary>
        /// 状态消息
        /// </summary>
        public string Message { get; set; }
    }
}

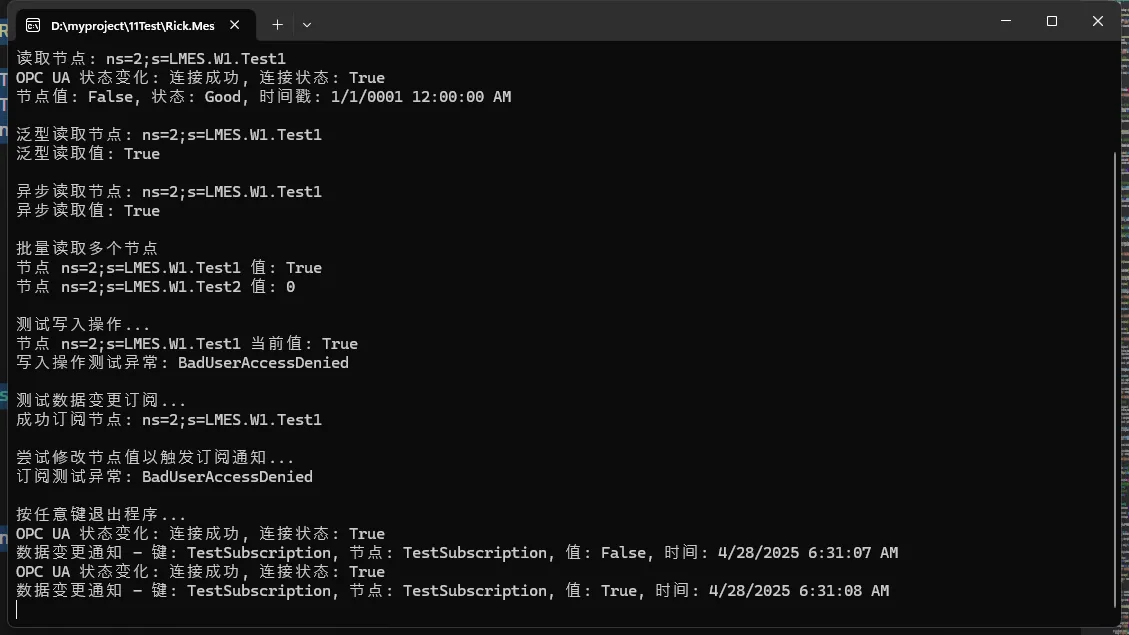

测试程序实现

测试程序OpcUaServiceTest演示了如何使用OpcUaService类进行各种OPC UA操作。

基础连接测试

C#
private static async Task TestConnection(OpcUaService opcService)
{
    Console.WriteLine("\n测试连接到OPC UA服务器...");

    try
    {
        // 尝试匿名连接
        bool connected = await opcService.ConnectServerAsync(ServerUrl);

        if (connected)
        {
            Console.WriteLine($"成功连接到服务器: {ServerUrl}");
        }
        else
        {
            // 匿名连接失败，尝试用户名密码连接
            Console.WriteLine("连接失败，尝试使用用户名和密码连接...");

            // 获取用户输入的凭据
            Console.Write("请输入用户名: ");
            string username = Console.ReadLine();

            Console.Write("请输入密码: ");
            string password = Console.ReadLine();

            connected = await opcService.ConnectServerAsync(ServerUrl, username, password);

            // 输出连接结果
        }
    }
    catch (Exception ex)
    {
        Console.WriteLine($"连接测试异常: {ex.Message}");
    }
}

读取操作测试

C#
private static async Task TestReadOperations(OpcUaService opcService)
{
    Console.WriteLine("\n测试读取操作...");

    try
    {
        // 测试单个节点读取
        Console.WriteLine($"读取节点: {TestNodeId}");
        DataValue value = opcService.ReadNode(TestNodeId);
        Console.WriteLine($"节点值: {value.Value}, 状态: {value.StatusCode}, 时间戳: {value.SourceTimestamp}");

        // 测试泛型读取
        Console.WriteLine($"\n泛型读取节点: {TestNodeId}");
        var genericValue = opcService.ReadNode<object>(TestNodeId);
        Console.WriteLine($"泛型读取值: {genericValue}");

        // 测试异步读取
        Console.WriteLine($"\n异步读取节点: {TestNodeId}");
        var asyncValue = await opcService.ReadNodeAsync<object>(TestNodeId);
        Console.WriteLine($"异步读取值: {asyncValue}");

        // 测试批量读取
        Console.WriteLine("\n批量读取多个节点");
        string[] nodeIds = new string[] { TestNodeId, TestNodeId2 };
        List<DataValue> values = opcService.ReadNodes(nodeIds);

        for (int i = 0; i < nodeIds.Length; i++)
        {
            Console.WriteLine($"节点 {nodeIds[i]} 值: {values[i].Value}");
        }
    }
    catch (Exception ex)
    {
        Console.WriteLine($"读取操作测试异常: {ex.Message}");
    }
}

写入操作测试

C#
private static async Task TestWriteOperations(OpcUaService opcService)
{
    Console.WriteLine("\n测试写入操作...");

    try
    {
        // 先读取当前值
        var currentValue = opcService.ReadNode<object>(TestNodeId);
        Console.WriteLine($"节点 {TestNodeId} 当前值: {currentValue}");

        // 根据数据类型写入不同的值
        bool writeSuccess = false;

        if (currentValue is bool boolValue)
        {
            // 布尔值取反
            writeSuccess = opcService.WriteNode(TestNodeId, !boolValue);
            // 输出信息...
        }
        else if (currentValue is int intValue)
        {
            // 整数值加1
            writeSuccess = opcService.WriteNode(TestNodeId, intValue + 1);
            // 输出信息...
        }
        // 其他类型处理...

        if (writeSuccess)
        {
            // 再次读取验证写入
            await Task.Delay(500);
            var newValue = opcService.ReadNode<object>(TestNodeId);
            Console.WriteLine($"写入后节点 {TestNodeId} 的新值: {newValue}");
        }

        // 测试批量写入
        // 实现代码...
    }
    catch (Exception ex)
    {
        Console.WriteLine($"写入操作测试异常: {ex.Message}");
    }
}

订阅测试

C#
private static async Task TestSubscription(OpcUaService opcService)
{
    Console.WriteLine("\n测试数据变更订阅...");

    try
    {
        // 创建事件等待句柄
        var dataChangedEvent = new ManualResetEventSlim(false);

        // 添加订阅
        string subscriptionKey = "TestSubscription";
        bool subscribed = opcService.AddSubscription(subscriptionKey, TestNodeId,
            (key, item, args) =>
            {
                if (args.NotificationValue is MonitoredItemNotification notification)
                {
                    Console.WriteLine($"数据变更通知 - 键: {key}, 节点: {item.DisplayName}, " +
                                     $"值: {notification.Value.Value}, 时间: {notification.Value.SourceTimestamp}");
                    dataChangedEvent.Set();
                }
            });

        if (subscribed)
        {
            // 通过修改值触发订阅通知
            // 实现代码...

            // 测试多节点订阅
            Console.WriteLine("\n测试多节点订阅...");
            string multiSubscriptionKey = "MultiNodeSubscription";
            string[] nodeIds = new string[] { TestNodeId, TestNodeId2 };

            bool multiSubscribed = opcService.AddSubscription(multiSubscriptionKey, nodeIds,
                (key, item, args) =>
                {
                    // 回调实现...
                });

            // 等待通知和清理订阅
            // 实现代码...
        }
    }
    catch (Exception ex)
    {
        Console.WriteLine($"订阅测试异常: {ex.Message}");
    }
}

断线重连机制测试

测试程序中展示了如何配置断线重连功能：

C#
// 在Main方法中
opcService.ConfigureReconnection(new ReconnectionConfig
{
    EnableAutoReconnect = true,
    ReconnectInterval = 3000,  // 3秒
    MaxReconnectAttempts = 0,  // 无限尝试
    RestoreSubscriptionsAfterReconnect = true  // 重连后恢复订阅
});

// 注册状态变化事件
opcService.OpcStatusChanged += (sender, e) =>
{
    Console.WriteLine($"OPC UA 状态变化: {e.Message}, 连接状态: {e.IsConnected}");
};

完整测试代码

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading;
using System.Threading.Tasks;
using Opc.Ua;
using Opc.Ua.Client;
using Rick.Core.Services.OpcUa;
using static Rick.Core.Services.OpcUa.OpcUaService;

namespace OpcUaServiceTest
{
    class Program
    {
        // OPC UA 服务器地址，请根据实际环境修改
        private const string ServerUrl = "opc.tcp://127.0.0.1:49320";
        // 测试节点ID，请根据您的OPC UA服务器修改
        private const string TestNodeId = "ns=2;s=LMES.W1.Test1";
        private const string TestNodeId2 = "ns=2;s=LMES.W1.Test2";

        static async Task Main(string[] args)
        {
            Console.WriteLine("OPC UA 服务测试程序");
            Console.WriteLine("===================");

            // 创建OPC UA服务实例
            using (OpcUaService opcService = new OpcUaService())
            {
                opcService.ConfigureReconnection(new ReconnectionConfig
                {
                    EnableAutoReconnect = true,
                    ReconnectInterval = 3000,  // 3 seconds
                    MaxReconnectAttempts = 0, // Try 10 times then give up
                    RestoreSubscriptionsAfterReconnect = true // 重连后恢复订阅
                });

                // 注册状态变化事件
                opcService.OpcStatusChanged += (sender, e) =>
                {
                    Console.WriteLine($"OPC UA 状态变化: {e.Message}, 连接状态: {e.IsConnected}");
                };

                // 测试连接
                await TestConnection(opcService);

                if (opcService.IsConnected)
                {
                    // 测试读取操作
                    await TestReadOperations(opcService);

                    // 测试写入操作
                    await TestWriteOperations(opcService);

                    // 测试订阅操作
                    await TestSubscription(opcService);

                    Console.WriteLine("\n按任意键退出程序...");
                    Console.ReadKey();
                }
            }
        }

        private static async Task TestConnection(OpcUaService opcService)
        {
            Console.WriteLine("\n测试连接到OPC UA服务器...");

            try
            {
                // 尝试匿名连接
                bool connected = await opcService.ConnectServerAsync(ServerUrl);

                if (connected)
                {
                    Console.WriteLine($"成功连接到服务器: {ServerUrl}");
                }
                else
                {
                    Console.WriteLine("连接失败，尝试使用用户名和密码连接...");

                    // 如果匿名连接失败，尝试使用用户名和密码连接
                    Console.Write("请输入用户名: ");
                    string username = Console.ReadLine();

                    Console.Write("请输入密码: ");
                    string password = Console.ReadLine();

                    connected = await opcService.ConnectServerAsync(ServerUrl, username, password);

                    if (connected)
                    {
                        Console.WriteLine($"使用凭据成功连接到服务器: {ServerUrl}");
                    }
                    else
                    {
                        Console.WriteLine("连接失败，请检查服务器地址和凭据");
                    }
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"连接测试异常: {ex.Message}");
            }
        }

        private static async Task TestReadOperations(OpcUaService opcService)
        {
            Console.WriteLine("\n测试读取操作...");

            try
            {
                // 测试单个节点读取
                Console.WriteLine($"读取节点: {TestNodeId}");
                DataValue value = opcService.ReadNode(TestNodeId);
                Console.WriteLine($"节点值: {value.Value}, 状态: {value.StatusCode}, 时间戳: {value.SourceTimestamp}");

                // 测试泛型读取
                Console.WriteLine($"\n泛型读取节点: {TestNodeId}");
                var genericValue = opcService.ReadNode<object>(TestNodeId);
                Console.WriteLine($"泛型读取值: {genericValue}");

                // 测试异步读取
                Console.WriteLine($"\n异步读取节点: {TestNodeId}");
                var asyncValue = await opcService.ReadNodeAsync<object>(TestNodeId);
                Console.WriteLine($"异步读取值: {asyncValue}");

                // 测试批量读取
                Console.WriteLine("\n批量读取多个节点");
                string[] nodeIds = new string[] { TestNodeId, TestNodeId2 };
                List<DataValue> values = opcService.ReadNodes(nodeIds);

                for (int i = 0; i < nodeIds.Length; i++)
                {
                    Console.WriteLine($"节点 {nodeIds[i]} 值: {values[i].Value}");
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"读取操作测试异常: {ex.Message}");
            }
        }

        private static async Task TestWriteOperations(OpcUaService opcService)
        {
            Console.WriteLine("\n测试写入操作...");

            try
            {
                // 先读取当前值
                var currentValue = opcService.ReadNode<object>(TestNodeId);
                Console.WriteLine($"节点 {TestNodeId} 当前值: {currentValue}");

                // 根据当前值类型尝试写入新值
                bool writeSuccess = false;

                if (currentValue is bool boolValue)
                {
                    // 布尔值取反
                    writeSuccess = opcService.WriteNode(TestNodeId, !boolValue);
                    Console.WriteLine($"写入布尔值 {!boolValue} 到节点 {TestNodeId}");
                }
                else if (currentValue is int intValue)
                {
                    // 整数值加1
                    writeSuccess = opcService.WriteNode(TestNodeId, intValue + 1);
                    Console.WriteLine($"写入整数值 {intValue + 1} 到节点 {TestNodeId}");
                }
                else if (currentValue is double doubleValue)
                {
                    // 浮点值加1.5
                    writeSuccess = opcService.WriteNode(TestNodeId, doubleValue + 1.5);
                    Console.WriteLine($"写入浮点值 {doubleValue + 1.5} 到节点 {TestNodeId}");
                }
                else if (currentValue is string)
                {
                    // 字符串值添加时间戳
                    string newValue = $"Test_{DateTime.Now:yyyyMMdd_HHmmss}";
                    writeSuccess = opcService.WriteNode(TestNodeId, newValue);
                    Console.WriteLine($"写入字符串值 \"{newValue}\" 到节点 {TestNodeId}");
                }
                else
                {
                    Console.WriteLine($"不支持的数据类型: {currentValue?.GetType().Name ?? "null"}");
                }

                if (writeSuccess)
                {
                    Console.WriteLine("写入成功");

                    // 再次读取以验证写入结果
                    await Task.Delay(500); // 等待一会儿确保写入完成
                    var newValue = opcService.ReadNode<object>(TestNodeId);
                    Console.WriteLine($"写入后节点 {TestNodeId} 的新值: {newValue}");
                }
                else
                {
                    Console.WriteLine("写入失败");
                }

                // 测试批量写入
                if (currentValue != null)
                {
                    Console.WriteLine("\n测试批量写入");
                    string[] nodeIds = new string[] { TestNodeId, TestNodeId2 };
                    object[] values = new object[] { currentValue, currentValue };

                    bool batchWriteSuccess = opcService.WriteNodes(nodeIds, values);
                    Console.WriteLine($"批量写入结果: {(batchWriteSuccess ? "成功" : "失败")}");
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"写入操作测试异常: {ex.Message}");
            }
        }

        private static async Task TestSubscription(OpcUaService opcService)
        {
            Console.WriteLine("\n测试数据变更订阅...");

            try
            {
                // 创建一个事件重置事件，用于等待数据变更
                var dataChangedEvent = new ManualResetEventSlim(false);

                // 添加单个节点订阅
                string subscriptionKey = "TestSubscription";
                bool subscribed = opcService.AddSubscription(subscriptionKey, TestNodeId,
                    (key, item, args) =>
                    {
                        if (args.NotificationValue is MonitoredItemNotification notification)
                        {
                            Console.WriteLine($"数据变更通知 - 键: {key}, 节点: {item.DisplayName}, 值: {notification.Value.Value}, 时间: {notification.Value.SourceTimestamp}");
                            dataChangedEvent.Set();
                        }
                    });

                if (subscribed)
                {
                    Console.WriteLine($"成功订阅节点: {TestNodeId}");

                    Console.WriteLine("\n尝试修改节点值以触发订阅通知...");

                    // 读取当前值
                    var currentValue = opcService.ReadNode<object>(TestNodeId);

                    // 尝试写入新值以触发订阅通知
                    if (currentValue is bool boolValue)
                    {
                        opcService.WriteNode(TestNodeId, !boolValue);
                    }
                    else if (currentValue is int intValue)
                    {
                        opcService.WriteNode(TestNodeId, intValue + 1);
                    }
                    else if (currentValue is double doubleValue)
                    {
                        opcService.WriteNode(TestNodeId, doubleValue + 1.0);
                    }
                    else if (currentValue is string)
                    {
                        opcService.WriteNode(TestNodeId, $"Changed_{DateTime.Now:HHmmss}");
                    }

                    // 等待数据变更通知或超时
                    Console.WriteLine("等待数据变更通知...");
                    bool notificationReceived = dataChangedEvent.Wait(5000);

                    if (!notificationReceived)
                    {
                        Console.WriteLine("未收到数据变更通知，可能是值未实际变化或服务器未发送通知");
                    }

                    // 测试移除订阅
                    Console.WriteLine("\n测试移除订阅...");
                    bool unsubscribed = opcService.RemoveSubscription(subscriptionKey);
                    Console.WriteLine($"移除订阅结果: {(unsubscribed ? "成功" : "失败")}");

                    // 测试多节点订阅
                    Console.WriteLine("\n测试多节点订阅...");
                    string multiSubscriptionKey = "MultiNodeSubscription";
                    string[] nodeIds = new string[] { TestNodeId, TestNodeId2 };

                    bool multiSubscribed = opcService.AddSubscription(multiSubscriptionKey, nodeIds,
                        (key, item, args) =>
                        {
                            if (args.NotificationValue is MonitoredItemNotification notification)
                            {
                                Console.WriteLine($"多节点订阅通知 - 键: {key}, 节点: {item.DisplayName}, 值: {notification.Value.Value}");
                            }
                        });

                    Console.WriteLine($"多节点订阅结果: {(multiSubscribed ? "成功" : "失败")}");

                    // 等待一段时间以观察可能的通知
                    await Task.Delay(3000);

                    // 移除所有订阅
                    Console.WriteLine("\n移除所有订阅...");
                    opcService.RemoveAllSubscriptions();
                    Console.WriteLine("所有订阅已移除");
                }
                else
                {
                    Console.WriteLine($"订阅节点失败: {TestNodeId}");
                }
            }
            catch (Exception ex)
            {
                Console.WriteLine($"订阅测试异常: {ex.Message}");
            }
        }
    }
}

工业应用场景

此OPC UA客户端库适用于多种工业场景：

1. 制造执行系统(MES)集成：从PLC和控制系统采集数据，实现生产监控和质量跟踪
2. 设备健康监控：通过订阅机制实时监测设备状态和预测性维护
3. 工业数据采集与分析：收集工业过程数据用于分析和优化
4. 设备控制：通过写入操作远程控制工业设备和执行器
5. 历史数据存储：将OPC UA数据存入数据库，用于报表和趋势分析

结论

本文介绍的OpcUaService类提供了一个稳健的OPC UA通信框架，可用于开发各种工业物联网和自动化应用。通过封装复杂的OPC UA操作细节，提供简洁易用的API，同时实现了关键的可靠性和容错机制。

工业物联网通信需要兼顾性能、可靠性和安全性。本文展示的解决方案通过断线重连、订阅恢复和异常处理等机制，满足了工业环境下的高可靠性要求，是构建现代工业自动化系统的理想基础。

随着工业4.0的发展，基于OPC UA的通信将继续扮演关键角色，为工业设备互联互通提供稳固基础。掌握这一技术，将有助于工程师们开发出更加智能、高效的工业自动化解决方案。
