你是否曾为Excel式的数据展示而苦恼？当面对成千上万条记录时，用户总是抱怨"找不到想要的数据"、"界面太乱了"。据统计，85%的企业应用都存在数据展示体验差的问题，而传统的DataGridView控件往往无法满足现代化的交互需求。

今天，我将带你从零开始构建一个可折叠分组的DataGridView控件，彻底解决数据展示混乱的痛点，让你的应用瞬间提升一个档次！

🎯 痛点分析：为什么需要可折叠数据表格？

在实际开发中，我们经常遇到这些场景：

• 员工信息按部门展示，数据量大时查找困难
• 订单数据按时间分组，用户需要快速定位特定时段
• 产品分类展示，希望支持展开/折叠提升浏览体验

传统DataGridView的局限性：

✗ 不支持数据分组

✗ 无法折叠/展开

✗ 用户体验差

✗ 自定义困难

💡 解决方案：自定义CollapsibleDataGridView

我们的解决方案核心思路：

1. 继承UserControl，封装DataGridView
2. 虚拟数据结构，添加分组信息列
3. 自定义绘制，实现分组标题行
4. 事件驱动，支持展开/折叠交互

🚀 核心代码实战

📝 第一步：定义分组信息类

C#
// 分组信息类 - 管理每个分组的状态和数据
internal class GroupInfo
{
    public string GroupName { get; set; }      // 分组名称
    public bool IsExpanded { get; set; }       // 是否展开
    public List<DataRow> Rows { get; set; }    // 分组包含的数据行

    public GroupInfo()
    {
        Rows = new List<DataRow>();
    }
}

🎨 第二步：核心控件设计

C#
public partial class CollapsibleDataGridView : UserControl
{
    private DataGridView dataGridView;
    private List<GroupInfo> groups;
    private DataTable originalDataTable;
    private string groupColumnName;
    private bool showGroupHeaders = true;
    private const int GROUP_HEADER_HEIGHT = 25;  // 分组标题行高度

    // 💡 关键：初始化DataGridView设置
    private void InitializeDataGridView()
    {
        dataGridView = new DataGridView();
        dataGridView.Dock = DockStyle.Fill;
        dataGridView.AllowUserToAddRows = false;
        dataGridView.ReadOnly = true;
        dataGridView.SelectionMode = DataGridViewSelectionMode.FullRowSelect;

        // ⚠️ 重要：设置行高度模式，避免自动调整
        dataGridView.RowTemplate.Height = 22;
        dataGridView.AllowUserToResizeRows = false;

        // 绑定关键事件
        dataGridView.CellPainting += DataGridView_CellPainting;
        dataGridView.CellClick += DataGridView_CellClick;
        dataGridView.RowPrePaint += DataGridView_RowPrePaint;
        dataGridView.CellFormatting += DataGridView_CellFormatting;

        this.Controls.Add(dataGridView);
    }
}

🔄 第三步：数据分组处理

C#
// 🎯 核心方法：刷新分组数据
private void RefreshGroups()
{
    if (originalDataTable == null || string.IsNullOrEmpty(groupColumnName))
        return;

    groups.Clear();

    // 使用LINQ按指定列分组
    var groupedData = originalDataTable.AsEnumerable()
        .GroupBy(row => row[groupColumnName]?.ToString() ?? "")
        .OrderBy(g => g.Key);

    foreach (var group in groupedData)
    {
        var groupInfo = new GroupInfo
        {
            GroupName = group.Key,
            IsExpanded = true,  // 默认展开
            Rows = group.ToList()
        };
        groups.Add(groupInfo);
    }

    RefreshDisplay();
}

// 🎨 显示数据刷新 - 创建虚拟表格结构
private void RefreshDisplay()
{
    if (originalDataTable == null) return;

    // 克隆原始表格结构
    DataTable displayTable = originalDataTable.Clone();

    // ⚡ 添加辅助列（用于标识分组信息）
    displayTable.Columns.Add("__IsGroupHeader", typeof(bool));
    displayTable.Columns.Add("__GroupName", typeof(string));
    displayTable.Columns.Add("__IsExpanded", typeof(bool));
    displayTable.Columns.Add("__GroupRowCount", typeof(int));

    foreach (var group in groups)
    {
        if (showGroupHeaders)
        {
            // 添加分组标题行
            DataRow headerRow = displayTable.NewRow();
            // 清空所有原始列的值
            for (int i = 0; i < originalDataTable.Columns.Count; i++)
            {
                headerRow[i] = DBNull.Value;
            }

            headerRow["__IsGroupHeader"] = true;
            headerRow["__GroupName"] = group.GroupName;
            headerRow["__IsExpanded"] = group.IsExpanded;
            headerRow["__GroupRowCount"] = group.Rows.Count;

            displayTable.Rows.Add(headerRow);
        }

        // 如果分组展开，添加数据行
        if (group.IsExpanded)
        {
            foreach (var row in group.Rows)
            {
                DataRow newRow = displayTable.NewRow();
                for (int i = 0; i < originalDataTable.Columns.Count; i++)
                {
                    newRow[i] = row[i];
                }
                newRow["__IsGroupHeader"] = false;
                newRow["__GroupName"] = group.GroupName;
                displayTable.Rows.Add(newRow);
            }
        }
    }

    dataGridView.DataSource = displayTable;
    HideHelperColumns(); // 隐藏辅助列
}

🎨 第四步：自定义绘制分组标题

C#
// 🎨 单元格自定义绘制事件
private void DataGridView_CellPainting(object sender, DataGridViewCellPaintingEventArgs e)
{
    if (e.RowIndex < 0 || e.ColumnIndex < 0) return;

    DataGridView dgv = sender as DataGridView;
    DataRowView rowView = dgv.Rows[e.RowIndex].DataBoundItem as DataRowView;

    if (rowView != null && Convert.ToBoolean(rowView["__IsGroupHeader"]))
    {
        // 绘制分组标题行背景
        using (var brush = new SolidBrush(Color.FromArgb(230, 235, 245)))
        {
            e.Graphics.FillRectangle(brush, e.CellBounds);
        }

        // 绘制边框
        using (var pen = new Pen(Color.FromArgb(200, 200, 200)))
        {
            e.Graphics.DrawRectangle(pen, e.CellBounds);
        }

        // 第一列绘制分组标题文本
        if (e.ColumnIndex == 0)
        {
            bool isExpanded = Convert.ToBoolean(rowView["__IsExpanded"]);
            string groupName = rowView["__GroupName"].ToString();
            int count = Convert.ToInt32(rowView["__GroupRowCount"]);

            // 🔥 关键：使用Unicode字符显示展开/折叠图标
            string icon = isExpanded ? "▼" : "▶";
            string text = $"{icon} {groupName} ({count} 项)";

            using (var brush = new SolidBrush(Color.FromArgb(50, 50, 50)))
            using (var font = new Font(dgv.Font, FontStyle.Bold))
            {
                var textRect = new Rectangle(e.CellBounds.X + 8, e.CellBounds.Y + 4,
                                           e.CellBounds.Width - 16, e.CellBounds.Height - 8);
                e.Graphics.DrawString(text, font, brush, textRect,
                                    new StringFormat {
                                        Alignment = StringAlignment.Near,
                                        LineAlignment = StringAlignment.Center
                                    });
            }
        }

        e.Handled = true; // 阻止默认绘制
    }
}

🖱️ 第五步：交互事件处理

C#
// 🖱️ 单元格点击事件 - 处理展开/折叠
private void DataGridView_CellClick(object sender, DataGridViewCellEventArgs e)
{
    if (e.RowIndex < 0) return;

    DataGridView dgv = sender as DataGridView;
    DataRowView rowView = dgv.Rows[e.RowIndex].DataBoundItem as DataRowView;

    if (rowView != null && Convert.ToBoolean(rowView["__IsGroupHeader"]))
    {
        // 切换分组的展开/折叠状态
        string groupName = rowView["__GroupName"].ToString();
        var group = groups.FirstOrDefault(g => g.GroupName == groupName);

        if (group != null)
        {
            group.IsExpanded = !group.IsExpanded;
            RefreshDisplay(); // 刷新显示
        }
    }
}

// 📏 行预绘制事件 - 设置分组行样式
private void DataGridView_RowPrePaint(object sender, DataGridViewRowPrePaintEventArgs e)
{
    if (e.RowIndex < 0 || e.RowIndex >= dataGridView.Rows.Count) return;

    DataGridViewRow row = dataGridView.Rows[e.RowIndex];
    DataRowView rowView = row.DataBoundItem as DataRowView;

    if (rowView != null && Convert.ToBoolean(rowView["__IsGroupHeader"]))
    {
        // 设置分组标题行样式
        row.Height = GROUP_HEADER_HEIGHT;
        row.DefaultCellStyle.BackColor = Color.FromArgb(240, 240, 240);
        row.DefaultCellStyle.Font = new Font(dataGridView.Font, FontStyle.Bold);
    }
    else
    {
        // 普通数据行样式
        row.Height = 22;
        row.DefaultCellStyle.BackColor = Color.White;
    }
}

完整控件类

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace AppCollapsibleDataGrid
{
    public partial class CollapsibleDataGridView : UserControl
    {
        private DataGridView dataGridView;
        private List<GroupInfo> groups;
        private DataTable originalDataTable;
        private string groupColumnName;
        private bool showGroupHeaders = true;
        private const int GROUP_HEADER_HEIGHT = 25;

        public CollapsibleDataGridView()
        {
            InitializeComponent();
            InitializeDataGridView();
            groups = new List<GroupInfo>();
        }

        private void InitializeDataGridView()
        {
            dataGridView = new DataGridView();
            dataGridView.Dock = DockStyle.Fill;
            dataGridView.AllowUserToAddRows = false;
            dataGridView.AllowUserToDeleteRows = false;
            dataGridView.ReadOnly = true;
            dataGridView.SelectionMode = DataGridViewSelectionMode.FullRowSelect;
            dataGridView.RowHeadersVisible = false;
            dataGridView.AutoSizeColumnsMode = DataGridViewAutoSizeColumnsMode.Fill;
            dataGridView.BackgroundColor = Color.White;
            dataGridView.GridColor = Color.LightGray;

            // 重要：设置行高度模式
            dataGridView.RowTemplate.Height = 22;
            dataGridView.AllowUserToResizeRows = false;

            dataGridView.CellPainting += DataGridView_CellPainting;
            dataGridView.CellClick += DataGridView_CellClick;
            dataGridView.RowPrePaint += DataGridView_RowPrePaint;
            dataGridView.CellFormatting += DataGridView_CellFormatting;

            this.Controls.Add(dataGridView);
        }

        // 公共属性
        [Category("Collapsible")]
        [Description("获取或设置用于分组的列名")]
        public string GroupColumn
        {
            get { return groupColumnName; }
            set
            {
                groupColumnName = value;
                if (originalDataTable != null)
                {
                    RefreshGroups();
                }
            }
        }

        [Category("Collapsible")]
        [Description("获取或设置是否显示分组标题")]
        public bool ShowGroupHeaders
        {
            get { return showGroupHeaders; }
            set
            {
                showGroupHeaders = value;
                RefreshDisplay();
            }
        }

        [Category("Collapsible")]
        [Description("获取内部DataGridView控件")]
        public DataGridView InnerDataGridView
        {
            get { return dataGridView; }
        }

        // 设置数据源
        public void SetDataSource(DataTable dataTable, string groupByColumn)
        {
            originalDataTable = dataTable.Copy();
            groupColumnName = groupByColumn;
            RefreshGroups();
        }

        // 刷新分组
        private void RefreshGroups()
        {
            if (originalDataTable == null || string.IsNullOrEmpty(groupColumnName))
                return;

            groups.Clear();

            // 按分组列分组数据
            var groupedData = originalDataTable.AsEnumerable()
                .GroupBy(row => row[groupColumnName]?.ToString() ?? "")
                .OrderBy(g => g.Key);

            foreach (var group in groupedData)
            {
                var groupInfo = new GroupInfo
                {
                    GroupName = group.Key,
                    IsExpanded = true,
                    Rows = group.ToList()
                };
                groups.Add(groupInfo);
            }

            RefreshDisplay();
        }

        // 刷新显示
        private void RefreshDisplay()
        {
            if (originalDataTable == null)
                return;

            // 创建新的DataTable用于显示
            DataTable displayTable = originalDataTable.Clone();
            displayTable.Columns.Add("__IsGroupHeader", typeof(bool));
            displayTable.Columns.Add("__GroupName", typeof(string));
            displayTable.Columns.Add("__IsExpanded", typeof(bool));
            displayTable.Columns.Add("__GroupRowCount", typeof(int));

            foreach (var group in groups)
            {
                if (showGroupHeaders)
                {
                    // 添加分组标题行
                    DataRow headerRow = displayTable.NewRow();
                    for (int i = 0; i < originalDataTable.Columns.Count; i++)
                    {
                        headerRow[i] = DBNull.Value; // 清空所有原始列的值
                    }

                    headerRow["__IsGroupHeader"] = true;
                    headerRow["__GroupName"] = group.GroupName;
                    headerRow["__IsExpanded"] = group.IsExpanded;
                    headerRow["__GroupRowCount"] = group.Rows.Count;

                    displayTable.Rows.Add(headerRow);
                }

                // 如果分组是展开的，添加数据行
                if (group.IsExpanded)
                {
                    foreach (var row in group.Rows)
                    {
                        DataRow newRow = displayTable.NewRow();
                        for (int i = 0; i < originalDataTable.Columns.Count; i++)
                        {
                            newRow[i] = row[i];
                        }
                        newRow["__IsGroupHeader"] = false;
                        newRow["__GroupName"] = group.GroupName;
                        newRow["__IsExpanded"] = group.IsExpanded;
                        newRow["__GroupRowCount"] = 0;
                        displayTable.Rows.Add(newRow);
                    }
                }
            }

            // 设置数据源
            dataGridView.DataSource = displayTable;

            // 隐藏辅助列
            HideHelperColumns();
        }

        private void HideHelperColumns()
        {
            string[] helperColumns = { "__IsGroupHeader", "__GroupName", "__IsExpanded", "__GroupRowCount" };
            foreach (string colName in helperColumns)
            {
                if (dataGridView.Columns.Contains(colName))
                {
                    dataGridView.Columns[colName].Visible = false;
                }
            }
        }

        // 行预绘制事件 - 设置分组行的高度和样式
        private void DataGridView_RowPrePaint(object sender, DataGridViewRowPrePaintEventArgs e)
        {
            if (e.RowIndex < 0 || e.RowIndex >= dataGridView.Rows.Count)
                return;

            DataGridViewRow row = dataGridView.Rows[e.RowIndex];
            DataRowView rowView = row.DataBoundItem as DataRowView;

            if (rowView != null && Convert.ToBoolean(rowView["__IsGroupHeader"]))
            {
                // 设置分组标题行的高度
                row.Height = GROUP_HEADER_HEIGHT;
                row.DefaultCellStyle.BackColor = Color.FromArgb(240, 240, 240);
                row.DefaultCellStyle.Font = new Font(dataGridView.Font, FontStyle.Bold);
            }
            else
            {
                // 普通数据行
                row.Height = 22;
                row.DefaultCellStyle.BackColor = Color.White;
            }
        }

        // 单元格格式化事件
        private void DataGridView_CellFormatting(object sender, DataGridViewCellFormattingEventArgs e)
        {
            if (e.RowIndex < 0 || e.RowIndex >= dataGridView.Rows.Count)
                return;

            DataGridViewRow row = dataGridView.Rows[e.RowIndex];
            DataRowView rowView = row.DataBoundItem as DataRowView;

            if (rowView != null && Convert.ToBoolean(rowView["__IsGroupHeader"]))
            {
                // 分组标题行只在第一列显示内容
                if (e.ColumnIndex == 0)
                {
                    bool isExpanded = Convert.ToBoolean(rowView["__IsExpanded"]);
                    string groupName = rowView["__GroupName"].ToString();
                    int count = Convert.ToInt32(rowView["__GroupRowCount"]);

                    string icon = isExpanded ? "▼" : "▶";
                    e.Value = $"{icon} {groupName} ({count} 项)";
                    e.FormattingApplied = true;
                }
                else
                {
                    // 其他列显示空白
                    e.Value = "";
                    e.FormattingApplied = true;
                }
            }
        }

        // 单元格绘制事件
        private void DataGridView_CellPainting(object sender, DataGridViewCellPaintingEventArgs e)
        {
            if (e.RowIndex < 0 || e.ColumnIndex < 0)
                return;

            DataGridView dgv = sender as DataGridView;
            DataRowView rowView = dgv.Rows[e.RowIndex].DataBoundItem as DataRowView;

            if (rowView != null && Convert.ToBoolean(rowView["__IsGroupHeader"]))
            {
                // 绘制分组标题行背景
                using (var brush = new SolidBrush(Color.FromArgb(230, 235, 245)))
                {
                    e.Graphics.FillRectangle(brush, e.CellBounds);
                }

                // 绘制边框
                using (var pen = new Pen(Color.FromArgb(200, 200, 200)))
                {
                    e.Graphics.DrawRectangle(pen, e.CellBounds);
                }

                // 如果是第一列，绘制分组标题文本
                if (e.ColumnIndex == 0)
                {
                    bool isExpanded = Convert.ToBoolean(rowView["__IsExpanded"]);
                    string groupName = rowView["__GroupName"].ToString();
                    int count = Convert.ToInt32(rowView["__GroupRowCount"]);

                    string icon = isExpanded ? "▼" : "▶";
                    string text = $"{icon} {groupName} ({count} 项)";

                    using (var brush = new SolidBrush(Color.FromArgb(50, 50, 50)))
                    using (var font = new Font(dgv.Font, FontStyle.Bold))
                    {
                        var textRect = new Rectangle(e.CellBounds.X + 8, e.CellBounds.Y + 4,
                                                   e.CellBounds.Width - 16, e.CellBounds.Height - 8);
                        e.Graphics.DrawString(text, font, brush, textRect,
                                            new StringFormat { Alignment = StringAlignment.Near, LineAlignment = StringAlignment.Center });
                    }
                }

                e.Handled = true;
            }
        }

        // 单元格点击事件
        private void DataGridView_CellClick(object sender, DataGridViewCellEventArgs e)
        {
            if (e.RowIndex < 0)
                return;

            DataGridView dgv = sender as DataGridView;
            DataRowView rowView = dgv.Rows[e.RowIndex].DataBoundItem as DataRowView;

            if (rowView != null && Convert.ToBoolean(rowView["__IsGroupHeader"]))
            {
                // 切换分组的展开/折叠状态
                string groupName = rowView["__GroupName"].ToString();
                var group = groups.FirstOrDefault(g => g.GroupName == groupName);

                if (group != null)
                {
                    group.IsExpanded = !group.IsExpanded;
                    RefreshDisplay();
                }
            }
        }

        // 展开所有分组
        public void ExpandAll()
        {
            foreach (var group in groups)
            {
                group.IsExpanded = true;
            }
            RefreshDisplay();
        }

        // 折叠所有分组
        public void CollapseAll()
        {
            foreach (var group in groups)
            {
                group.IsExpanded = false;
            }
            RefreshDisplay();
        }

        // 展开指定分组
        public void ExpandGroup(string groupName)
        {
            var group = groups.FirstOrDefault(g => g.GroupName == groupName);
            if (group != null)
            {
                group.IsExpanded = true;
                RefreshDisplay();
            }
        }

        // 折叠指定分组
        public void CollapseGroup(string groupName)
        {
            var group = groups.FirstOrDefault(g => g.GroupName == groupName);
            if (group != null)
            {
                group.IsExpanded = false;
                RefreshDisplay();
            }
        }

        // 获取所有分组信息
        public List<string> GetGroupNames()
        {
            return groups.Select(g => g.GroupName).ToList();
        }

        // 获取指定分组的展开状态
        public bool IsGroupExpanded(string groupName)
        {
            var group = groups.FirstOrDefault(g => g.GroupName == groupName);
            return group?.IsExpanded ?? false;
        }
    }

    // 分组信息类
    internal class GroupInfo
    {
        public string GroupName { get; set; }
        public bool IsExpanded { get; set; }
        public List<DataRow> Rows { get; set; }

        public GroupInfo()
        {
            Rows = new List<DataRow>();
        }
    }
}

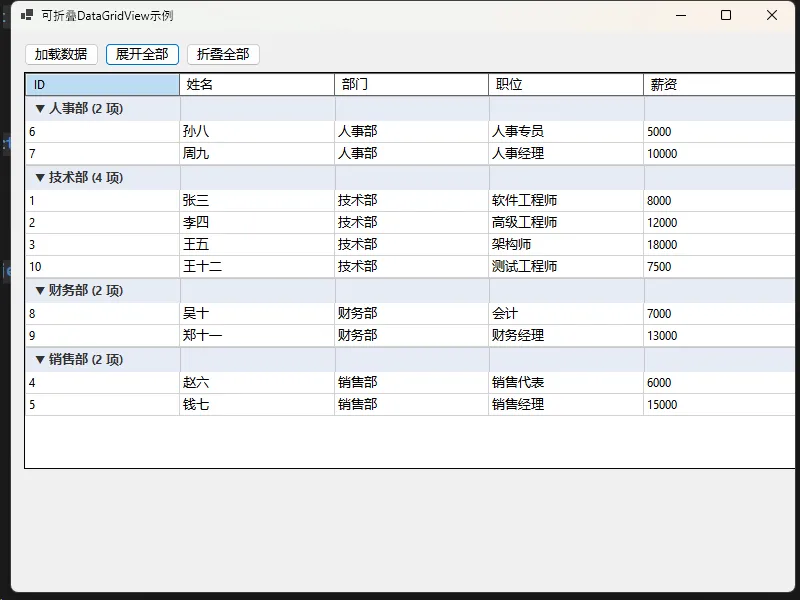

🎮 使用示例

C#
using System.Data;

namespace AppCollapsibleDataGrid
{
    public partial class Form1 : Form
    {

        public Form1()
        {
            InitializeComponent();
            SetupControls();
            LoadSampleData();
        }

        private void SetupControls()
        {
            this.Size = new Size(800, 600);
            this.Text = "可折叠DataGridView示例";

        }

        private void LoadSampleData()
        {
            // 创建示例数据
            DataTable dataTable = new DataTable();
            dataTable.Columns.Add("ID", typeof(int));
            dataTable.Columns.Add("姓名", typeof(string));
            dataTable.Columns.Add("部门", typeof(string));
            dataTable.Columns.Add("职位", typeof(string));
            dataTable.Columns.Add("薪资", typeof(decimal));

            // 添加示例数据
            dataTable.Rows.Add(1, "张三", "技术部", "软件工程师", 8000);
            dataTable.Rows.Add(2, "李四", "技术部", "高级工程师", 12000);
            dataTable.Rows.Add(3, "王五", "技术部", "架构师", 18000);
            dataTable.Rows.Add(4, "赵六", "销售部", "销售代表", 6000);
            dataTable.Rows.Add(5, "钱七", "销售部", "销售经理", 15000);
            dataTable.Rows.Add(6, "孙八", "人事部", "人事专员", 5000);
            dataTable.Rows.Add(7, "周九", "人事部", "人事经理", 10000);
            dataTable.Rows.Add(8, "吴十", "财务部", "会计", 7000);
            dataTable.Rows.Add(9, "郑十一", "财务部", "财务经理", 13000);
            dataTable.Rows.Add(10, "王十二", "技术部", "测试工程师", 7500);

            // 设置数据源，按部门分组
            collapsibleGrid.SetDataSource(dataTable, "部门");
        }

        private void BtnLoadData_Click(object sender, EventArgs e)
        {
            LoadSampleData();
        }

        private void BtnExpandAll_Click(object sender, EventArgs e)
        {
            collapsibleGrid.ExpandAll();
        }

        private void BtnCollapseAll_Click(object sender, EventArgs e)
        {
            collapsibleGrid.CollapseAll();
        }

    }
}

⚠️ 开发注意事项

🔧 性能优化要点

1. 避免频繁刷新：数据量大时，合并多个操作后统一刷新
2. 内存管理：及时释放绘制相关的GDI+对象
3. 事件处理：避免在绘制事件中执行耗时操作

🐛 常见坑点提醒

这里是个重点，其实吧，想明白的单元格渲染，其实都还好写了。

C#
// ❌ 错误：忘记设置Handled属性
private void DataGridView_CellPainting(object sender, DataGridViewCellPaintingEventArgs e)
{
    // 自定义绘制代码...
    // 忘记设置这行会导致重复绘制
    // e.Handled = true;
}

// ✅ 正确：必须设置Handled属性
e.Handled = true;

🎯 功能扩展建议

基于这个基础框架，你可以轻松扩展：

• 多级分组：支持部门→小组的层级结构
• 自定义图标：使用图片替代Unicode字符
• 排序功能：保持分组状态的同时支持排序
• 搜索过滤：在分组基础上添加搜索功能

✨ 总结与展望

通过本文的完整实现，我们解决了三个核心问题：

1. 数据组织：通过虚拟表格结构实现灵活的分组显示
2. 用户体验：自定义绘制提供现代化的交互界面
3. 开发效率：封装完整的API，一行代码即可实现分组功能

这个自定义控件不仅解决了传统DataGridView的局限性，更为你的应用带来了专业级的数据展示体验。无论是企业管理系统还是数据分析工具，都能完美胜任。

💬 互动时间：你在项目中还遇到过哪些DataGridView的使用痛点？或者你觉得这个控件还可以添加哪些实用功能？欢迎在评论区分享你的想法和经验！

觉得这个技术方案对你有帮助？请转发给更多同行，让我们一起提升C#开发的用户体验！
