在现代应用程序开发中，精美的视觉效果往往能提升用户体验。作为.NET平台上强大的跨平台2D图形绘图引擎，SkiaSharp提供了丰富的API来创建各种视觉效果。本文将聚焦于SkiaSharp中线条风格设计的艺术表现，通过详细的代码案例，帮助开发者掌握线宽、线帽和线段连接等关键技术，打造独具特色的视觉体验。

关键词：SkiaSharp教程、C#绘图、线条风格设计、.NET图形开发、跨平台UI、Xamarin绘图、MAUI绘图

SkiaSharp基础知识简介

SkiaSharp是Google's Skia图形库的.NET绑定，支持多平台（Windows、macOS、iOS、Android等）图形渲染。在开始线条艺术设计前，先了解几个核心概念：

C#
// SkiaSharp核心组件
// SKCanvas: 画布，提供绘图表面
// SKPaint: 画笔，定义如何绘制（颜色、线宽、线帽等）
// SKPath: 路径，定义要绘制的几何形状

画笔属性详解：线条风格的关键

线宽(StrokeWidth)

线宽决定线条的粗细，单位为像素。

C#
// 创建不同线宽的画笔
SKPaint thinPaint = new SKPaint
{
    Style = SKPaintStyle.Stroke,
    Color = SKColors.Blue,
    StrokeWidth = 2, // 细线
    IsAntialias = true // 抗锯齿，使线条更平滑
};

SKPaint mediumPaint = new SKPaint
{
    Style = SKPaintStyle.Stroke,
    Color = SKColors.Red,
    StrokeWidth = 8, // 中等线宽
    IsAntialias = true
};

SKPaint thickPaint = new SKPaint
{
    Style = SKPaintStyle.Stroke,
    Color = SKColors.Green,
    StrokeWidth = 16, // 粗线
    IsAntialias = true
};

线帽(StrokeCap)

线帽定义线条两端的形状，有三种基本类型：

C#
// 线帽类型
SKPaint buttCapPaint = new SKPaint
{
    Style = SKPaintStyle.Stroke,
    Color = SKColors.DarkBlue,
    StrokeWidth = 12,
    StrokeCap = SKStrokeCap.Butt, // 平头线帽，线条在端点处切平
    IsAntialias = true
};

SKPaint roundCapPaint = new SKPaint
{
    Style = SKPaintStyle.Stroke,
    Color = SKColors.DarkRed,
    StrokeWidth = 12,
    StrokeCap = SKStrokeCap.Round, // 圆头线帽，线条两端为半圆形
    IsAntialias = true
};

SKPaint squareCapPaint = new SKPaint
{
    Style = SKPaintStyle.Stroke,
    Color = SKColors.DarkGreen,
    StrokeWidth = 12,
    StrokeCap = SKStrokeCap.Square, // 方头线帽，线条两端为矩形延伸
    IsAntialias = true
};

线段连接(StrokeJoin)

线段连接定义线段交汇处的形状：

C#
// 线段连接类型
SKPaint miterJoinPaint = new SKPaint
{
    Style = SKPaintStyle.Stroke,
    Color = SKColors.Purple,
    StrokeWidth = 12,
    StrokeJoin = SKStrokeJoin.Miter, // 尖角连接
    IsAntialias = true
};

SKPaint roundJoinPaint = new SKPaint
{
    Style = SKPaintStyle.Stroke,
    Color = SKColors.Orange,
    StrokeWidth = 12,
    StrokeJoin = SKStrokeJoin.Round, // 圆角连接
    IsAntialias = true
};

SKPaint bevelJoinPaint = new SKPaint
{
    Style = SKPaintStyle.Stroke,
    Color = SKColors.Brown,
    StrokeWidth = 12,
    StrokeJoin = SKStrokeJoin.Bevel, // 斜角连接
    IsAntialias = true
};

可视化艺术线条设计案例

艺术风格线条画

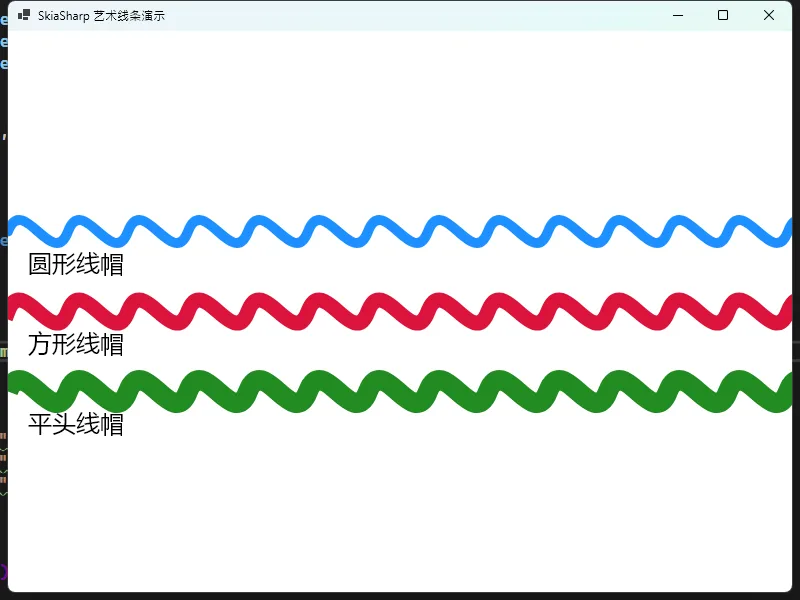

创建一个简单但富有艺术感的线条组合，展示不同线帽和线宽的视觉效果：

C#
using SkiaSharp;
using SkiaSharp.Views.Desktop;

namespace AppLineStyle
{
    public partial class Form1 : Form
    {
        private SKControl skiaControl;

        public Form1()
        {
            InitializeComponent();
            SetupSkiaControl();
        }

        private void SetupSkiaControl()
        {
            // 创建SkiaSharp控件
            skiaControl = new SKControl();
            skiaControl.Dock = DockStyle.Fill;
            skiaControl.PaintSurface += SkiaControl_PaintSurface;

            // 添加到窗体
            this.Controls.Add(skiaControl);

            // 设置窗体属性
            this.Text = "SkiaSharp 艺术线条演示";
            this.Size = new System.Drawing.Size(800, 600);
            this.StartPosition = FormStartPosition.CenterScreen;
        }

        private void SkiaControl_PaintSurface(object sender, SKPaintSurfaceEventArgs e)
        {
            // 调用你的绘图方法
            DrawArtisticLines(e.Surface.Canvas);
        }

        public void DrawArtisticLines(SKCanvas canvas)
        {
            // 清除背景
            canvas.Clear(SKColors.White);

            // 创建几种不同风格的画笔
            SKPaint[] paints = new SKPaint[3];

            // 细长线条，圆形线帽
            paints[0] = new SKPaint
            {
                Style = SKPaintStyle.Stroke,
                Color = SKColors.DodgerBlue,
                StrokeWidth = 10,
                StrokeCap = SKStrokeCap.Round,
                IsAntialias = true
            };

            // 中等线条，方形线帽
            paints[1] = new SKPaint
            {
                Style = SKPaintStyle.Stroke,
                Color = SKColors.Crimson,
                StrokeWidth = 15,
                StrokeCap = SKStrokeCap.Square,
                IsAntialias = true
            };

            // 粗线条，平头线帽
            paints[2] = new SKPaint
            {
                Style = SKPaintStyle.Stroke,
                Color = SKColors.ForestGreen,
                StrokeWidth = 20,
                StrokeCap = SKStrokeCap.Butt,
                IsAntialias = true
            };

            // 绘制波浪线图案
            int height = canvas.DeviceClipBounds.Height;
            int width = canvas.DeviceClipBounds.Width;
            float centerY = height / 2f;

            for (int i = 0; i < paints.Length; i++)
            {
                using (SKPath path = new SKPath())
                {
                    path.MoveTo(0, centerY + i * 80 - 80);

                    // 创建一个波浪形状
                    for (int x = 0; x < width; x += 60)
                    {
                        path.CubicTo(
                            x + 15, centerY + i * 80 - 120,
                            x + 45, centerY + i * 80 - 40,
                            x + 60, centerY + i * 80 - 80);
                    }

                    canvas.DrawPath(path, paints[i]);
                }
            }

            // 添加说明文字
            using (SKPaint textPaint = new SKPaint
            {
                Color = SKColors.Black,
                TextSize = 24,
                IsAntialias = true,
                Typeface= SKTypeface.FromFamilyName("Microsoft YaHei"),

            })
            {
                canvas.DrawText("圆形线帽", 20, centerY - 80 + 40, textPaint);
                canvas.DrawText("方形线帽", 20, centerY + 40, textPaint);
                canvas.DrawText("平头线帽", 20, centerY + 80 + 40, textPaint);
            }

            // 记得释放画笔资源
            foreach (var paint in paints)
            {
                paint?.Dispose();
            }
        }
    }
}

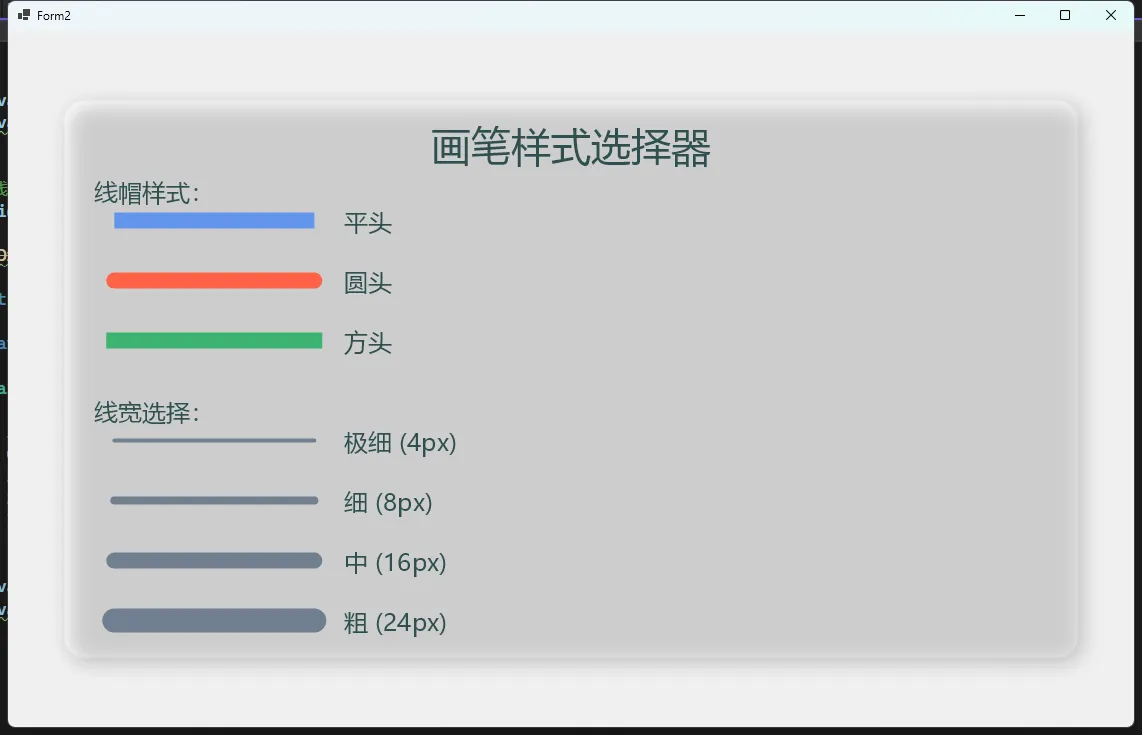

自定义画笔工具面板

创建一个模拟绘图应用的画笔选择面板，展示各种线条样式：

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using SkiaSharp;
using SkiaSharp.Views.Desktop;

namespace AppLineStyle
{
    public partial class Form2 : Form
    {
        private SKControl skiaControl;
        public Form2()
        {
            InitializeComponent();
            // 创建SkiaSharp控件
            skiaControl = new SKControl();
            skiaControl.Dock = DockStyle.Fill;
            skiaControl.PaintSurface += SkiaControl_PaintSurface;

            // 添加到窗体
            this.Controls.Add(skiaControl);
        }

        private void SkiaControl_PaintSurface(object sender, SKPaintSurfaceEventArgs e)
        {
            // 调用你的绘图方法
            DrawBrushSelectionPanel(e.Surface.Canvas);
        }

        public void DrawBrushSelectionPanel(SKCanvas canvas)
        {
            // 你的完整绘制代码
            canvas.Clear(new SKColor(240, 240, 240));

            float panelWidth = canvas.DeviceClipBounds.Width * 0.9f;
            float panelHeight = canvas.DeviceClipBounds.Height * 0.8f;
            float startX = (canvas.DeviceClipBounds.Width - panelWidth) / 2;
            float startY = (canvas.DeviceClipBounds.Height - panelHeight) / 2;

            // 绘制面板背景
            SKPaint panelPaint = new SKPaint
            {
                Color = SKColors.White,
                IsAntialias = true
            };

            SKRect panelRect = new SKRect(startX, startY, startX + panelWidth, startY + panelHeight);
            canvas.DrawRoundRect(panelRect, 20, 20, panelPaint);

            // 添加阴影
            SKPaint shadowPaint = new SKPaint
            {
                Color = new SKColor(0, 0, 0, 50),
                IsAntialias = true,
                MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 10)
            };

            canvas.DrawRoundRect(new SKRect(startX + 5, startY + 5, startX + panelWidth + 5, startY + panelHeight + 5), 20, 20, shadowPaint);

            // 绘制标题
            SKPaint titlePaint = new SKPaint
            {
                Color = SKColors.DarkSlateGray,
                TextSize = 40,
                IsAntialias = true,
                TextAlign = SKTextAlign.Center,
                Typeface = SKTypeface.FromFamilyName("Microsoft YaHei"),
            };

            canvas.DrawText("画笔样式选择器", startX + panelWidth / 2, startY + 60, titlePaint);

            // 画笔样式数组
            SKStrokeCap[] caps = new SKStrokeCap[] { SKStrokeCap.Butt, SKStrokeCap.Round, SKStrokeCap.Square };
            string[] capNames = new string[] { "平头", "圆头", "方头" };
            SKColor[] colors = new SKColor[] { SKColors.CornflowerBlue, SKColors.Tomato, SKColors.MediumSeaGreen };

            float[] lineWidths = new float[] { 4, 8, 16, 24 };
            string[] widthNames = new string[] { "极细", "细", "中", "粗" };

            // 绘制线帽示例
            float capStartY = startY + 120;
            float lineLength = 200;

            SKPaint labelPaint = new SKPaint
            {
                Color = SKColors.DarkSlateGray,
                TextSize = 24,
                IsAntialias = true,
                Typeface = SKTypeface.FromFamilyName("Microsoft YaHei"),
            };

            canvas.DrawText("线帽样式：", startX + 30, capStartY - 20, labelPaint);

            for (int i = 0; i < caps.Length; i++)
            {
                float y = capStartY + i * 60;

                SKPaint linePaint = new SKPaint
                {
                    Style = SKPaintStyle.Stroke,
                    Color = colors[i],
                    StrokeWidth = 16,
                    StrokeCap = caps[i],
                    IsAntialias = true
                };

                canvas.DrawLine(startX + 50, y, startX + 50 + lineLength, y, linePaint);
                canvas.DrawText(capNames[i], startX + 50 + lineLength + 30, y + 10, labelPaint);
            }

            // 绘制线宽示例
            float widthStartY = capStartY + caps.Length * 60 + 40;

            canvas.DrawText("线宽选择：", startX + 30, widthStartY - 20, labelPaint);

            for (int i = 0; i < lineWidths.Length; i++)
            {
                float y = widthStartY + i * 60;

                SKPaint linePaint = new SKPaint
                {
                    Style = SKPaintStyle.Stroke,
                    Color = SKColors.SlateGray,
                    StrokeWidth = lineWidths[i],
                    StrokeCap = SKStrokeCap.Round,
                    IsAntialias = true
                };

                canvas.DrawLine(startX + 50, y, startX + 50 + lineLength, y, linePaint);
                canvas.DrawText(widthNames[i] + $" ({lineWidths[i]}px)", startX + 50 + lineLength + 30, y + 10, labelPaint);
            }
        }
    }
}

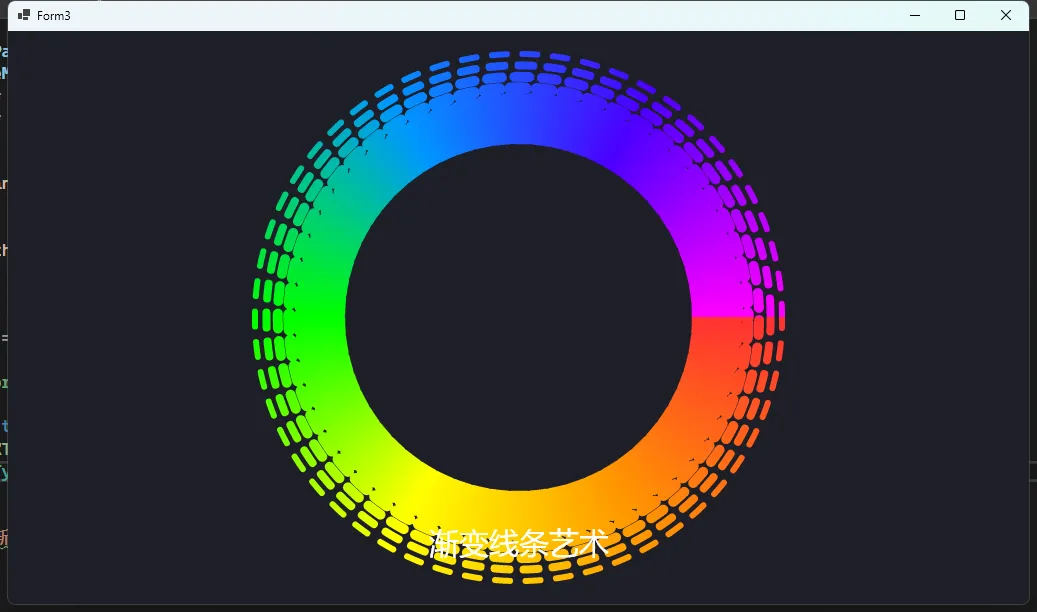

炫酷的渐变线条艺术

创建带有渐变色的艺术线条，展示更高级的线条效果：

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using SkiaSharp;
using SkiaSharp.Views.Desktop;

namespace AppLineStyle
{
    public partial class Form3 : Form
    {
        private SKControl skiaControl;
        public Form3()
        {
            InitializeComponent();
            // 创建SkiaSharp控件
            skiaControl = new SKControl();
            skiaControl.Dock = DockStyle.Fill;
            skiaControl.PaintSurface += SkiaControl_PaintSurface;

            // 添加到窗体
            this.Controls.Add(skiaControl);
        }

        private void SkiaControl_PaintSurface(object sender, SKPaintSurfaceEventArgs e)
        {
            // 调用你的绘图方法
            DrawGradientArtLines(e.Surface.Canvas);
        }

        public void DrawGradientArtLines(SKCanvas canvas)
        {
            // 设置深色背景
            canvas.Clear(new SKColor(30, 30, 40));

            int width = canvas.DeviceClipBounds.Width;
            int height = canvas.DeviceClipBounds.Height;

            // 创建渐变画笔
            SKPaint gradientPaint = new SKPaint
            {
                Style = SKPaintStyle.Stroke,
                StrokeWidth = 8,
                StrokeCap = SKStrokeCap.Round,
                IsAntialias = true
            };

            // 创建径向渐变的颜色数组
            SKColor[] gradientColors = new SKColor[]
            {
                new SKColor(255, 50, 50),   // 红色
                new SKColor(255, 150, 0),   // 橙色
                new SKColor(255, 255, 0),   // 黄色
                new SKColor(0, 255, 0),     // 绿色
                new SKColor(0, 150, 255),   // 青色
                new SKColor(75, 0, 255),    // 蓝色
                new SKColor(255, 0, 255)    // 紫色
            };

            // 路径点数量
            int pathPoints = 12;
            float radius = Math.Min(width, height) * 0.4f;
            float centerX = width / 2f;
            float centerY = height / 2f;

            // 创建一个环形路径
            SKPath circlePath = new SKPath();
            for (int i = 0; i <= 360; i += 1)
            {
                float angle = i * (float)Math.PI / 180;
                float x = centerX + radius * (float)Math.Cos(angle);
                float y = centerY + radius * (float)Math.Sin(angle);

                if (i == 0)
                    circlePath.MoveTo(x, y);
                else
                    circlePath.LineTo(x, y);
            }

            // 创建渐变效果
            SKPathEffect dashEffect = SKPathEffect.CreateDash(
                new float[] { 15, 10 }, // 线段长度和间隔
                0 // 偏移
            );

            // 创建一个路径测量对象来测量路径长度
            SKPathMeasure pathMeasure = new SKPathMeasure(circlePath);
            float pathLength = pathMeasure.Length;

            // 创建多个路径，每个路径具有不同的线宽和偏移
            for (int i = 0; i < 8; i++)
            {
                // 使用径向渐变
                gradientPaint.Shader = SKShader.CreateSweepGradient(
                    new SKPoint(centerX, centerY),
                    gradientColors,
                    null);

                // 设置线条样式
                gradientPaint.StrokeWidth = 20 - i * 2;
                gradientPaint.PathEffect = SKPathEffect.CreateDash(
                    new float[] { 15, 5 + i * 1.5f },
                    i * 5 // 偏移，创造交错效果
                );

                // 缩放路径
                SKPath scaledPath = new SKPath(circlePath);
                SKMatrix scaleMatrix = SKMatrix.CreateScale(
                    0.8f + i * 0.05f,
                    0.8f + i * 0.05f,
                    centerX,
                    centerY);
                scaledPath.Transform(scaleMatrix);

                // 绘制路径
                canvas.DrawPath(scaledPath, gradientPaint);
            }

            // 添加说明文字
            SKPaint textPaint = new SKPaint
            {
                Color = SKColors.White,
                TextSize = 30,
                IsAntialias = true,
                TextAlign = SKTextAlign.Center,
                Typeface = SKTypeface.FromFamilyName("Microsoft YaHei"),
            };

            canvas.DrawText("渐变线条艺术", centerX, height - 50, textPaint);
        }
    }
}

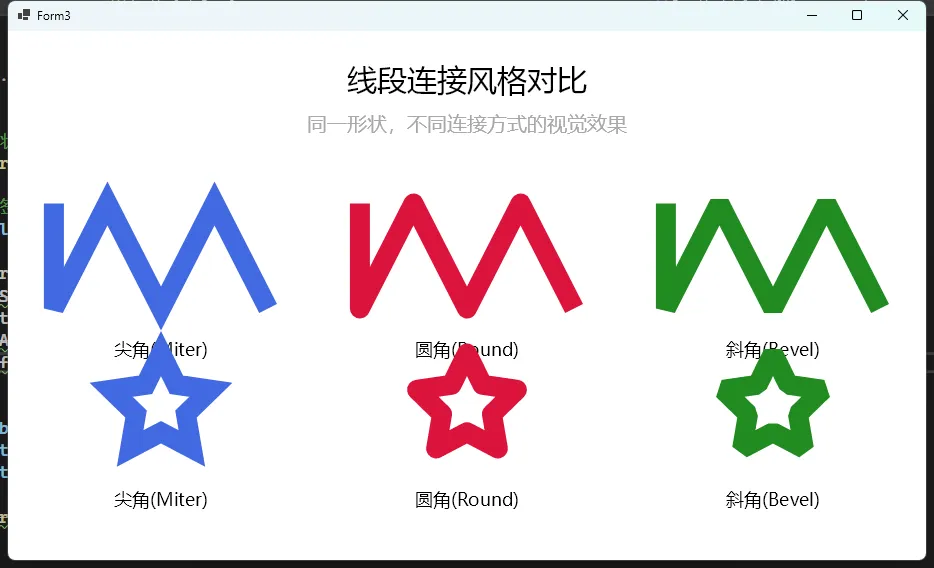

线段连接风格展示

展示各种线段连接方式的视觉效果差异：

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using SkiaSharp;
using SkiaSharp.Views.Desktop;

namespace AppLineStyle
{
    public partial class Form3 : Form
    {
        private SKControl skiaControl;
        public Form3()
        {
            InitializeComponent();
            // 创建SkiaSharp控件
            skiaControl = new SKControl();
            skiaControl.Dock = DockStyle.Fill;
            skiaControl.PaintSurface += SkiaControl_PaintSurface;

            // 添加到窗体
            this.Controls.Add(skiaControl);
        }

        private void SkiaControl_PaintSurface(object sender, SKPaintSurfaceEventArgs e)
        {
            // 调用你的绘图方法
            DrawLineJoinStyles(e.Surface.Canvas);
        }

        public void DrawLineJoinStyles(SKCanvas canvas)
        {
            // 设置背景
            canvas.Clear(SKColors.White);

            int width = canvas.DeviceClipBounds.Width;
            int height = canvas.DeviceClipBounds.Height;

            // 创建标题文本
            SKPaint titlePaint = new SKPaint
            {
                Color = SKColors.Black,
                TextSize = 30,
                IsAntialias = true,
                TextAlign = SKTextAlign.Center,
                Typeface= SKTypeface.FromFamilyName("Microsoft YaHei")
            };

            canvas.DrawText("线段连接风格对比", width / 2, 60, titlePaint);

            // 创建子标题
            SKPaint subtitlePaint = new SKPaint
            {
                Color = SKColors.DarkGray,
                TextSize = 20,
                IsAntialias = true,
                TextAlign = SKTextAlign.Center,
                Typeface = SKTypeface.FromFamilyName("Microsoft YaHei")
            };

            canvas.DrawText("同一形状，不同连接方式的视觉效果", width / 2, 100, subtitlePaint);

            // 定义线段连接类型和名称
            SKStrokeJoin[] joins = new SKStrokeJoin[]
            {
                SKStrokeJoin.Miter,
                SKStrokeJoin.Round,
                SKStrokeJoin.Bevel
            };

            string[] joinNames = new string[]
            {
                "尖角(Miter)",
                "圆角(Round)",
                "斜角(Bevel)"
            };

            SKColor[] colors = new SKColor[]
            {
                SKColors.RoyalBlue,
                SKColors.Crimson,
                SKColors.ForestGreen
            };

            // 绘制示例形状
            float startY = 150;
            float shapesPerRow = 3;
            float shapeWidth = width / shapesPerRow;
            float shapeHeight = 150;

            // 绘制锯齿形状和星形
            for (int row = 0; row < 2; row++)
            {
                for (int i = 0; i < joins.Length; i++)
                {
                    float startX = i * shapeWidth;

                    // 创建画笔
                    SKPaint paint = new SKPaint
                    {
                        Style = SKPaintStyle.Stroke,
                        Color = colors[i],
                        StrokeWidth = 20,
                        StrokeJoin = joins[i],
                        IsAntialias = true
                    };

                    // 绘制路径
                    SKPath path = new SKPath();

                    if (row == 0) // 锯齿形状
                    {
                        float zigzagWidth = shapeWidth * 0.7f;
                        float zigzagHeight = shapeHeight * 0.7f;
                        float zigzagX = startX + (shapeWidth - zigzagWidth) / 2;
                        float zigzagY = startY + (shapeHeight - zigzagHeight) / 2;

                        // 创建锯齿路径
                        path.MoveTo(zigzagX, zigzagY);
                        for (int j = 0; j < 5; j++)
                        {
                            path.LineTo(zigzagX + zigzagWidth * j / 4, zigzagY + (j % 2 == 0 ? zigzagHeight : 0));
                        }
                    }
                    else // 星形
                    {
                        float starRadius = Math.Min(shapeWidth, shapeHeight) * 0.35f;
                        float centerX = startX + shapeWidth / 2;
                        float centerY = startY + shapeHeight * 1.5f;

                        // 创建五角星
                        for (int j = 0; j <= 10; j++)
                        {
                            float angle = (float)(Math.PI / 2 + j * Math.PI * 2 / 10);
                            float radius = j % 2 == 0 ? starRadius : starRadius * 0.5f;
                            float x = centerX + radius * (float)Math.Cos(angle);
                            float y = centerY - radius * (float)Math.Sin(angle);

                            if (j == 0)
                                path.MoveTo(x, y);
                            else
                                path.LineTo(x, y);
                        }
                        path.Close();
                    }

                    // 绘制形状
                    canvas.DrawPath(path, paint);

                    // 添加标签
                    SKPaint labelPaint = new SKPaint
                    {
                        Color = SKColors.Black,
                        TextSize = 18,
                        IsAntialias = true,
                        TextAlign = SKTextAlign.Center,
                        Typeface = SKTypeface.FromFamilyName("Microsoft YaHei")
                    };

                    float labelY = row == 0 ?
                        startY + shapeHeight + 25 :
                        startY + shapeHeight * 2 + 25;

                    canvas.DrawText(joinNames[i], startX + shapeWidth / 2, labelY, labelPaint);
                }
            }
        }
    }
}

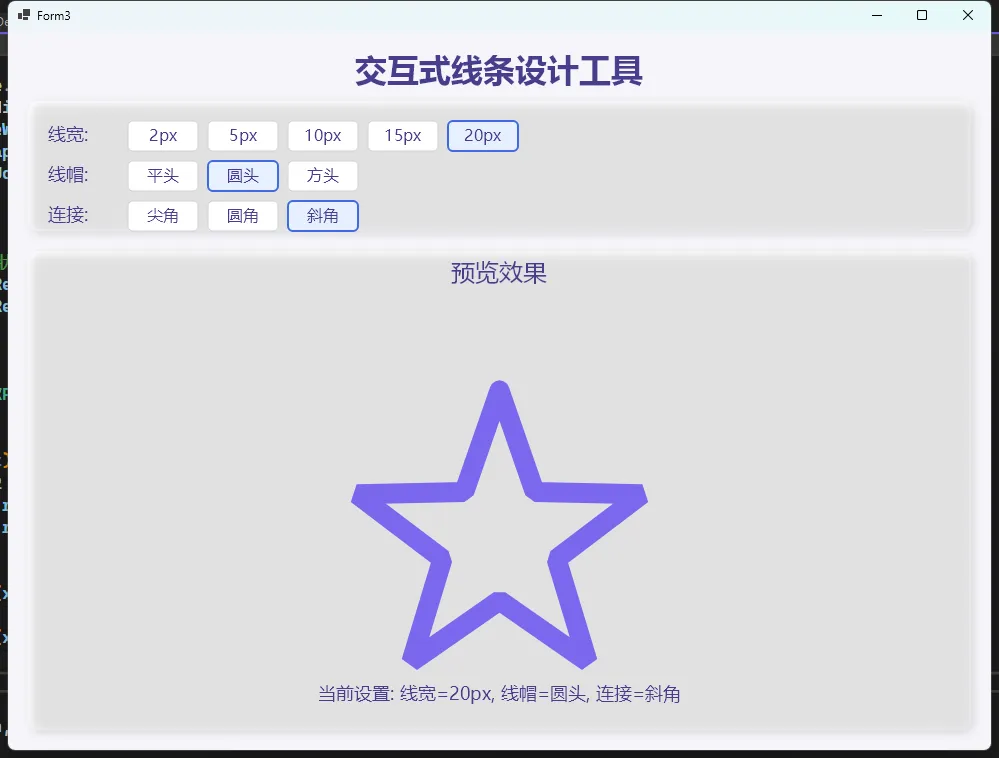

交互式线条设计工具

这里模拟一个交互式线条设计工具的界面，展示如何组合使用各种线条属性：

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using SkiaSharp;
using SkiaSharp.Views.Desktop;

namespace AppLineStyle
{
    public partial class Form3 : Form
    {
        private SKControl skiaControl;
        private int[] selectedOptions = new int[] { 2, 1, 1 }; // 10px, 圆头, 圆角

        public Form3()
        {
            InitializeComponent();
            // 创建SkiaSharp控件
            skiaControl = new SKControl();
            skiaControl.Dock = DockStyle.Fill;
            skiaControl.PaintSurface += SkiaControl_PaintSurface;
            skiaControl.MouseDown += SkiaControl_MouseDown;


            // 添加到窗体
            this.Controls.Add(skiaControl);
        }

        private void SkiaControl_MouseDown(object sender, MouseEventArgs e)
        {
            int width = skiaControl.Width;
            // 工具栏区域的参数
            float toolbarLeft = 20;
            float toolbarTop = 70;
            float optionHeight = 30;
            float spacing = 10;
            float optionStartX = toolbarLeft + 100;
            float optionWidth = 70;

            string[][] options = new string[][]
            {
                new string[] { "2px", "5px", "10px", "15px", "20px" },
                new string[] { "平头", "圆头", "方头" },
                new string[] { "尖角", "圆角", "斜角" }
            };

            // 循环每行判断
            for (int i = 0; i < options.Length; i++)
            {
                float rowY = toolbarTop + 20 + i * (optionHeight + spacing);

                for (int j = 0; j < options[i].Length; j++)
                {
                    float optionX = optionStartX + j * (optionWidth + spacing);
                    RectangleF rect = new RectangleF(optionX, rowY, optionWidth, optionHeight);

                    if (rect.Contains(e.X, e.Y))
                    {
                        selectedOptions[i] = j;
                        skiaControl.Invalidate();   // 触发重绘
                        return;
                    }
                }
            }
        }

        private void SkiaControl_PaintSurface(object sender, SKPaintSurfaceEventArgs e)
        {
            // 调用你的绘图方法
            DrawInteractiveLineDesigner(e.Surface.Canvas);
        }

        public void DrawInteractiveLineDesigner(SKCanvas canvas)
        {
            // 设置背景
            canvas.Clear(new SKColor(245, 245, 250));

            int width = canvas.DeviceClipBounds.Width;
            int height = canvas.DeviceClipBounds.Height;

            // 标题
            SKPaint titlePaint = new SKPaint
            {
                Color = SKColors.DarkSlateBlue,
                TextSize = 32,
                IsAntialias = true,
                TextAlign = SKTextAlign.Center,
                Typeface = SKTypeface.FromFamilyName("Microsoft YaHei", SKFontStyleWeight.Bold, SKFontStyleWidth.Normal, SKFontStyleSlant.Upright)
            };

            canvas.DrawText("交互式线条设计工具", width / 2, 50, titlePaint);

            // 绘制工具栏背景
            SKRect toolbarRect = new SKRect(20, 70, width - 20, 200);
            SKPaint toolbarPaint = new SKPaint
            {
                Color = SKColors.White,
                IsAntialias = true
            };
            canvas.DrawRoundRect(toolbarRect, 10, 10, toolbarPaint);

            // 绘制阴影
            SKPaint shadowPaint = new SKPaint
            {
                Color = new SKColor(0, 0, 0, 30),
                IsAntialias = true,
                MaskFilter = SKMaskFilter.CreateBlur(SKBlurStyle.Normal, 5)
            };
            canvas.DrawRoundRect(new SKRect(toolbarRect.Left + 3, toolbarRect.Top + 3,
                                             toolbarRect.Right + 3, toolbarRect.Bottom + 3),
                                  10, 10, shadowPaint);

            // 定义要显示的线条属性
            string[] propNames = new string[] { "线宽", "线帽", "连接" };
            string[][] options = new string[][]
            {
                new string[] { "2px", "5px", "10px", "15px", "20px" },
                new string[] { "平头", "圆头", "方头" },
                new string[] { "尖角", "圆角", "斜角" }
            };

            // 绘制工具栏选项
            SKPaint labelPaint = new SKPaint
            {
                Color = SKColors.DarkSlateBlue,
                TextSize = 18,
                IsAntialias = true,
                Typeface = SKTypeface.FromFamilyName("Microsoft YaHei"),
            };

            SKPaint optionPaint = new SKPaint
            {
                Color = SKColors.White,
                IsAntialias = true
            };

            SKPaint selectedOptionPaint = new SKPaint
            {
                Color = new SKColor(230, 240, 255),
                IsAntialias = true
            };

            SKPaint optionTextPaint = new SKPaint
            {
                Color = SKColors.DarkSlateBlue,
                TextSize = 16,
                IsAntialias = true,
                TextAlign = SKTextAlign.Center,
                Typeface = SKTypeface.FromFamilyName("Microsoft YaHei"),
            };

            float startY = toolbarRect.Top + 20;
            float optionHeight = 30;
            float spacing = 10;

            for (int i = 0; i < propNames.Length; i++)
            {
                float rowY = startY + i * (optionHeight + spacing);

                // 绘制属性名称
                canvas.DrawText(propNames[i] + ":", toolbarRect.Left + 20, rowY + optionHeight / 2 + 5, labelPaint);

                // 绘制选项
                float optionStartX = toolbarRect.Left + 100;
                float optionWidth = 70;

                for (int j = 0; j < options[i].Length; j++)
                {
                    float optionX = optionStartX + j * (optionWidth + spacing);
                    SKRect optionRect = new SKRect(optionX, rowY, optionX + optionWidth, rowY + optionHeight);

                    // 绘制选项背景（选中的和未选中的不同）
                    canvas.DrawRoundRect(optionRect, 5, 5, j == selectedOptions[i] ? selectedOptionPaint : optionPaint);

                    // 绘制边框
                    SKPaint borderPaint = new SKPaint
                    {
                        Style = SKPaintStyle.Stroke,
                        Color = j == selectedOptions[i] ? SKColors.RoyalBlue : SKColors.LightGray,
                        StrokeWidth = j == selectedOptions[i] ? 2 : 1,
                        IsAntialias = true
                    };
                    canvas.DrawRoundRect(optionRect, 5, 5, borderPaint);

                    // 绘制选项文本
                    canvas.DrawText(options[i][j], optionX + optionWidth / 2, rowY + optionHeight / 2 + 5, optionTextPaint);
                }
            }

            // 绘制预览区域
            SKRect previewRect = new SKRect(20, 220, width - 20, height - 20);
            canvas.DrawRoundRect(previewRect, 10, 10, toolbarPaint);
            canvas.DrawRoundRect(new SKRect(previewRect.Left + 3, previewRect.Top + 3,
                                             previewRect.Right + 3, previewRect.Bottom + 3),
                                  10, 10, shadowPaint);

            // 绘制预览区域标题
            SKPaint previewTitlePaint = new SKPaint
            {
                Color = SKColors.DarkSlateBlue,
                TextSize = 24,
                IsAntialias = true,
                TextAlign = SKTextAlign.Center,
                Typeface = SKTypeface.FromFamilyName("Microsoft YaHei"),
            };
            canvas.DrawText("预览效果", width / 2, previewRect.Top + 30, previewTitlePaint);

            // 根据选择的选项创建画笔
            float[] strokeWidths = new float[] { 2, 5, 10, 15, 20 };
            SKStrokeCap[] strokeCaps = new SKStrokeCap[] { SKStrokeCap.Butt, SKStrokeCap.Round, SKStrokeCap.Square };
            SKStrokeJoin[] strokeJoins = new SKStrokeJoin[] { SKStrokeJoin.Miter, SKStrokeJoin.Round, SKStrokeJoin.Bevel };

            SKPaint customPaint = new SKPaint
            {
                Style = SKPaintStyle.Stroke,
                Color = SKColors.MediumSlateBlue,
                StrokeWidth = strokeWidths[selectedOptions[0]],
                StrokeCap = strokeCaps[selectedOptions[1]],
                StrokeJoin = strokeJoins[selectedOptions[2]],
                IsAntialias = true
            };

            // 在预览区域绘制一些示例形状
            float centerX = previewRect.MidX;
            float centerY = previewRect.MidY + 50;
            float size = 150;

            // 绘制一个星形
            SKPath starPath = new SKPath();
            for (int i = 0; i <= 10; i++)
            {
                float angle = (float)(Math.PI / 2 + i * Math.PI * 2 / 10);
                float radius = i % 2 == 0 ? size : size * 0.4f;
                float x = centerX + radius * (float)Math.Cos(angle);
                float y = centerY - radius * (float)Math.Sin(angle);

                if (i == 0)
                    starPath.MoveTo(x, y);
                else
                    starPath.LineTo(x, y);
            }
            //starPath.Close();

            canvas.DrawPath(starPath, customPaint);

            // 添加一些说明文字
            SKPaint descPaint = new SKPaint
            {
                Color = SKColors.DarkSlateBlue,
                TextSize = 18,
                IsAntialias = true,
                TextAlign = SKTextAlign.Center,
                Typeface = SKTypeface.FromFamilyName("Microsoft YaHei"),
            };

            // 格式化当前设置信息
            string settingsText = $"当前设置: 线宽={strokeWidths[selectedOptions[0]]}px, " +
                                  $"线帽={options[1][selectedOptions[1]]}, " +
                                  $"连接={options[2][selectedOptions[2]]}";

            canvas.DrawText(settingsText, centerX, previewRect.Bottom - 30, descPaint);
        }
    }
}


实际应用场景

以上案例可以广泛应用于：

  1. 数据可视化应用：通过不同线条样式区分数据系列
  2. UI设计工具：为用户提供丰富的绘图选项
  3. 手绘签名功能：实现平滑、自然的手写体验
  4. 地图应用：使用不同线条样式区分道路类型
  5. 游戏开发：创建具有艺术感的游戏界面元素

性能优化建议

在实际应用中，为确保流畅体验，请注意：

  1. 合理使用 IsAntialias：抗锯齿虽能提升视觉效果，但会增加计算负担
  2. 缓存复杂路径：频繁使用的复杂路径应当缓存而非重复计算
  3. 控制绘制区域：使用 ClipRect 限制绘制范围，避免不必要的计算
  4. 注意线宽设置：过大的线宽会显著增加渲染负担
C#
// 性能优化示例：限制绘制区域
public void OptimizedDrawing(SKCanvas canvas)
{
    // 保存当前状态
    canvas.Save();

    // 限制绘制区域
    canvas.ClipRect(new SKRect(0, 0, 500, 500));

    // 执行绘制
    DrawComplexGraphics(canvas);

    // 恢复状态
    canvas.Restore();
}

总结

SkiaSharp提供了丰富而强大的线条样式API，通过合理组合线宽、线帽和线段连接等属性，我们可以创建出各种精美的视觉效果。本文通过5个详细案例，展示了如何在实际项目中灵活运用这些功能，打造独特的视觉体验。无论是开发数据可视化应用、创意绘图工具，还是游戏界面，掌握这些技术都将极大提升产品的视觉表现力。

希望这些实例能为您的开发工作提供灵感！如有任何问题，欢迎在评论区留言。

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
