C# Data Acquisition System in Action: Building High-Performance Real-Time Data Processing Pipeline from Scratch

In the modern Industry 4.0 era, data acquisition systems have become the core infrastructure for enterprise digital transformation. Whether it's sensor monitoring on factory production lines, IoT device status collection, or real-time transaction data processing in financial systems, an efficient and stable data acquisition system is crucial.

However, many C# developers often encounter these pain points when building such systems: high data processing latency, excessive memory usage, improper anomalous data handling, and lack of effective quality control mechanisms. This article will teach you how to build a professional-grade data acquisition system using C# through a complete practical case study, thoroughly solving these technical challenges.

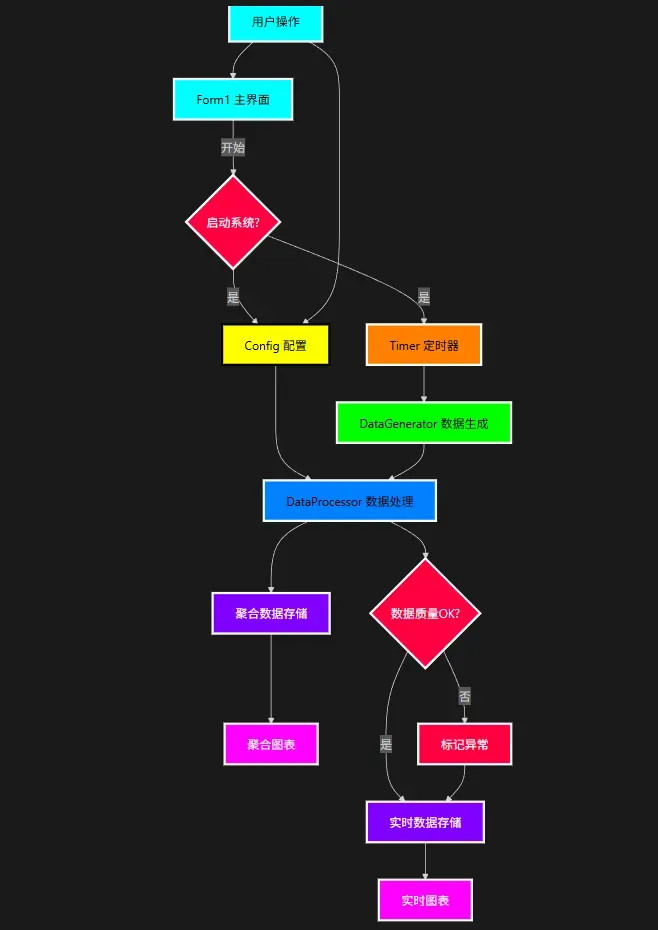

🎯 System Architecture Design: Three-Layer Data Pipeline

Core Architecture Concept

We adopt the Producer-Consumer Pattern combined with Channel asynchronous communication to build a three-layer data processing pipeline:

Markdown
Data Generation Layer → Data Processing Layer → Data Aggregation Layer → UI Display Layer

The advantages of this design include:

✅ Strong Decoupling: Each layer has a single responsibility, making it easy to maintain and extend
✅ Excellent Performance: Channel-based asynchronous processing supporting high concurrency
✅ Fault Tolerance: Single-layer failures don't affect the entire system operation

🔥 Core Technology Implementation Details

1️⃣ Smart Data Generator: Simulating Real Sensors

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppDataAcquisitionSystem
{
    public class DataGenerator
    {
        private readonly Random _random;
        private double _baseValue;
        private double _trend;

        public DataGenerator()
        {
            _random = new Random();
            _baseValue = 50.0;
            _trend = 0.0;
        }

        public async Task<DataPoint> GenerateDataPointAsync()
        {
            // Simulate real sensor data: base value + trend + noise + occasional anomalies
            var noise = _random.NextDouble() * 2 - 1; // Noise from -1 to 1
            var spike = _random.NextDouble() < 0.05 ? _random.NextDouble() * 20 - 10 : 0; // 5% probability of anomalous values

            _trend += (_random.NextDouble() - 0.5) * 0.1;
            _trend = Math.Max(-2, Math.Min(2, _trend));

            _baseValue += _trend;
            _baseValue = Math.Max(0, Math.Min(100, _baseValue)); // Limit base value range

            var value = _baseValue + noise + spike;

            return new DataPoint
            {
                Timestamp = DateTime.Now,
                Value = value,
                Quality = DataQuality.Good,
                Source = "Sensor-001"
            };
        }
    }
}

💡 Practical Tips:

The _trend variable implements natural data fluctuation, closer to real sensors
Anomaly probability controlled at 5%, simulating occasional anomalies in real environments
Data range limitation prevents numerical overflow issues

2️⃣ High-Performance Data Processor: Channel + Async Stream Processing

C#
public class DataProcessor
{
    private readonly Channel<DataPoint> _rawDataChannel;
    private readonly Channel<DataPoint> _processedDataChannel;
    private readonly Channel<AggregatedData> _aggregatedDataChannel;

    public async Task StartProcessingAsync(CancellationToken cancellationToken = default)
    {
        // 🚀 Parallel processing: data processing and aggregation run simultaneously
        var processingTask = ProcessDataAsync(cancellationToken);
        var aggregationTask = AggregateDataAsync(cancellationToken);

        await Task.WhenAll(processingTask, aggregationTask);
    }

    private async Task ProcessDataAsync(CancellationToken cancellationToken)
    {
        await foreach (var dataPoint in _rawDataChannel.Reader.ReadAllAsync(cancellationToken))
        {
            var processedPoint = ProcessSingleDataPoint(dataPoint);
            if (processedPoint != null)
            {
                await _processedDataChannel.Writer.WriteAsync(processedPoint, cancellationToken);
            }
        }
    }
}

🔧 Key Technical Points:

Channel Advantages: Compared to traditional queues, Channel provides better async support and backpressure control
Async Stream Processing: IAsyncEnumerable makes data stream processing more elegant
Parallel Design: Processing and aggregation run simultaneously, maximizing system throughput

3️⃣ Smart Quality Control: Multi-dimensional Data Validation

C#
private DataQuality PerformQualityCheck(DataPoint dataPoint)
{
    // 🛡️ Basic numeric checks
    if (double.IsNaN(dataPoint.Value) || double.IsInfinity(dataPoint.Value))
        return DataQuality.Bad;

    // 📊 Numeric range validation
    if (Math.Abs(dataPoint.Value) > 1000)
        return DataQuality.Bad;

    // ⚡ Change rate check - prevent sudden data changes
    if (_lastValue != null)
    {
        var timeDiff = (dataPoint.Timestamp - _lastValue.Timestamp).TotalSeconds;
        if (timeDiff > 0)
        {
            var changeRate = Math.Abs(dataPoint.Value - _lastValue.Value) / timeDiff;
            if (changeRate > 100) // Change rate threshold
                return DataQuality.Uncertain;
        }
    }

    return DataQuality.Good;
}

4️⃣ Real-time Data Aggregation: Sliding Window Algorithm

C#
private async Task AggregateDataAsync(CancellationToken cancellationToken)
{
    await foreach (var dataPoint in _processedDataChannel.Reader.ReadAllAsync(cancellationToken))
    {
        _windowBuffer.Add(dataPoint);

        if (_windowBuffer.Count >= _config.WindowSize)
        {
            var aggregated = CalculateAggregatedData(_windowBuffer);
            await _aggregatedDataChannel.Writer.WriteAsync(aggregated, cancellationToken);

            // 🎯 Sliding window optimization: retain partial historical data
            var keepCount = _config.WindowSize / 2;
            _windowBuffer.RemoveRange(0, _windowBuffer.Count - keepCount);
        }
    }
}

💡 Sliding Window Advantages:

Maintains data continuity, avoiding window boundary effects
Memory usage optimization, preventing infinite buffer growth
Perfect balance between real-time performance and accuracy

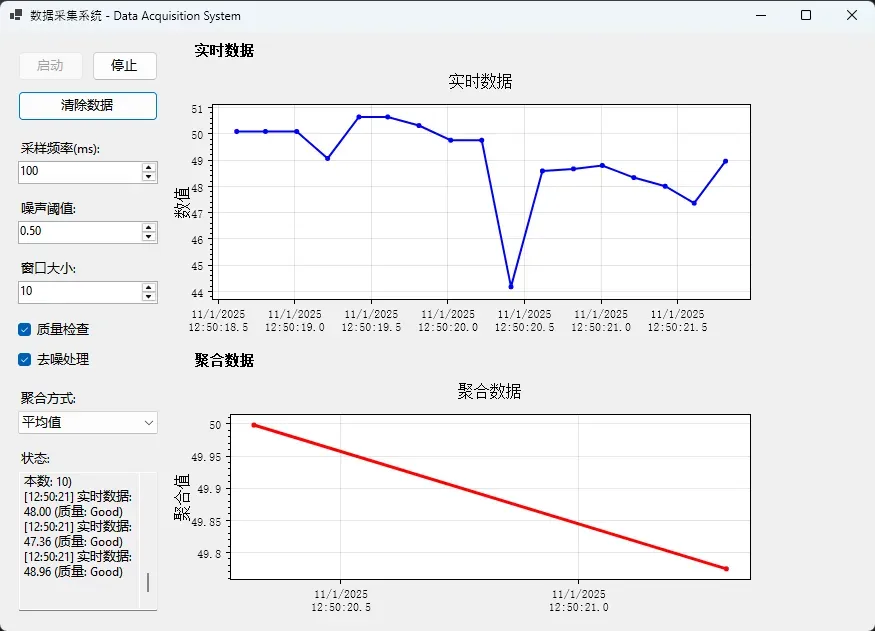

📊 UI Interface: Real-time Visualization Display

ScottPlot Integration Implementation

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using ScottPlot;
using Timer = System.Threading.Timer;

namespace AppDataAcquisitionSystem
{
    public partial class Form1 : Form
    {
        private DataGenerator _dataGenerator;
        private DataProcessor _dataProcessor;
        private AcquisitionConfig _config;
        private Timer _acquisitionTimer;
        private CancellationTokenSource _cancellationTokenSource;

        // Data storage
        private List<DataPoint> _realTimeData;
        private List<AggregatedData> _aggregatedData;

        // Chart data
        private List<double> _realTimeValues;
        private List<DateTime> _realTimeTimes;
        private List<double> _aggregatedValues;
        private List<DateTime> _aggregatedTimes;

        private const int MaxDisplayPoints = 100;

        public Form1()
        {
            InitializeComponent();
            InitializeSystem();
            InitializePlots();
            AttachEventHandlers();
        }

        private void InitializeSystem()
        {
            _realTimeData = new List<DataPoint>();
            _aggregatedData = new List<AggregatedData>();
            _realTimeValues = new List<double>();
            _realTimeTimes = new List<DateTime>();
            _aggregatedValues = new List<double>();
            _aggregatedTimes = new List<DateTime>();

            _dataGenerator = new DataGenerator();
            UpdateConfiguration();
        }

        private void InitializePlots()
        {
            plotRealTime.Font = new Font("Arial", 12);
            // Configure real-time data chart
            plotRealTime.Plot.Title("Real-time Data");
            plotRealTime.Plot.Font.Set("Arial");
            plotRealTime.Plot.XLabel("Time");
            plotRealTime.Plot.YLabel("Value");

            // Configure aggregated data chart
            plotAggregated.Font = new Font("Arial", 12);
            plotAggregated.Plot.Title("Aggregated Data");
            plotAggregated.Plot.Font.Set("Arial");
            plotAggregated.Plot.XLabel("Time");
            plotAggregated.Plot.YLabel("Aggregated Value");
        }

        private void AttachEventHandlers()
        {
            btnStart.Click += BtnStart_Click;
            btnStop.Click += BtnStop_Click;
            btnClear.Click += BtnClear_Click;

            // Configuration change events
            nudSampleRate.ValueChanged += (s, e) => UpdateConfiguration();
            nudNoiseThreshold.ValueChanged += (s, e) => UpdateConfiguration();
            nudWindowSize.ValueChanged += (s, e) => UpdateConfiguration();
            chkQualityCheck.CheckedChanged += (s, e) => UpdateConfiguration();
            chkDenoising.CheckedChanged += (s, e) => UpdateConfiguration();
            cmbAggregationType.SelectedIndexChanged += (s, e) => UpdateConfiguration();
        }

        private void UpdateConfiguration()
        {
            _config = new AcquisitionConfig
            {
                SampleRateMs = (int)nudSampleRate.Value,
                NoiseThreshold = (double)nudNoiseThreshold.Value,
                WindowSize = (int)nudWindowSize.Value,
                EnableQualityCheck = chkQualityCheck.Checked,
                EnableDenoising = chkDenoising.Checked,
                AggregationType = (AggregationType)cmbAggregationType.SelectedIndex
            };
        }

        private async void BtnStart_Click(object sender, EventArgs e)
        {
            try
            {
                btnStart.Enabled = false;
                btnStop.Enabled = true;

                UpdateConfiguration();
                _dataProcessor = new DataProcessor(_config);
                _cancellationTokenSource = new CancellationTokenSource();

                // Start data processing
                var processingTask = _dataProcessor.StartProcessingAsync(_cancellationTokenSource.Token);

                // Start data reading task
                var readingTask = StartDataReadingAsync(_cancellationTokenSource.Token);

                // Start data acquisition timer
                _acquisitionTimer = new Timer(OnDataAcquisitionTimer, null, 0, _config.SampleRateMs);

                UpdateStatus("System started");

                await Task.WhenAny(processingTask, readingTask);
            }
            catch (Exception ex)
            {
                UpdateStatus($"Startup failed: {ex.Message}");
                btnStart.Enabled = true;
                btnStop.Enabled = false;
            }
        }

        private void BtnStop_Click(object sender, EventArgs e)
        {
            StopAcquisition();
        }

        private void BtnClear_Click(object sender, EventArgs e)
        {
            _realTimeData.Clear();
            _aggregatedData.Clear();
            _realTimeValues.Clear();
            _realTimeTimes.Clear();
            _aggregatedValues.Clear();
            _aggregatedTimes.Clear();

            plotRealTime.Plot.Clear();
            plotAggregated.Plot.Clear();
            plotRealTime.Refresh();
            plotAggregated.Refresh();

            UpdateStatus("Data cleared");
        }

        private void StopAcquisition()
        {
            try
            {
                _acquisitionTimer?.Dispose();
                _cancellationTokenSource?.Cancel();
                _dataProcessor?.StopProcessing();

                btnStart.Enabled = true;
                btnStop.Enabled = false;

                UpdateStatus("System stopped");
            }
            catch (Exception ex)
            {
                UpdateStatus($"Stop failed: {ex.Message}");
            }
        }

        private async void OnDataAcquisitionTimer(object state)
        {
            try
            {
                var dataPoint = await _dataGenerator.GenerateDataPointAsync();
                await _dataProcessor.AddRawDataAsync(dataPoint);
            }
            catch (Exception ex)
            {
                BeginInvoke(new Action(() => UpdateStatus($"Data acquisition error: {ex.Message}")));
            }
        }

        private async Task StartDataReadingAsync(CancellationToken cancellationToken)
        {
            // Start processed data reading
            var processedTask = ReadProcessedDataAsync(cancellationToken);
            var aggregatedTask = ReadAggregatedDataAsync(cancellationToken);

            await Task.WhenAll(processedTask, aggregatedTask);
        }

        private async Task ReadProcessedDataAsync(CancellationToken cancellationToken)
        {
            try
            {
                await foreach (var dataPoint in _dataProcessor.ProcessedDataReader.ReadAllAsync(cancellationToken))
                {
                    BeginInvoke(new Action(() =>
                    {
                        _realTimeData.Add(dataPoint);
                        _realTimeValues.Add(dataPoint.Value);
                        _realTimeTimes.Add(dataPoint.Timestamp);

                        // Limit display points
                        if (_realTimeValues.Count > MaxDisplayPoints)
                        {
                            _realTimeValues.RemoveAt(0);
                            _realTimeTimes.RemoveAt(0);
                        }

                        UpdateRealTimePlot();
                        UpdateStatus($"Real-time data: {dataPoint.Value:F2} (Quality: {dataPoint.Quality})");
                    }));
                }
            }
            catch (OperationCanceledException)
            {
                // Normal cancellation
            }
        }

        private async Task ReadAggregatedDataAsync(CancellationToken cancellationToken)
        {
            try
            {
                await foreach (var aggregatedData in _dataProcessor.AggregatedDataReader.ReadAllAsync(cancellationToken))
                {
                    BeginInvoke(new Action(() =>
                    {
                        _aggregatedData.Add(aggregatedData);
                        _aggregatedValues.Add(aggregatedData.Value);
                        _aggregatedTimes.Add(aggregatedData.WindowEnd);

                        // Limit display points
                        if (_aggregatedValues.Count > MaxDisplayPoints)
                        {
                            _aggregatedValues.RemoveAt(0);
                            _aggregatedTimes.RemoveAt(0);
                        }

                        UpdateAggregatedPlot();
                        UpdateStatus($"Aggregated data ({aggregatedData.Type}): {aggregatedData.Value:F2} (Sample count: {aggregatedData.SampleCount})");
                    }));
                }
            }
            catch (OperationCanceledException)
            {
                // Normal cancellation
            }
        }

        private void UpdateRealTimePlot()
        {
            if (_realTimeValues.Count == 0) return;

            plotRealTime.Plot.Clear();

            var times = _realTimeTimes.Select(t => t.ToOADate()).ToArray();
            var values = _realTimeValues.ToArray();

            var scatter = plotRealTime.Plot.Add.Scatter(times, values);
            scatter.Color = Colors.Blue;
            scatter.LineWidth = 2;

            plotRealTime.Plot.Axes.DateTimeTicksBottom();
            plotRealTime.Plot.Axes.AutoScale();
            plotRealTime.Refresh();
        }

        private void UpdateAggregatedPlot()
        {
            if (_aggregatedValues.Count == 0) return;

            plotAggregated.Plot.Clear();

            var times = _aggregatedTimes.Select(t => t.ToOADate()).ToArray();
            var values = _aggregatedValues.ToArray();

            var scatter = plotAggregated.Plot.Add.Scatter(times, values);
            scatter.Color = Colors.Red;
            scatter.LineWidth = 3;

            plotAggregated.Plot.Axes.DateTimeTicksBottom();
            plotAggregated.Plot.Axes.AutoScale();
            plotAggregated.Refresh();
        }

        private void UpdateStatus(string message)
        {
            if (InvokeRequired)
            {
                BeginInvoke(new Action(() => UpdateStatus(message)));
                return;
            }

            txtStatus.AppendText($"[{DateTime.Now:HH:mm:ss}] {message}\r\n");
            txtStatus.ScrollToCaret();
        }

        protected override void OnFormClosing(FormClosingEventArgs e)
        {
            StopAcquisition();
            base.OnFormClosing(e);
        }
    }
}

⚡ Core Performance Optimization Techniques

1️⃣ Memory Management Optimization

C#
private const int MaxDisplayPoints = 100;

// Limit display points to prevent memory leaks
if (_realTimeValues.Count > MaxDisplayPoints)
{
    _realTimeValues.RemoveAt(0);
    _realTimeTimes.RemoveAt(0);
}

2️⃣ Asynchronous Operation Best Practices

C#
// ✅ Correct cancellation token usage
_cancellationTokenSource = CancellationTokenSource.CreateLinkedTokenSource(cancellationToken);

// ✅ Graceful resource cleanup
protected override void OnFormClosing(FormClosingEventArgs e)
{
    StopAcquisition(); // Ensure all async tasks stop properly
    base.OnFormClosing(e);
}

🛠️ Real-World Application Scenarios

This data acquisition system can be widely applied to:

Industrial IoT: Real-time sensor data monitoring
Financial Systems: Stock prices and trading data collection
Environmental Monitoring: Temperature, humidity, and air quality data
Performance Monitoring: Server and application performance metrics collection

🔍 Common Issues and Solutions

Q1: Backpressure Issues in Channel Usage?

A: Use bounded Channels with reasonable capacity limits:

C#
var options = new BoundedChannelOptions(1000)
{
    FullMode = BoundedChannelFullMode.Wait,
    SingleReader = true,
    SingleWriter = false
};
_channel = Channel.CreateBounded<DataPoint>(options);

Q2: Performance Bottlenecks with Large Data Volumes?

A: Adopt batch processing strategy:

C#
private readonly List<DataPoint> _batchBuffer = new List<DataPoint>();
private const int BatchSize = 50;

// Batch processing for improved efficiency
if (_batchBuffer.Count >= BatchSize)
{
    await ProcessBatchAsync(_batchBuffer);
    _batchBuffer.Clear();
}

🎉 Summary and Future Outlook

Through this practical case study, we've mastered three core technologies for building efficient data acquisition systems:

Channel Asynchronous Communication: Achieving high concurrency, low-latency data transmission
Multi-layer Processing Pipeline: Complete workflow including quality control, noise reduction, and data aggregation
Real-time Visualization Display: Perfect combination of ScottPlot and WinForms

This architecture not only solves the performance bottlenecks of traditional data acquisition systems but also provides powerful extensibility. You can easily add new data sources, processing algorithms, or visualization components.

💬 Interactive Discussion:

What technical challenges have you encountered with data acquisition in your projects?
Do you have better strategies for handling anomalous data?

If this article helps your C# development work, please share it with more colleagues to help us improve .NET technology skills together! Follow me for more C# practical content!

🔖 Collection-grade code templates are ready, recommend bookmarking for future use!

目录
