看这篇文章前可以先看前面一篇，是在其基本上加了动态了livechat 的生成，在工业4.0时代，传统的SCADA（数据采集与监控系统）数据查询方式已经无法满足现代化生产管理的需求。开发者常常面临这样的困境：海量设备数据无法直观展示，复杂SQL查询让业务人员望而却步，数据分析报告制作耗时费力。

今天，我将分享一个结合了C# WPF、Semantic Kernel AI框架和LiveCharts图表库的创新解决方案，让你轻松打造一个智能化的SCADA数据助手，实现自然语言查询、智能图表生成和数据可视化分析。

🎯 解决的核心问题

📊 传统数据查询的三大痛点

查询门槛高：业务人员需要掌握复杂的SQL语法
数据展示单调：纯文本结果缺乏直观性
分析效率低：手动制作图表耗时耗力

💡 我们的智能化解决方案

自然语言交互：用户可以用中文直接询问"显示所有设备类型的统计"
AI智能分析：自动判断查询意图并生成合适的SQL
动态图表生成：根据数据特征自动推荐并生成最适合的可视化图表

🔧 技术架构解析

🏗️ 核心技术栈

前端框架：WPF + LiveCharts（图表可视化）
AI引擎：Microsoft Semantic Kernel + OpenAI API
数据库：SQLite（轻量级，易部署）
设计模式：插件化架构 + 异步处理

🧩 系统架构图

Markdown
用户自然语言输入 → AI语义理解 → SQL生成执行 → 数据分析 → 图表可视化

💻 核心代码实现

🤖 AI服务初始化

C#
private void InitializeAI()
{
    try
    {
        // 初始化Semantic Kernel
        var kernelBuilder = Kernel.CreateBuilder();
        kernelBuilder.AddOpenAIChatCompletion(
            modelId: "deepseek-chat",
            apiKey: Environment.GetEnvironmentVariable("DEEPSEEK_API_KEY") ?? "your-api-key",
            endpoint: new Uri("https://api.deepseek.com/v1")
        );
        _kernel = kernelBuilder.Build();

        // 注册数据库查询和图表生成插件
        RegisterDatabaseQueryPlugin(_kernel);
        RegisterChartPlugin(_kernel);

        // 初始化聊天历史，设定AI助手角色
        _chatHistory = new ChatHistory();
        _chatHistory.AddSystemMessage(@"你是一个智能SCADA数据助手，具备数据查询、分析和可视化能力。
当用户的查询涉及数值数据、统计分析、趋势分析时，主动建议或生成图表可视化。");

        _chatCompletionService = _kernel.GetRequiredService<IChatCompletionService>();
    }
    catch (Exception ex)
    {
        AddSystemMessage($"❌ AI初始化失败: {ex.Message}");
    }
}

📊 动态图表生成插件

C#
private void RegisterChartPlugin(Kernel kernel)
{
    // 柱状图生成函数
    var createBarChartFunction = kernel.CreateFunctionFromMethod(
        method: (string title, string data, string xLabel, string yLabel) =>
        {
            try
            {
                CreateBarChart(title, data, xLabel, yLabel);
                return $"✅ 已生成柱状图: {title}";
            }
            catch (Exception ex)
            {
                return $"❌ 生成柱状图失败: {ex.Message}";
            }
        },
        functionName: "CreateBarChart",
        description: "创建柱状图。参数：title(图表标题), data(数据，格式：标签1:值1,标签2:值2), xLabel(X轴标签), yLabel(Y轴标签)"
    );

    // 注册所有图表类型插件
    kernel.ImportPluginFromFunctions("ChartPlugin", [
        createBarChartFunction,
        createLineChartFunction,
        createPieChartFunction,
        suggestChartFunction
    ]);
}

🗄️ 智能数据库查询

C#
private void RegisterDatabaseQueryPlugin(Kernel kernel)
{
    var executeQueryFunction = kernel.CreateFunctionFromMethod(
        method: (string sql) =>
        {
            try
            {
                using var connection = new SQLiteConnection($"Data Source=test.db;Version=3;");
                connection.Open();

                // 安全检查：只允许SELECT查询
                if (!sql.Trim().ToUpper().StartsWith("SELECT"))
                {
                    return "⚠️ 出于安全考虑，只允许执行SELECT查询语句。";
                }

                using var command = new SQLiteCommand(sql, connection);
                using var reader = command.ExecuteReader();

                var dt = new DataTable();
                dt.Load(reader);

                var result = FormatQueryResult(dt);

                // 智能判断是否适合生成图表
                if (ShouldSuggestChart(dt, sql))
                {
                    result += "\n\n💡 这些数据很适合用图表展示！您可以说'生成图表'来可视化这些数据。";
                }

                return result;
            }
            catch (Exception ex)
            {
                return $"SQL执行出错: {ex.Message}";
            }
        },
        functionName: "ExecuteSQL",
        description: "执行SQL查询语句并返回格式化的SCADA数据结果"
    );

    kernel.ImportPluginFromFunctions("DatabasePlugin", [executeQueryFunction]);
}

📈 实时图表渲染

C#
private void CreateBarChart(string title, string data, string xLabel, string yLabel)
{
    Dispatcher.Invoke(() =>
    {
        var chart = new CartesianChart { Height = 300, Margin = new Thickness(0, 10, 0, 10) };
        var series = new ColumnSeries { Title = title, Values = new ChartValues<double>() };
        var labels = new List<string>();

        // 解析数据格式：标签1:值1,标签2:值2
        var dataItems = data.Split(',');
        foreach (var item in dataItems)
        {
            var parts = item.Split(':');
            if (parts.Length == 2)
            {
                labels.Add(parts[0].Trim());
                if (double.TryParse(parts[1].Trim(), out double value))
                {
                    series.Values.Add(value);
                }
            }
        }

        // 配置图表
        chart.Series = new SeriesCollection { series };
        chart.AxisX.Add(new Axis { Title = xLabel, Labels = labels });
        chart.AxisY.Add(new Axis { Title = yLabel });

        AddChartToPanel(title, chart);
    });
}

完整代码

C#
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Input;
using System.Windows.Media;
using LiveCharts.Wpf;
using LiveCharts;
using Microsoft.SemanticKernel.ChatCompletion;
using Microsoft.SemanticKernel;
using Microsoft.SemanticKernel.Connectors.OpenAI;
using System.Data;
using System.Data.SQLite;
using System.IO;
using LiveCharts.Definitions.Series;
using LiveCharts.Wpf.Charts.Base;

namespace AppAiDatabaseChart
{
    public partial class MainWindow : Window
    {
        private Kernel _kernel;
        private ChatHistory _chatHistory;
        private IChatCompletionService _chatCompletionService;

        public MainWindow()
        {
            InitializeComponent();
            InitializeAI();
            AddSystemMessage("🤖 SCADA智能AI数据助手已启动！我可以帮您查询和分析数据库信息，并生成可视化图表。");
        }

        /// <summary>
        /// 初始化AI服务
        /// </summary>
        private void InitializeAI()
        {
            try
            {
                // 初始化Kernel
                var kernelBuilder = Kernel.CreateBuilder();
                kernelBuilder.AddOpenAIChatCompletion(
                    modelId: "deepseek-chat",
                    apiKey: Environment.GetEnvironmentVariable("DEEPSEEK_API_KEY") ?? "sk-xxxx",
                    endpoint: new Uri("https://api.deepseek.com/v1")
                );
                _kernel = kernelBuilder.Build();

                // 注册数据库查询插件
                RegisterDatabaseQueryPlugin(_kernel);

                // 注册图表生成插件
                RegisterChartPlugin(_kernel);

                // 初始化聊天历史
                _chatHistory = new ChatHistory();
                _chatHistory.AddSystemMessage(@"你是一个智能SCADA数据助手，具备数据查询、分析和可视化能力。
你可以帮助用户查询设备信息、测点数据、历史数据、报警信息等，并生成相应的图表。
当用户的查询涉及数值数据、统计分析、趋势分析时，主动建议或生成图表可视化。
请根据用户需求选择合适的工具来协助用户，并提供友好、专业的回复。");

                // 获取聊天完成服务
                _chatCompletionService = _kernel.GetRequiredService<IChatCompletionService>();

                StatusText.Text = "AI助手已准备就绪";
            }
            catch (Exception ex)
            {
                AddSystemMessage($"❌ AI初始化失败: {ex.Message}");
                StatusText.Text = "AI初始化失败";
            }
        }

        /// <summary>
        /// 注册图表生成插件
        /// </summary>
        private void RegisterChartPlugin(Kernel kernel)
        {
            // 1. 生成柱状图
            var createBarChartFunction = kernel.CreateFunctionFromMethod(
                method: (string title, string data, string xLabel, string yLabel) =>
                {
                    try
                    {
                        CreateBarChart(title, data, xLabel, yLabel);
                        return $"✅ 已生成柱状图: {title}";
                    }
                    catch (Exception ex)
                    {
                        return $"❌ 生成柱状图失败: {ex.Message}";
                    }
                },
                functionName: "CreateBarChart",
                description: "创建柱状图。参数：title(图表标题), data(数据，格式：标签1:值1,标签2:值2), xLabel(X轴标签), yLabel(Y轴标签)"
            );

            // 2. 生成折线图
            var createLineChartFunction = kernel.CreateFunctionFromMethod(
                method: (string title, string data, string xLabel, string yLabel) =>
                {
                    try
                    {
                        CreateLineChart(title, data, xLabel, yLabel);
                        return $"✅ 已生成折线图: {title}";
                    }
                    catch (Exception ex)
                    {
                        return $"❌ 生成折线图失败: {ex.Message}";
                    }
                },
                functionName: "CreateLineChart",
                description: "创建折线图。参数：title(图表标题), data(数据，格式：标签1:值1,标签2:值2), xLabel(X轴标签), yLabel(Y轴标签)"
            );

            // 3. 生成饼图
            var createPieChartFunction = kernel.CreateFunctionFromMethod(
                method: (string title, string data) =>
                {
                    try
                    {
                        CreatePieChart(title, data);
                        return $"✅ 已生成饼图: {title}";
                    }
                    catch (Exception ex)
                    {
                        return $"❌ 生成饼图失败: {ex.Message}";
                    }
                },
                functionName: "CreatePieChart",
                description: "创建饼图。参数：title(图表标题), data(数据，格式：标签1:值1,标签2:值2)"
            );

            // 4. 智能图表建议
            var suggestChartFunction = kernel.CreateFunctionFromMethod(
                method: (string queryResult, string queryType) =>
                {
                    return SuggestChartType(queryResult, queryType);
                },
                functionName: "SuggestChart",
                description: "根据查询结果建议合适的图表类型和数据格式"
            );

            kernel.ImportPluginFromFunctions("ChartPlugin", [createBarChartFunction, createLineChartFunction, createPieChartFunction, suggestChartFunction]);
        }

        /// <summary>
        /// 建议图表类型
        /// </summary>
        private string SuggestChartType(string queryResult, string queryType)
        {
            var suggestion = new StringBuilder();
            suggestion.AppendLine("📊 图表建议：");

            if (queryResult.Contains("COUNT") || queryResult.Contains("统计") || queryResult.Contains("数量"))
            {
                suggestion.AppendLine("- 推荐使用柱状图显示统计数据");
                suggestion.AppendLine("- 可以使用饼图显示比例关系");
            }

            if (queryResult.Contains("时间") || queryResult.Contains("Timestamp") || queryResult.Contains("趋势"))
            {
                suggestion.AppendLine("- 推荐使用折线图显示时间趋势");
            }

            if (queryResult.Contains("类型") || queryResult.Contains("分组") || queryResult.Contains("GROUP BY"))
            {
                suggestion.AppendLine("- 推荐使用饼图显示分类分布");
            }

            suggestion.AppendLine("\n如需生成图表，请告诉我您希望显示哪些数据！");
            return suggestion.ToString();
        }

        /// <summary>
        /// 创建柱状图
        /// </summary>
        private void CreateBarChart(string title, string data, string xLabel, string yLabel)
        {
            Dispatcher.Invoke(() =>
            {
                var chart = new CartesianChart
                {
                    Height = 300,
                    Margin = new Thickness(0, 10, 0, 10)
                };

                var series = new ColumnSeries
                {
                    Title = title,
                    Values = new ChartValues<double>()
                };

                var labels = new List<string>();

                // 解析数据 (格式: 标签1:值1,标签2:值2)
                var dataItems = data.Split(',');
                foreach (var item in dataItems)
                {
                    var parts = item.Split(':');
                    if (parts.Length == 2)
                    {
                        labels.Add(parts[0].Trim());
                        if (double.TryParse(parts[1].Trim(), out double value))
                        {
                            series.Values.Add(value);
                        }
                    }
                }

                chart.Series = new SeriesCollection { series };
                chart.AxisX.Add(new Axis
                {
                    Title = xLabel,
                    Labels = labels
                });
                chart.AxisY.Add(new Axis
                {
                    Title = yLabel
                });

                AddChartToPanel(title, chart);
            });
        }

        /// <summary>
        /// 创建折线图
        /// </summary>
        private void CreateLineChart(string title, string data, string xLabel, string yLabel)
        {
            Dispatcher.Invoke(() =>
            {
                var chart = new CartesianChart
                {
                    Height = 300,
                    Margin = new Thickness(0, 10, 0, 10)
                };

                var series = new LineSeries
                {
                    Title = title,
                    Values = new ChartValues<double>(),
                    PointGeometry = DefaultGeometries.Circle,
                    PointGeometrySize = 8
                };

                var labels = new List<string>();

                // 解析数据
                var dataItems = data.Split(',');
                foreach (var item in dataItems)
                {
                    var parts = item.Split(':');
                    if (parts.Length == 2)
                    {
                        labels.Add(parts[0].Trim());
                        if (double.TryParse(parts[1].Trim(), out double value))
                        {
                            series.Values.Add(value);
                        }
                    }
                }

                chart.Series = new SeriesCollection { series };
                chart.AxisX.Add(new Axis
                {
                    Title = xLabel,
                    Labels = labels
                });
                chart.AxisY.Add(new Axis
                {
                    Title = yLabel
                });

                AddChartToPanel(title, chart);
            });
        }

        /// <summary>
        /// 创建饼图
        /// </summary>
        private void CreatePieChart(string title, string data)
        {
            Dispatcher.Invoke(() =>
            {
                var chart = new PieChart
                {
                    Height = 300,
                    Margin = new Thickness(0, 10, 0, 10),
                    LegendLocation = LegendLocation.Right
                };

                var series = new SeriesCollection();

                // 解析数据
                var dataItems = data.Split(',');
                foreach (var item in dataItems)
                {
                    var parts = item.Split(':');
                    if (parts.Length == 2)
                    {
                        var label = parts[0].Trim();
                        if (double.TryParse(parts[1].Trim(), out double value))
                        {
                            series.Add(new PieSeries
                            {
                                Title = label,
                                Values = new ChartValues<double> { value },
                                DataLabels = true
                            });
                        }
                    }
                }

                chart.Series = series;
                AddChartToPanel(title, chart);
            });
        }

        /// <summary>
        /// 将图表添加到面板
        /// </summary>
        private void AddChartToPanel(string title, FrameworkElement chart)
        {
            var container = new StackPanel();

            // 图表标题
            var titleBlock = new TextBlock
            {
                Text = $"📊 {title}",
                FontSize = 14,
                FontWeight = FontWeights.Bold,
                Margin = new Thickness(0, 0, 0, 10),
                HorizontalAlignment = HorizontalAlignment.Center
            };

            container.Children.Add(titleBlock);
            container.Children.Add(chart);

            // 添加关闭按钮
            var closeButton = new Button
            {
                Content = "❌",
                Width = 30,
                Height = 30,
                HorizontalAlignment = HorizontalAlignment.Right,
                Margin = new Thickness(0, -10, 0, 0),
                Background = Brushes.Transparent,
                BorderThickness = new Thickness(0),
                Cursor = Cursors.Hand
            };

            var border = new Border
            {
                Style = (Style)FindResource("ChartContainer"),
                Child = container
            };

            closeButton.Click += (s, e) => ChartPanel.Children.Remove(border);
            container.Children.Add(closeButton);

            ChartPanel.Children.Add(border);

            // 更新图表标题
            ChartTitleText.Text = $"📈 数据可视化 ({ChartPanel.Children.Count})";
        }

        /// <summary>
        /// 注册数据库查询插件
        /// </summary>
        private void RegisterDatabaseQueryPlugin(Kernel kernel)
        {
            var getSchemaFunction = kernel.CreateFunctionFromMethod(
                method: () =>
                {
                    try
                    {
                        var dbFilePath = "test.db";
                        if (!File.Exists(dbFilePath))
                            return "数据库文件不存在，请先初始化数据库。";

                        using var connection = new SQLiteConnection($"Data Source={dbFilePath};Version=3;");
                        connection.Open();

                        var schema = GetDatabaseSchema(connection);
                        return schema;
                    }
                    catch (Exception ex)
                    {
                        return $"获取数据库结构失败: {ex.Message}";
                    }
                },
                functionName: "GetDatabaseSchema",
                description: "获取SCADA数据库的完整结构信息，包括所有表、字段、数据类型等"
            );

            var executeQueryFunction = kernel.CreateFunctionFromMethod(
                method: (string sql) =>
                {
                    try
                    {
                        var dbFilePath = "test.db";
                        if (!File.Exists(dbFilePath))
                            return "数据库文件不存在，请先初始化数据库。";

                        using var connection = new SQLiteConnection($"Data Source={dbFilePath};Version=3;");
                        connection.Open();

                        if (!sql.Trim().ToUpper().StartsWith("SELECT"))
                        {
                            return "⚠️ 出于安全考虑，只允许执行SELECT查询语句。";
                        }

                        using var command = new SQLiteCommand(sql, connection);
                        using var reader = command.ExecuteReader();

                        var dt = new DataTable();
                        dt.Load(reader);

                        if (dt.Rows.Count == 0)
                            return "查询结果为空。";

                        var result = FormatQueryResult(dt);

                        // 检查是否适合生成图表
                        if (ShouldSuggestChart(dt, sql))
                        {
                            result += "\n\n💡 这些数据很适合用图表展示！您可以说'生成图表'来可视化这些数据。";
                        }

                        return result;
                    }
                    catch (Exception ex)
                    {
                        return $"SQL执行出错: {ex.Message}";
                    }
                },
                functionName: "ExecuteSQL",
                description: "执行SQL查询语句并返回格式化的SCADA数据结果，如果适合会建议生成图表"
            );

            kernel.ImportPluginFromFunctions("DatabasePlugin", [getSchemaFunction, executeQueryFunction]);
        }

        /// <summary>
        /// 判断是否应该建议生成图表
        /// </summary>
        private bool ShouldSuggestChart(DataTable dt, string sql)
        {
            // 如果结果有数值列且行数适中，建议生成图表
            if (dt.Rows.Count > 1 && dt.Rows.Count <= 20)
            {
                foreach (DataColumn col in dt.Columns)
                {
                    if (col.DataType == typeof(int) || col.DataType == typeof(double) || col.DataType == typeof(decimal))
                    {
                        return true;
                    }
                }
            }

            // 如果SQL包含聚合函数，也建议生成图表
            var upperSql = sql.ToUpper();
            if (upperSql.Contains("COUNT") || upperSql.Contains("SUM") || upperSql.Contains("AVG") || upperSql.Contains("GROUP BY"))
            {
                return true;
            }

            return false;
        }

        // 输入框键盘事件
        /// <summary>
        /// 输入框键盘事件
        /// </summary>
        private void InputTextBox_KeyDown(object sender, KeyEventArgs e)
        {
            if (e.Key == Key.Enter && (Keyboard.Modifiers & ModifierKeys.Control) == ModifierKeys.Control)
            {
                SendMessage();
                e.Handled = true;
            }
        }

        private void InitDbButton_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                InitDbButton.IsEnabled = false;
                StatusText.Text = "正在初始化数据库...";

                AddSystemMessage("🔧 开始初始化SCADA数据库...");

                Task.Run(() =>
                {
                    DatabaseInitializer.InitializeScadaDatabase();

                    Dispatcher.Invoke(() =>
                    {
                        AddSystemMessage("✅ SCADA数据库初始化完成！已创建1000条测试记录。\n💡 您现在可以询问：\n- 显示所有设备类型的统计\n- 查询最近的报警趋势\n- 生成设备状态分布图");
                        StatusText.Text = "数据库初始化完成";
                        InitDbButton.IsEnabled = true;
                    });
                });
            }
            catch (Exception ex)
            {
                AddSystemMessage($"❌ 数据库初始化失败: {ex.Message}");
                StatusText.Text = "数据库初始化失败";
                InitDbButton.IsEnabled = true;
            }
        }

        private void ShowStatsButton_Click(object sender, RoutedEventArgs e)
        {
            try
            {
                if (!File.Exists("test.db"))
                {
                    AddSystemMessage("❌ 数据库文件不存在，请先初始化数据库。");
                    return;
                }

                var stats = GetDatabaseStatistics();
                AddSystemMessage(stats);
            }
            catch (Exception ex)
            {
                AddSystemMessage($"❌ 获取统计信息失败: {ex.Message}");
            }
        }

        private void ClearChatButton_Click(object sender, RoutedEventArgs e)
        {
            ChatPanel.Children.Clear();
            ChartPanel.Children.Clear();
            _chatHistory?.Clear();
            _chatHistory?.AddSystemMessage(@"你是一个智能SCADA数据助手，具备数据查询、分析和可视化能力。
你可以帮助用户查询设备信息、测点数据、历史数据、报警信息等，并生成相应的图表。
当用户的查询涉及数值数据、统计分析、趋势分析时，主动建议或生成图表可视化。
请根据用户需求选择合适的工具来协助用户，并提供友好、专业的回复。");

            AddSystemMessage("🗑️ 对话和图表已清空，您可以开始新的对话。");
            ChartTitleText.Text = "📈 数据可视化";
        }

        private async void SendMessage()
        {
            var userInput = InputTextBox.Text.Trim();
            if (string.IsNullOrEmpty(userInput)) return;

            InputTextBox.Text = string.Empty;
            AddUserMessage(userInput);

            SendButton.IsEnabled = false;
            StatusText.Text = "AI正在思考...";

            try
            {
                _chatHistory.AddUserMessage(userInput);
                await ProcessAIResponse();
            }
            catch (Exception ex)
            {
                AddSystemMessage($"❌ 发生错误: {ex.Message}");
            }
            finally
            {
                SendButton.IsEnabled = true;
                StatusText.Text = "准备就绪";
            }
        }

        private async Task ProcessAIResponse()
        {
            var executionSettings = new OpenAIPromptExecutionSettings
            {
                ToolCallBehavior = ToolCallBehavior.AutoInvokeKernelFunctions,
                MaxTokens = 2000,
                Temperature = 0.7
            };

            var responseTextBlock = new TextBlock
            {
                TextWrapping = TextWrapping.Wrap,
                FontSize = 12,
                Foreground = new SolidColorBrush(Color.FromRgb(51, 51, 51))
            };

            var responseBorder = new Border
            {
                Style = (Style)FindResource("AssistantMessage"),
                Child = responseTextBlock
            };

            ChatPanel.Children.Add(responseBorder);
            ScrollToBottom();

            try
            {
                var streamResponse = _chatCompletionService.GetStreamingChatMessageContentsAsync(
                    chatHistory: _chatHistory,
                    executionSettings: executionSettings,
                    kernel: _kernel
                );

                string fullResponse = "";

                await foreach (var content in streamResponse)
                {
                    if (!string.IsNullOrEmpty(content.Content))
                    {
                        fullResponse += content.Content;

                        await Dispatcher.InvokeAsync(() =>
                        {
                            responseTextBlock.Text = fullResponse;
                            ScrollToBottom();
                        });

                        await Task.Delay(30);
                    }
                }

                if (!string.IsNullOrWhiteSpace(fullResponse))
                {
                    _chatHistory.AddAssistantMessage(fullResponse);
                }
            }
            catch (Exception ex)
            {
                responseTextBlock.Text = $"❌ AI响应失败: {ex.Message}";
            }
        }

        private void SendButton_Click(object sender, RoutedEventArgs e)
        {
            SendMessage();
        }

        private void AddUserMessage(string message)
        {
            var textBlock = new TextBlock
            {
                Text = message,
                TextWrapping = TextWrapping.Wrap,
                FontSize = 12,
                Foreground = Brushes.White
            };

            var border = new Border
            {
                Style = (Style)FindResource("UserMessage"),
                Child = textBlock
            };

            ChatPanel.Children.Add(border);
            ScrollToBottom();
        }

        private void AddSystemMessage(string message)
        {
            var textBlock = new TextBlock
            {
                Text = message,
                TextWrapping = TextWrapping.Wrap,
                FontSize = 11,
                Foreground = new SolidColorBrush(Color.FromRgb(133, 77, 14))
            };

            var border = new Border
            {
                Style = (Style)FindResource("SystemMessage"),
                Child = textBlock
            };

            ChatPanel.Children.Add(border);
            ScrollToBottom();
        }

        private void ScrollToBottom()
        {
            ChatScrollViewer.ScrollToEnd();
        }

        private string GetDatabaseStatistics()
        {
            var stats = new StringBuilder();
            stats.AppendLine("📊 SCADA数据库统计信息");
            stats.AppendLine("========================");

            using var connection = new SQLiteConnection($"Data Source=test.db;Version=3;");
            connection.Open();

            var tables = new[] { "Devices", "Tags", "RealTimeData", "HistoricalData", "Alarms" };
            var displayNames = new[] { "设备", "测点", "实时数据", "历史数据", "报警" };

            for (int i = 0; i < tables.Length; i++)
            {
                var count = GetTableRecordCount(connection, tables[i]);
                stats.AppendLine($"📋 {displayNames[i]}: {count} 条记录");
            }

            return stats.ToString();
        }

        private static string GetDatabaseSchema(SQLiteConnection connection)
        {
            var schema = new StringBuilder();
            schema.AppendLine("📊 SCADA数据库结构信息");
            schema.AppendLine("=" + new string('=', 50));

            var tables = GetTableNames(connection);

            foreach (var tableName in tables)
            {
                schema.AppendLine($"\n🔹 表名: {tableName}");
                schema.AppendLine($"   字段信息:");

                var tableInfo = GetTableStructure(connection, tableName);
                foreach (var column in tableInfo)
                {
                    schema.AppendLine($"   - {column.Name} ({column.Type}) {(column.IsPrimaryKey ? "[主键]" : "")} {(column.IsNotNull ? "[非空]" : "")}");
                }

                var count = GetTableRecordCount(connection, tableName);
                schema.AppendLine($"   📋 记录数: {count}");
            }

            schema.AppendLine($"\n💡 图表生成示例:");
            schema.AppendLine($"   - 生成设备类型统计图");
            schema.AppendLine($"   - 显示报警级别分布饼图");
            schema.AppendLine($"   - 创建设备状态趋势图");

            return schema.ToString();
        }

        private static List<string> GetTableNames(SQLiteConnection connection)
        {
            var tables = new List<string>();
            string sql = "SELECT name FROM sqlite_master WHERE type='table' AND name NOT LIKE 'sqlite_%'";

            using var command = new SQLiteCommand(sql, connection);
            using var reader = command.ExecuteReader();

            while (reader.Read())
            {
                tables.Add(reader.GetString(0));
            }

            return tables;
        }

        private static List<ColumnInfo> GetTableStructure(SQLiteConnection connection, string tableName)
        {
            var columns = new List<ColumnInfo>();
            string sql = $"PRAGMA table_info({tableName})";

            using var command = new SQLiteCommand(sql, connection);
            using var reader = command.ExecuteReader();

            while (reader.Read())
            {
                columns.Add(new ColumnInfo
                {
                    Name = reader.GetString("name"),
                    Type = reader.GetString("type"),
                    IsNotNull = reader.GetBoolean("notnull"),
                    IsPrimaryKey = reader.GetBoolean("pk")
                });
            }

            return columns;
        }

        private static int GetTableRecordCount(SQLiteConnection connection, string tableName)
        {
            string sql = $"SELECT COUNT(*) FROM {tableName}";
            using var command = new SQLiteCommand(sql, connection);
            return Convert.ToInt32(command.ExecuteScalar());
        }

        private static string FormatQueryResult(DataTable dt)
        {
            var result = new StringBuilder();
            result.AppendLine($"📋 查询结果 (共 {dt.Rows.Count} 条记录):");
            result.AppendLine(new string('=', 60));

            foreach (DataColumn col in dt.Columns)
            {
                result.Append($"{col.ColumnName,-15} | ");
            }
            result.AppendLine();
            result.AppendLine(new string('-', 60));

            int maxRows = Math.Min(20, dt.Rows.Count);
            for (int i = 0; i < maxRows; i++)
            {
                foreach (var item in dt.Rows[i].ItemArray)
                {
                    string value = item?.ToString() ?? "NULL";
                    if (value.Length > 12) value = value.Substring(0, 12) + "...";
                    result.Append($"{value,-15} | ");
                }
                result.AppendLine();
            }

            if (dt.Rows.Count > 20)
            {
                result.AppendLine($"... 还有 {dt.Rows.Count - 20} 条记录未显示");
            }

            return result.ToString();
        }
    }
}

XML
<Window x:Class="AppAiDatabaseChart.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:lvc="clr-namespace:LiveCharts.Wpf;assembly=LiveCharts.Wpf"
        Title="SCADA智能AI数据助手" Height="700" Width="1200"
        WindowStartupLocation="CenterScreen"
        Background="#F5F5F5">

    <Window.Resources>
        <!-- 按钮样式 -->
        <Style x:Key="ModernButton" TargetType="Button">
            <Setter Property="Background" Value="#4A90E2"/>
            <Setter Property="Foreground" Value="White"/>
            <Setter Property="BorderThickness" Value="0"/>
            <Setter Property="Padding" Value="10,5"/>
            <Setter Property="Margin" Value="5"/>
            <Setter Property="FontSize" Value="12"/>
            <Setter Property="Cursor" Value="Hand"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="Button">
                        <Border Background="{TemplateBinding Background}"
                                CornerRadius="4">
                            <ContentPresenter HorizontalAlignment="Center"
                                            VerticalAlignment="Center"/>
                        </Border>
                        <ControlTemplate.Triggers>
                            <Trigger Property="IsMouseOver" Value="True">
                                <Setter Property="Background" Value="#357ABD"/>
                            </Trigger>
                        </ControlTemplate.Triggers>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>

        <!-- 输入框样式 -->
        <Style x:Key="ModernTextBox" TargetType="TextBox">
            <Setter Property="BorderBrush" Value="#DDD"/>
            <Setter Property="BorderThickness" Value="1"/>
            <Setter Property="Padding" Value="8"/>
            <Setter Property="FontSize" Value="12"/>
            <Setter Property="Background" Value="White"/>
        </Style>

        <!-- 聊天气泡样式 -->
        <Style x:Key="UserMessage" TargetType="Border">
            <Setter Property="Background" Value="#4A90E2"/>
            <Setter Property="CornerRadius" Value="8"/>
            <Setter Property="Margin" Value="50,5,10,5"/>
            <Setter Property="Padding" Value="10"/>
            <Setter Property="HorizontalAlignment" Value="Right"/>
        </Style>

        <Style x:Key="AssistantMessage" TargetType="Border">
            <Setter Property="Background" Value="White"/>
            <Setter Property="CornerRadius" Value="8"/>
            <Setter Property="Margin" Value="10,5,50,5"/>
            <Setter Property="Padding" Value="10"/>
            <Setter Property="HorizontalAlignment" Value="Left"/>
            <Setter Property="BorderBrush" Value="#DDD"/>
            <Setter Property="BorderThickness" Value="1"/>
        </Style>

        <Style x:Key="SystemMessage" TargetType="Border">
            <Setter Property="Background" Value="#FFF3CD"/>
            <Setter Property="CornerRadius" Value="4"/>
            <Setter Property="Margin" Value="10,5"/>
            <Setter Property="Padding" Value="8"/>
            <Setter Property="BorderBrush" Value="#FFEAA7"/>
            <Setter Property="BorderThickness" Value="1"/>
        </Style>

        <!-- 图表容器样式 -->
        <Style x:Key="ChartContainer" TargetType="Border">
            <Setter Property="Background" Value="White"/>
            <Setter Property="CornerRadius" Value="8"/>
            <Setter Property="Margin" Value="10,5"/>
            <Setter Property="Padding" Value="15"/>
            <Setter Property="BorderBrush" Value="#DDD"/>
            <Setter Property="BorderThickness" Value="1"/>
            <Setter Property="MinHeight" Value="300"/>
        </Style>
    </Window.Resources>

    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="2*"/>
            <ColumnDefinition Width="5"/>
            <ColumnDefinition Width="*"/>
        </Grid.ColumnDefinitions>

        <!-- 左侧聊天区域 -->
        <Grid Grid.Column="0">
            <Grid.RowDefinitions>
                <RowDefinition Height="60"/>
                <RowDefinition Height="*"/>
                <RowDefinition Height="100"/>
            </Grid.RowDefinitions>

            <!-- 顶部工具栏 -->
            <Border Grid.Row="0" Background="White" BorderBrush="#DDD" BorderThickness="0,0,0,1">
                <Grid Margin="15,10">
                    <Grid.ColumnDefinitions>
                        <ColumnDefinition Width="*"/>
                        <ColumnDefinition Width="Auto"/>
                    </Grid.ColumnDefinitions>

                    <StackPanel Grid.Column="0" Orientation="Vertical">
                        <TextBlock Text="SCADA智能AI数据助手" FontSize="18" FontWeight="Bold" Foreground="#333"/>
                        <TextBlock x:Name="StatusText" Text="准备就绪" FontSize="12" Foreground="#666"/>
                    </StackPanel>

                    <StackPanel Grid.Column="1" Orientation="Horizontal">
                        <Button x:Name="InitDbButton" Content="🔧 初始化数据库"
                                Style="{StaticResource ModernButton}" Click="InitDbButton_Click"/>
                        <Button x:Name="ShowStatsButton" Content="📊 数据统计"
                                Style="{StaticResource ModernButton}" Click="ShowStatsButton_Click"/>
                        <Button x:Name="ClearChatButton" Content="🗑️ 清空对话"
                                Style="{StaticResource ModernButton}" Click="ClearChatButton_Click"/>
                    </StackPanel>
                </Grid>
            </Border>

            <!-- 聊天区域 -->
            <ScrollViewer x:Name="ChatScrollViewer" Grid.Row="1" VerticalScrollBarVisibility="Auto">
                <StackPanel x:Name="ChatPanel" Margin="10"/>
            </ScrollViewer>

            <!-- 输入区域 -->
            <Border Grid.Row="2" Background="White" BorderBrush="#DDD" BorderThickness="0,1,0,0">
                <Grid Margin="15">
                    <Grid.RowDefinitions>
                        <RowDefinition Height="*"/>
                        <RowDefinition Height="Auto"/>
                    </Grid.RowDefinitions>

                    <TextBox x:Name="InputTextBox" Grid.Row="0"
                             Style="{StaticResource ModernTextBox}"
                             TextWrapping="Wrap" AcceptsReturn="True"
                             KeyDown="InputTextBox_KeyDown"/>

                    <StackPanel Grid.Row="1" Orientation="Horizontal" HorizontalAlignment="Right" Margin="0,8,0,0">
                        <TextBlock Text="Ctrl+Enter 发送" FontSize="10" Foreground="#888"
                                   VerticalAlignment="Center" Margin="0,0,10,0"/>
                        <Button x:Name="SendButton" Content="发送"
                                Style="{StaticResource ModernButton}" Click="SendButton_Click"
                                IsEnabled="True"/>
                    </StackPanel>
                </Grid>
            </Border>
        </Grid>

        <!-- 分隔线 -->
        <GridSplitter Grid.Column="1" HorizontalAlignment="Stretch" Background="#DDD"/>

        <!-- 右侧图表区域 -->
        <Grid Grid.Column="2">
            <Grid.RowDefinitions>
                <RowDefinition Height="40"/>
                <RowDefinition Height="*"/>
            </Grid.RowDefinitions>

            <!-- 图表标题 -->
            <Border Grid.Row="0" Background="White" BorderBrush="#DDD" BorderThickness="0,0,0,1">
                <TextBlock x:Name="ChartTitleText" Text="📈 数据可视化"
                           FontSize="14" FontWeight="Bold" Foreground="#333"
                           HorizontalAlignment="Center" VerticalAlignment="Center"/>
            </Border>

            <!-- 图表显示区域 -->
            <ScrollViewer Grid.Row="1" VerticalScrollBarVisibility="Auto" Background="#F9F9F9">
                <StackPanel x:Name="ChartPanel" Margin="10"/>
            </ScrollViewer>
        </Grid>
    </Grid>
</Window>

🎨 用户体验设计亮点

🗣️ 自然语言交互

用户可以直接输入：

"显示所有设备类型的统计"
"查询最近一周的报警趋势"
"生成设备状态分布饼图"

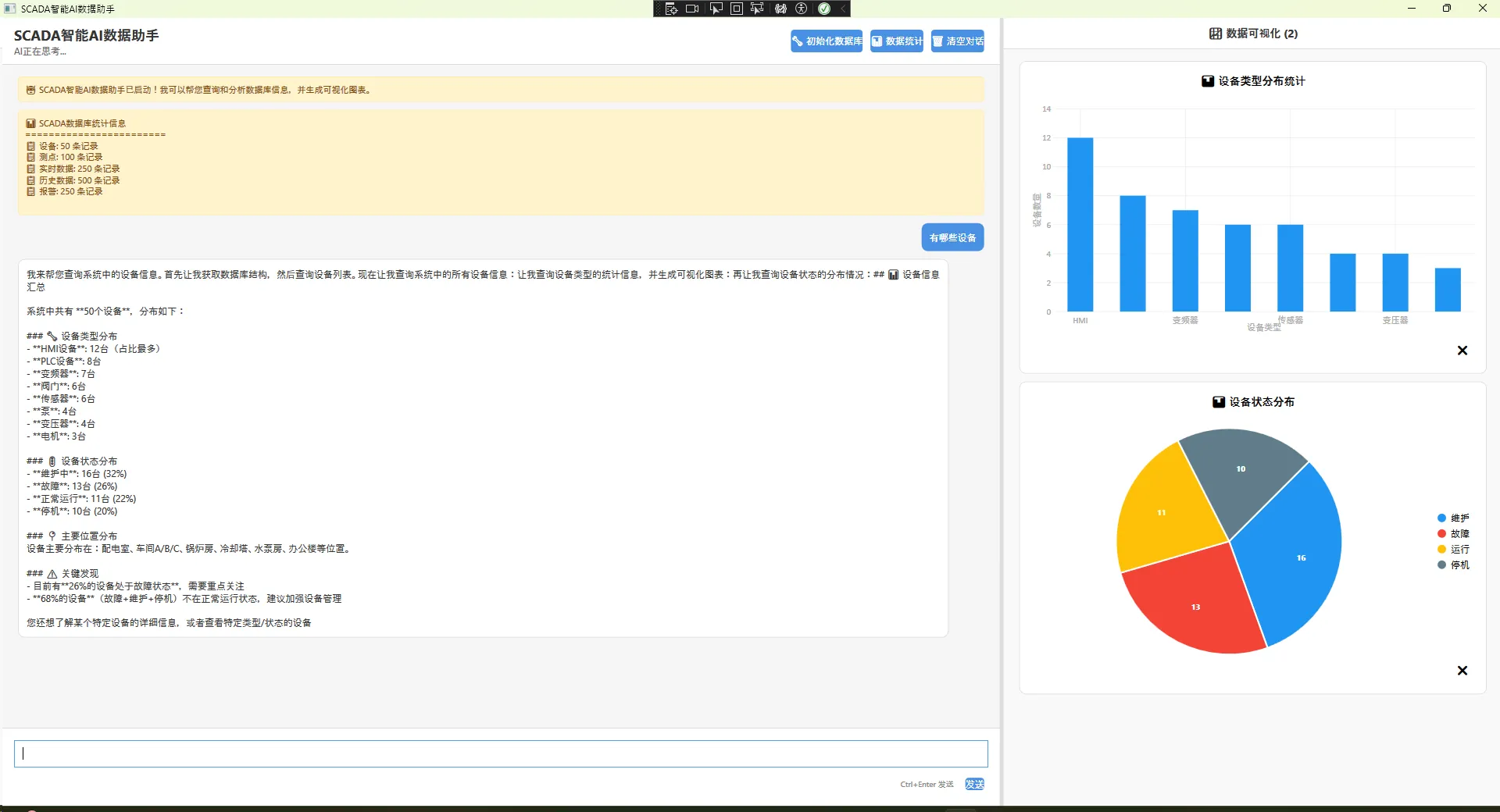

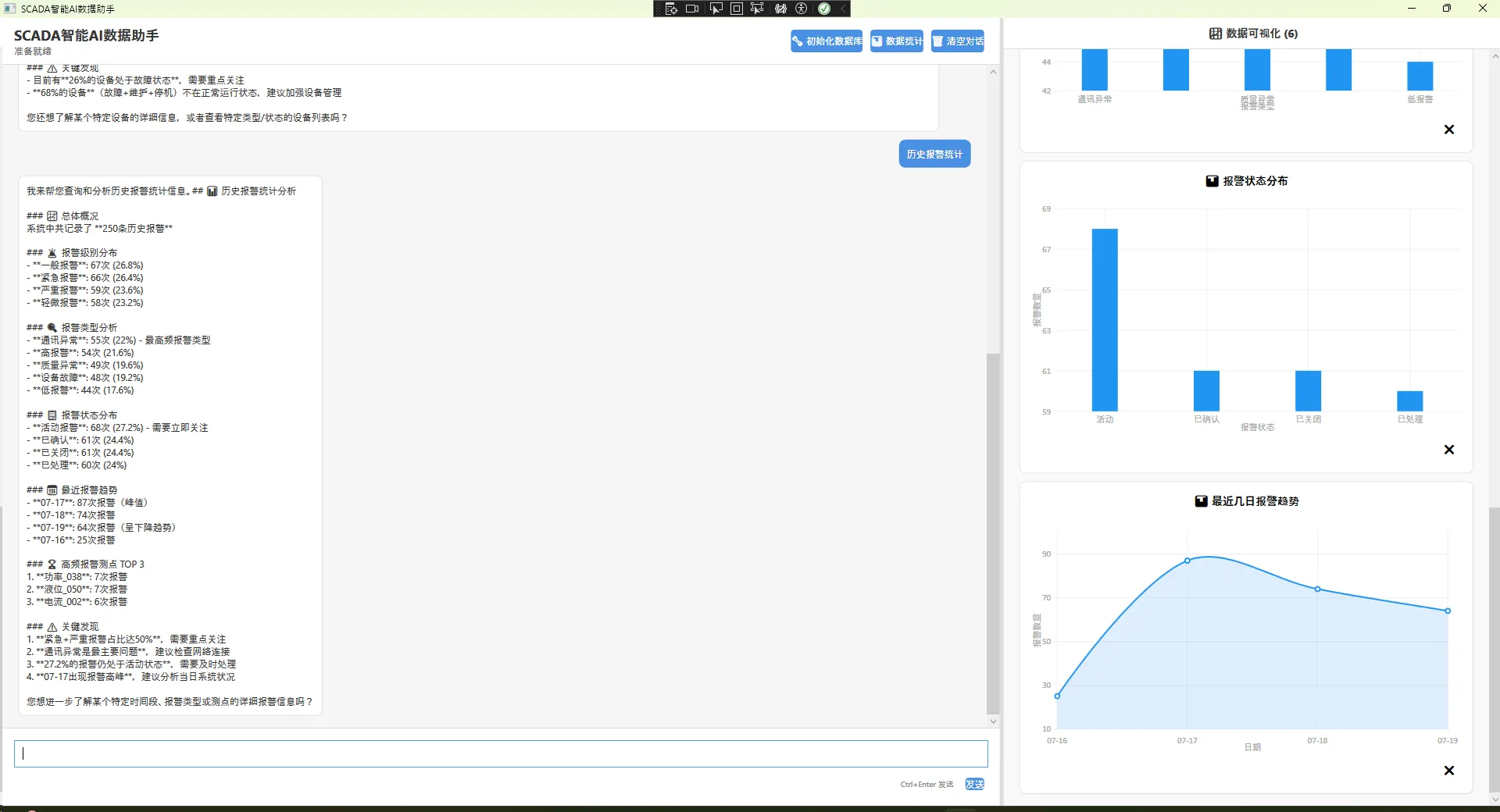

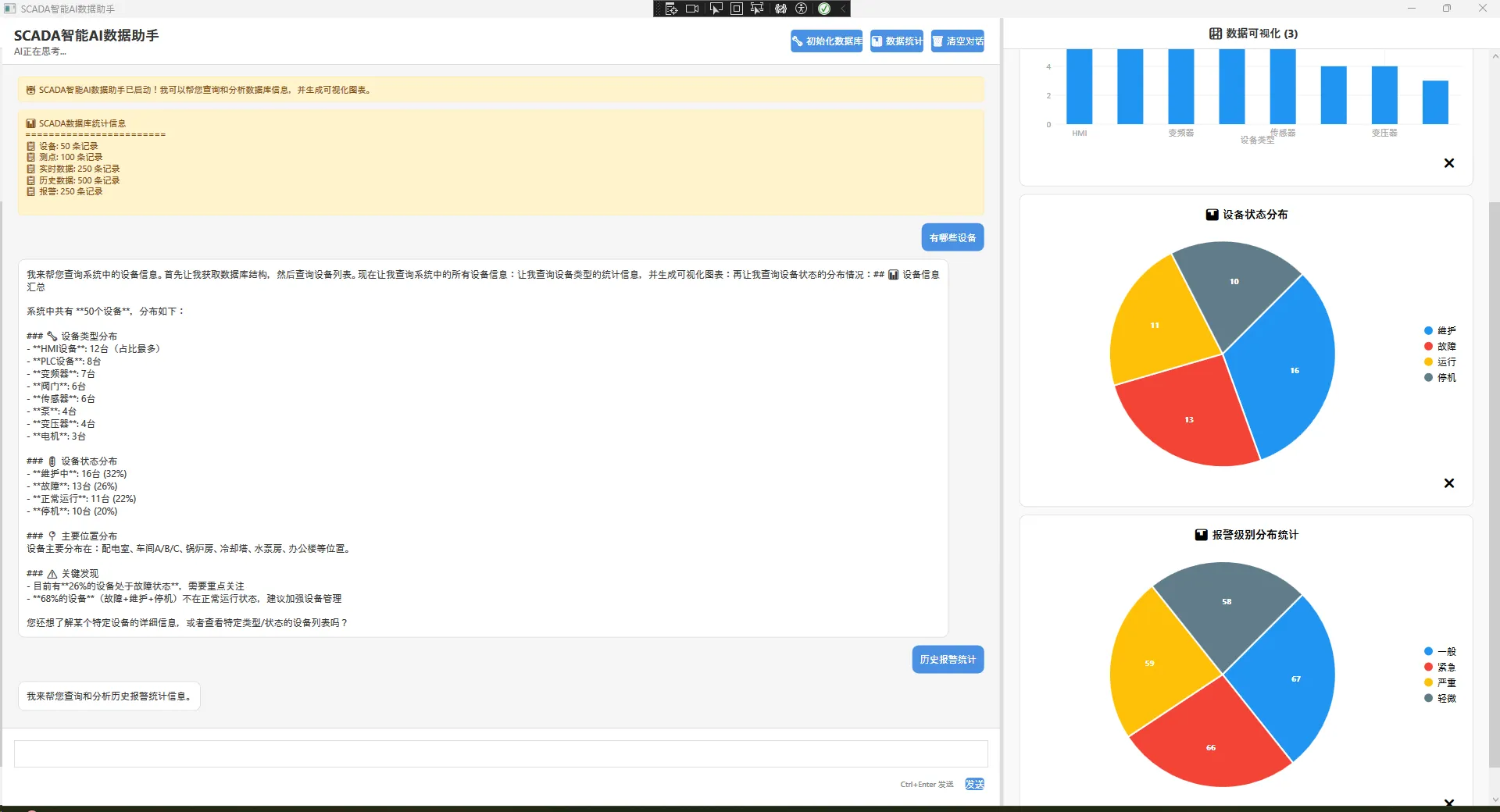

📊 智能图表推荐

系统会根据查询结果的数据特征，自动推荐最合适的图表类型：

C#
private bool ShouldSuggestChart(DataTable dt, string sql)
{
    // 数据行数适中且包含数值列
    if (dt.Rows.Count > 1 && dt.Rows.Count <= 20)
    {
        foreach (DataColumn col in dt.Columns)
        {
            if (col.DataType == typeof(int) || col.DataType == typeof(double))
                return true;
        }
    }

    // 包含聚合函数的查询
    var upperSql = sql.ToUpper();
    return upperSql.Contains("COUNT") || upperSql.Contains("SUM") ||
           upperSql.Contains("GROUP BY");
}

⚡ 性能优化技巧

🚀 异步处理优化

C#
private async Task ProcessAIResponse()
{
    var executionSettings = new OpenAIPromptExecutionSettings
    {
        ToolCallBehavior = ToolCallBehavior.AutoInvokeKernelFunctions,
        MaxTokens = 2000,
        Temperature = 0.7  // 平衡创造性和准确性
    };

    // 流式响应处理，提升用户体验
    var streamResponse = _chatCompletionService.GetStreamingChatMessageContentsAsync(
        chatHistory: _chatHistory,
        executionSettings: executionSettings,
        kernel: _kernel
    );

    string fullResponse = "";
    await foreach (var content in streamResponse)
    {
        if (!string.IsNullOrEmpty(content.Content))
        {
            fullResponse += content.Content;
            // 实时更新UI
            await Dispatcher.InvokeAsync(() => {
                responseTextBlock.Text = fullResponse;
                ScrollToBottom();
            });
            await Task.Delay(30);  // 控制更新频率
        }
    }
}

🔒 安全性保障

SQL注入防护：严格限制只允许SELECT语句
API密钥管理：使用环境变量存储敏感信息
数据验证：对用户输入进行严格校验

🌟 实际应用场景

🏭 工业生产监控

设备状态实时监控："显示车间A所有设备的运行状态"
能耗分析："生成本月各设备的能耗对比图"
故障趋势分析："查看最近30天的设备故障统计"

📊 数据可视化报告

自动报表生成：AI根据查询结果智能选择图表类型
交互式图表：用户可以动态添加、删除图表
多维度分析：支持柱状图、折线图、饼图等多种展示方式

🎯 技术总结与展望

🔥 三个核心技术亮点

插件化架构：通过Semantic Kernel的Function Calling机制，实现模块化扩展
流式AI响应：采用异步流处理，大幅提升用户交互体验
智能图表推荐：基于数据特征自动判断最适合的可视化方案

🚀 扩展方向建议

多数据源支持：扩展至MySQL、SQL Server等企业级数据库
更多图表类型：集成更复杂的统计图表和3D可视化
语音交互：结合语音识别技术，实现真正的"对话式"数据查询

这套解决方案完美诠释了**"让AI为开发者服务"**的理念，通过简单的自然语言就能完成复杂的数据查询和可视化任务。在工业互联网快速发展的今天，这样的智能化工具将大大提升工程师的工作效率。

你在SCADA系统开发中遇到过哪些数据查询和可视化的挑战？欢迎在评论区分享你的经验，或者说说你最希望AI帮你解决的技术难题！

💡 觉得这篇技术分享对你有帮助吗？请转发给更多需要的同行，让我们一起推动智能化开发技术的普及！

目录
