XAML基础之XAML代码组织最佳实践

文章中概述了 XAML 开发的六个关键主题，包括 XAML 文件的基本结构规范、资源的组织管理方式、命名空间的有效管理、样式与模板的管理策略、用户控件和自定义控件的开发指南，以及数据模板的最佳实践。这些主题涵盖了从基础架构到具体实现的各个方面，旨在帮助开发者构建结构清晰、易于维护的 WPF 应用程序，同时提供了提高开发效率和代码质量的实用指导。

XAML文件结构规范

基本结构示例

XML
<Window x:Class="MyApp.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="clr-namespace:MyApp"
        Title="MainWindow" Height="450" Width="800">

    <!-- 窗口资源字典 -->
    <Window.Resources>
        <!-- 这里放置窗口级别的资源 -->
    </Window.Resources>

    <!-- 根布局容器 -->
    <Grid>
        <!-- 内容布局 -->
    </Grid>
</Window>

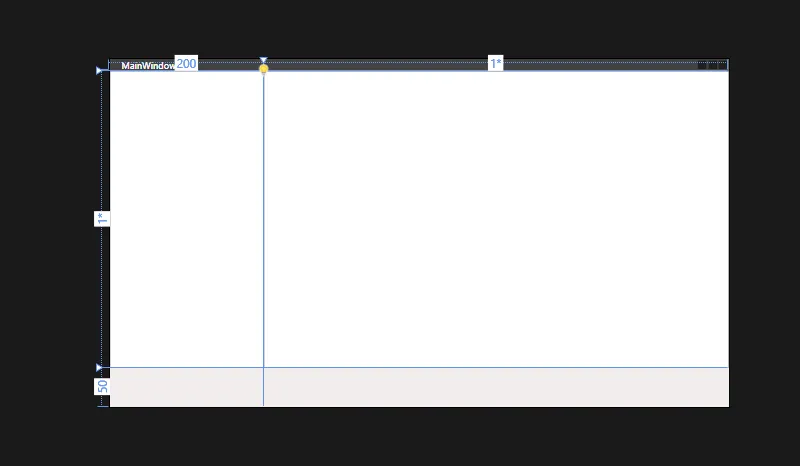

布局结构最佳实践

XML
<Grid>
    <!-- 1. 先定义行列 -->
    <Grid.RowDefinitions>
        <RowDefinition Height="Auto"/>
        <RowDefinition Height="*"/>
        <RowDefinition Height="50"/>
    </Grid.RowDefinitions>

    <Grid.ColumnDefinitions>
        <ColumnDefinition Width="200"/>
        <ColumnDefinition Width="*"/>
    </Grid.ColumnDefinitions>

    <!-- 2. 按照功能区域组织控件 -->
    <!-- 顶部区域 -->
    <StackPanel Grid.Row="0" Grid.ColumnSpan="2">
        <!-- 顶部内容 -->
    </StackPanel>

    <!-- 左侧导航 -->
    <ListBox Grid.Row="1" Grid.Column="0">
        <!-- 导航项 -->
    </ListBox>

    <!-- 主要内容区 -->
    <ContentControl Grid.Row="1" Grid.Column="1">
        <!-- 主要内容 -->
    </ContentControl>

    <!-- 底部状态栏 -->
    <StatusBar Grid.Row="2" Grid.ColumnSpan="2">
        <!-- 状态信息 -->
    </StatusBar>
</Grid>

资源组织方式

资源字典层次结构

XML
<Application x:Class="AppXAML.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:AppXAML"
             StartupUri="MainWindow.xaml">
    <Application.Resources>
        <!-- 1. 合并外部资源字典 -->
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <!-- 颜色主题资源字典 -->
                <ResourceDictionary Source="/Themes/Colors.xaml"/>
                <!-- 通用样式资源字典 -->
                <ResourceDictionary Source="/Themes/CommonStyles.xaml"/>
                <!-- 自定义控件样式资源字典 -->
                <ResourceDictionary Source="/Themes/CustomControls.xaml"/>
            </ResourceDictionary.MergedDictionaries>

            <!-- 2. 应用级全局资源 -->
            <SolidColorBrush x:Key="PrimaryBrush" Color="#FF1E90FF"/>
        </ResourceDictionary>
    </Application.Resources>
</Application>

颜色主题资源示例 (Colors.xaml)

XML
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml">
    <!-- 颜色定义 -->
    <Color x:Key="PrimaryColor">#FF1E90FF</Color>
    <Color x:Key="SecondaryColor">#FF6C757D</Color>

    <!-- 画刷定义 -->
    <SolidColorBrush x:Key="PrimaryBrush" Color="{StaticResource PrimaryColor}"/>
    <SolidColorBrush x:Key="SecondaryBrush" Color="{StaticResource SecondaryColor}"/>
</ResourceDictionary>

命名空间管理

命名空间声明最佳实践

XML
<Window x:Class="AppXAML.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:local="clr-namespace:AppXAML"
        xmlns:views="clr-namespace:AppXAML.Views"
        xmlns:vm="clr-namespace:MyApp.ViewModels"
        xmlns:controls="clr-namespace:AppXAML.Controls"
        xmlns:converters="clr-namespace:AppXAML.Converters"
        xmlns:behaviors="clr-namespace:AppXAML.Behaviors">
</Window>

样式和模板管理

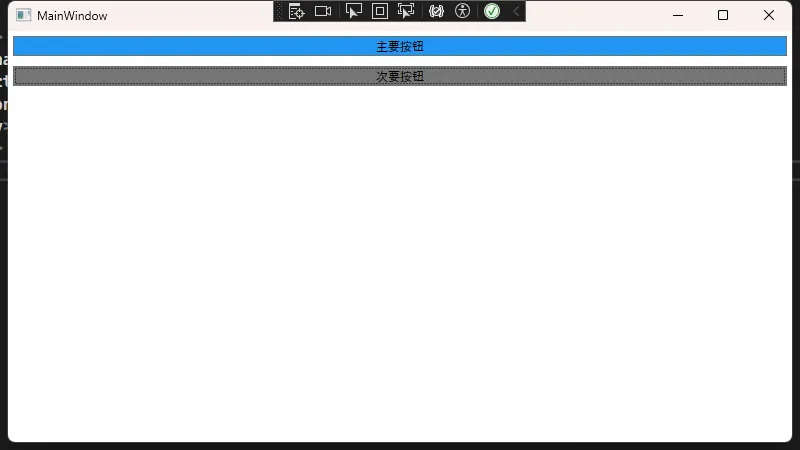

控件样式组织

XML
<!-- CommonStyles.xaml -->
<ResourceDictionary xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
                    xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
                    xmlns:local="clr-namespace:AppXAML">

    <!-- 添加颜色资源 -->
    <SolidColorBrush x:Key="PrimaryBrush" Color="#2196F3"/>
    <SolidColorBrush x:Key="SecondaryBrush" Color="#757575"/>

    <!-- 基础按钮样式 -->
    <Style x:Key="BaseButtonStyle" TargetType="Button">
        <Setter Property="Background" Value="{StaticResource PrimaryBrush}"/>
        <!-- 其余样式保持不变 -->
    </Style>

    <Style x:Key="SecondaryButtonStyle"
           TargetType="Button"
           BasedOn="{StaticResource BaseButtonStyle}">
        <Setter Property="Background" Value="{StaticResource SecondaryBrush}"/>
    </Style>
</ResourceDictionary>

XML
<Application x:Class="AppXAML.App"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:local="clr-namespace:AppXAML"
             StartupUri="MainWindow.xaml">
    <Application.Resources>
        <ResourceDictionary>
            <ResourceDictionary.MergedDictionaries>
                <ResourceDictionary Source="CommonStyles.xaml"/>
            </ResourceDictionary.MergedDictionaries>
        </ResourceDictionary>
    </Application.Resources>
</Application>

XML
<Window x:Class="AppXAML.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AppXAML"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <StackPanel>
        <Button Style="{StaticResource BaseButtonStyle}"
                Content="主要按钮"
                Margin="5"/>
        <Button Style="{StaticResource SecondaryButtonStyle}"
                Content="次要按钮"
                Margin="5"/>
    </StackPanel>
</Window>

用户控件和自定义控件

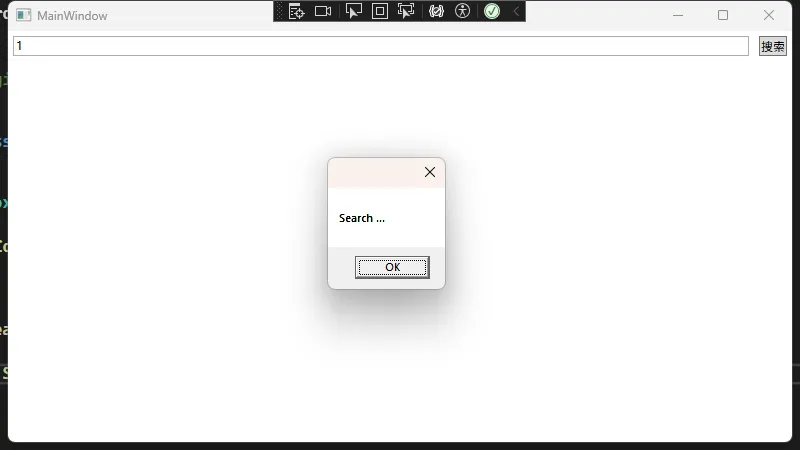

用户控件示例

XML
<!-- Controls/SearchBox.xaml -->
<UserControl x:Class="AppXAML.Controls.SearchBox"
             xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
             xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
             xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
             xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
             xmlns:local="clr-namespace:AppXAML.Controls"
             mc:Ignorable="d"
             d:DesignHeight="30" d:DesignWidth="800">
    <Grid>
        <Grid.ColumnDefinitions>
            <ColumnDefinition Width="*"/>
            <ColumnDefinition Width="Auto"/>
        </Grid.ColumnDefinitions>

        <!-- 搜索输入框 -->
        <TextBox x:Name="SearchInput"
                 Grid.Column="0"
                 Margin="5"/>

        <!-- 搜索按钮 -->
        <Button Grid.Column="1"
                Content="搜索"
                Margin="5"
                Click="SearchButton_Click"/>
    </Grid>
</UserControl>

XML
<Window x:Class="AppXAML.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AppXAML"
        xmlns:uc="clr-namespace:AppXAML.Controls"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800">
    <StackPanel>
        <uc:SearchBox></uc:SearchBox>
    </StackPanel>
</Window>

数据模板最佳实践

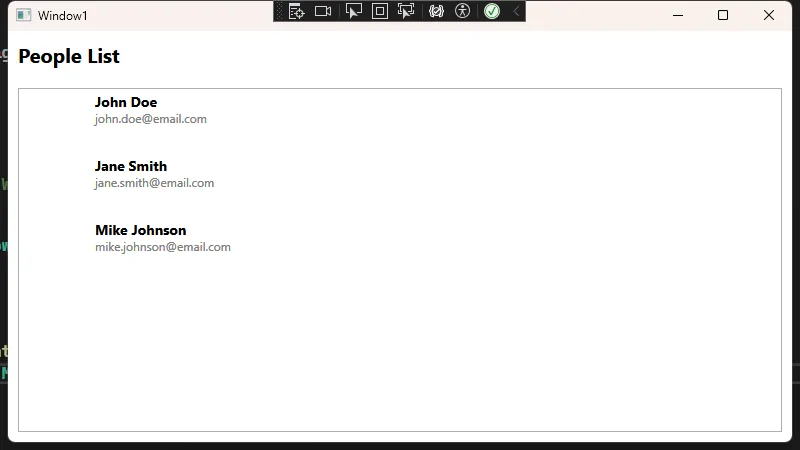

数据模板组织

XML
<Window x:Class="AppXAML.Window1"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AppXAML"
        mc:Ignorable="d"
        Title="Window1" Height="450" Width="800">
    <Window.Resources>
        <!-- 简单的数据模板 -->
        <DataTemplate x:Key="PersonTemplate">
            <StackPanel Orientation="Horizontal">
                <Image Source="{Binding PhotoUrl}"
                       Width="50"
                       Height="50"
                       Margin="5"/>
                <StackPanel Margin="10,0">
                    <TextBlock Text="{Binding Name}"
                              FontWeight="Bold"
                              FontSize="14"/>
                    <TextBlock Text="{Binding Email}"
                              Foreground="Gray"
                              FontSize="12"/>
                </StackPanel>
            </StackPanel>
        </DataTemplate>
    </Window.Resources>

    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
        </Grid.RowDefinitions>

        <TextBlock Text="People List"
                   FontSize="20"
                   FontWeight="Bold"
                   Margin="10"/>

        <!-- 使用数据模板 -->
        <ListBox Grid.Row="1"
                 ItemsSource="{Binding People}"
                 ItemTemplate="{StaticResource PersonTemplate}"
                 Margin="10"/>
    </Grid>
</Window>

C#
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;

namespace AppXAML
{
    public class MainViewModel
    {
        public ObservableCollection<Person> People { get; set; }

        public MainViewModel()
        {
            People = new ObservableCollection<Person>
        {
            new Person
            {
                Name = "John Doe",
                Email = "john.doe@email.com",
                PhotoUrl = "john.jpg"
            },
            new Person
            {
                Name = "Jane Smith",
                Email = "jane.smith@email.com",
                PhotoUrl = "jane.jpg"
            },
            new Person
            {
                Name = "Mike Johnson",
                Email = "mike.johnson@email.com",
                PhotoUrl = "mike.jpg"
            }
        };
        }
    }

    public class Person
    {
        public string Name { get; set; }
        public string Email { get; set; }
        public string PhotoUrl { get; set; }
    }
}

总结

XAML代码组织的最佳实践涵盖了五个核心方面：文件组织、命名规范、资源管理、性能优化和可维护性。通过将代码模块化分离、采用统一的命名约定、合理利用资源字典、优化性能配置，以及保持良好的代码维护习惯，可以显著提升WPF应用程序的开发质量。这些实践不仅有助于提高代码的可读性和可维护性，还能确保应用程序的高效运行和长期可扩展性。
