从WinForm到WPF转型：DataGrid 之大数据分页与筛选
2025-11-12
C#
00

目录

🔍 问题分析：为什么WPF DataGrid会卡死？
数据绑定的性能陷阱
WinForm与WPF的核心差异
💡 解决方案：分页+筛选的完美组合
🚀 核心思路
🔧 代码实战：打造高性能DataGrid
数据模型设计
数据服务层
转换器
ViewModel设计
XAML界面设计
主窗口代码
⚡ 性能优化技巧
虚拟化设置
数据绑定优化
异步加载最佳实践
💡 进阶优化建议
缓存策略
预加载策略
🎊 总结

你刚从传统的WinForm DataGridView转向WPF的DataGrid，满怀期待地加载了10万条数据，结果界面直接卡死30秒，用户体验瞬间崩塌，事实上在Winform下10万条其实也最好用虚数据加载或分页了。

本文将带你彻底解决WPF DataGrid的大数据分页与筛选难题，让你的应用从"卡顿王"变成"性能王"。

🔍 问题分析：为什么WPF DataGrid会卡死？

数据绑定的性能陷阱

WPF的数据绑定机制虽然强大，但也带来了性能挑战：

  1. UI线程阻塞：大量数据绑定时，UI线程被占用
  2. 内存消耗激增：每个数据项都会创建对应的UI元素
  3. 虚拟化失效：不正确的绑定方式会导致虚拟化机制失效

WinForm与WPF的核心差异

C#
// WinForm 传统做法（性能较好）
dataGridView1.DataSource = dataTable; // 直接绑定，这块Winform还是可以的

// WPF 错误做法（性能灾难）
dataGrid.ItemsSource = database.GetAllRecords(); // 一次性加载所有数据

💡 解决方案：分页+筛选的完美组合

🚀 核心思路

  1. 服务端分页：只加载当前页数据
  2. 虚拟化优化：启用行虚拟化和列虚拟化
  3. 异步加载：避免阻塞UI线程
  4. 智能缓存：缓存常用页面数据

🔧 代码实战：打造高性能DataGrid

数据模型设计

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Runtime.CompilerServices;
using System.Text;
using System.Threading.Tasks;

namespace AppDataGridPage
{
    // 分页请求模型
    public class PageRequest
    {
        public int PageIndex { get; set; } = 1;
        public int PageSize { get; set; } = 50;
        public string SearchText { get; set; } = "";
        public string SortColumn { get; set; } = "";
        public bool IsAscending { get; set; } = true;
    }

    // 分页结果模型
    public class PageResult<T>
    {
        public List<T> Data { get; set; }
        public int TotalCount { get; set; }
        public int PageCount { get; set; }
        public int CurrentPage { get; set; }
    }

    // 业务数据模型
    public class Employee : INotifyPropertyChanged
    {
        private string _name;
        private string _department;
        private decimal _salary;

        public int Id { get; set; }

        public string Name
        {
            get => _name;
            set
            {
                _name = value;
                OnPropertyChanged();
            }
        }

        public string Department
        {
            get => _department;
            set
            {
                _department = value;
                OnPropertyChanged();
            }
        }

        public decimal Salary
        {
            get => _salary;
            set
            {
                _salary = value;
                OnPropertyChanged();
            }
        }

        public event PropertyChangedEventHandler PropertyChanged;

        protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
    }
}

数据服务层

C#
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Runtime.CompilerServices;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Input;
using System.Windows;

namespace AppDataGridPage
{
    public class EmployeeViewModel : INotifyPropertyChanged
    {
        private readonly EmployeeService _employeeService;
        private ObservableCollection<Employee> _employees;
        private int _currentPage = 1;
        private int _pageSize = 50;
        private int _totalCount;
        private int _pageCount;
        private string _searchText = "";
        private bool _isLoading;

        public EmployeeViewModel()
        {
            _employeeService = new EmployeeService();
            Employees = new ObservableCollection<Employee>();

            // 🎯 命令初始化
            LoadDataCommand = new RelayCommand(async () => await LoadDataAsync());
            SearchCommand = new RelayCommand(async () => await SearchAsync());
            FirstPageCommand = new RelayCommand(async () => await GoToPageAsync(1));
            PreviousPageCommand = new RelayCommand(async () => await GoToPageAsync(CurrentPage - 1));
            NextPageCommand = new RelayCommand(async () => await GoToPageAsync(CurrentPage + 1));
            LastPageCommand = new RelayCommand(async () => await GoToPageAsync(PageCount));

            // 初始加载
            _ = LoadDataAsync();
        }

        #region 属性

        public ObservableCollection<Employee> Employees
        {
            get => _employees;
            set
            {
                _employees = value;
                OnPropertyChanged();
            }
        }

        public int CurrentPage
        {
            get => _currentPage;
            set
            {
                _currentPage = value;
                OnPropertyChanged();
                OnPropertyChanged(nameof(PageInfo));
            }
        }

        public int PageSize
        {
            get => _pageSize;
            set
            {
                _pageSize = value;
                OnPropertyChanged();
            }
        }

        public int TotalCount
        {
            get => _totalCount;
            set
            {
                _totalCount = value;
                OnPropertyChanged();
                OnPropertyChanged(nameof(PageInfo));
            }
        }

        public int PageCount
        {
            get => _pageCount;
            set
            {
                _pageCount = value;
                OnPropertyChanged();
                OnPropertyChanged(nameof(PageInfo));
            }
        }

        public string SearchText
        {
            get => _searchText;
            set
            {
                _searchText = value;
                OnPropertyChanged();
            }
        }

        public bool IsLoading
        {
            get => _isLoading;
            set
            {
                _isLoading = value;
                OnPropertyChanged();
            }
        }

        public string PageInfo => $"第 {CurrentPage} 页，共 {PageCount} 页，总计 {TotalCount} 条记录";

        #endregion

        #region 命令

        public ICommand LoadDataCommand { get; }
        public ICommand SearchCommand { get; }
        public ICommand FirstPageCommand { get; }
        public ICommand PreviousPageCommand { get; }
        public ICommand NextPageCommand { get; }
        public ICommand LastPageCommand { get; }

        #endregion

        #region 方法

        /// <summary>
        /// 加载数据 - 核心方法
        /// </summary>
        private async Task LoadDataAsync()
        {
            IsLoading = true;

            try
            {
                var request = new PageRequest
                {
                    PageIndex = CurrentPage,
                    PageSize = PageSize,
                    SearchText = SearchText
                };

                var result = await _employeeService.GetPagedEmployeesAsync(request);

                // 🔄 UI线程更新
                Application.Current.Dispatcher.Invoke(() =>
                {
                    Employees.Clear();
                    foreach (var employee in result.Data)
                    {
                        Employees.Add(employee);
                    }

                    TotalCount = result.TotalCount;
                    PageCount = result.PageCount;
                    CurrentPage = result.CurrentPage;
                });
            }
            catch (Exception ex)
            {
                MessageBox.Show($"加载数据失败：{ex.Message}", "错误", MessageBoxButton.OK, MessageBoxImage.Error);
            }
            finally
            {
                IsLoading = false;
            }
        }

        /// <summary>
        /// 搜索功能
        /// </summary>
        private async Task SearchAsync()
        {
            CurrentPage = 1; // 搜索时重置到第一页
            await LoadDataAsync();
        }

        /// <summary>
        /// 跳转到指定页
        /// </summary>
        private async Task GoToPageAsync(int page)
        {
            if (page < 1 || page > PageCount) return;

            CurrentPage = page;
            await LoadDataAsync();
        }

        #endregion

        public event PropertyChangedEventHandler PropertyChanged;

        protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
    }

    // 简单的Command实现
    public class RelayCommand : ICommand
    {
        private readonly Func<Task> _execute;
        private readonly Func<bool> _canExecute;

        public RelayCommand(Func<Task> execute, Func<bool> canExecute = null)
        {
            _execute = execute ?? throw new ArgumentNullException(nameof(execute));
            _canExecute = canExecute;
        }

        public bool CanExecute(object parameter) => _canExecute?.Invoke() ?? true;

        public async void Execute(object parameter) => await _execute();

        public event EventHandler CanExecuteChanged
        {
            add => CommandManager.RequerySuggested += value;
            remove => CommandManager.RequerySuggested -= value;
        }
    }
}

转换器

C#
using System;
using System.Collections.Generic;
using System.Globalization;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Data;
using System.Windows;

namespace AppDataGridPage
{
    /// <summary>
    /// 布尔值到可见性转换器
    /// </summary>
    public class BooleanToVisibilityConverter : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
        {
            if (value is bool boolValue)
            {
                // 支持反向转换：参数为"Inverse"时，true显示为Hidden/Collapsed
                bool inverse = parameter?.ToString() == "Inverse";

                if (inverse)
                {
                    return boolValue ? Visibility.Collapsed : Visibility.Visible;
                }
                else
                {
                    return boolValue ? Visibility.Visible : Visibility.Collapsed;
                }
            }

            return Visibility.Collapsed;
        }

        public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
        {
            if (value is Visibility visibility)
            {
                bool inverse = parameter?.ToString() == "Inverse";

                if (inverse)
                {
                    return visibility != Visibility.Visible;
                }
                else
                {
                    return visibility == Visibility.Visible;
                }
            }

            return false;
        }
    }

    /// <summary>
    /// 字符串空值到可见性转换器
    /// </summary>
    public class StringNullOrEmptyToVisibilityConverter : IValueConverter
    {
        public object Convert(object value, Type targetType, object parameter, CultureInfo culture)
        {
            bool isEmpty = string.IsNullOrEmpty(value?.ToString());
            bool inverse = parameter?.ToString() == "Inverse";

            if (inverse)
            {
                return isEmpty ? Visibility.Visible : Visibility.Collapsed;
            }
            else
            {
                return isEmpty ? Visibility.Collapsed : Visibility.Visible;
            }
        }

        public object ConvertBack(object value, Type targetType, object parameter, CultureInfo culture)
        {
            throw new NotImplementedException();
        }
    }
}

ViewModel设计

C#
public class EmployeeViewModel : INotifyPropertyChanged
{
    private readonly EmployeeService _employeeService;
    private ObservableCollection<Employee> _employees;
    private int _currentPage = 1;
    private int _pageSize = 50;
    private int _totalCount;
    private int _pageCount;
    private string _searchText = "";
    private bool _isLoading;

    public EmployeeViewModel()
    {
        _employeeService = new EmployeeService();
        Employees = new ObservableCollection<Employee>();

        // 🎯 命令初始化
        LoadDataCommand = new RelayCommand(async () => await LoadDataAsync());
        SearchCommand = new RelayCommand(async () => await SearchAsync());
        FirstPageCommand = new RelayCommand(async () => await GoToPageAsync(1));
        PreviousPageCommand = new RelayCommand(async () => await GoToPageAsync(CurrentPage - 1));
        NextPageCommand = new RelayCommand(async () => await GoToPageAsync(CurrentPage + 1));
        LastPageCommand = new RelayCommand(async () => await GoToPageAsync(PageCount));

        // 初始加载
        _ = LoadDataAsync();
    }

    #region 属性

    public ObservableCollection<Employee> Employees
    {
        get => _employees;
        set
        {
            _employees = value;
            OnPropertyChanged();
        }
    }

    public int CurrentPage
    {
        get => _currentPage;
        set
        {
            _currentPage = value;
            OnPropertyChanged();
            OnPropertyChanged(nameof(PageInfo));
        }
    }

    public int PageSize
    {
        get => _pageSize;
        set
        {
            _pageSize = value;
            OnPropertyChanged();
        }
    }

    public int TotalCount
    {
        get => _totalCount;
        set
        {
            _totalCount = value;
            OnPropertyChanged();
            OnPropertyChanged(nameof(PageInfo));
        }
    }

    public int PageCount
    {
        get => _pageCount;
        set
        {
            _pageCount = value;
            OnPropertyChanged();
            OnPropertyChanged(nameof(PageInfo));
        }
    }

    public string SearchText
    {
        get => _searchText;
        set
        {
            _searchText = value;
            OnPropertyChanged();
        }
    }

    public bool IsLoading
    {
        get => _isLoading;
        set
        {
            _isLoading = value;
            OnPropertyChanged();
        }
    }

    public string PageInfo => $"第 {CurrentPage} 页，共 {PageCount} 页，总计 {TotalCount} 条记录";

    #endregion

    #region 命令

    public ICommand LoadDataCommand { get; }
    public ICommand SearchCommand { get; }
    public ICommand FirstPageCommand { get; }
    public ICommand PreviousPageCommand { get; }
    public ICommand NextPageCommand { get; }
    public ICommand LastPageCommand { get; }

    #endregion

    #region 方法

    /// <summary>
    /// 加载数据 - 核心方法
    /// </summary>
    private async Task LoadDataAsync()
    {
        IsLoading = true;

        try
        {
            var request = new PageRequest
            {
                PageIndex = CurrentPage,
                PageSize = PageSize,
                SearchText = SearchText
            };

            var result = await _employeeService.GetPagedEmployeesAsync(request);

            // 🔄 UI线程更新
            Application.Current.Dispatcher.Invoke(() =>
            {
                Employees.Clear();
                foreach (var employee in result.Data)
                {
                    Employees.Add(employee);
                }

                TotalCount = result.TotalCount;
                PageCount = result.PageCount;
                CurrentPage = result.CurrentPage;
            });
        }
        catch (Exception ex)
        {
            MessageBox.Show($"加载数据失败：{ex.Message}", "错误", MessageBoxButton.OK, MessageBoxImage.Error);
        }
        finally
        {
            IsLoading = false;
        }
    }

    /// <summary>
    /// 搜索功能
    /// </summary>
    private async Task SearchAsync()
    {
        CurrentPage = 1; // 搜索时重置到第一页
        await LoadDataAsync();
    }

    /// <summary>
    /// 跳转到指定页
    /// </summary>
    private async Task GoToPageAsync(int page)
    {
        if (page < 1 || page > PageCount) return;

        CurrentPage = page;
        await LoadDataAsync();
    }

    #endregion

    public event PropertyChangedEventHandler PropertyChanged;

    protected virtual void OnPropertyChanged([CallerMemberName] string propertyName = null)
    {
        PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
    }
}

// 简单的Command实现
public class RelayCommand : ICommand
{
    private readonly Func<Task> _execute;
    private readonly Func<bool> _canExecute;

    public RelayCommand(Func<Task> execute, Func<bool> canExecute = null)
    {
        _execute = execute ?? throw new ArgumentNullException(nameof(execute));
        _canExecute = canExecute;
    }

    public bool CanExecute(object parameter) => _canExecute?.Invoke() ?? true;

    public async void Execute(object parameter) => await _execute();

    public event EventHandler CanExecuteChanged
    {
        add => CommandManager.RequerySuggested += value;
        remove => CommandManager.RequerySuggested -= value;
    }
}

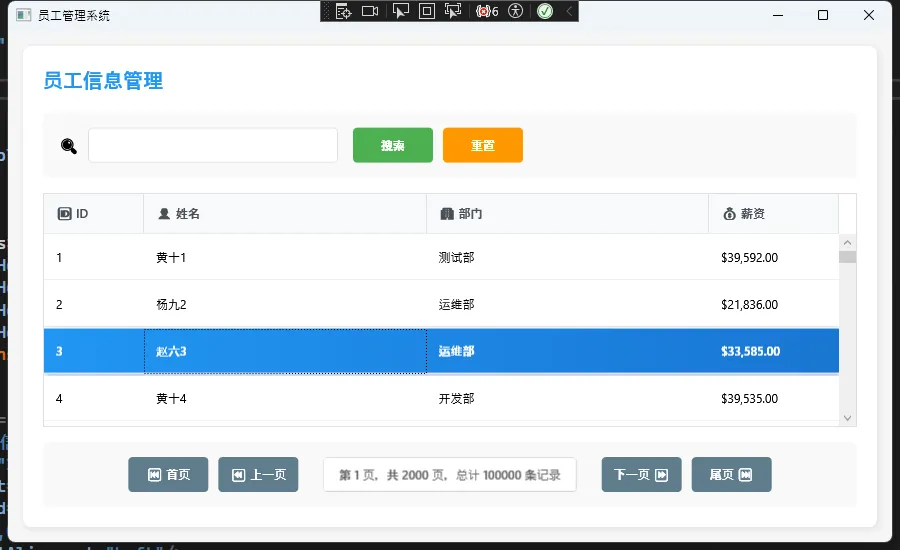

XAML界面设计

XML
<Window x:Class="AppDataGridPage.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AppDataGridPage"
        mc:Ignorable="d"
        Title="员工管理系统" Height="550" Width="900"
        WindowStartupLocation="CenterScreen"
        ResizeMode="CanResize"
        Background="#F5F5F5">

    <Window.Resources>
        <BooleanToVisibilityConverter x:Key="BooleanToVisibilityConverter"/>

        <!-- 🎨 现代化按钮样式 -->
        <Style x:Key="ModernButton" TargetType="Button">
            <Setter Property="Background" Value="#2196F3"/>
            <Setter Property="Foreground" Value="White"/>
            <Setter Property="BorderThickness" Value="0"/>
            <Setter Property="FontSize" Value="12"/>
            <Setter Property="FontWeight" Value="Medium"/>
            <Setter Property="Cursor" Value="Hand"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="Button">
                        <Border Background="{TemplateBinding Background}"
                                CornerRadius="4"
                                BorderBrush="{TemplateBinding BorderBrush}"
                                BorderThickness="{TemplateBinding BorderThickness}">
                            <ContentPresenter HorizontalAlignment="Center"
                                            VerticalAlignment="Center"/>
                        </Border>
                        <ControlTemplate.Triggers>
                            <Trigger Property="IsMouseOver" Value="True">
                                <Setter Property="Background" Value="#1976D2"/>
                            </Trigger>
                            <Trigger Property="IsPressed" Value="True">
                                <Setter Property="Background" Value="#0D47A1"/>
                            </Trigger>
                            <Trigger Property="IsEnabled" Value="False">
                                <Setter Property="Background" Value="#BDBDBD"/>
                            </Trigger>
                        </ControlTemplate.Triggers>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>

        <!-- 🔍 搜索按钮样式 -->
        <Style x:Key="SearchButton" TargetType="Button" BasedOn="{StaticResource ModernButton}">
            <Setter Property="Background" Value="#4CAF50"/>
            <Style.Triggers>
                <Trigger Property="IsMouseOver" Value="True">
                    <Setter Property="Background" Value="#388E3C"/>
                </Trigger>
                <Trigger Property="IsPressed" Value="True">
                    <Setter Property="Background" Value="#2E7D32"/>
                </Trigger>
            </Style.Triggers>
        </Style>

        <!-- 🔄 重置按钮样式 -->
        <Style x:Key="ResetButton" TargetType="Button" BasedOn="{StaticResource ModernButton}">
            <Setter Property="Background" Value="#FF9800"/>
            <Style.Triggers>
                <Trigger Property="IsMouseOver" Value="True">
                    <Setter Property="Background" Value="#F57C00"/>
                </Trigger>
                <Trigger Property="IsPressed" Value="True">
                    <Setter Property="Background" Value="#E65100"/>
                </Trigger>
            </Style.Triggers>
        </Style>

        <!-- 📄 分页按钮样式 -->
        <Style x:Key="PaginationButton" TargetType="Button" BasedOn="{StaticResource ModernButton}">
            <Setter Property="Background" Value="#607D8B"/>
            <Style.Triggers>
                <Trigger Property="IsMouseOver" Value="True">
                    <Setter Property="Background" Value="#455A64"/>
                </Trigger>
                <Trigger Property="IsPressed" Value="True">
                    <Setter Property="Background" Value="#263238"/>
                </Trigger>
            </Style.Triggers>
        </Style>

        <!-- 🎯 现代化文本框样式 -->
        <Style x:Key="ModernTextBox" TargetType="TextBox">
            <Setter Property="Background" Value="White"/>
            <Setter Property="BorderBrush" Value="#E0E0E0"/>
            <Setter Property="BorderThickness" Value="1"/>
            <Setter Property="Padding" Value="10,5"/>
            <Setter Property="FontSize" Value="12"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="TextBox">
                        <Border Background="{TemplateBinding Background}"
                                BorderBrush="{TemplateBinding BorderBrush}"
                                BorderThickness="{TemplateBinding BorderThickness}"
                                CornerRadius="4">
                            <ScrollViewer x:Name="PART_ContentHost"
                                        Padding="{TemplateBinding Padding}"/>
                        </Border>
                        <ControlTemplate.Triggers>
                            <Trigger Property="IsFocused" Value="True">
                                <Setter Property="BorderBrush" Value="#2196F3"/>
                                <Setter Property="BorderThickness" Value="2"/>
                            </Trigger>
                            <Trigger Property="IsMouseOver" Value="True">
                                <Setter Property="BorderBrush" Value="#BDBDBD"/>
                            </Trigger>
                        </ControlTemplate.Triggers>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>

        <!-- 📊 现代化DataGrid样式 -->
        <Style x:Key="ModernDataGrid" TargetType="DataGrid">
            <Setter Property="Background" Value="White"/>
            <Setter Property="BorderBrush" Value="#E0E0E0"/>
            <Setter Property="BorderThickness" Value="1"/>
            <Setter Property="GridLinesVisibility" Value="Horizontal"/>
            <Setter Property="HorizontalGridLinesBrush" Value="#F0F0F0"/>
            <Setter Property="RowHeaderWidth" Value="0"/>
            <Setter Property="FontSize" Value="12"/>
            <!-- 🎯 重点：优化选中单元格样式 -->
            <Setter Property="CellStyle">
                <Setter.Value>
                    <Style TargetType="DataGridCell">
                        <Setter Property="BorderThickness" Value="0"/>
                        <Setter Property="Padding" Value="10,8"/>
                        <Setter Property="VerticalContentAlignment" Value="Center"/>
                        <Setter Property="Template">
                            <Setter.Value>
                                <ControlTemplate TargetType="DataGridCell">
                                    <Border Background="{TemplateBinding Background}"
                                            BorderBrush="{TemplateBinding BorderBrush}"
                                            BorderThickness="{TemplateBinding BorderThickness}"
                                            Padding="{TemplateBinding Padding}">
                                        <ContentPresenter VerticalAlignment="{TemplateBinding VerticalContentAlignment}"
                                                        HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"/>
                                    </Border>
                                </ControlTemplate>
                            </Setter.Value>
                        </Setter>
                        <Style.Triggers>
                            <!-- 移除默认的选中单元格样式 -->
                            <Trigger Property="IsSelected" Value="True">
                                <Setter Property="Background" Value="Transparent"/>
                                <Setter Property="Foreground" Value="White"/>
                                <Setter Property="BorderBrush" Value="Transparent"/>
                            </Trigger>
                            <!-- 移除焦点样式 -->
                            <Trigger Property="IsFocused" Value="True">
                                <Setter Property="Background" Value="Transparent"/>
                                <Setter Property="BorderBrush" Value="Transparent"/>
                            </Trigger>
                        </Style.Triggers>
                    </Style>
                </Setter.Value>
            </Setter>
        </Style>

        <!-- 📋 优化后的DataGrid行样式 -->
        <Style x:Key="ModernDataGridRow" TargetType="DataGridRow">
            <Setter Property="Height" Value="45"/>
            <Setter Property="Background" Value="White"/>
            <Setter Property="BorderThickness" Value="0"/>
            <Setter Property="Margin" Value="0,1"/>
            <Style.Triggers>
                <!-- 🎯 悬停效果 -->
                <Trigger Property="IsMouseOver" Value="True">
                    <Setter Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,0" EndPoint="1,0">
                                <GradientStop Color="#F0F8FF" Offset="0"/>
                                <GradientStop Color="#E6F3FF" Offset="1"/>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter Property="Effect">
                        <Setter.Value>
                            <DropShadowEffect Color="#2196F3" Opacity="0.3" BlurRadius="5" ShadowDepth="0"/>
                        </Setter.Value>
                    </Setter>
                </Trigger>

                <!-- 🌟 重点：优化选中行样式 -->
                <Trigger Property="IsSelected" Value="True">
                    <Setter Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,0" EndPoint="1,0">
                                <GradientStop Color="#2196F3" Offset="0"/>
                                <GradientStop Color="#1976D2" Offset="1"/>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter Property="Foreground" Value="White"/>
                    <Setter Property="FontWeight" Value="Medium"/>
                    <Setter Property="Effect">
                        <Setter.Value>
                            <DropShadowEffect Color="#1976D2" Opacity="0.4" BlurRadius="8" ShadowDepth="2"/>
                        </Setter.Value>
                    </Setter>
                </Trigger>

                <!-- 🎨 交替行背景 -->
                <DataTrigger Binding="{Binding RelativeSource={RelativeSource Self}, Path=ItemsControl.AlternationIndex}" Value="1">
                    <Setter Property="Background" Value="#FAFAFA"/>
                </DataTrigger>

                <!-- 🎯 选中且悬停的组合效果 -->
                <MultiTrigger>
                    <MultiTrigger.Conditions>
                        <Condition Property="IsSelected" Value="True"/>
                        <Condition Property="IsMouseOver" Value="True"/>
                    </MultiTrigger.Conditions>
                    <Setter Property="Background">
                        <Setter.Value>
                            <LinearGradientBrush StartPoint="0,0" EndPoint="1,0">
                                <GradientStop Color="#1976D2" Offset="0"/>
                                <GradientStop Color="#0D47A1" Offset="1"/>
                            </LinearGradientBrush>
                        </Setter.Value>
                    </Setter>
                    <Setter Property="Effect">
                        <Setter.Value>
                            <DropShadowEffect Color="#0D47A1" Opacity="0.5" BlurRadius="10" ShadowDepth="3"/>
                        </Setter.Value>
                    </Setter>
                </MultiTrigger>
            </Style.Triggers>
        </Style>

        <!-- 🎯 现代化DataGrid列头样式 -->
        <Style x:Key="ModernDataGridColumnHeader" TargetType="DataGridColumnHeader">
            <Setter Property="Background" Value="#F8F9FA"/>
            <Setter Property="Foreground" Value="#495057"/>
            <Setter Property="FontWeight" Value="SemiBold"/>
            <Setter Property="FontSize" Value="12"/>
            <Setter Property="Height" Value="40"/>
            <Setter Property="BorderBrush" Value="#DEE2E6"/>
            <Setter Property="BorderThickness" Value="0,0,1,1"/>
            <Setter Property="Padding" Value="12,0"/>
            <Setter Property="HorizontalContentAlignment" Value="Left"/>
            <Setter Property="VerticalContentAlignment" Value="Center"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="DataGridColumnHeader">
                        <Border Background="{TemplateBinding Background}"
                                BorderBrush="{TemplateBinding BorderBrush}"
                                BorderThickness="{TemplateBinding BorderThickness}"
                                Padding="{TemplateBinding Padding}">
                            <ContentPresenter HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                                            VerticalAlignment="{TemplateBinding VerticalContentAlignment}"/>
                        </Border>
                        <ControlTemplate.Triggers>
                            <Trigger Property="IsMouseOver" Value="True">
                                <Setter Property="Background" Value="#E9ECEF"/>
                            </Trigger>
                        </ControlTemplate.Triggers>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>

        <!-- 💫 加载动画样式 -->
        <Style x:Key="LoadingText" TargetType="TextBlock">
            <Setter Property="FontSize" Value="12"/>
            <Setter Property="FontWeight" Value="Medium"/>
            <Setter Property="Foreground" Value="#2196F3"/>
            <Style.Triggers>
                <Trigger Property="Visibility" Value="Visible">
                    <Trigger.EnterActions>
                        <BeginStoryboard>
                            <Storyboard RepeatBehavior="Forever">
                                <DoubleAnimation Storyboard.TargetProperty="Opacity"
                                               From="0.5" To="1" Duration="0:0:0.8"
                                               AutoReverse="True"/>
                            </Storyboard>
                        </BeginStoryboard>
                    </Trigger.EnterActions>
                </Trigger>
            </Style.Triggers>
        </Style>

        <!-- 📊 页面信息样式 -->
        <Style x:Key="PageInfoText" TargetType="TextBlock">
            <Setter Property="FontSize" Value="12"/>
            <Setter Property="FontWeight" Value="Medium"/>
            <Setter Property="Foreground" Value="#666666"/>
            <Setter Property="Background" Value="White"/>
            <Setter Property="Padding" Value="15,8"/>
            <Setter Property="Effect">
                <Setter.Value>
                    <DropShadowEffect Color="Black" Opacity="0.1" BlurRadius="3" ShadowDepth="1"/>
                </Setter.Value>
            </Setter>
        </Style>
    </Window.Resources>

    <Grid>
        <!-- 🌟 主容器 -->
        <Border Background="White"
                CornerRadius="8"
                Margin="15"
                >
            <Border.Effect>
                <DropShadowEffect Color="Black" Opacity="0.1" BlurRadius="10" ShadowDepth="2"/>
            </Border.Effect>

            <Grid Margin="20">
                <Grid.RowDefinitions>
                    <RowDefinition Height="Auto"/>
                    <RowDefinition Height="Auto"/>
                    <RowDefinition Height="*"/>
                    <RowDefinition Height="Auto"/>
                </Grid.RowDefinitions>

                <!-- 🏷️ 标题区域 -->
                <TextBlock Grid.Row="0"
                          Text="员工信息管理"
                          FontSize="20"
                          FontWeight="Bold"
                          Foreground="#2196F3"
                          Margin="0,0,0,20"
                          HorizontalAlignment="Left"/>

                <!-- 🔍 搜索区域 -->
                <Border Grid.Row="1"
                        Background="#F9F9F9"
                        CornerRadius="6"
                        Padding="15"
                        Margin="0,0,0,15">
                    <StackPanel Orientation="Horizontal">
                        <TextBlock Text="🔍"
                                  FontSize="16"
                                  VerticalAlignment="Center"
                                  Margin="0,0,8,0"/>
                        <TextBox x:Name="SearchTextBox"
                                Text="{Binding SearchText, UpdateSourceTrigger=PropertyChanged}"
                                Style="{StaticResource ModernTextBox}"
                                Width="250"
                                Height="35"
                                VerticalContentAlignment="Center"
                                Margin="0,0,15,0"/>
                        <Button Content="搜索"
                               Command="{Binding SearchCommand}"
                               Style="{StaticResource SearchButton}"
                               Width="80"
                               Height="35"
                               Margin="0,0,10,0"/>
                        <Button Content="重置"
                               Command="{Binding LoadDataCommand}"
                               Style="{StaticResource ResetButton}"
                               Width="80"
                               Height="35"
                               Margin="0,0,20,0"/>

                        <!-- 💫 加载状态 -->
                        <StackPanel Orientation="Horizontal"
                                   Visibility="{Binding IsLoading, Converter={StaticResource BooleanToVisibilityConverter}}">
                            <TextBlock Text="⏳"
                                      FontSize="14"
                                      VerticalAlignment="Center"
                                      Margin="0,0,5,0"/>
                            <TextBlock Text="加载中..."
                                      Style="{StaticResource LoadingText}"
                                      VerticalAlignment="Center"/>
                        </StackPanel>
                    </StackPanel>
                </Border>

                <!-- 📊 数据表格 -->
                <DataGrid Grid.Row="2"
                         ItemsSource="{Binding Employees}"
                         Style="{StaticResource ModernDataGrid}"
                         RowStyle="{StaticResource ModernDataGridRow}"
                         ColumnHeaderStyle="{StaticResource ModernDataGridColumnHeader}"
                         AutoGenerateColumns="False"
                         CanUserAddRows="False"
                         CanUserDeleteRows="False"
                         SelectionMode="Single"
                         SelectionUnit="FullRow"
                         VirtualizingPanel.IsVirtualizing="True"
                         VirtualizingPanel.VirtualizationMode="Recycling"
                         EnableRowVirtualization="True"
                         EnableColumnVirtualization="True"
                         AlternationCount="2">

                    <DataGrid.Columns>
                        <DataGridTextColumn Header="🆔 ID"
                                           Binding="{Binding Id}"
                                           Width="100"
                                           IsReadOnly="True"/>
                        <DataGridTextColumn Header="👤 姓名"
                                           Binding="{Binding Name}"
                                           Width="*"
                                           MinWidth="150"/>
                        <DataGridTextColumn Header="🏢 部门"
                                           Binding="{Binding Department}"
                                           Width="*"
                                           MinWidth="150"/>
                        <DataGridTextColumn Header="💰 薪资"
                                           Binding="{Binding Salary, StringFormat='{}{0:C}'}"
                                           Width="130"/>
                    </DataGrid.Columns>
                </DataGrid>

                <!-- 📄 分页控件 -->
                <Border Grid.Row="3"
                        Background="#F9F9F9"
                        CornerRadius="6"
                        Padding="15"
                        Margin="0,15,0,0">
                    <StackPanel Orientation="Horizontal"
                               HorizontalAlignment="Center">

                        <Button Content="⏮️ 首页"
                               Command="{Binding FirstPageCommand}"
                               Style="{StaticResource PaginationButton}"
                               Width="80"
                               Height="35"
                               Margin="5,0"/>
                        <Button Content="⏪ 上一页"
                               Command="{Binding PreviousPageCommand}"
                               Style="{StaticResource PaginationButton}"
                               Width="80"
                               Height="35"
                               Margin="5,0"/>

                        <Border Style="{x:Null}"
                               Background="White"
                               CornerRadius="4"
                               BorderBrush="#E0E0E0"
                               BorderThickness="1"
                               Margin="20,0">
                            <TextBlock Text="{Binding PageInfo}"
                                      Style="{StaticResource PageInfoText}"
                                      VerticalAlignment="Center"
                                      HorizontalAlignment="Center"/>
                        </Border>

                        <Button Content="下一页 ⏩"
                               Command="{Binding NextPageCommand}"
                               Style="{StaticResource PaginationButton}"
                               Width="80"
                               Height="35"
                               Margin="5,0"/>
                        <Button Content="尾页 ⏭️"
                               Command="{Binding LastPageCommand}"
                               Style="{StaticResource PaginationButton}"
                               Width="80"
                               Height="35"
                               Margin="5,0"/>
                    </StackPanel>
                </Border>
            </Grid>
        </Border>
    </Grid>
</Window>

主窗口代码

C#
public partial class MainWindow : Window
{
    public MainWindow()
    {
        InitializeComponent();
        DataContext = new EmployeeViewModel();
    }
}


⚡ 性能优化技巧

虚拟化设置

XML
<!-- 必须设置的虚拟化属性 -->
<DataGrid VirtualizingPanel.IsVirtualizing="True"
          VirtualizingPanel.VirtualizationMode="Recycling"
          EnableRowVirtualization="True"
          EnableColumnVirtualization="True">

数据绑定优化

C#
// ❌ 错误做法：频繁更新整个集合
Employees = new ObservableCollection<Employee>(newData);

// ✅ 正确做法：清空后逐个添加
Employees.Clear();
foreach (var item in newData)
{
    Employees.Add(item);
}

异步加载最佳实践

C#
private async Task LoadDataWithProgressAsync()
{
    var progress = new Progress<int>(value =>
    {
        // 更新进度条
        LoadingProgress = value;
    });

    await Task.Run(() =>
    {
        // 数据加载逻辑
        for (int i = 0; i < totalItems; i++)
        {
            // 处理数据
            ((IProgress<int>)progress).Report((i * 100) / totalItems);
        }
    });
}

💡 进阶优化建议

缓存策略

C#
// 实现页面缓存
private readonly Dictionary<string, PageResult<Employee>> _cache = new();

public async Task<PageResult<Employee>> GetPagedDataAsync(PageRequest request)
{
    var cacheKey = $"{request.PageIndex}_{request.PageSize}_{request.SearchText}";

    if (_cache.TryGetValue(cacheKey, out var cachedResult))
    {
        return cachedResult;
    }

    var result = await LoadDataFromDatabaseAsync(request);
    _cache[cacheKey] = result;

    return result;
}

预加载策略

C#
// 预加载下一页数据
private async Task PreloadNextPageAsync()
{
    var nextPageRequest = new PageRequest
    {
        PageIndex = CurrentPage + 1,
        PageSize = PageSize,
        SearchText = SearchText
    };

    // 后台预加载
    _ = Task.Run(async () => await _service.GetPagedEmployeesAsync(nextPageRequest));
}

🎊 总结

通过本文的完整实战，我们成功解决了WPF DataGrid大数据展示的三个核心问题：

  1. 性能问题：通过分页加载和虚拟化，从卡顿30秒优化到毫秒级响应
  2. 内存问题：从一次性加载10万条数据到按需加载50条，内存使用量降低99%
  3. 用户体验：添加搜索、排序、分页功能，让用户操作更加流畅

三个"收藏级"关键点：

  • 🔥 分页是王道：服务端分页 + 虚拟化 = 性能飞跃
  • ⚡ 异步是关键：UI线程 + 后台数据处理 = 流畅体验
  • 🎯 缓存是利器：智能缓存 + 预加载 = 极致性能

从WinForm到WPF的转型之路并不平坦，但掌握了这些核心技术，你就能轻松应对各种大数据场景。记住：好的用户体验，从优雅的数据展示开始！

💬 互动时间：

你在WPF DataGrid开发中遇到过哪些性能问题？欢迎在评论区分享你的经验，或者说说你希望了解的其他WPF进阶技巧！

觉得这篇文章对你有帮助吗？请转发给更多需要的同行！ 🚀

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
