在工业领域，实时数据监控已经成为生产效率的核心竞争力。工业软件都需要处理实时数据展示，开发者大都在DataGrid性能优化上踩过坑，这块在Winform下其实也实现过。

今天，我就来分享一套WPF DataGrid实时显示数据的完整解决方案，不仅性能卓越，视觉效果也足够现代化，让你的工业应用瞬间提升一个档次！

💡 问题分析：为什么传统DataGrid会卡顿？

在深入解决方案之前，我们先来分析一下传统DataGrid在处理实时数据时的痛点：

🔍 性能瓶颈分析

1. 频繁的UI更新：每次数据变化都触发整个DataGrid重绘
2. 内存泄漏风险：大量数据对象累积，GC压力巨大
3. 线程阻塞：UI线程被数据处理占用，界面失去响应
4. 虚拟化失效：数据变化导致虚拟化机制失效

🎨 视觉体验问题

• 界面闪烁，用户体验极差
• 缺乏现代化的视觉反馈
• 状态变化不够直观

🛠️ 解决方案：三层架构实现高性能实时显示

📊 整体架构设计

Markdown
┌─────────────────┐    ┌─────────────────┐    ┌─────────────────┐
│   数据生产层     │────│   数据处理层     │────│   UI展示层      │
│  (Data Source)  │    │ (Data Processor) │    │  (DataGrid)    │
└─────────────────┘    └─────────────────┘    └─────────────────┘

🔥 核心实现：完整代码示例

1️⃣ 数据模型定义

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Media;

namespace AppDataGridRealTime
{
    public class RealTimeDataModel : INotifyPropertyChanged
    {
        private string _deviceId;
        private double _temperature;
        private double _pressure;
        private string _status;
        private DateTime _timestamp;
        private Brush _statusBrush;

        public string DeviceId
        {
            get => _deviceId;
            set
            {
                _deviceId = value;
                OnPropertyChanged(nameof(DeviceId));
            }
        }

        public double Temperature
        {
            get => _temperature;
            set
            {
                _temperature = value;
                OnPropertyChanged(nameof(Temperature));
                UpdateStatusColor();
            }
        }

        public double Pressure
        {
            get => _pressure;
            set
            {
                _pressure = value;
                OnPropertyChanged(nameof(Pressure));
            }
        }

        public string Status
        {
            get => _status;
            set
            {
                _status = value;
                OnPropertyChanged(nameof(Status));
                UpdateStatusColor();
            }
        }

        public DateTime Timestamp
        {
            get => _timestamp;
            set
            {
                _timestamp = value;
                OnPropertyChanged(nameof(Timestamp));
            }
        }

        public Brush StatusBrush
        {
            get => _statusBrush;
            set
            {
                _statusBrush = value;
                OnPropertyChanged(nameof(StatusBrush));
            }
        }

        //根据状态和温度值更新颜色编码
        private void UpdateStatusColor()
        {
            if (_status == "正常" && _temperature < 80)
                StatusBrush = new SolidColorBrush(Colors.Green);
            else if (_status == "警告" || _temperature >= 80)
                StatusBrush = new SolidColorBrush(Colors.Orange);
            else if (_status == "故障")
                StatusBrush = new SolidColorBrush(Colors.Red);
            else
                StatusBrush = new SolidColorBrush(Colors.Gray);
        }

        public event PropertyChangedEventHandler PropertyChanged;

        protected virtual void OnPropertyChanged(string propertyName)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
    }
}

2️⃣ 高性能数据管理器

C#
using System;
using System.Collections.Generic;
using System.Collections.ObjectModel;
using System.ComponentModel;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows;
using System.Windows.Threading;

namespace AppDataGridRealTime
{
    public class RealTimeDataManager : INotifyPropertyChanged
    {
        private readonly ObservableCollection<RealTimeDataModel> _dataCollection;
        private readonly DispatcherTimer _updateTimer;
        private readonly object _lockObject = new object();
        private readonly Random _random = new Random();

        // 性能监控属性
        private int _updateCount;
        private string _performanceInfo;

        public ObservableCollection<RealTimeDataModel> DataCollection => _dataCollection;

        public string PerformanceInfo
        {
            get => _performanceInfo;
            set
            {
                _performanceInfo = value;
                OnPropertyChanged(nameof(PerformanceInfo));
            }
        }

        public RealTimeDataManager()
        {
            _dataCollection = new ObservableCollection<RealTimeDataModel>();

            // 初始化定时器 - 关键：使用合适的更新频率
            _updateTimer = new DispatcherTimer(DispatcherPriority.Background)
            {
                Interval = TimeSpan.FromMilliseconds(100) // 100ms更新一次，平衡性能和实时性
            };
            _updateTimer.Tick += UpdateTimer_Tick;

            InitializeData();
        }

        private void InitializeData()
        {
            // 模拟20个工业设备
            for (int i = 1; i <= 20; i++)
            {
                _dataCollection.Add(new RealTimeDataModel
                {
                    DeviceId = $"Device_{i:D3}",
                    Temperature = _random.NextDouble() * 100,
                    Pressure = _random.NextDouble() * 50,
                    Status = "正常",
                    Timestamp = DateTime.Now
                });
            }
        }
        private void UpdateTimer_Tick(object sender, EventArgs e)
        {
            Task.Run(() =>
            {
                lock (_lockObject)
                {
                    // 批量更新数据，减少UI更新频率
                    var updateTasks = _dataCollection.Select(UpdateSingleDevice).ToArray();
                    Task.WaitAll(updateTasks);

                    _updateCount++;

                    // 每100次更新显示一次性能信息
                    if (_updateCount % 100 == 0)
                    {
                        Application.Current.Dispatcher.Invoke(() =>
                        {
                            PerformanceInfo = $"更新次数: {_updateCount} | 数据量: {_dataCollection.Count} | 内存: {GC.GetTotalMemory(false) / 1024 / 1024:F2}MB";
                        });
                    }
                }
            });
        }
        private Task UpdateSingleDevice(RealTimeDataModel device)
        {
            return Task.Run(() =>
            {
                // 模拟实时数据变化
                var tempChange = (_random.NextDouble() - 0.5) * 2;
                var pressureChange = (_random.NextDouble() - 0.5) * 1;

                Application.Current.Dispatcher.Invoke(() =>
                {
                    device.Temperature = Math.Max(0, Math.Min(120, device.Temperature + tempChange));
                    device.Pressure = Math.Max(0, Math.Min(60, device.Pressure + pressureChange));
                    device.Timestamp = DateTime.Now;

                    // 根据数据状态更新设备状态
                    if (device.Temperature > 100)
                        device.Status = "故障";
                    else if (device.Temperature > 80)
                        device.Status = "警告";
                    else
                        device.Status = "正常";
                });
            });
        }
        public void StartRealTimeUpdate()
        {
            _updateTimer.Start();
        }
        public void StopRealTimeUpdate()
        {
            _updateTimer.Stop();
        }

        public event PropertyChangedEventHandler PropertyChanged;

        protected virtual void OnPropertyChanged(string propertyName)
        {
            PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
        }
    }
}

3️⃣ 现代化UI界面（XAML）

XML
<Window x:Class="AppDataGridRealTime.MainWindow"
        xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation"
        xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml"
        xmlns:d="http://schemas.microsoft.com/expression/blend/2008"
        xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006"
        xmlns:local="clr-namespace:AppDataGridRealTime"
        mc:Ignorable="d"
        Title="MainWindow" Height="450" Width="800" Background="#FF2D2D30">
    <Window.Resources>
        <Style x:Key="ModernDataGridStyle" TargetType="DataGrid">
            <Setter Property="Background" Value="#FF3C3C3C"/>
            <Setter Property="Foreground" Value="White"/>
            <Setter Property="BorderBrush" Value="#FF565656"/>
            <Setter Property="BorderThickness" Value="1"/>
            <Setter Property="RowBackground" Value="#FF404040"/>
            <Setter Property="AlternatingRowBackground" Value="#FF454545"/>
            <Setter Property="GridLinesVisibility" Value="Horizontal"/>
            <Setter Property="HorizontalGridLinesBrush" Value="#FF565656"/>
            <Setter Property="VerticalGridLinesBrush" Value="#FF565656"/>
            <Setter Property="HeadersVisibility" Value="Column"/>
            <Setter Property="CanUserAddRows" Value="False"/>
            <Setter Property="CanUserDeleteRows" Value="False"/>
            <Setter Property="IsReadOnly" Value="True"/>
            <Setter Property="SelectionMode" Value="Single"/>
            <Setter Property="SelectionUnit" Value="FullRow"/>
            <Setter Property="EnableRowVirtualization" Value="True"/>
            <Setter Property="EnableColumnVirtualization" Value="True"/>
            <Setter Property="VirtualizingPanel.IsVirtualizing" Value="True"/>
            <Setter Property="VirtualizingPanel.VirtualizationMode" Value="Recycling"/>
        </Style>

        <Style x:Key="DataGridColumnHeaderStyle" TargetType="DataGridColumnHeader">
            <Setter Property="Background" Value="#FF007ACC"/>
            <Setter Property="Foreground" Value="White"/>
            <Setter Property="FontWeight" Value="Bold"/>
            <Setter Property="FontSize" Value="12"/>
            <Setter Property="Padding" Value="10,8"/>
            <Setter Property="BorderBrush" Value="#FF005A9E"/>
            <Setter Property="BorderThickness" Value="0,0,1,0"/>
            <Setter Property="HorizontalContentAlignment" Value="Center"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="DataGridColumnHeader">
                        <Border Background="{TemplateBinding Background}"
                                BorderBrush="{TemplateBinding BorderBrush}"
                                BorderThickness="{TemplateBinding BorderThickness}">
                            <ContentPresenter HorizontalAlignment="{TemplateBinding HorizontalContentAlignment}"
                                            VerticalAlignment="Center"
                                            Margin="{TemplateBinding Padding}"/>
                        </Border>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>
        <Style x:Key="DataGridRowStyle" TargetType="DataGridRow">
            <Setter Property="Background" Value="Transparent"/>
            <Setter Property="Foreground" Value="White"/>
            <Style.Triggers>
                <Trigger Property="IsMouseOver" Value="True">
                    <Setter Property="Background" Value="#FF4A4A4A"/>
                </Trigger>
                <Trigger Property="IsSelected" Value="True">
                    <Setter Property="Background" Value="#FF007ACC"/>
                </Trigger>
            </Style.Triggers>
        </Style>
        <Style x:Key="StatusLabelStyle" TargetType="Label">
            <Setter Property="FontWeight" Value="Bold"/>
            <Setter Property="HorizontalAlignment" Value="Center"/>
            <Setter Property="VerticalAlignment" Value="Center"/>
            <Setter Property="Padding" Value="8,2"/>
            <Setter Property="Template">
                <Setter.Value>
                    <ControlTemplate TargetType="Label">
                        <Border Background="{Binding StatusBrush}"
                                CornerRadius="3"
                                Padding="{TemplateBinding Padding}">
                            <ContentPresenter HorizontalAlignment="Center"
                                            VerticalAlignment="Center"/>
                        </Border>
                    </ControlTemplate>
                </Setter.Value>
            </Setter>
        </Style>
    </Window.Resources>

    <Grid>
        <Grid.RowDefinitions>
            <RowDefinition Height="Auto"/>
            <RowDefinition Height="*"/>
            <RowDefinition Height="Auto"/>
        </Grid.RowDefinitions>
        <Grid Grid.Row="0" Background="#FF007ACC" Height="60">
            <StackPanel Orientation="Horizontal" VerticalAlignment="Center" Margin="20,0">
                <TextBlock Text="🏭 工业设备实时监控系统"
                          FontSize="18"
                          FontWeight="Bold"
                          Foreground="White"
                          VerticalAlignment="Center"/>
                <Button Content="▶️ 开始监控"
                       Name="btnStart"
                       Click="BtnStart_Click"
                       Margin="30,0,10,0"
                       Padding="15,5"
                       Background="#FF28A745"
                       Foreground="White"
                       BorderThickness="0"
                       FontWeight="Bold"/>
                <Button Content="⏸️ 停止监控"
                       Name="btnStop"
                       Click="BtnStop_Click"
                       Margin="10,0"
                       Padding="15,5"
                       Background="#FFDC3545"
                       Foreground="White"
                       BorderThickness="0"
                       FontWeight="Bold"/>
            </StackPanel>
        </Grid>
        <DataGrid Grid.Row="1"
                  Name="dataGrid"
                  ItemsSource="{Binding DataCollection}"
                  Style="{StaticResource ModernDataGridStyle}"
                  ColumnHeaderStyle="{StaticResource DataGridColumnHeaderStyle}"
                  RowStyle="{StaticResource DataGridRowStyle}"
                  Margin="10">

            <DataGrid.Columns>
                <DataGridTextColumn Header="设备编号"
                                  Binding="{Binding DeviceId}"
                                  Width="120"/>

                <DataGridTextColumn Header="温度 (°C)"
                                  Binding="{Binding Temperature, StringFormat=F2}"
                                  Width="100"/>

                <DataGridTextColumn Header="压力 (bar)"
                                  Binding="{Binding Pressure, StringFormat=F2}"
                                  Width="100"/>

                <DataGridTemplateColumn Header="状态" Width="100">
                    <DataGridTemplateColumn.CellTemplate>
                        <DataTemplate>
                            <Label Content="{Binding Status}"
                                  Style="{StaticResource StatusLabelStyle}"/>
                        </DataTemplate>
                    </DataGridTemplateColumn.CellTemplate>
                </DataGridTemplateColumn>

                <DataGridTextColumn Header="更新时间"
                                  Binding="{Binding Timestamp, StringFormat=HH:mm:ss.fff}"
                                  Width="*"/>
            </DataGrid.Columns>
        </DataGrid>
        <StatusBar Grid.Row="2" Background="#FF404040" Height="30">
            <StatusBarItem>
                <TextBlock Text="{Binding PerformanceInfo}"
                          Foreground="White"
                          FontSize="11"/>
            </StatusBarItem>
        </StatusBar>
    </Grid>
</Window>

4️⃣ 主窗口代码逻辑

C#
using System.Text;
using System.Windows;
using System.Windows.Controls;
using System.Windows.Data;
using System.Windows.Documents;
using System.Windows.Input;
using System.Windows.Media;
using System.Windows.Media.Imaging;
using System.Windows.Navigation;
using System.Windows.Shapes;

namespace AppDataGridRealTime
{
    public partial class MainWindow : Window
    {
        private readonly RealTimeDataManager _dataManager;
        public MainWindow()
        {
            InitializeComponent();
            _dataManager = new RealTimeDataManager();
            DataContext = _dataManager;
            _dataManager.StartRealTimeUpdate();
        }

        private void BtnStart_Click(object sender, RoutedEventArgs e)
        {
            _dataManager.StartRealTimeUpdate();
            btnStart.IsEnabled = false;
            btnStop.IsEnabled = true;
        }

        private void BtnStop_Click(object sender, RoutedEventArgs e)
        {
            _dataManager.StopRealTimeUpdate();
            btnStart.IsEnabled = true;
            btnStop.IsEnabled = false;
        }

        protected override void OnClosed(EventArgs e)
        {
            _dataManager?.StopRealTimeUpdate();
            base.OnClosed(e);
        }
    }
}

🔧 实际应用场景

🏭 工业监控系统

• 设备状态监控：实时显示生产设备的运行状态
• 参数监控：温度、压力、流量等关键参数
• 报警管理：异常状态的颜色编码和提醒

📊 金融交易系统

• 股票价格监控：实时价格变化展示
• 交易记录：成交记录的实时更新
• 风险监控：风险指标的动态显示

🌐 物联网平台

• 传感器数据：各类传感器数据的实时展示
• 设备管理：设备在线状态监控
• 数据分析：实时数据的可视化分析

⚡ 常见坑点提醒

1️⃣ UI线程阻塞

C#
// ❌ 错误：在UI线程中处理大量数据
private void ProcessData()
{
    foreach(var item in largeDataSet)
    {
        // 长时间处理，阻塞UI线程
        ProcessSingleItem(item);
    }
}

// ✅ 正确：异步处理
private async Task ProcessDataAsync()
{
    await Task.Run(() =>
    {
        foreach(var item in largeDataSet)
        {
            ProcessSingleItem(item);
        }
    });
}

2️⃣ 数据绑定性能

C#
// ❌ 错误：频繁触发PropertyChanged
public string DisplayText
{
    get => $"{Value:F2} {Unit}"; // 每次都重新计算
}

// ✅ 正确：缓存计算结果
private string _displayText;
public string DisplayText
{
    get => _displayText;
    private set
    {
        _displayText = value;
        OnPropertyChanged();
    }
}

3️⃣ 内存泄漏

C#
// ❌ 错误：事件未正确解除绑定
timer.Tick += Timer_Tick; // 没有在适当时候解除绑定

// ✅ 正确：及时清理资源
protected override void OnClosed(EventArgs e)
{
    timer.Tick -= Timer_Tick;
    timer.Stop();
    base.OnClosed(e);
}

🌟 总结

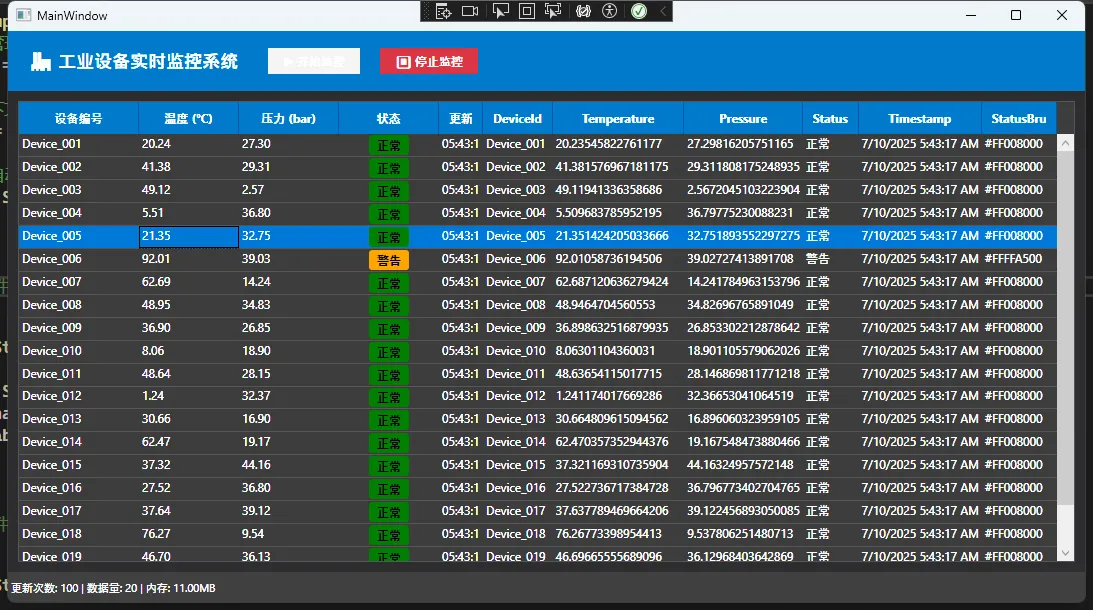

通过本文的完整解决方案，我们成功实现了一个高性能、现代化的WPF DataGrid实时数据显示系统。核心要点包括：

1. 三层架构设计：数据生产、处理、展示层分离，确保系统的可维护性和扩展性
2. 性能优化策略：虚拟化、批量更新、异步处理，让你的应用飞起来
3. 现代化UI设计：深色主题、状态颜色编码、交互反馈，提升用户体验

这套方案不仅适用于工业监控系统，在金融、物联网等领域同样表现出色。记住，好的技术方案不仅要解决问题，更要提供卓越的用户体验。

你在实际项目中遇到过哪些实时数据展示的挑战？或者对这套方案有什么改进建议？欢迎在评论区分享你的经验！

觉得这篇文章对你有帮助，请转发给更多同行，让更多C#开发者受益！

---

更多C#开发技巧和最佳实践，请关注我们的公众号，每周为你带来实用的编程干货！
