🚀 C#工业通信利器：KepwareEx6下构建强大的HTTP API客户端，让数据交互变得简单！

在工业自动化和物联网项目中，你是否遇到过这样的困扰：需要与各种设备API进行通信，但每次都要重复编写HTTP请求代码？面对复杂的认证机制和数据格式转换，总是要花费大量时间调试？

今天就来分享一个实战级的C# HTTP API客户端封装方案，以Kepware工业通信软件为例，教你构建一个通用、易用、可复用的API客户端框架。这套方案已在多个工业项目中验证，能大幅提升开发效率！

🎯 核心痛点分析

开发者常遇到的三大难题：

重复造轮子：每个API接口都要单独处理HTTP请求
认证复杂：Basic Auth、SSL证书等安全配置繁琐
调试困难：请求响应信息不直观，排错耗时

KEPServerEX 6 配置

💡 解决方案：构建统一的API客户端

🔧 方案1：优雅的客户端封装设计

核心思路：将HTTP通信逻辑统一封装，对外提供简洁的调用接口。

C#
public class KepwareApiClient
{
    private readonly HttpClient _httpClient;
    private readonly string _baseUrl;

    public KepwareApiClient(string baseUrl, string username, string password)
    {
        _baseUrl = baseUrl.TrimEnd('/');

        // 配置SSL证书验证（生产环境需谨慎使用）
        var handler = new HttpClientHandler()
        {
            ServerCertificateCustomValidationCallback = (message, cert, chain, errors) => true
        };

        _httpClient = new HttpClient(handler);

        // 设置Basic Auth认证
        var authToken = Encoding.ASCII.GetBytes($"{username}:{password}");
        _httpClient.DefaultRequestHeaders.Authorization =
            new AuthenticationHeaderValue("Basic", Convert.ToBase64String(authToken));

        // 设置JSON content type
        _httpClient.DefaultRequestHeaders.Accept.Add(
            new MediaTypeWithQualityHeaderValue("application/json"));
    }
}

应用场景：适用于所有需要HTTP Basic Auth的工业设备API通信

避坑提醒：⚠️ SSL证书验证跳过仅适用于测试环境，生产环境务必进行证书验证

🔥 方案2：统一的HTTP方法封装

设计亮点：每个HTTP方法都包含完整的日志输出和异常处理

C#
// GET 请求封装
public async Task<string> GetAsync(string endpoint)
{
    try
    {
        var response = await _httpClient.GetAsync($"{_baseUrl}{endpoint}");
        var content = await response.Content.ReadAsStringAsync();

        // 格式化输出，便于调试
        Console.WriteLine($"GET {endpoint}");
        Console.WriteLine($"Status: {response.StatusCode}");
        Console.WriteLine($"Response: {FormatJson(content)}");
        Console.WriteLine(new string('-', 80));

        return content;
    }
    catch (Exception ex)
    {
        Console.WriteLine($"GET {endpoint} - Error: {ex.Message}");
        return null;
    }
}

// POST 请求封装
public async Task<string> PostAsync(string endpoint, object data = null)
{
    try
    {
        var json = data != null ? JsonConvert.SerializeObject(data, Formatting.Indented) : "";
        var content = new StringContent(json, Encoding.UTF8, "application/json");

        var response = await _httpClient.PostAsync($"{_baseUrl}{endpoint}", content);
        var responseContent = await response.Content.ReadAsStringAsync();

        Console.WriteLine($"POST {endpoint}");
        if (data != null) Console.WriteLine($"Request Body: {json}");
        Console.WriteLine($"Status: {response.StatusCode}");
        Console.WriteLine($"Response: {FormatJson(responseContent)}");

        return responseContent;
    }
    catch (Exception ex)
    {
        Console.WriteLine($"POST {endpoint} - Error: {ex.Message}");
        return null;
    }
}

实用技巧：

使用 JsonConvert.SerializeObject 自动处理对象序列化
统一的日志格式便于问题定位
异常捕获确保程序稳定性

🎨 方案3：智能JSON格式化

让调试输出更友好，一眼就能看懂API响应结构：

C#
private string FormatJson(string json)
{
    if (string.IsNullOrEmpty(json)) return "Empty response";

    try
    {
        var parsedJson = JToken.Parse(json);
        return parsedJson.ToString(Formatting.Indented);
    }
    catch
    {
        return json; // 如果不是有效JSON，返回原始内容
    }
}

优势：自动识别JSON格式并美化输出，非JSON内容也能正常显示

🛠️ 方案4：业务逻辑分层设计

将API测试逻辑按功能模块分组，代码结构更清晰：

C#
// 通道操作示例
private static async Task TestChannelApis()
{
    Console.WriteLine("=== 通道API测试 ===");

    // 创建Modbus通道
    var channelConfig = new Dictionary<string, string>
    {
        ["servermain.MULTIPLE_TYPES_DEVICE_DRIVER"] = "Modbus TCP/IP Ethernet",
        ["common.ALLTYPES_NAME"] = "Modbus_Channel"
    };

    await _apiClient.PostAsync("/config/v1/project/channels", channelConfig);

    // 获取通道列表验证创建结果
    await _apiClient.GetAsync("/config/v1/project/channels");
}

// 设备操作示例
private static async Task TestDeviceApis()
{
    Console.WriteLine("=== 设备API测试 ===");

    var deviceConfig = new Dictionary<string, string>
    {
        ["servermain.MULTIPLE_TYPES_DEVICE_DRIVER"] = "Simulator",
        ["common.ALLTYPES_NAME"] = "TestDevice"
    };

    await _apiClient.PostAsync("/config/v1/project/channels/LMES/devices", deviceConfig);
    await _apiClient.GetAsync("/config/v1/project/channels/LMES/devices/TestDevice");
}

模块化优势：

业务逻辑清晰分离
便于单独测试某个功能模块
代码复用性高

📊 方案5：完整的资源管理

确保HTTP连接正确释放，避免资源泄露：

C#
public void Dispose()
{
    _httpClient?.Dispose();
}

// 在Main方法中正确使用
public static async Task Main(string[] args)
{
    _apiClient = new KepwareApiClient(baseUrl, username, password);

    try
    {
        await TestBasicApis();
        await TestChannelApis();
        // ... 其他测试
    }
    finally
    {
        _apiClient.Dispose(); // 确保资源释放
    }
}

完整测试代码

C#

using System;
using System.Collections.Generic;
using System.Net.Http;
using System.Net.Http.Headers;
using System.Text;
using System.Threading.Tasks;
using Newtonsoft.Json;
using Newtonsoft.Json.Linq;

namespace KepwareConfigApiTester
{
    public class KepwareApiClient
    {
        private readonly HttpClient _httpClient;
        private readonly string _baseUrl;
        private readonly string _username;
        private readonly string _password;

        public KepwareApiClient(string baseUrl, string username, string password)
        {
            _baseUrl = baseUrl.TrimEnd('/');
            _username = username;
            _password = password;

            _httpClient = new HttpClient();

            // 设置Basic Auth
            var authToken = Encoding.ASCII.GetBytes($"{_username}:{_password}");
            _httpClient.DefaultRequestHeaders.Authorization =
                new AuthenticationHeaderValue("Basic", Convert.ToBase64String(authToken));

            // 设置Content-Type
            _httpClient.DefaultRequestHeaders.Accept.Clear();
            _httpClient.DefaultRequestHeaders.Accept.Add(new MediaTypeWithQualityHeaderValue("application/json"));

            // 忽略SSL证书验证（仅用于测试环境）
            var handler = new HttpClientHandler()
            {
                ServerCertificateCustomValidationCallback = (message, cert, chain, errors) => true
            };
            _httpClient = new HttpClient(handler);
            _httpClient.DefaultRequestHeaders.Authorization =
                new AuthenticationHeaderValue("Basic", Convert.ToBase64String(authToken));
            _httpClient.DefaultRequestHeaders.Accept.Add(new MediaTypeWithQualityHeaderValue("application/json"));
        }

        // GET 请求
        public async Task<string> GetAsync(string endpoint)
        {
            try
            {
                var response = await _httpClient.GetAsync($"{_baseUrl}{endpoint}");
                var content = await response.Content.ReadAsStringAsync();

                Console.WriteLine($"GET {endpoint}");
                Console.WriteLine($"Status: {response.StatusCode}");
                Console.WriteLine($"Response: {FormatJson(content)}");
                Console.WriteLine(new string('-', 80));

                return content;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"GET {endpoint} - Error: {ex.Message}");
                Console.WriteLine(new string('-', 80));
                return null;
            }
        }

        // POST 请求
        public async Task<string> PostAsync(string endpoint, object data = null)
        {
            try
            {
                var json = data != null ? JsonConvert.SerializeObject(data, Formatting.Indented) : "";
                var content = new StringContent(json, Encoding.UTF8, "application/json");

                var response = await _httpClient.PostAsync($"{_baseUrl}{endpoint}", content);
                var responseContent = await response.Content.ReadAsStringAsync();

                Console.WriteLine($"POST {endpoint}");
                if (data != null) Console.WriteLine($"Request Body: {json}");
                Console.WriteLine($"Status: {response.StatusCode}");
                Console.WriteLine($"Response: {FormatJson(responseContent)}");
                Console.WriteLine(new string('-', 80));

                return responseContent;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"POST {endpoint} - Error: {ex.Message}");
                Console.WriteLine(new string('-', 80));
                return null;
            }
        }

        // PUT 请求
        public async Task<string> PutAsync(string endpoint, object data)
        {
            try
            {
                var json = JsonConvert.SerializeObject(data, Formatting.Indented);
                var content = new StringContent(json, Encoding.UTF8, "application/json");

                var response = await _httpClient.PutAsync($"{_baseUrl}{endpoint}", content);
                var responseContent = await response.Content.ReadAsStringAsync();

                Console.WriteLine($"PUT {endpoint}");
                Console.WriteLine($"Request Body: {json}");
                Console.WriteLine($"Status: {response.StatusCode}");
                Console.WriteLine($"Response: {FormatJson(responseContent)}");
                Console.WriteLine(new string('-', 80));

                return responseContent;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"PUT {endpoint} - Error: {ex.Message}");
                Console.WriteLine(new string('-', 80));
                return null;
            }
        }

        // DELETE 请求
        public async Task<string> DeleteAsync(string endpoint)
        {
            try
            {
                var response = await _httpClient.DeleteAsync($"{_baseUrl}{endpoint}");
                var content = await response.Content.ReadAsStringAsync();

                Console.WriteLine($"DELETE {endpoint}");
                Console.WriteLine($"Status: {response.StatusCode}");
                Console.WriteLine($"Response: {FormatJson(content)}");
                Console.WriteLine(new string('-', 80));

                return content;
            }
            catch (Exception ex)
            {
                Console.WriteLine($"DELETE {endpoint} - Error: {ex.Message}");
                Console.WriteLine(new string('-', 80));
                return null;
            }
        }

        private string FormatJson(string json)
        {
            if (string.IsNullOrEmpty(json)) return "Empty response";

            try
            {
                var parsedJson = JToken.Parse(json);
                return parsedJson.ToString(Formatting.Indented);
            }
            catch
            {
                return json;
            }
        }

        public void Dispose()
        {
            _httpClient?.Dispose();
        }
    }

    public class Program
    {
        private static KepwareApiClient _apiClient;

        public static async Task Main(string[] args)
        {

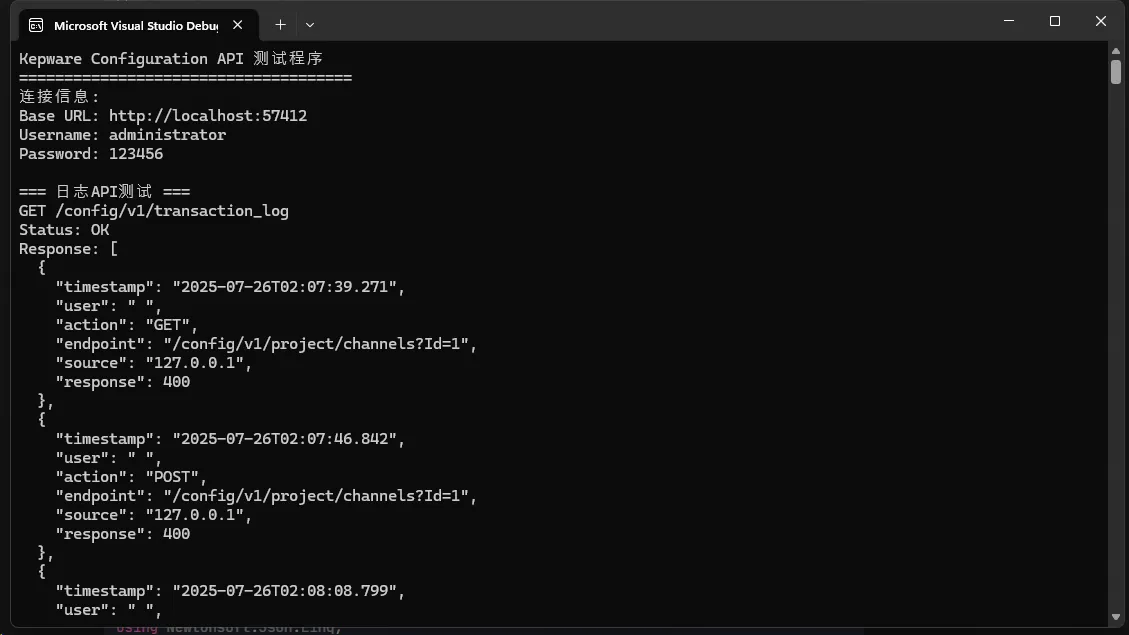

            Console.WriteLine("Kepware Configuration API 测试程序");
            Console.WriteLine("=====================================");

            // 配置连接信息
            string baseUrl = "http://localhost:57412"; // 根据实际情况修改
            string username = "administrator";
            string password = "123456";

            Console.WriteLine($"连接信息:");
            Console.WriteLine($"Base URL: {baseUrl}");
            Console.WriteLine($"Username: {username}");
            Console.WriteLine($"Password: {password}");
            Console.WriteLine();

            _apiClient = new KepwareApiClient(baseUrl, username, password);

            try
            {
                // 测试主要的API端点
                await TestBasicApis();
                await TestChannelApis();
                await TestDeviceApis();
                await TestTagApis();
                await TestTransactionAndEventLogs();
            }
            catch (Exception ex)
            {
                Console.WriteLine($"程序执行出错: {ex.Message}");
            }
            finally
            {
                _apiClient.Dispose();
            }

            Console.WriteLine("测试完成，按任意键退出...");
            Console.ReadKey();
        }

        private static async Task TestBasicApis()
        {
            Console.WriteLine("=== 基础API测试 ===");

            // 获取项目信息
            await _apiClient.GetAsync("/config/v1/project");

            // 获取别名列表
            await _apiClient.GetAsync("/config/v1/project/aliases");

            // 获取通道列表
            await _apiClient.GetAsync("/config/v1/project/channels");

            // 获取客户端接口
            await _apiClient.GetAsync("/config/v1/project/client_interfaces");

            // 获取服务列表
            await _apiClient.GetAsync("/config/v1/project/services");
        }

        private static async Task TestChannelApis()
        {
            Console.WriteLine("=== 通道API测试 ===");

            // 创建测试通道
            var anonymousObject = new Dictionary<string, string>
            {
                ["servermain.MULTIPLE_TYPES_DEVICE_DRIVER"] = "Modbus TCP/IP Ethernet",
                ["common.ALLTYPES_NAME"] = "Modbus"
            };

            await _apiClient.GetAsync("/config/v1/project/channels");

            await _apiClient.PostAsync("/config/v1/project/channels", anonymousObject);

            //// 获取特定通道信息
            await _apiClient.GetAsync("/config/v1/project/channels/LMES");

            //// 获取通道设备列表
            await _apiClient.GetAsync("/config/v1/project/channels/LMES/devices");
        }

        private static async Task TestDeviceApis()
        {
            Console.WriteLine("=== 设备API测试 ===");

            // 创建测试设备,这里对像通过GetAsync方法获取每个设备信息，参考着写这个设备
            var anonymousObject = new Dictionary<string, string>
            {
                ["servermain.MULTIPLE_TYPES_DEVICE_DRIVER"] = "Simulator",
                ["common.ALLTYPES_NAME"] = "device1"
            };

            await _apiClient.GetAsync("/config/v1/project/channels/LMES/devices");

            await _apiClient.PostAsync("/config/v1/project/channels/LMES/devices", anonymousObject);

            // 获取特定设备信息
            await _apiClient.GetAsync("/config/v1/project/channels/LMES/devices/device1");

            // 获取设备标签组
            await _apiClient.GetAsync("/config/v1/project/channels/LMES/devices/device1/tag_groups");

            // 获取设备标签
            await _apiClient.GetAsync("/config/v1/project/channels/LMES/devices/device1/tags");
        }

        private static async Task TestTagApis()
        {
            Console.WriteLine("=== 标签API测试 ===");

            // 创建标签组
            var anonymousObject = new Dictionary<string, object>
            {
                ["servermain.TAG_ADDRESS"] = "RAMP (100, 1.000000, 100.000000, 1.000000)",
                ["servermain.TAG_DATA_TYPE"] = 8,
                ["common.ALLTYPES_NAME"] = "Test3"
            };

            await _apiClient.GetAsync("/config/v1/project/channels/LMES/devices/W1/tags");

            await _apiClient.PostAsync("/config/v1/project/channels/LMES/devices/W1/tags", anonymousObject);

            // 获取标签信息
            await _apiClient.GetAsync("/config/v1/project/channels/LMES/devices/W1/tags/Test3");
        }

        private static async Task TestTransactionAndEventLogs()
        {
            Console.WriteLine("=== 日志API测试 ===");

            var startTime = DateTime.Now.AddDays(-1).ToString("yyyy-MM-ddTHH:mm:ss.fff");
            var endTime = DateTime.Now.ToString("yyyy-MM-ddTHH:mm:ss.fff");

            await _apiClient.GetAsync($"/config/v1/transaction_log");

            // 获取事务日志
            await _apiClient.GetAsync($"/config/v1/transaction_log?start={startTime}&end={endTime}&limit=100");

            await _apiClient.GetAsync($"/config/v1/event_log");

            // 获取事件日志
            await _apiClient.GetAsync($"/config/v1/event_log?start={startTime}&end={endTime}&limit=100");
        }

        // 清理测试数据的方法
        private static async Task CleanupTestData()
        {
            Console.WriteLine("=== 清理测试数据 ===");

            // 删除测试标签
            await _apiClient.DeleteAsync("/config/v1/project/channels/TestChannel/devices/TestDevice/tag_groups/TestTagGroup/tags/TestTag");

            // 删除测试标签组
            await _apiClient.DeleteAsync("/config/v1/project/channels/TestChannel/devices/TestDevice/tag_groups/TestTagGroup");

            // 删除测试设备
            await _apiClient.DeleteAsync("/config/v1/project/channels/TestChannel/devices/TestDevice");

            // 删除测试通道
            await _apiClient.DeleteAsync("/config/v1/project/channels/TestChannel");
        }
    }
}

🎯 实战应用场景

工业自动化项目

PLC通信：通过Kepware与西门子、施耐德等PLC设备通信
数据采集：实时获取生产线设备状态数据
远程监控：构建工业4.0监控平台

物联网项目

设备管理：批量配置和管理IoT设备
数据同步：与云平台进行数据交换
状态监控：实时监控设备运行状态

⚡ 性能优化建议

HttpClient复用：避免频繁创建HttpClient实例
异步编程：全程使用async/await提升响应性能
连接池优化：合理设置HttpClientHandler参数

🔍 常见问题解决

Q: SSL证书验证失败怎么办？

A: 测试环境可以跳过验证，生产环境建议安装正确的证书或使用证书回调验证

Q: 认证失败如何排查？

A: 检查用户名密码是否正确，确认API服务是否启用Basic Auth

Q: JSON序列化出错如何处理？

A: 使用try-catch包装序列化操作，提供降级处理方案

🎉 总结与展望

通过这套通用HTTP API客户端框架，我们实现了：

代码复用：一次封装，多项目使用
调试友好：完整的请求响应日志输出
稳定可靠：完善的异常处理和资源管理

这不仅仅是一个Kepware API的客户端，更是一个可扩展的工业通信框架模板。你可以基于这个架构，快速适配其他设备的API通信需求。

💬 互动讨论

你在工业项目中还遇到过哪些API通信难题？欢迎在评论区分享你的经验，或者说说你希望看到哪些技术方案的深入解析！

觉得这个方案对你的项目有帮助？请点赞并转发给更多需要的同行！ 让我们一起用技术驱动工业智能化进程！

目录
