C#中的函数调用：构建智能聊天机器人的完整指南
2025-11-05
C#
00

目录

什么是函数调用？
函数调用的工作原理
准备工作
实际案例：披萨订购插件
结论

在当今AI快速发展的背景下，函数调用功能为开发者提供了一种强大的方式，让聊天机器人能够与现有代码无缝交互。本文将深入探讨C#中如何利用Semantic Kernel实现高效的函数调用，帮助您构建能够自动化业务流程、生成代码片段等功能的智能应用。

什么是函数调用？

函数调用是聊天完成功能中最强大的特性之一，它允许模型调用您预先定义的函数。通过Semantic Kernel框架，这一过程被大大简化 - 它自动为模型描述您的函数及其参数，并处理模型与代码之间的通信。

函数调用的工作原理

当您使用启用了函数调用的模型发送请求时，Semantic Kernel会执行以下步骤：

  1. 序列化函数 - 将内核中所有可用函数及其输入参数使用JSON Schema进行序列化
  2. 发送消息和函数 - 将序列化的函数和当前聊天历史作为输入发送给模型
  3. 模型处理输入 - 模型处理输入并生成回应，可能是聊天消息或函数调用
  4. 处理回应 - 如果是聊天消息，直接返回；如果是函数调用，则提取函数名称和参数
  5. 调用函数 - 使用提取的函数名称和参数在内核中调用相应函数
  6. 返回函数结果 - 将函数结果返回给模型作为聊天历史的一部分，然后重复2-6步，直到模型返回聊天消息或达到最大迭代次数

准备工作

Markdown
Microsoft.SemanticKernel
Microsoft.Extensions.Hosting

实际案例：披萨订购插件

让我们通过一个具体的Pizza订购插件示例来展示函数调用的工作原理：

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Threading.Tasks;
using Microsoft.SemanticKernel;
using Microsoft.SemanticKernel.ChatCompletion;
using Microsoft.SemanticKernel.Connectors.OpenAI;
using Microsoft.Extensions.DependencyInjection;
using Microsoft.Extensions.Logging;
using Microsoft.Extensions.Hosting;
using OpenAI;
using System.ClientModel;


namespace PizzaOrderingBot
{
    class Program
    {
        static async Task Main(string[] args)
        {
            // 设置依赖注入容器
            var services = new ServiceCollection();

            // 注册服务
            services.AddSingleton<IPizzaService, MockPizzaService>();
            services.AddSingleton<IUserContext, MockUserContext>();
            services.AddSingleton<IPaymentService, MockPaymentService>();

            // 添加日志
            services.AddLogging(builder =>
            {
                builder.AddConsole();
                builder.SetMinimumLevel(LogLevel.Information);
            });

            var serviceProvider = services.BuildServiceProvider();

            // 创建Semantic Kernel
            var kernelBuilder = Kernel.CreateBuilder();

            // 配置OpenAI客户端凭证
            var openAIClientCredential = new ApiKeyCredential("sk-xxxx");

            // 配置客户端选项，指向DeepSeek的API端点
            var openAIClientOption = new OpenAIClientOptions
            {
                Endpoint = new Uri("https://api.deepseek.com/v1"),
            };

            // 创建OpenAI客户端实例
            var openapiClient = new OpenAIClient(openAIClientCredential, openAIClientOption);

            // 注册DeepSeek聊天完成服务
            // 第一个参数是服务标识符，第二个是客户端实例，第三个是服务描述
            kernelBuilder.Services.AddOpenAIChatCompletion("deepseek-chat", openapiClient, "对话服务ID");


            // 添加日志服务
            kernelBuilder.Services.AddLogging(builder => builder.AddConsole());

            // 构建内核
            var kernel = kernelBuilder.Build();

            // 将披萨订购插件添加到内核
            var pizzaPlugin = new OrderPizzaPlugin(
                serviceProvider.GetRequiredService<IPizzaService>(),
                serviceProvider.GetRequiredService<IUserContext>(),
                serviceProvider.GetRequiredService<IPaymentService>()
            );

            kernel.Plugins.AddFromObject(pizzaPlugin, "OrderPizza");

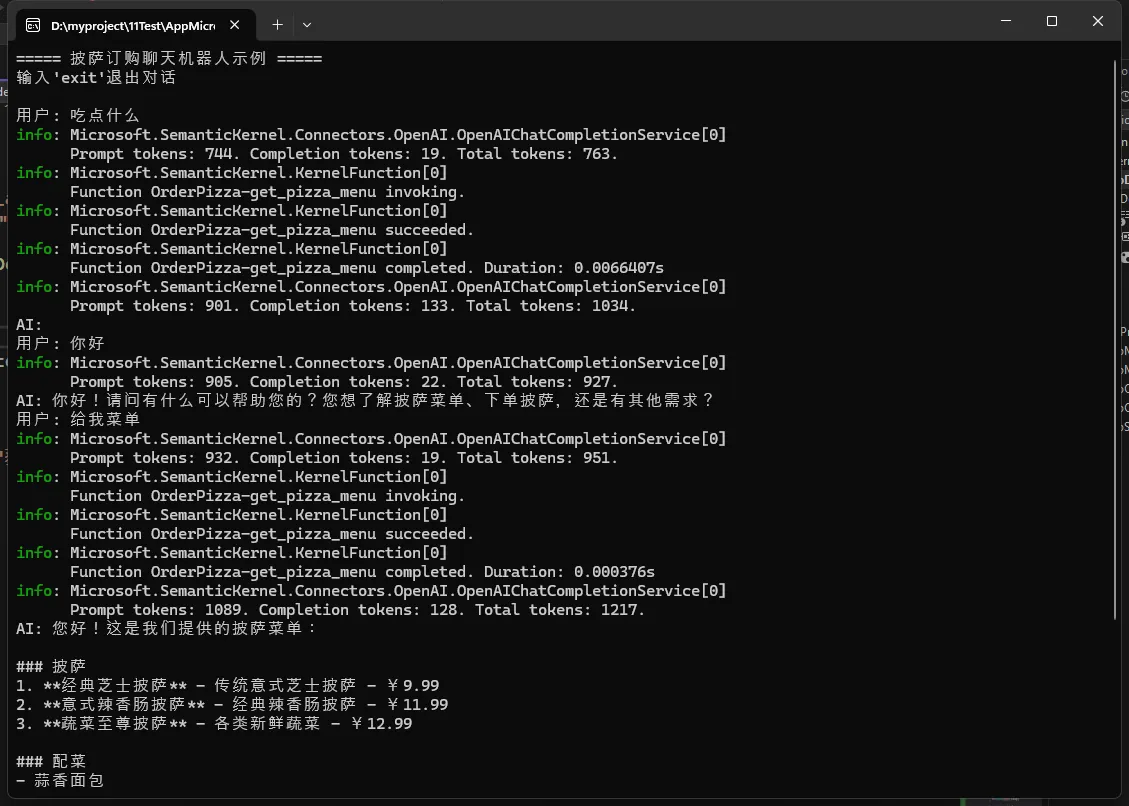

            // 运行聊天对话示例
            await RunChatExampleAsync(kernel);
        }


        static async Task RunChatExampleAsync(Kernel kernel)
        {
            Console.WriteLine("===== 披萨订购聊天机器人示例 =====");
            Console.WriteLine("输入'exit'退出对话\n");

            // 创建聊天历史
            var chatHistory = new ChatHistory();

            // 获取聊天完成服务
            var chatCompletionService = kernel.GetRequiredService<IChatCompletionService>();

            // 设置执行选项 - 启用函数调用
            var executionSettings = new OpenAIPromptExecutionSettings
            {
                FunctionChoiceBehavior = FunctionChoiceBehavior.Auto(),
                Temperature = 0.7,
                TopP = 0.8
            };

            while (true)
            {
                // 获取用户输入
                Console.Write("用户: ");
                string userInput = Console.ReadLine() ?? string.Empty;

                if (userInput.ToLower() == "exit")
                    break;

                // 添加用户消息到聊天历史
                chatHistory.AddUserMessage(userInput);

                try
                {
                    // 获取AI回复
                    var response = await chatCompletionService.GetChatMessageContentAsync(
                        chatHistory,
                        executionSettings: executionSettings,
                        kernel: kernel);

                    // 输出AI回复
                    Console.WriteLine($"AI: {response.Content}");

                    // 添加AI回复到聊天历史
                    chatHistory.AddAssistantMessage(response.Content);
                }
                catch (Exception ex)
                {
                    Console.WriteLine($"错误: {ex.Message}");
                }
            }
        }
    }

    #region 模型定义

    // 枚举定义
    public enum PizzaSize
    {
        Small,
        Medium,
        Large
    }

    public enum PizzaToppings
    {
        Cheese,
        Pepperoni,
        Mushrooms,
        Olives,
        Onions,
        Bacon,
        ExtraCheese,
        GreenPeppers,
        Pineapple,
        Sausage
    }

    // 数据模型
    public class Menu
    {
        public List<PizzaMenuItem> Pizzas { get; set; } = new();
        public List<string> Sides { get; set; } = new();
        public List<string> Drinks { get; set; } = new();

        public override string ToString()
        {
            return $"菜单: {Pizzas.Count} 种披萨, {Sides.Count} 种配菜, {Drinks.Count} 种饮料";
        }
    }

    public class PizzaMenuItem
    {
        public string Name { get; set; } = string.Empty;
        public string Description { get; set; } = string.Empty;
        public decimal Price { get; set; }
        public List<PizzaToppings> DefaultToppings { get; set; } = new();
    }

    public class PizzaItem
    {
        public int Id { get; set; }
        public PizzaSize Size { get; set; }
        public List<PizzaToppings> Toppings { get; set; } = new();
        public int Quantity { get; set; }
        public string SpecialInstructions { get; set; } = string.Empty;
        public decimal Price { get; set; }
    }

    public class Cart
    {
        public Guid Id { get; set; }
        public List<PizzaItem> Items { get; set; } = new();
        public decimal Subtotal { get; set; }
        public decimal Tax { get; set; }
        public decimal Total { get; set; }
    }

    public class CartDelta
    {
        public List<PizzaItem> NewItems { get; set; } = new();
        public Cart UpdatedCart { get; set; } = new();

        public override string ToString()
        {
            return $"已添加 {NewItems.Count} 个商品，购物车总额: ${UpdatedCart.Total}";
        }
    }

    public class CheckoutResponse
    {
        public string OrderId { get; set; } = string.Empty;
        public decimal Total { get; set; }
        public string EstimatedDeliveryTime { get; set; } = string.Empty;

        public override string ToString()
        {
            return $"订单 {OrderId} 已确认, 总价: ${Total}, 预计送达时间: {EstimatedDeliveryTime}";
        }
    }

    #endregion

    #region 服务接口

    // 服务接口
    public interface IPizzaService
    {
        Task<Menu> GetMenu();
        Task<CartDelta> AddPizzaToCart(Guid cartId, PizzaSize size, List<PizzaToppings> toppings, int quantity, string specialInstructions);
        Task<Cart> GetCart(Guid cartId);
        Task<Cart> RemoveItemFromCart(Guid cartId, int itemId);
        Task<CheckoutResponse> Checkout(Guid cartId, Guid paymentId);
    }

    public interface IUserContext
    {
        Task<Guid> GetCartIdAsync();
        Guid GetCartId();
        Task<string> GetUserAddressAsync();
    }

    public interface IPaymentService
    {
        Task<Guid> RequestPaymentFromUserAsync(Guid cartId);
        Task<bool> VerifyPaymentAsync(Guid paymentId);
    }

    #endregion

    #region 模拟服务实现

    // 模拟服务实现
    public class MockPizzaService : IPizzaService
    {
        private readonly Dictionary<Guid, Cart> _carts = new();
        private int _nextItemId = 1;

        public Task<Menu> GetMenu()
        {
            var menu = new Menu
            {
                Pizzas = new List<PizzaMenuItem>
                {
                    new() { Name = "经典芝士披萨", Description = "传统意式芝士披萨", Price = 9.99m, DefaultToppings = new List<PizzaToppings> { PizzaToppings.Cheese } },
                    new() { Name = "意式辣香肠披萨", Description = "经典辣香肠披萨", Price = 11.99m, DefaultToppings = new List<PizzaToppings> { PizzaToppings.Cheese, PizzaToppings.Pepperoni } },
                    new() { Name = "蔬菜至尊披萨", Description = "各类新鲜蔬菜", Price = 12.99m, DefaultToppings = new List<PizzaToppings> { PizzaToppings.Cheese, PizzaToppings.Mushrooms, PizzaToppings.Olives, PizzaToppings.GreenPeppers, PizzaToppings.Onions } }
                },
                Sides = new List<string> { "蒜香面包", "薯条", "鸡翅" },
                Drinks = new List<string> { "可乐", "雪碧", "冰红茶", "矿泉水" }
            };

            return Task.FromResult(menu);
        }

        public Task<CartDelta> AddPizzaToCart(Guid cartId, PizzaSize size, List<PizzaToppings> toppings, int quantity, string specialInstructions)
        {
            // 获取或创建购物车
            if (!_carts.TryGetValue(cartId, out var cart))
            {
                cart = new Cart { Id = cartId, Items = new List<PizzaItem>() };
                _carts[cartId] = cart;
            }

            // 根据尺寸计算基础价格
            decimal basePrice = size switch
            {
                PizzaSize.Small => 8.99m,
                PizzaSize.Medium => 10.99m,
                PizzaSize.Large => 13.99m,
                _ => 10.99m
            };

            // 每种配料加0.75美元
            decimal toppingsPrice = toppings.Count * 0.75m;

            // 创建新披萨项
            var newItem = new PizzaItem
            {
                Id = _nextItemId++,
                Size = size,
                Toppings = toppings,
                Quantity = quantity,
                SpecialInstructions = specialInstructions,
                Price = (basePrice + toppingsPrice) * quantity
            };

            // 添加到购物车
            cart.Items.Add(newItem);

            // 计算小计、税和总计
            cart.Subtotal = cart.Items.Sum(item => item.Price);
            cart.Tax = Math.Round(cart.Subtotal * 0.08m, 2);
            cart.Total = cart.Subtotal + cart.Tax;

            // 返回购物车增量
            return Task.FromResult(new CartDelta
            {
                NewItems = new List<PizzaItem> { newItem },
                UpdatedCart = cart
            });
        }

        public Task<Cart> GetCart(Guid cartId)
        {
            if (!_carts.TryGetValue(cartId, out var cart))
            {
                cart = new Cart { Id = cartId, Items = new List<PizzaItem>() };
                _carts[cartId] = cart;
            }

            return Task.FromResult(cart);
        }

        public Task<Cart> RemoveItemFromCart(Guid cartId, int itemId)
        {
            if (!_carts.TryGetValue(cartId, out var cart))
            {
                throw new Exception("购物车不存在");
            }

            var itemToRemove = cart.Items.FirstOrDefault(item => item.Id == itemId);
            if (itemToRemove == null)
            {
                throw new Exception("商品不存在");
            }

            cart.Items.Remove(itemToRemove);

            // 重新计算购物车总额
            cart.Subtotal = cart.Items.Sum(item => item.Price);
            cart.Tax = Math.Round(cart.Subtotal * 0.08m, 2);
            cart.Total = cart.Subtotal + cart.Tax;

            return Task.FromResult(cart);
        }

        public Task<CheckoutResponse> Checkout(Guid cartId, Guid paymentId)
        {
            if (!_carts.TryGetValue(cartId, out var cart))
            {
                throw new Exception("购物车不存在");
            }

            // 生成订单ID
            string orderId = Guid.NewGuid().ToString()[..8].ToUpper();

            // 模拟送达时间（30-45分钟）
            var now = DateTime.Now;
            var deliveryTime = now.AddMinutes(new Random().Next(30, 46));

            var response = new CheckoutResponse
            {
                OrderId = orderId,
                Total = cart.Total,
                EstimatedDeliveryTime = deliveryTime.ToString("HH:mm")
            };

            // 清空购物车
            _carts.Remove(cartId);

            return Task.FromResult(response);
        }
    }

    public class MockUserContext : IUserContext
    {
        private readonly Guid _cartId = Guid.NewGuid();

        public Task<Guid> GetCartIdAsync()
        {
            return Task.FromResult(_cartId);
        }

        public Guid GetCartId()
        {
            return _cartId;
        }

        public Task<string> GetUserAddressAsync()
        {
            return Task.FromResult("北京市朝阳区建国路88号");
        }
    }

    public class MockPaymentService : IPaymentService
    {
        public Task<Guid> RequestPaymentFromUserAsync(Guid cartId)
        {
            // 模拟支付处理
            return Task.FromResult(Guid.NewGuid());
        }

        public Task<bool> VerifyPaymentAsync(Guid paymentId)
        {
            // 假设所有付款都通过验证
            return Task.FromResult(true);
        }
    }

    #endregion

    #region 披萨订购插件

    // 披萨订购插件
    public class OrderPizzaPlugin
    {
        private readonly IPizzaService _pizzaService;
        private readonly IUserContext _userContext;
        private readonly IPaymentService _paymentService;

        public OrderPizzaPlugin(
            IPizzaService pizzaService,
            IUserContext userContext,
            IPaymentService paymentService)
        {
            _pizzaService = pizzaService;
            _userContext = userContext;
            _paymentService = paymentService;
        }

        [KernelFunction("get_pizza_menu")]
        [Description("获取披萨菜单，包括披萨种类、配菜和饮料")]
        public async Task<Menu> GetPizzaMenuAsync()
        {
            return await _pizzaService.GetMenu();
        }

        [KernelFunction("add_pizza_to_cart")]
        [Description("添加披萨到用户购物车，返回新添加的商品和更新后的购物车")]
        public async Task<CartDelta> AddPizzaToCart(
            [Description("披萨尺寸：小号、中号或大号")] PizzaSize size,
            [Description("披萨配料列表，可选：芝士、意式辣香肠、蘑菇、橄榄、洋葱、培根、额外芝士、青椒、菠萝、香肠")] List<PizzaToppings> toppings,
            [Description("披萨数量，默认为1")] int quantity = 1,
            [Description("特殊制作说明，例如'少放盐'，默认为空")] string specialInstructions = "")
        {
            try
            {
                Guid cartId = _userContext.GetCartId();
                return await _pizzaService.AddPizzaToCart(
                    cartId: cartId,
                    size: size,
                    toppings: toppings,
                    quantity: quantity,
                    specialInstructions: specialInstructions);
            }
            catch (Exception ex)
            {
                throw new Exception($"添加披萨失败: {ex.Message}");
            }
        }

        [KernelFunction("get_cart")]
        [Description("获取用户当前购物车内容")]
        public async Task<Cart> GetCart()
        {
            try
            {
                Guid cartId = _userContext.GetCartId();
                return await _pizzaService.GetCart(cartId);
            }
            catch (Exception ex)
            {
                throw new Exception($"获取购物车失败: {ex.Message}");
            }
        }

        [KernelFunction("remove_item_from_cart")]
        [Description("从购物车中移除指定商品")]
        public async Task<Cart> RemoveItemFromCart(
            [Description("要移除的商品ID")] int itemId)
        {
            try
            {
                Guid cartId = _userContext.GetCartId();
                return await _pizzaService.RemoveItemFromCart(cartId, itemId);
            }
            catch (Exception ex)
            {
                throw new Exception($"移除商品失败: {ex.Message}");
            }
        }

        [KernelFunction("checkout")]
        [Description("结算用户购物车，处理付款并完成订单")]
        public async Task<CheckoutResponse> Checkout()
        {
            try
            {
                Guid cartId = await _userContext.GetCartIdAsync();
                Guid paymentId = await _paymentService.RequestPaymentFromUserAsync(cartId);

                // 确认付款成功
                bool paymentVerified = await _paymentService.VerifyPaymentAsync(paymentId);
                if (!paymentVerified)
                {
                    throw new Exception("付款验证失败");
                }

                return await _pizzaService.Checkout(cartId, paymentId);
            }
            catch (Exception ex)
            {
                throw new Exception($"结算失败: {ex.Message}");
            }
        }

        [KernelFunction("get_delivery_address")]
        [Description("获取用户的送货地址")]
        public async Task<string> GetDeliveryAddress()
        {
            try
            {
                return await _userContext.GetUserAddressAsync();
            }
            catch (Exception ex)
            {
                throw new Exception($"获取送货地址失败: {ex.Message}");
            }
        }
    }

    #endregion
}


结论

函数调用为C#开发者提供了构建强大、交互式AI应用的能力。通过Semantic Kernel，您可以轻松集成现有代码与大型语言模型。掌握本文介绍的最佳实践，将帮助您开发出反应灵敏、用户友好的聊天机器人，能够处理从订购披萨到执行复杂业务逻辑的各种任务。

通过合理设计函数、优化参数和返回值，以及实现并行函数调用，您可以创建出更高效、更智能的交互式应用程序。

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
