🔥 WinForm开发必备：委托与事件的实战应用指南
2025-11-06
C#
00

目录

💡 深入理解委托与事件的本质
🔍 问题分析：为什么需要委托和事件？
🎯 核心概念解析
🚀 实战方案一：窗体间优雅通信
💻 应用场景
⚠️ 常见坑点提醒
🚀 实战方案二：多控件统一事件处理
💻 应用场景
💡 优化技巧
🚀 实战方案三：自定义控件事件发布
💻 应用场景
🎯 核心要点总结
🔥 收藏级代码模板：
💬 互动时刻

在WinForm开发中，你是否遇到过这些令人头疼的问题：窗体间数据传递混乱、控件事件处理逻辑复杂、异步操作后UI更新困难？这些看似复杂的问题，其实都可以通过正确使用**委托（Delegate）和事件（Event）**来优雅解决。

作为C#开发的核心概念，委托和事件在WinForm应用中扮演着至关重要的角色。它们不仅能帮你实现松耦合的代码架构，还能让复杂的UI交互变得简单直观。本文将通过5个实战场景，带你深入掌握这两个强大工具的使用技巧。

💡 深入理解委托与事件的本质

🔍 问题分析：为什么需要委托和事件？

在传统的WinForm开发中，我们经常面临以下挑战：

  1. 窗体间通信困难：子窗体需要将数据回传给父窗体
  2. 控件事件管理复杂：多个控件需要响应同一个操作
  3. 异步操作UI更新：后台线程完成后需要更新界面
  4. 代码耦合度过高：组件间直接引用导致维护困难

🎯 核心概念解析

委托（Delegate）：可以理解为"方法的指针"，允许我们将方法作为参数传递。

事件（Event）：基于委托的特殊封装，提供了更安全的发布-订阅模式。

🚀 实战方案一：窗体间优雅通信

💻 应用场景

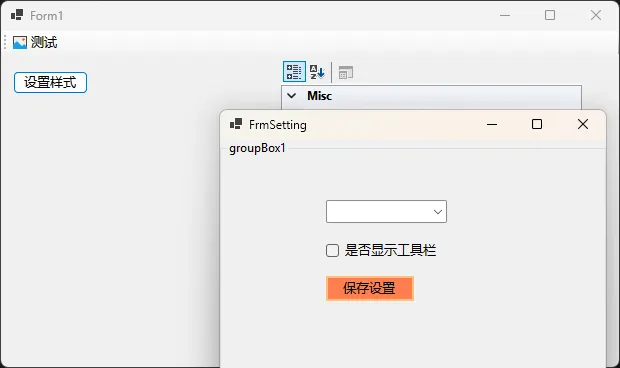

主窗体打开一个设置窗体，用户修改设置后需要通知主窗体更新界面。

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace AppWinformDelAndEvent
{
    public partial class FrmSetting : Form
    {
        public delegate void SettingsChangedHandler(string theme, bool showToolbar); //正常我会用action
        public event SettingsChangedHandler OnSettingsChanged;

        public FrmSetting()
        {
            InitializeComponent();
        }

        private void btnSave_Click(object sender, EventArgs e)
        {

            string selectedTheme = cmbTheme.SelectedItem?.ToString();
            bool showToolbar = chkShowToolbar.Checked;

            // 触发事件，通知订阅者
            OnSettingsChanged?.Invoke(selectedTheme, showToolbar);

            this.DialogResult = DialogResult.OK;
            this.Close();
        }
    }
}


C#
using System.Windows.Forms;

namespace AppWinformDelAndEvent
{
    public partial class Form1 : Form
    {
        public Form1()
        {
            InitializeComponent();
        }

        private void btnSettings_Click(object sender, EventArgs e)
        {
            var frmSetting = new FrmSetting();

            // 订阅事件
            frmSetting.OnSettingsChanged += HandleSettingsChanged;

            frmSetting.ShowDialog();
        }

        private void HandleSettingsChanged(string theme, bool showToolbar)
        {
            // 应用新设置
            ApplyTheme(theme);
            toolStrip.Visible = showToolbar;

            var property = new
            {
                Theme = theme,
                ShowToolbar = showToolbar
            };

            propertyGrid1.SelectedObject = property;


            MessageBox.Show($"设置已更新：主题={theme}, 显示工具栏={showToolbar}");
        }

        private void ApplyTheme(string theme)
        {
            switch (theme)
            {
                case "暗黑":
                    this.BackColor = Color.DarkGray;
                    this.ForeColor = Color.White;
                    break;
                case "高亮":
                    this.BackColor = Color.White;
                    this.ForeColor = Color.Black;
                    break;
            }
        }
    }
}



⚠️ 常见坑点提醒

  • 内存泄漏：记得在窗体关闭时取消事件订阅
  • 空引用：使用?.操作符安全调用事件

🚀 实战方案二：多控件统一事件处理

💻 应用场景

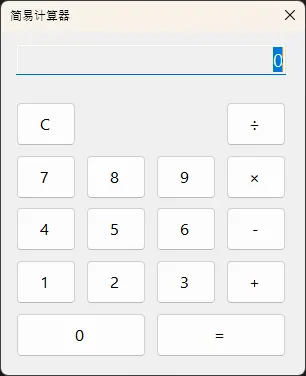

多个按钮需要执行相似的操作，但参数不同。

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace AppWinformDelAndEvent
{
    public partial class FrmCalculator : Form
    {
        // 定义通用的按钮点击委托
        public delegate void NumberButtonClickHandler(int number);
        public delegate void OperatorButtonClickHandler(string operatorSymbol);

        private StringBuilder currentInput = new StringBuilder();
        private double result = 0;
        private string currentOperator = "";
        private bool isNewNumber = true;
        public FrmCalculator()
        {
            InitializeComponent();
            InitializeNumberButtons();
            InitializeOperatorButtons();
        }

        private void InitializeNumberButtons()
        {
            // 将数字按钮统一绑定到委托
            NumberButtonClickHandler numberHandler = HandleNumberClick;

            btn0.Click += (s, e) => numberHandler(0);
            btn1.Click += (s, e) => numberHandler(1);
            btn2.Click += (s, e) => numberHandler(2);
            btn3.Click += (s, e) => numberHandler(3);
            btn4.Click += (s, e) => numberHandler(4);
            btn5.Click += (s, e) => numberHandler(5);
            btn6.Click += (s, e) => numberHandler(6);
            btn7.Click += (s, e) => numberHandler(7);
            btn8.Click += (s, e) => numberHandler(8);
            btn9.Click += (s, e) => numberHandler(9);
        }

        private void InitializeOperatorButtons()
        {
            // 操作符按钮统一处理
            OperatorButtonClickHandler operatorHandler = HandleOperatorClick;

            btnAdd.Click += (s, e) => operatorHandler("+");
            btnSubtract.Click += (s, e) => operatorHandler("-");
            btnMultiply.Click += (s, e) => operatorHandler("×");
            btnDivide.Click += (s, e) => operatorHandler("÷");
        }

        private void HandleNumberClick(int number)
        {
            if (isNewNumber)
            {
                currentInput.Clear();
                isNewNumber = false;
            }

            currentInput.Append(number);
            txtDisplay.Text = currentInput.ToString();
        }

        private void HandleOperatorClick(string operatorSymbol)
        {
            if (!isNewNumber)
            {
                if (!string.IsNullOrEmpty(currentOperator))
                {
                    PerformCalculation();
                }
                else
                {
                    result = double.Parse(currentInput.ToString());
                }
            }

            currentOperator = operatorSymbol;
            isNewNumber = true;

            // 在状态栏显示当前操作
            lblStatus.Text = $"{result} {operatorSymbol} ";
        }

        private void PerformCalculation()
        {
            double currentValue = double.Parse(currentInput.ToString());

            switch (currentOperator)
            {
                case "+":
                    result += currentValue;
                    break;
                case "-":
                    result -= currentValue;
                    break;
                case "×":
                    result *= currentValue;
                    break;
                case "÷":
                    if (currentValue != 0)
                        result /= currentValue;
                    else
                        MessageBox.Show("除数不能为零！", "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
                    break;
            }

            txtDisplay.Text = result.ToString();
            currentInput.Clear();
            currentInput.Append(result);
        }

        private void btnEquals_Click(object sender, EventArgs e)
        {

        }

        private void btnClear_Click(object sender, EventArgs e)
        {
            txtDisplay.Clear();
        }
    }
}


💡 优化技巧

使用泛型委托可以让代码更简洁：

C#
// 使用Action和Func简化委托声明
private void InitializeButtons()
{
    // Action<T> 相当于 delegate void Handler(T parameter)
    Action<int> numberHandler = HandleNumberClick;
    Action<string> operatorHandler = HandleOperatorClick;

    // 甚至可以直接使用Lambda表达式
    var buttons = new Dictionary<Button, int>
    {
        { btn0, 0 }, { btn1, 1 }, { btn2, 2 }, { btn3, 3 }, { btn4, 4 },
        { btn5, 5 }, { btn6, 6 }, { btn7, 7 }, { btn8, 8 }, { btn9, 9 }
    };

    foreach (var kvp in buttons)
    {
        int number = kvp.Value; // 捕获局部变量
        kvp.Key.Click += (s, e) => numberHandler(number);
    }
}

🚀 实战方案三：自定义控件事件发布

💻 应用场景

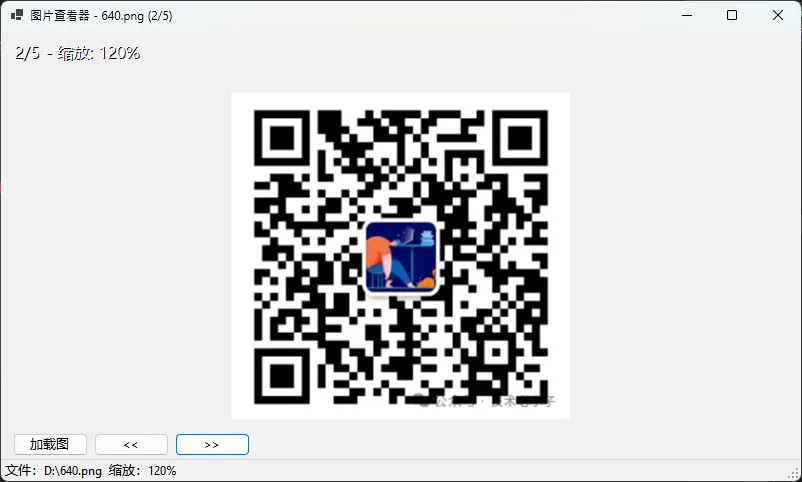

创建一个自定义的图片查看器控件，需要向外发布图片切换、缩放等事件。

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Drawing.Drawing2D;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace AppWinformDelAndEvent
{
    public partial class ImageViewerControl : UserControl
    {
        // 定义自定义事件参数
        public class ImageEventArgs : EventArgs
        {
            public string ImagePath { get; }
            public int CurrentIndex { get; }
            public int TotalCount { get; }
            public float ZoomLevel { get; }

            public ImageEventArgs(string imagePath, int currentIndex, int totalCount, float zoomLevel)
            {
                ImagePath = imagePath;
                CurrentIndex = currentIndex;
                TotalCount = totalCount;
                ZoomLevel = zoomLevel;
            }
        }

        // 定义事件委托
        public delegate void ImageChangedHandler(object sender, ImageEventArgs e);
        public delegate void ZoomChangedHandler(object sender, ImageEventArgs e);
        public delegate void ImageLoadErrorHandler(object sender, string errorMessage);

        // 声明公共事件
        public event ImageChangedHandler ImageChanged;
        public event ZoomChangedHandler ZoomChanged;
        public event ImageLoadErrorHandler ImageLoadError;

        private List<string> imageFiles = new List<string>();
        private int currentIndex = -1;
        private float zoomLevel = 1.0f;
        private Image currentImage;

        public ImageViewerControl()
        {
            InitializeComponent();
            this.DoubleBuffered = true; // 启用双缓冲减少闪烁
            this.SetStyle(ControlStyles.ResizeRedraw, true);
        }

        // 加载图片文件夹
        public void LoadImages(string folderPath)
        {
            try
            {
                var supportedExtensions = new[] { ".jpg", ".jpeg", ".png", ".bmp", ".gif" };
                imageFiles = Directory.GetFiles(folderPath)
                    .Where(f => supportedExtensions.Contains(Path.GetExtension(f).ToLower()))
                    .OrderBy(f => f)
                    .ToList();

                if (imageFiles.Count > 0)
                {
                    currentIndex = 0;
                    LoadCurrentImage();
                }
                else
                {
                    OnImageLoadError("文件夹中没有找到支持的图片文件");
                }
            }
            catch (Exception ex)
            {
                OnImageLoadError($"加载文件夹失败：{ex.Message}");
            }
        }

        // 显示下一张图片
        public void NextImage()
        {
            if (imageFiles.Count == 0) return;

            currentIndex = (currentIndex + 1) % imageFiles.Count;
            LoadCurrentImage();
        }

        // 显示上一张图片
        public void PreviousImage()
        {
            if (imageFiles.Count == 0) return;

            currentIndex = currentIndex > 0 ? currentIndex - 1 : imageFiles.Count - 1;
            LoadCurrentImage();
        }

        // 缩放图片
        public void ZoomIn()
        {
            SetZoom(zoomLevel * 1.2f);
        }

        public void ZoomOut()
        {
            SetZoom(zoomLevel / 1.2f);
        }

        public void SetZoom(float newZoomLevel)
        {
            zoomLevel = Math.Max(0.1f, Math.Min(5.0f, newZoomLevel));
            this.Invalidate(); // 触发重绘

            // 触发缩放事件
            OnZoomChanged();
        }

        private void LoadCurrentImage()
        {
            if (currentIndex < 0 || currentIndex >= imageFiles.Count) return;

            try
            {
                // 释放之前的图片资源
                currentImage?.Dispose();

                // 加载新图片
                string imagePath = imageFiles[currentIndex];
                currentImage = Image.FromFile(imagePath);

                // 重置缩放级别
                zoomLevel = 1.0f;

                // 重绘控件
                this.Invalidate();

                // 触发图片改变事件
                OnImageChanged();
            }
            catch (Exception ex)
            {
                OnImageLoadError($"加载图片失败：{ex.Message}");
            }
        }

        protected override void OnPaint(PaintEventArgs e)
        {
            base.OnPaint(e);

            if (currentImage == null) return;

            Graphics g = e.Graphics;
            g.SmoothingMode = SmoothingMode.HighQuality;
            g.InterpolationMode = InterpolationMode.HighQualityBicubic;

            // 计算显示尺寸和位置
            int displayWidth = (int)(currentImage.Width * zoomLevel);
            int displayHeight = (int)(currentImage.Height * zoomLevel);

            int x = (this.Width - displayWidth) / 2;
            int y = (this.Height - displayHeight) / 2;

            // 绘制图片
            g.DrawImage(currentImage, x, y, displayWidth, displayHeight);

            // 绘制信息文本
            string info = $"{currentIndex + 1}/{imageFiles.Count} - 缩放: {zoomLevel:P0}";
            using (var font = new Font("微软雅黑", 12))
            using (var brush = new SolidBrush(Color.White))
            using (var shadowBrush = new SolidBrush(Color.Black))
            {
                // 绘制阴影效果
                g.DrawString(info, font, shadowBrush, 11, 11);
                g.DrawString(info, font, brush, 10, 10);
            }
        }

        protected override void OnMouseWheel(MouseEventArgs e)
        {
            base.OnMouseWheel(e);

            // 鼠标滚轮缩放
            if (e.Delta > 0)
                ZoomIn();
            else
                ZoomOut();
        }

        protected override void OnKeyDown(KeyEventArgs e)
        {
            base.OnKeyDown(e);

            switch (e.KeyCode)
            {
                case Keys.Left:
                    PreviousImage();
                    break;
                case Keys.Right:
                    NextImage();
                    break;
                case Keys.Add:
                case Keys.Oemplus:
                    ZoomIn();
                    break;
                case Keys.Subtract:
                case Keys.OemMinus:
                    ZoomOut();
                    break;
                case Keys.D0:
                case Keys.NumPad0:
                    SetZoom(1.0f);
                    break;
            }
        }

        // 事件触发方法
        protected virtual void OnImageChanged()
        {
            if (currentIndex >= 0 && currentIndex < imageFiles.Count)
            {
                var args = new ImageEventArgs(
                    imageFiles[currentIndex],
                    currentIndex,
                    imageFiles.Count,
                    zoomLevel);
                ImageChanged?.Invoke(this, args);
            }
        }

        protected virtual void OnZoomChanged()
        {
            if (currentIndex >= 0 && currentIndex < imageFiles.Count)
            {
                var args = new ImageEventArgs(
                    imageFiles[currentIndex],
                    currentIndex,
                    imageFiles.Count,
                    zoomLevel);
                ZoomChanged?.Invoke(this, args);
            }
        }

        protected virtual void OnImageLoadError(string errorMessage)
        {
            ImageLoadError?.Invoke(this, errorMessage);
        }
    }
}


C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace AppWinformDelAndEvent
{
    public partial class FrmImageViewer : Form
    {
        private ImageViewerControl imageViewer;
        public FrmImageViewer()
        {
            InitializeComponent();
            InitializeImageViewer();
        }

        private void InitializeImageViewer()
        {
            imageViewer = new ImageViewerControl
            {
                Dock = DockStyle.Fill,
                TabIndex = 0
            };

            // 订阅自定义事件
            imageViewer.ImageChanged += OnImageChanged;
            imageViewer.ZoomChanged += OnZoomChanged;
            imageViewer.ImageLoadError += OnImageLoadError;

            this.Controls.Add(imageViewer);
            imageViewer.Focus(); // 确保能接收键盘事件
        }

        private void OnImageChanged(object sender, ImageViewerControl.ImageEventArgs e)
        {
            // 更新窗体标题
            this.Text = $"图片查看器 - {Path.GetFileName(e.ImagePath)} ({e.CurrentIndex + 1}/{e.TotalCount})";

            // 更新状态栏
            stsMain_lblTitle.Text = $"文件：{e.ImagePath}";
        }

        private void OnZoomChanged(object sender, ImageViewerControl.ImageEventArgs e)
        {
            // 更新缩放显示
            stsMain_lblZoom.Text = $"缩放：{e.ZoomLevel:P0}";
        }

        private void OnImageLoadError(object sender, string errorMessage)
        {
            MessageBox.Show(errorMessage, "错误", MessageBoxButtons.OK, MessageBoxIcon.Error);
            stsMain_lblTitle.Text = "加载失败";
        }

        private void btnOpenFolder_Click(object sender, EventArgs e)
        {
            using (var dialog = new FolderBrowserDialog())
            {
                dialog.Description = "选择包含图片的文件夹";
                if (dialog.ShowDialog() == DialogResult.OK)
                {
                    imageViewer.LoadImages(dialog.SelectedPath);
                }
            }
        }

        private void btnNext_Click(object sender, EventArgs e)
        {
            imageViewer.NextImage();
        }

        private void btnPre_Click(object sender, EventArgs e)
        {
            imageViewer.PreviousImage();
        }
    }
}


🎯 核心要点总结

通过以上3个实战场景，我们深入探索了WinForm中委托和事件的强大应用：

🔥 收藏级代码模板：

C#
// 万能事件定义模板
public class CustomEventArgs<T> : EventArgs
{
    public T Data { get; }
    public DateTime Timestamp { get; }

    public CustomEventArgs(T data)
    {
        Data = data;
        Timestamp = DateTime.Now;
    }
}

// 线程安全的事件触发模板
private void SafeInvokeEvent<T>(Action<T> eventHandler, T parameter)
{
    if (InvokeRequired)
        BeginInvoke(eventHandler, parameter);
    else
        eventHandler?.Invoke(parameter);
}

💬 互动时刻

你在WinForm开发中最常遇到的事件处理难题是什么？是跨线程UI更新，还是复杂的窗体间通信？欢迎在评论区分享你的经验和困惑！

如果这篇文章帮你解决了实际问题，请转发给更多需要的同行，让我们一起提升C#开发水平！

关注我，获取更多实用的C#开发技巧和最佳实践！

📝 本文所有代码均经过实际测试，可直接用于生产项目。如需完整示例源码，请私信获取。

本文作者:技术老小子

本文链接:

版权声明:本博客所有文章除特别声明外，均采用 BY-NC-SA 许可协议。转载请注明出处！
