作为C#开发者，你是否经常遇到需要展示层次化数据的场景？比如文件目录结构、部门组织架构、产品分类体系...传统的列表展示方式显然无法满足需求。这时候，TreeView控件就是你的救星！

今天这篇文章将彻底解决你在使用TreeView控件时遇到的所有痛点，从基础操作到高级应用，从常见bug到性能优化，让你一次性掌握TreeView的核心技能。

🎯 为什么TreeView控件如此重要？

在企业级应用开发中，数据的层次化展示是刚需：

• 文件管理系统：需要展示文件夹和文件的树形结构
• 权限管理模块：组织架构的层级关系展示
• 产品分类系统：多级分类的可视化管理
• 导航菜单：复杂系统的功能模块导航

如果没有TreeView，你可能需要写大量复杂的递归逻辑和UI布局代码。而TreeView控件，一个组件就能搞定所有需求！

🔥 核心属性详解：掌握这些就成功一半

📊 必知的6大核心属性

C#
// 1. Nodes：树的根节点集合（算是起点）
TreeView treeView = new TreeView();
TreeNodeCollection rootNodes = treeView.Nodes;

// 2. SelectedNode：获取当前选中节点
TreeNode selectedNode = treeView.SelectedNode;

// 3. CheckBoxes：显示复选框
treeView.CheckBoxes = true;

// 4. LabelEdit：允许编辑节点文本
treeView.LabelEdit = true;

// 5. ShowLines：显示连接线
treeView.ShowLines = true;

// 6. ImageList：节点图标支持
treeView.ImageList = myImageList;

⚠️ 新手常踩的坑：很多人忽略了ShowLines属性，导致树形结构看起来层次不清晰！

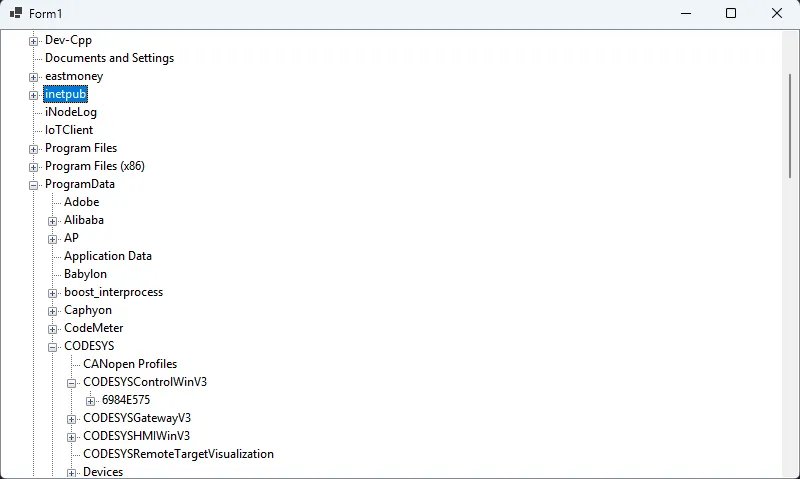

💡 实战案例1：构建文件管理系统的目录树

这是最经典的应用场景，让我们从零开始构建：

C#
namespace AppWinformTreeView
{
    public partial class Form1 : Form
    {
        private TreeView fileTreeView;

        public Form1()
        {
            InitializeComponent();
            InitializeFileTreeView();
            LoadDirectoryTree(@"C:\");
        }

        private void InitializeFileTreeView()
        {
            fileTreeView = new TreeView
            {
                Dock = DockStyle.Fill,
                ShowLines = true,
                ShowPlusMinus = true,
                HideSelection = false // 保持选中状态可见
            };

            this.Controls.Add(fileTreeView);

            // 注册展开事件，实现按需加载
            fileTreeView.BeforeExpand += FileTreeView_BeforeExpand;
        }

        private void LoadDirectoryTree(string rootPath)
        {
            try
            {
                TreeNode rootNode = new TreeNode(rootPath)
                {
                    Tag = rootPath // 保存完整路径信息
                };

                fileTreeView.Nodes.Add(rootNode);
                LoadSubDirectories(rootNode);
                rootNode.Expand();
            }
            catch (Exception ex)
            {
                MessageBox.Show($"加载目录失败：{ex.Message}");
            }
        }

        private void LoadSubDirectories(TreeNode parentNode)
        {
            string parentPath = parentNode.Tag.ToString();

            try
            {
                foreach (string directory in Directory.GetDirectories(parentPath))
                {
                    DirectoryInfo dirInfo = new DirectoryInfo(directory);
                    TreeNode dirNode = new TreeNode(dirInfo.Name)
                    {
                        Tag = directory
                    };

                    parentNode.Nodes.Add(dirNode);

                    // 检查是否有子目录，如果有则添加占位符
                    if (HasSubDirectories(directory))
                    {
                        dirNode.Nodes.Add(new TreeNode("Loading...")); // 占位符
                    }
                }
            }
            catch (UnauthorizedAccessException)
            {
                // 忽略无权限访问的目录
            }
        }

        private bool HasSubDirectories(string path)
        {
            try
            {
                return Directory.GetDirectories(path).Length > 0;
            }
            catch (UnauthorizedAccessException)
            {
                return false;
            }
        }

        private void FileTreeView_BeforeExpand(object sender, TreeViewCancelEventArgs e)
        {
            // 延迟加载：只在展开时加载子目录
            if (e.Node.Nodes.Count == 1 && e.Node.Nodes[0].Text == "Loading...")
            {
                e.Node.Nodes.Clear();
                LoadSubDirectories(e.Node);
            }
        }
    }
}

🎯 这个案例的亮点：

• 延迟加载：避免一次性加载所有目录造成的性能问题
• 异常处理：妥善处理权限不足的情况
• 用户体验：使用占位符提示用户数据正在加载

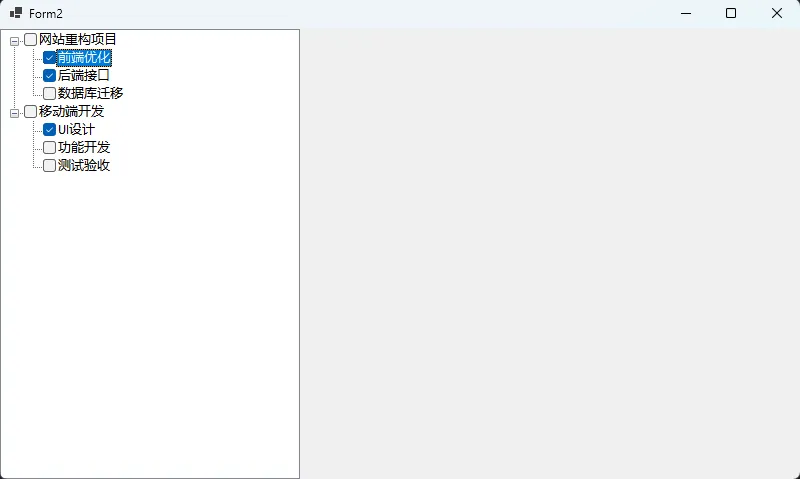

💡 实战案例2：带复选框的任务管理系统

在项目管理中，我们经常需要批量操作任务，TreeView的复选框功能完美解决这个需求：

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;

namespace AppWinformTreeView
{
    public partial class Form2 : Form
    {
        private TreeView taskTreeView;

        public Form2()
        {
            InitializeComponent();

            taskTreeView = new TreeView
            {
                CheckBoxes = true,
                ShowLines = true,
                Dock = DockStyle.Left,
                Width = 300
            };

            // 注册复选框状态变化事件
            taskTreeView.AfterCheck += TaskTreeView_AfterCheck;
            this.Controls.Add(taskTreeView);

            LoadProjectTasks();
        }

        private void LoadProjectTasks()
        {
            // 模拟项目任务数据
            var projects = new[]
            {
            new { Name = "网站重构项目", Tasks = new[] { "前端优化", "后端接口", "数据库迁移" } },
            new { Name = "移动端开发", Tasks = new[] { "UI设计", "功能开发", "测试验收" } }
        };

            taskTreeView.BeginUpdate(); // 🔥 性能优化关键！

            foreach (var project in projects)
            {
                TreeNode projectNode = new TreeNode(project.Name)
                {
                    Tag = new { Type = "Project", Id = project.Name }
                };

                taskTreeView.Nodes.Add(projectNode);

                foreach (var task in project.Tasks)
                {
                    TreeNode taskNode = new TreeNode(task)
                    {
                        Tag = new { Type = "Task", Id = task, ParentProject = project.Name }
                    };
                    projectNode.Nodes.Add(taskNode);
                }
            }

            taskTreeView.EndUpdate(); // 结束批量更新
            taskTreeView.ExpandAll();
        }

        private void TaskTreeView_AfterCheck(object sender, TreeViewEventArgs e)
        {
            // 实现智能级联选择：父节点选中时自动选中所有子节点
            if (e.Action != TreeViewAction.Unknown)
            {
                CheckAllChildNodes(e.Node, e.Node.Checked);
                UpdateParentNodeCheckState(e.Node);
            }
        }

        private void CheckAllChildNodes(TreeNode node, bool isChecked)
        {
            foreach (TreeNode childNode in node.Nodes)
            {
                childNode.Checked = isChecked;
                CheckAllChildNodes(childNode, isChecked); // 递归处理
            }
        }

        private void UpdateParentNodeCheckState(TreeNode node)
        {
            if (node.Parent != null)
            {
                // 检查同级节点的选中状态
                bool allChecked = true;
                bool anyChecked = false;

                foreach (TreeNode sibling in node.Parent.Nodes)
                {
                    if (sibling.Checked)
                        anyChecked = true;
                    else
                        allChecked = false;
                }

                // 更新父节点状态
                node.Parent.Checked = allChecked;

                // 递归更新上级节点
                UpdateParentNodeCheckState(node.Parent);
            }
        }

        // 获取所有选中的任务
        private List<string> GetSelectedTasks()
        {
            List<string> selectedTasks = new List<string>();
            GetSelectedTasksRecursive(taskTreeView.Nodes, selectedTasks);
            return selectedTasks;
        }

        private void GetSelectedTasksRecursive(TreeNodeCollection nodes, List<string> selectedTasks)
        {
            foreach (TreeNode node in nodes)
            {
                if (node.Checked && node.Tag.ToString().Contains("Task"))
                {
                    selectedTasks.Add(node.Text);
                }

                if (node.Nodes.Count > 0)
                {
                    GetSelectedTasksRecursive(node.Nodes, selectedTasks);
                }
            }
        }
    }
}

🎯 级联选择的核心逻辑：

• 父节点选中 → 所有子节点自动选中
• 子节点全部选中 → 父节点自动选中
• 子节点部分选中 → 父节点保持半选状态

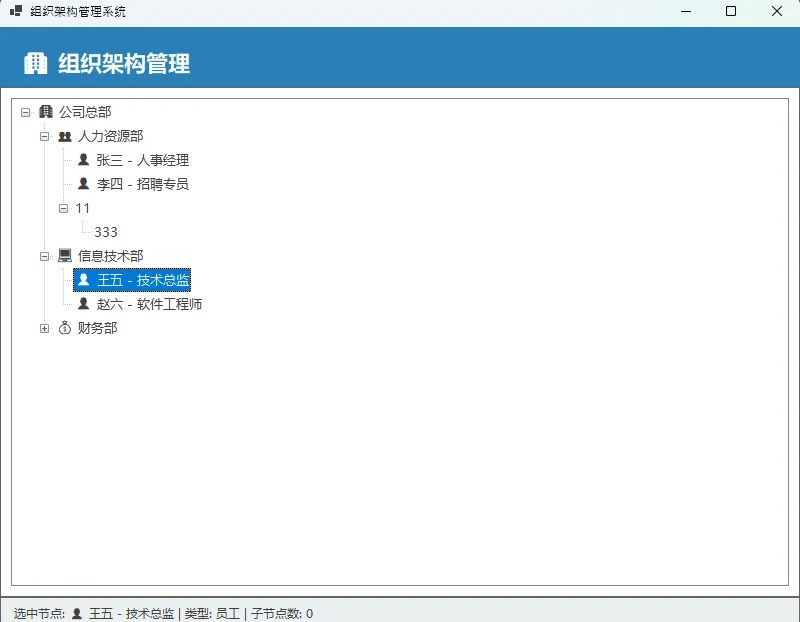

💡 实战案例3：可编辑的组织架构管理

在企业应用中，组织架构经常变动，可编辑的TreeView能大大提升管理效率：

C#
using System;
using System.Collections.Generic;
using System.ComponentModel;
using System.Data;
using System.Drawing;
using System.Linq;
using System.Text;
using System.Threading.Tasks;
using System.Windows.Forms;
using Timer = System.Windows.Forms.Timer;

namespace AppWinformTreeView
{
    public partial class Form3 : Form
    {
        private TreeView orgTreeView;
        private ContextMenuStrip nodeContextMenu;

        public Form3()
        {
            InitializeComponent();
            CreateContextMenu();  // 创建右键菜单
            InitializeTreeView();
            LoadOrganizationData();
        }

        private void CreateContextMenu()
        {
            nodeContextMenu = new ContextMenuStrip
            {
                Font = new Font("微软雅黑", 9F),
                BackColor = Color.White,
                ForeColor = Color.FromArgb(64, 64, 64)
            };

            var addDeptItem = new ToolStripMenuItem("📁 添加部门");
            addDeptItem.Click += AddDepartment_Click;

            var addEmpItem = new ToolStripMenuItem("👤 添加员工");
            addEmpItem.Click += AddEmployee_Click;

            var editItem = new ToolStripMenuItem("✏️ 编辑");
            editItem.Click += EditNode_Click;

            var deleteItem = new ToolStripMenuItem("🗑️ 删除");
            deleteItem.Click += DeleteNode_Click;

            nodeContextMenu.Items.AddRange(new ToolStripItem[]
            {
                addDeptItem,
                addEmpItem,
                new ToolStripSeparator(),
                editItem,
                deleteItem
            });
        }

        private void InitializeTreeView()
        {
            orgTreeView = new TreeView
            {
                LabelEdit = true,
                ShowLines = true,
                HideSelection = false,
                Dock = DockStyle.Fill,
                Font = new Font("微软雅黑", 10F),
                BackColor = Color.White,
                ForeColor = Color.FromArgb(64, 64, 64),
                LineColor = Color.FromArgb(200, 200, 200),
                ItemHeight = 24,
                ShowPlusMinus = true,
                ShowRootLines = true,
                HotTracking = true,
                FullRowSelect = true,
                Margin = new Padding(10),
                ContextMenuStrip = nodeContextMenu
            };

            // 注册事件
            orgTreeView.AfterLabelEdit += OrgTreeView_AfterLabelEdit;
            orgTreeView.BeforeLabelEdit += OrgTreeView_BeforeLabelEdit;
            orgTreeView.NodeMouseClick += OrgTreeView_NodeMouseClick;
            orgTreeView.AfterSelect += OrgTreeView_AfterSelect;

            this.panelTreeView.Controls.Add(orgTreeView);
        }

        private void LoadOrganizationData()
        {
            // 创建根节点
            TreeNode rootNode = new TreeNode("🏢 公司总部")
            {
                Tag = new { Type = "Company", Id = Guid.NewGuid() }
            };

            // 添加示例数据
            var hrDept = new TreeNode("👥 人力资源部")
            {
                Tag = new { Type = "Department", Id = Guid.NewGuid() }
            };
            hrDept.Nodes.Add(new TreeNode("👤 张三 - 人事经理") { Tag = new { Type = "Employee", Id = Guid.NewGuid() } });
            hrDept.Nodes.Add(new TreeNode("👤 李四 - 招聘专员") { Tag = new { Type = "Employee", Id = Guid.NewGuid() } });

            var itDept = new TreeNode("💻 信息技术部")
            {
                Tag = new { Type = "Department", Id = Guid.NewGuid() }
            };
            itDept.Nodes.Add(new TreeNode("👤 王五 - 技术总监") { Tag = new { Type = "Employee", Id = Guid.NewGuid() } });
            itDept.Nodes.Add(new TreeNode("👤 赵六 - 软件工程师") { Tag = new { Type = "Employee", Id = Guid.NewGuid() } });

            var financeDept = new TreeNode("💰 财务部")
            {
                Tag = new { Type = "Department", Id = Guid.NewGuid() }
            };
            financeDept.Nodes.Add(new TreeNode("👤 钱七 - 财务经理") { Tag = new { Type = "Employee", Id = Guid.NewGuid() } });

            rootNode.Nodes.AddRange(new TreeNode[] { hrDept, itDept, financeDept });
            orgTreeView.Nodes.Add(rootNode);
            rootNode.Expand();

            // 设置初始状态
            UpdateStatusBar(rootNode);
        }

        private void OrgTreeView_BeforeLabelEdit(object sender, NodeLabelEditEventArgs e)
        {
            if (IsReadOnlyNode(e.Node))
            {
                e.CancelEdit = true;
                ShowMessage("此节点不允许编辑！", MessageType.Warning);
            }
        }

        private void OrgTreeView_AfterLabelEdit(object sender, NodeLabelEditEventArgs e)
        {
            if (string.IsNullOrWhiteSpace(e.Label))
            {
                e.CancelEdit = true;
                ShowMessage("名称不能为空！", MessageType.Error);
                return;
            }

            if (IsNameDuplicated(e.Node, e.Label))
            {
                e.CancelEdit = true;
                ShowMessage("同级节点中已存在相同名称！", MessageType.Warning);
                return;
            }

            UpdateNodeInDataSource(e.Node, e.Label);
            ShowMessage("节点已成功更新！", MessageType.Success);
        }

        private void OrgTreeView_NodeMouseClick(object sender, TreeNodeMouseClickEventArgs e)
        {
            if (e.Button == MouseButtons.Right)
            {
                orgTreeView.SelectedNode = e.Node;
                // 确保右键菜单显示
                nodeContextMenu.Show(orgTreeView, e.Location);
            }
        }

        private void OrgTreeView_AfterSelect(object sender, TreeViewEventArgs e)
        {
            UpdateStatusBar(e.Node);
        }

        private void AddDepartment_Click(object sender, EventArgs e)
        {
            if (orgTreeView.SelectedNode != null)
            {
                TreeNode newDept = new TreeNode("📁 新部门")
                {
                    Tag = new { Type = "Department", Id = Guid.NewGuid() }
                };

                orgTreeView.SelectedNode.Nodes.Add(newDept);
                orgTreeView.SelectedNode.Expand();
                orgTreeView.SelectedNode = newDept;
                newDept.BeginEdit();
                ShowMessage("正在添加新部门...", MessageType.Info);
            }
        }

        private void AddEmployee_Click(object sender, EventArgs e)
        {
            if (orgTreeView.SelectedNode != null)
            {
                TreeNode newEmp = new TreeNode("👤 新员工")
                {
                    Tag = new { Type = "Employee", Id = Guid.NewGuid() }
                };

                orgTreeView.SelectedNode.Nodes.Add(newEmp);
                orgTreeView.SelectedNode.Expand();
                orgTreeView.SelectedNode = newEmp;
                newEmp.BeginEdit();
                ShowMessage("正在添加新员工...", MessageType.Info);
            }
        }

        private void EditNode_Click(object sender, EventArgs e)
        {
            if (orgTreeView.SelectedNode != null && !IsReadOnlyNode(orgTreeView.SelectedNode))
            {
                orgTreeView.SelectedNode.BeginEdit();
                ShowMessage("正在编辑节点...", MessageType.Info);
            }
            else
            {
                ShowMessage("此节点不允许编辑！", MessageType.Warning);
            }
        }

        private void DeleteNode_Click(object sender, EventArgs e)
        {
            if (orgTreeView.SelectedNode != null && !IsRootNode(orgTreeView.SelectedNode))
            {
                var result = MessageBox.Show(
                    $"确定要删除 '{orgTreeView.SelectedNode.Text}' 及其所有子节点吗？",
                    "确认删除",
                    MessageBoxButtons.YesNo,
                    MessageBoxIcon.Question,
                    MessageBoxDefaultButton.Button2);

                if (result == DialogResult.Yes)
                {
                    string nodeName = orgTreeView.SelectedNode.Text;
                    orgTreeView.SelectedNode.Remove();
                    ShowMessage($"已删除节点: {nodeName}", MessageType.Success);
                }
            }
            else
            {
                ShowMessage("根节点不能删除！", MessageType.Warning);
            }
        }

        private bool IsReadOnlyNode(TreeNode node)
        {
            // 根节点不允许编辑
            return IsRootNode(node);
        }

        private bool IsRootNode(TreeNode node)
        {
            return node.Parent == null;
        }

        private bool IsNameDuplicated(TreeNode currentNode, string newName)
        {
            TreeNodeCollection siblings = currentNode.Parent?.Nodes ?? orgTreeView.Nodes;

            foreach (TreeNode sibling in siblings)
            {
                if (sibling != currentNode &&
                    string.Equals(sibling.Text.Replace("📁 ", "").Replace("👤 ", "").Replace("🏢 ", "").Replace("👥 ", "").Replace("💻 ", "").Replace("💰 ", ""),
                                 newName.Replace("📁 ", "").Replace("👤 ", "").Replace("🏢 ", "").Replace("👥 ", "").Replace("💻 ", "").Replace("💰 ", ""),
                                 StringComparison.OrdinalIgnoreCase))
                {
                    return true;
                }
            }
            return false;
        }

        private void UpdateNodeInDataSource(TreeNode node, string newText)
        {
            // 这里应该更新实际的数据源（数据库、XML等）
            Console.WriteLine($"更新节点: {node.Text} -> {newText}");

            // 根据节点类型添加适当的图标前缀
            if (node.Tag != null)
            {
                dynamic tag = node.Tag;
                string prefix = "";
                switch (tag.Type.ToString())
                {
                    case "Company":
                        prefix = "🏢 ";
                        break;
                    case "Department":
                        prefix = "📁 ";
                        break;
                    case "Employee":
                        prefix = "👤 ";
                        break;
                }

                if (!newText.StartsWith(prefix))
                {
                    node.Text = prefix + newText;
                }
            }
        }

        private void UpdateStatusBar(TreeNode node)
        {
            if (node?.Tag != null)
            {
                dynamic tag = node.Tag;
                string nodeType = tag.Type.ToString();
                string typeText = nodeType == "Company" ? "公司" :
                                 nodeType == "Department" ? "部门" : "员工";

                this.lblStatus.Text = $"选中节点: {node.Text} | 类型: {typeText} | 子节点数: {node.Nodes.Count}";
            }
            else
            {
                this.lblStatus.Text = "就绪状态";
            }
        }

        private enum MessageType
        {
            Info,
            Success,
            Warning,
            Error
        }

        private void ShowMessage(string message, MessageType type)
        {
            Color color = Color.Black;
            switch (type)
            {
                case MessageType.Info:
                    color = Color.FromArgb(52, 152, 219);
                    break;
                case MessageType.Success:
                    color = Color.FromArgb(46, 204, 113);
                    break;
                case MessageType.Warning:
                    color = Color.FromArgb(241, 156, 15);
                    break;
                case MessageType.Error:
                    color = Color.FromArgb(231, 76, 60);
                    break;
            }

            this.lblMessage.Text = message;
            this.lblMessage.ForeColor = color;

            // 3秒后清空消息
            var timer = new Timer { Interval = 3000 };
            timer.Tick += (s, e) =>
            {
                this.lblMessage.Text = "";
                timer.Stop();
                timer.Dispose();
            };
            timer.Start();
        }
    }
}

⚡ 性能优化秘籍：让TreeView飞起来

🚀 批量操作时的性能优化

C#
// ❌ 错误做法：每次添加节点都重绘
for (int i = 0; i < 1000; i++)
{
    treeView.Nodes.Add(new TreeNode($"节点{i}"));
} // 会导致界面卡顿

// ✅ 正确做法：使用BeginUpdate/EndUpdate
treeView.BeginUpdate();
try
{
    for (int i = 0; i < 1000; i++)
    {
        treeView.Nodes.Add(new TreeNode($"节点{i}"));
    }
}
finally
{
    treeView.EndUpdate(); // 确保在finally块中调用
}

🛠️ 常见问题解决方案

❓ 问题1：TreeView选中节点后失去焦点时高亮消失

C#
// 解决方案：设置HideSelection属性
treeView.HideSelection = false;

❓ 问题2：递归遍历TreeView时出现栈溢出

C#
// ❌ 容易栈溢出的递归
private void ProcessNodeRecursive(TreeNode node)
{
    ProcessNode(node);
    foreach (TreeNode child in node.Nodes)
    {
        ProcessNodeRecursive(child); // 深层嵌套时可能栈溢出
    }
}

// ✅ 安全的迭代方式
private void ProcessNodesIterative(TreeNodeCollection nodes)
{
    Stack<TreeNode> nodeStack = new Stack<TreeNode>();

    // 将所有根节点压入栈
    foreach (TreeNode node in nodes)
    {
        nodeStack.Push(node);
    }

    while (nodeStack.Count > 0)
    {
        TreeNode currentNode = nodeStack.Pop();
        ProcessNode(currentNode);

        // 将子节点压入栈
        foreach (TreeNode child in currentNode.Nodes)
        {
            nodeStack.Push(child);
        }
    }
}

❓ 问题3：TreeView图标显示异常

C#
// 确保ImageList正确关联
ImageList imageList = new ImageList();
imageList.ImageSize = new Size(16, 16); // 设置合适的图标大小
imageList.ColorDepth = ColorDepth.Depth32Bit; // 支持透明度

// 添加图标时指定key
imageList.Images.Add("folder", folderIcon);
imageList.Images.Add("file", fileIcon);

treeView.ImageList = imageList;

// 设置节点图标时使用key而不是索引
TreeNode node = new TreeNode("文件夹")
{
    ImageKey = "folder",
    SelectedImageKey = "folder" // 选中时的图标
};

💯 总结：TreeView控件的三大核心要点

通过本文的深入讲解，相信你已经完全掌握了TreeView控件的精髓。让我们回顾一下最重要的三个要点：

🔑 核心要点一：性能优化是关键

• 大量节点操作时必须使用BeginUpdate()和EndUpdate()
• 合理使用延迟加载避免内存浪费
• 深层递归时优先考虑迭代方式

🔑 核心要点二：用户体验设计

• ShowLines让层次结构更清晰
• HideSelection = false保持选中状态可见
• 智能的级联选择提升操作效率

🔑 核心要点三：数据绑定与事件处理

• 善用Tag属性存储业务数据
• 合理处理BeforeExpand、AfterCheck等关键事件
• 完善的异常处理机制保证程序稳定性

---

💭 互动时间：你在项目中是如何优化TreeView性能的？遇到过哪些棘手的问题？

🤝 技术交流：如果你有TreeView的其他应用场景或者遇到文章中没有涉及的问题，欢迎在评论区分享讨论！

觉得这篇TreeView完全指南对你有帮助？请转发给更多需要的同行，让我们一起提升C#开发技能！

---

关注我，获取更多C#开发实战技巧和最佳实践分享！

C# TreeView控件实战指南：从新手到高手的完整攻略
