在工业4.0时代，设备间的通信变得越来越重要。你是否也遇到过这样的痛点：需要与各种工业设备通信，但每个设备的协议都不一样？传统的COM、Modbus等协议配置复杂，维护困难？今天我们就用C#来打造一个现代化的OPC UA客户端，让设备通信变得简单优雅！

本文将带你从架构设计到界面实现，完整构建一个生产级的OPC UA Bridge应用。无论你是工业软件开发者，还是想了解现代C# WPF开发最佳实践的程序员，这篇文章都会让你收获满满。

🔍 问题分析：为什么选择OPC UA？

传统工业通信面临的三大痛点：

1. 协议碎片化：不同厂商设备协议各异，集成困难
2. 安全性不足：明文传输，易被攻击
3. 可扩展性差：添加新设备需要重新开发

OPC UA作为新一代工业通信标准，完美解决了这些问题：

• 统一的通信协议和数据模型
• 内置安全机制
• 跨平台支持

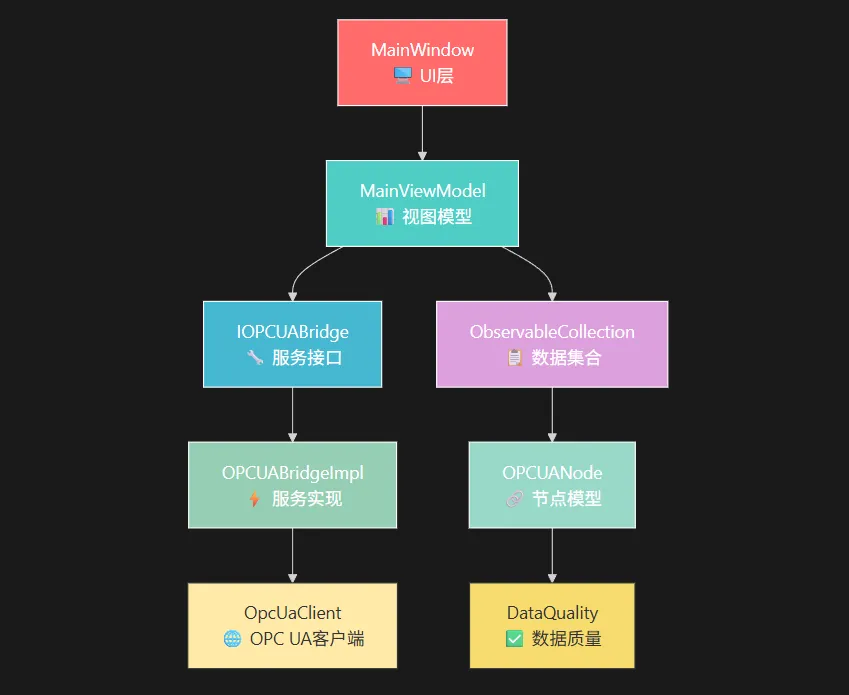

🏗️ 架构设计：MVVM + 服务层的最佳实践

我们采用分层架构设计，确保代码的可维护性和可测试性：

Markdown
📦 AppOPCUABridge
├── 📁 Models          # 数据模型层
├── 📁 Services        # 业务服务层
├── 📁 ViewModels      # 视图模型层
├── 📁 Views           # 用户界面层
└── 📁 Converters      # 数据转换器

💎 核心模型设计

🎯 OPC UA节点模型

首先定义我们的核心数据模型，这是整个系统的基础：

C#
public class OPCUANode : INotifyPropertyChanged
{
    private string _nodeId;
    private string _displayName;
    private object _value;
    private DataQuality _quality;
    private DateTime _lastUpdate;

    public string NodeId
    {
        get => _nodeId;
        set
        {
            _nodeId = value;
            OnPropertyChanged(nameof(NodeId));
        }
    }

    public string DisplayName
    {
        get => _displayName;
        set
        {
            _displayName = value;
            OnPropertyChanged(nameof(DisplayName));
        }
    }

    public object Value
    {
        get => _value;
        set
        {
            _value = value;
            LastUpdate = DateTime.Now;
            OnPropertyChanged(nameof(Value));
        }
    }

    public DataQuality Quality
    {
        get => _quality;
        set
        {
            _quality = value;
            OnPropertyChanged(nameof(Quality));
        }
    }

    public DateTime LastUpdate
    {
        get => _lastUpdate;
        set
        {
            _lastUpdate = value;
            OnPropertyChanged(nameof(LastUpdate));
        }
    }

    public ObservableCollection<OPCUANode> Children { get; set; }
        = new ObservableCollection<OPCUANode>();

    public event PropertyChangedEventHandler PropertyChanged;

    protected virtual void OnPropertyChanged(string propertyName)
    {
        PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName));
    }
}

设计亮点：

• 实现INotifyPropertyChanged确保UI实时更新
• 支持树形结构的Children集合
• 自动更新时间戳
• 集成数据质量分析

🌟 数据质量模型

数据质量是工业通信的关键，我们需要详细的质量信息：

C#
public enum QualityStatus
{
    Good,       // 数据良好
    Bad,        // 数据异常
    Uncertain,  // 数据不确定
    Unknown     // 未知状态
}

public class DataQuality : INotifyPropertyChanged
{
    private QualityStatus _status;
    private string _description;
    private DateTime _timestamp;
    private double _confidenceLevel;

    public QualityStatus Status
    {
        get => _status;
        set
        {
            _status = value;
            OnPropertyChanged(nameof(Status));
        }
    }

    public string Description
    {
        get => _description;
        set
        {
            _description = value;
            OnPropertyChanged(nameof(Description));
        }
    }

    public double ConfidenceLevel
    {
        get => _confidenceLevel;
        set
        {
            // 限制在0-1之间
            _confidenceLevel = Math.Max(0, Math.Min(1, value));
            OnPropertyChanged(nameof(ConfidenceLevel));
        }
    }
}

🔧 服务层实现：业务逻辑与UI分离

📋 服务接口定义

良好的接口设计是可维护代码的基础：

C#
public interface IOPCUABridge : IDisposable
{
    // 基础连接管理
    Task<bool> ConnectAsync(string endpoint);
    Task DisconnectAsync();
    bool IsConnected { get; }

    // 节点浏览和数据读取
    Task<List<NamespaceModel>> GetNamespacesAsync();
    Task<List<OPCUANode>> BrowseNodesAsync(string namespaceUri, string parentNodeId = null);

    // 单个和批量操作
    Task<object> ReadValueAsync(string nodeId, string namespaceUri);
    Task<T> ReadValueAsync<T>(string nodeId);
    Task<List<object>> BatchReadAsync(string[] nodeIds);
    Task<bool> WriteValueAsync(string nodeId, string namespaceUri, object value);

    // 订阅监听
    void AddMonitoredItem(string key, string nodeId);
    void RemoveMonitoredItem(string key);

    // 数据质量分析
    Task<DataQuality> AnalyzeQualityAsync(OPCUANode node);

    // 事件通知
    event EventHandler<OPCUANode> NodeValueChanged;
}

设计原则：

• 异步优先：所有IO操作都是异步的
• 泛型支持：提供类型安全的读取方法
• 事件驱动：实时数据变化通知

🎯 核心服务实现

C#
using System;
using System.Collections.Generic;
using System.Linq;
using System.Threading.Tasks;
using AppOPCUABridge.Models;
using OpcUaHelper;
using Opc.Ua;
using Opc.Ua.Client;

namespace AppOPCUABridge.Services
{
    public class OPCUABridgeImpl : IOPCUABridge
    {
        private OpcUaClient _client;
        private readonly QualityAnalyzer _qualityAnalyzer;
        private bool _isConnected = false;

        public bool IsConnected => _isConnected;
        public event EventHandler<OPCUANode> NodeValueChanged;

        public OPCUABridgeImpl()
        {
            _qualityAnalyzer = new QualityAnalyzer();
        }

        public async Task<bool> ConnectAsync(string endpoint)
        {
            try
            {
                _client = new OpcUaClient();
                _client.UserIdentity = new UserIdentity(new AnonymousIdentityToken());
                _client.OpcStatusChange += OnOpcStatusChange;

                await _client.ConnectServer(endpoint);

                return _isConnected;
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"连接失败: {ex.Message}");
                _isConnected = false;
                return false;
            }
        }

        private void OnOpcStatusChange(object sender, OpcUaStatusEventArgs e)
        {
            _isConnected = !e.Error;
            System.Diagnostics.Debug.WriteLine($"OPC UA连接状态: {(_isConnected ? "成功" : "失败")}");
        }

        // 详细日志和错误处理
        public async Task<object> ReadValueAsync(string nodeId, string namespaceUri)
        {
            if (!IsConnected)
            {
                System.Diagnostics.Debug.WriteLine($"未连接，无法读取节点: {nodeId}");
                return null;
            }

            return await Task.Run(() =>
            {
                try
                {
                    System.Diagnostics.Debug.WriteLine($"开始读取节点: {nodeId}");

                    // 尝试直接使用字符串nodeId
                    var dataValue = _client.ReadNode(nodeId);

                    if (dataValue != null)
                    {
                        var value = dataValue.Value;
                        System.Diagnostics.Debug.WriteLine($"读取成功 - 节点: {nodeId}, 值: {value}, 类型: {value?.GetType().Name}");
                        return value;
                    }
                    else
                    {
                        System.Diagnostics.Debug.WriteLine($"读取返回null - 节点: {nodeId}");
                        return null;
                    }
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine($"读取节点 {nodeId} 异常: {ex.Message}");
                    return null;
                }
            });
        }

        // 改进批量读取方法
        public async Task<List<object>> BatchReadAsync(string[] nodeIds)
        {
            if (!IsConnected || nodeIds == null || nodeIds.Length == 0)
                return new List<object>();

            return await Task.Run(() =>
            {
                var results = new List<object>();

                try
                {
                    System.Diagnostics.Debug.WriteLine($"开始批量读取 {nodeIds.Length} 个节点");

                    // 逐个读取以获得更好的错误处理
                    foreach (var nodeId in nodeIds)
                    {
                        try
                        {
                            var dataValue = _client.ReadNode(nodeId);
                            var value = dataValue?.Value;
                            results.Add(value);

                            System.Diagnostics.Debug.WriteLine($"批量读取 - 节点: {nodeId}, 值: {value}");
                        }
                        catch (Exception ex)
                        {
                            System.Diagnostics.Debug.WriteLine($"批量读取节点 {nodeId} 失败: {ex.Message}");
                            results.Add(null);
                        }
                    }
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine($"批量读取整体失败: {ex.Message}");
                }

                return results;
            });
        }

        private async Task<List<OPCUANode>> GetManufacturingNodes(string namespaceUri)
        {
            var nodes = new List<OPCUANode>();
            var nodeDefinitions = new[]
            {
                ("ns=2;s=Channel1.Device1.B1", "B1", "布尔变量1"),
                ("ns=2;s=Channel1.Device1.B2", "B2", "布尔变量2"),
                ("ns=2;s=Channel1.Device1.B3", "B3", "布尔变量3"),
                ("ns=2;s=Channel1.Device1.F1", "F1", "浮点变量1"),
                ("ns=2;s=Channel1.Device1.I1", "I1", "整数变量1"),
                ("ns=2;s=Channel1.Device1.L1", "L1", "长整数变量1"),
                ("ns=2;s=Channel1.Device1.S1", "S1", "字符串变量1"),
                ("ns=2;s=Channel1.Device1.S2", "S2", "字符串变量2")
            };

            foreach (var (nodeId, displayName, description) in nodeDefinitions)
            {
                var node = new OPCUANode
                {
                    NodeId = nodeId,
                    DisplayName = displayName,
                    NamespaceUri = namespaceUri,
                    Quality = new DataQuality
                    {
                        Status = QualityStatus.Unknown,
                        Timestamp = DateTime.Now,
                        Description = description,
                        ConfidenceLevel = 0.0
                    }
                };

                // 立即读取值并分析质量
                try
                {
                    var value = await ReadValueAsync(nodeId, namespaceUri);
                    node.Value = value;
                    node.LastUpdate = DateTime.Now;

                    // 重新分析质量
                    node.Quality = await _qualityAnalyzer.AnalyzeAsync(node);

                    System.Diagnostics.Debug.WriteLine($"节点创建完成: {displayName} = {value}, 质量: {node.Quality.Status}");
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine($"创建节点 {displayName} 失败: {ex.Message}");
                    node.Quality.Status = QualityStatus.Bad;
                    node.Quality.Description = $"创建失败: {ex.Message}";
                }

                nodes.Add(node);
            }

            return nodes;
        }

        public async Task DisconnectAsync()
        {
            await Task.Run(() =>
            {
                try
                {
                    if (_client != null)
                    {
                        _client.OpcStatusChange -= OnOpcStatusChange;
                        _client.Disconnect();
                        _client = null;
                    }
                    _isConnected = false;
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine($"断开连接失败: {ex.Message}");
                }
            });
        }

        public async Task<List<NamespaceModel>> GetNamespacesAsync()
        {
            if (!IsConnected) return new List<NamespaceModel>();

            return await Task.Run(() =>
            {
                try
                {
                    var namespaces = new List<NamespaceModel>();
                    var session = _client.Session;

                    if (session?.NamespaceUris != null)
                    {
                        for (int i = 0; i < session.NamespaceUris.Count; i++)
                        {
                            var uri = session.NamespaceUris.GetString((uint)i);
                            if (!string.IsNullOrEmpty(uri))
                            {
                                namespaces.Add(new NamespaceModel
                                {
                                    Index = i,
                                    Uri = uri,
                                    Description = GetNamespaceDescription(uri)
                                });
                            }
                        }
                    }

                    if (namespaces.Count == 0)
                    {
                        namespaces.AddRange(GetDefaultNamespaces());
                    }

                    return namespaces;
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine($"获取命名空间失败: {ex.Message}");
                    return GetDefaultNamespaces();
                }
            });
        }

        private List<NamespaceModel> GetDefaultNamespaces()
        {
            return new List<NamespaceModel>
            {
                new NamespaceModel
                {
                    Index = 0,
                    Uri = "http://opcfoundation.org/UA/",
                    Description = "OPC UA Standard Namespace"
                },
                new NamespaceModel
                {
                    Index = 1,
                    Uri = "urn:localhost:OPCUA:SimulationServer",
                    Description = "Simulation Server Namespace"
                },
                new NamespaceModel
                {
                    Index = 2,
                    Uri = "http://company.com/Manufacturing/",
                    Description = "Manufacturing Process Namespace"
                }
            };
        }

        private string GetNamespaceDescription(string uri)
        {
            return uri switch
            {
                "http://opcfoundation.org/UA/" => "OPC UA Standard Namespace",
                "urn:localhost:OPCUA:SimulationServer" => "Simulation Server Namespace",
                var s when s.Contains("Manufacturing") => "Manufacturing Process Namespace",
                var s when s.Contains("OPCUA") => "OPC UA Application Namespace",
                _ => $"Custom Namespace: {uri.Split('/').LastOrDefault()}"
            };
        }

        public async Task<List<OPCUANode>> BrowseNodesAsync(string namespaceUri, string parentNodeId = null)
        {
            if (!IsConnected) return new List<OPCUANode>();

            return await Task.Run(async () =>
            {
                try
                {
                    var nodes = new List<OPCUANode>();

                    // 总是返回预定义的制造节点用于测试
                    nodes.AddRange(await GetManufacturingNodes(namespaceUri));

                    return nodes;
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine($"浏览节点失败: {ex.Message}");
                    return new List<OPCUANode>();
                }
            });
        }

        public async Task<T> ReadValueAsync<T>(string nodeId)
        {
            var value = await ReadValueAsync(nodeId, null);
            try
            {
                return value != null ? (T)Convert.ChangeType(value, typeof(T)) : default(T);
            }
            catch
            {
                return default(T);
            }
        }

        public async Task<bool> WriteValueAsync(string nodeId, string namespaceUri, object value)
        {
            if (!IsConnected) return false;
            return await Task.Run(() =>
            {
                try
                {
                    return _client.WriteNode(nodeId, value);
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine($"写入失败: {ex.Message}");
                    return false;
                }
            });
        }

        public async Task<bool> WriteValueAsync<T>(string nodeId, T value)
        {
            return await WriteValueAsync(nodeId, null, value);
        }

        public async Task<List<T>> BatchReadAsync<T>(string[] nodeIds)
        {
            var values = await BatchReadAsync(nodeIds);
            return values.Select(v =>
            {
                try
                {
                    return v != null ? (T)Convert.ChangeType(v, typeof(T)) : default(T);
                }
                catch
                {
                    return default(T);
                }
            }).ToList();
        }

        public async Task<bool> BatchWriteAsync(string[] nodeIds, object[] values)
        {
            if (!IsConnected) return false;
            return await Task.Run(() =>
            {
                try
                {
                    return _client.WriteNodes(nodeIds, values);
                }
                catch (Exception ex)
                {
                    System.Diagnostics.Debug.WriteLine($"批量写入失败: {ex.Message}");
                    return false;
                }
            });
        }

        public void AddMonitoredItem(string key, string nodeId)
        {
            try
            {
                if (IsConnected)
                {
                    _client.AddSubscription(key, nodeId, OnMonitorCallback);
                }
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"添加监听失败: {ex.Message}");
            }
        }

        public void RemoveMonitoredItem(string key)
        {
            try
            {
                if (IsConnected)
                {
                    _client.RemoveSubscription(key);
                }
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"移除监听失败: {ex.Message}");
            }
        }

        private void OnMonitorCallback(string key, MonitoredItem monitoredItem, MonitoredItemNotificationEventArgs args)
        {
            try
            {
                var notification = args.NotificationValue as MonitoredItemNotification;
                if (notification != null)
                {
                    var node = new OPCUANode
                    {
                        NodeId = monitoredItem.StartNodeId.ToString(),
                        DisplayName = key,
                        Value = notification.Value?.WrappedValue.Value,
                        LastUpdate = DateTime.Now
                    };

                    Task.Run(async () =>
                    {
                        node.Quality = await _qualityAnalyzer.AnalyzeAsync(node);
                        NodeValueChanged?.Invoke(this, node);
                    });
                }
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"监听回调失败: {ex.Message}");
            }
        }

        public async Task<DataQuality> AnalyzeQualityAsync(OPCUANode node)
        {
            return await _qualityAnalyzer.AnalyzeAsync(node);
        }

        public void Dispose()
        {
            try
            {
                if (_client != null)
                {
                    _client.OpcStatusChange -= OnOpcStatusChange;
                    _client.Disconnect();
                    _client = null;
                }
                _isConnected = false;
            }
            catch (Exception ex)
            {
                System.Diagnostics.Debug.WriteLine($"释放资源失败: {ex.Message}");
            }
        }
    }
}

实现要点：

• 异常安全：每个操作都有完整的异常处理
• 状态管理：实时跟踪连接状态
• 资源管理：正确的资源释放

🎨 ViewModel层：MVVM的核心

🔥 RelayCommand实现

首先实现一个通用的命令类：

C#
public class RelayCommand : ICommand
{
    private readonly Action<object> _execute;
    private readonly Func<object, bool> _canExecute;

    public RelayCommand(Action<object> execute, Func<object, bool> canExecute = null)
    {
        _execute = execute ?? throw new ArgumentNullException(nameof(execute));
        _canExecute = canExecute;
    }

    public event EventHandler CanExecuteChanged
    {
        add { CommandManager.RequerySuggested += value; }
        remove { CommandManager.RequerySuggested -= value; }
    }

    public bool CanExecute(object parameter) => _canExecute?.Invoke(parameter) ?? true;
    public void Execute(object parameter) => _execute(parameter);
}

💪 主ViewModel实现

C#
public class MainViewModel : INotifyPropertyChanged
{
    private readonly IOPCUABridge _opcuaBridge;
    private string _serverEndpoint = "opc.tcp://127.0.0.1:49320";
    private bool _isConnected;
    private string _statusMessage = "未连接";

    public ObservableCollection<NamespaceModel> Namespaces { get; set; }
        = new ObservableCollection<NamespaceModel>();
    public ObservableCollection<OPCUANode> Nodes { get; set; }
        = new ObservableCollection<OPCUANode>();

    // 数据质量统计 - 实时计算
    public int GoodQualityCount => Nodes.Count(n => n.Quality?.Status == QualityStatus.Good);
    public int BadQualityCount => Nodes.Count(n => n.Quality?.Status == QualityStatus.Bad);

    // 命令定义
    public ICommand ConnectCommand { get; }
    public ICommand DisconnectCommand { get; }
    public ICommand BatchReadCommand { get; }

    public MainViewModel()
    {
        _opcuaBridge = new OPCUABridgeImpl();

        // 初始化命令 - 注意条件判断
        ConnectCommand = new RelayCommand(async _ => await ConnectAsync(), _ => !IsConnected);
        DisconnectCommand = new RelayCommand(async _ => await DisconnectAsync(), _ => IsConnected);
        BatchReadCommand = new RelayCommand(async _ => await BatchReadAsync(), _ => IsConnected);

        // 订阅数据变化事件
        _opcuaBridge.NodeValueChanged += OnNodeValueChanged;
        Nodes.CollectionChanged += (s, e) => UpdateQualityStatistics();
    }

    private async Task BatchReadAsync()
    {
        if (!IsConnected) return;

        try
        {
            StatusMessage = "正在批量读取数据...";

            string[] nodeIds = {
                "ns=2;s=Channel1.Device1.B1",
                "ns=2;s=Channel1.Device1.F1",
                "ns=2;s=Channel1.Device1.I1"
            };

            var values = await _opcuaBridge.BatchReadAsync(nodeIds);

            // 更新UI中的节点数据
            for (int i = 0; i < Math.Min(nodeIds.Length, values.Count); i++)
            {
                var node = Nodes.FirstOrDefault(n => n.NodeId == nodeIds[i]);
                if (node != null)
                {
                    node.Value = values[i];
                    await _opcuaBridge.AnalyzeQualityAsync(node);
                }
            }

            StatusMessage = $"批量读取完成，更新了 {values.Count} 个节点";
            UpdateQualityStatistics();
        }
        catch (Exception ex)
        {
            StatusMessage = $"批量读取失败: {ex.Message}";
        }
    }

    private void OnNodeValueChanged(object sender, OPCUANode node)
    {
        // 确保在UI线程更新
        Application.Current?.Dispatcher.Invoke(() =>
        {
            var existingNode = Nodes.FirstOrDefault(n => n.NodeId == node.NodeId);
            if (existingNode != null)
            {
                existingNode.Value = node.Value;
                existingNode.Quality = node.Quality;
                UpdateQualityStatistics();
            }
        });
    }
}

ViewModel设计精髓：

• 数据绑定：所有属性都支持变更通知
• 命令模式：业务操作通过命令执行
• 线程安全：UI更新确保在主线程

🎭 Apple风格UI设计

🌈 颜色系统定义

XML
<Window.Resources>
    <!-- Apple 官方色彩系统 -->
    <SolidColorBrush x:Key="AppleBlue" Color="#007AFF"/>
    <SolidColorBrush x:Key="AppleGray" Color="#8E8E93"/>
    <SolidColorBrush x:Key="AppleRed" Color="#FF3B30"/>
    <SolidColorBrush x:Key="AppleGreen" Color="#34C759"/>

    <!-- 阴影效果 -->
    <DropShadowEffect x:Key="AppleShadow"
                      BlurRadius="20"
                      ShadowDepth="8"
                      Color="#10000000"
                      Opacity="0.1"/>
</Window.Resources>

🎨 按钮样式设计

XML
<Style x:Key="AppleButton" TargetType="Button">
    <Setter Property="Background" Value="{StaticResource AppleBlue}"/>
    <Setter Property="Foreground" Value="White"/>
    <Setter Property="BorderThickness" Value="0"/>
    <Setter Property="Padding" Value="20,12"/>
    <Setter Property="FontWeight" Value="SemiBold"/>
    <Setter Property="Template">
        <Setter.Value>
            <ControlTemplate TargetType="Button">
                <Border Background="{TemplateBinding Background}"
                        CornerRadius="12"
                        Effect="{StaticResource AppleShadow}">
                    <ContentPresenter HorizontalAlignment="Center"
                                      VerticalAlignment="Center"/>
                </Border>
                <ControlTemplate.Triggers>
                    <Trigger Property="IsMouseOver" Value="True">
                        <Setter Property="Background" Value="#0051D5"/>
                    </Trigger>
                </ControlTemplate.Triggers>
            </ControlTemplate>
        </Setter.Value>
    </Setter>
</Style>

📊 数据质量可视化

XML
<DataTemplate x:Key="QualityStatusTemplate">
    <Border CornerRadius="6" Padding="6,3">
        <Border.Style>
            <Style TargetType="Border">
                <Style.Triggers>
                    <DataTrigger Binding="{Binding Quality.Status}" Value="Good">
                        <Setter Property="Background" Value="#E8F5E8"/>
                    </DataTrigger>
                    <DataTrigger Binding="{Binding Quality.Status}" Value="Bad">
                        <Setter Property="Background" Value="#FFEBEE"/>
                    </DataTrigger>
                </Style.Triggers>
            </Style>
        </Border.Style>
        <StackPanel Orientation="Horizontal">
            <Ellipse Width="8" Height="8" Fill="{StaticResource AppleGreen}"/>
            <TextBlock Text="{Binding Quality.Status}"
                       FontWeight="Medium"
                       Margin="6,0,0,0"/>
        </StackPanel>
    </Border>
</DataTemplate>

⚡ 性能优化技巧

🚀 异步操作最佳实践

C#
// ❌ 错误写法 - 阻塞UI线程
public void BadExample()
{
    var result = _opcuaBridge.ReadValueAsync(nodeId).Result; // 永远不要这样做！
}

// ✅ 正确写法 - 完全异步
public async Task GoodExample()
{
    try
    {
        var result = await _opcuaBridge.ReadValueAsync(nodeId);
        // 处理结果
    }
    catch (Exception ex)
    {
        // 异常处理
    }
}

💾 内存管理要点

C#
public class MainViewModel : INotifyPropertyChanged, IDisposable
{
    public void Dispose()
    {
        try
        {
            // 取消事件订阅，防止内存泄漏
            if (_opcuaBridge != null)
            {
                _opcuaBridge.NodeValueChanged -= OnNodeValueChanged;
                _opcuaBridge.Dispose();
            }
        }
        catch (Exception ex)
        {
            System.Diagnostics.Debug.WriteLine($"释放资源失败: {ex.Message}");
        }
    }
}

🛠️ 常见坑点与解决方案

坑点1：UI线程访问问题

问题：后台线程直接更新UI导致异常

解决方案：

C#
// 确保在UI线程执行更新
Application.Current?.Dispatcher.Invoke(() =>
{
    // UI更新代码
    Nodes.Add(newNode);
});

坑点2：内存泄漏

问题：事件订阅没有正确取消

解决方案：实现IDisposable接口，在Dispose中取消所有订阅

坑点3：异步操作中的异常处理

问题：async void方法中的异常无法捕获

解决方案：

C#
// ❌ 避免使用 async void
public async void BadMethod() { }

// ✅ 使用 async Task
public async Task GoodMethod() { }

🎯 总结与展望

通过这个完整的OPC UA Bridge项目，我们实现了：

1. 现代化的架构设计：MVVM + 服务层，代码分离清晰，便于测试和维护
2. 优雅的UI设计：Apple风格界面，提升用户体验
3. 健壮的错误处理：完整的异常处理机制，确保程序稳定运行

三个"收藏级"代码模板：

• RelayCommand实现 - 通用命令模式
• 异步MVVM模式 - UI与业务逻辑分离
• Apple风格WPF样式 - 现代化界面设计

这套架构不仅适用于OPC UA客户端，同样可以应用到其他工业通信协议的开发中。掌握了这些技巧，你就能轻松构建出专业级的工业软件应用。

延伸学习建议：

• 深入学习OPC UA安全机制
• 研究WPF性能优化技术
• 探索.NET 6+的新特性在工业软件中的应用

你在工业软件开发中遇到过哪些通信协议的坑？或者对这个架构设计有什么更好的建议？欢迎在评论区分享你的经验！

觉得这篇文章对你有帮助的话，请转发给更多需要的C#开发同行吧！ 🚀
