🔍 痛点分析:为什么WinForm开发者转WPF这么难?
💡 解决方案:5个实战技巧让你快速上手
🎯 技巧1:基础使用对比,建立认知桥梁
🎯 技巧2:掌握MVVM模式,实现UI与逻辑分离
🎯 技巧3:样式定制,打造专业UI
🎯 技巧4:高级定制,重写控件模板
🎯 技巧5:日期范围限制与验证
💪 总结:三个关键转型要点

"公司要求项目升级到WPF,但是我完全摸不着头脑。连个简单的日期控件都不知道怎么用了!"这话让我想起了自己当年的转型经历。据统计,超过60%的.NET桌面开发者仍在使用WinForm,但随着现代化UI需求的增长,WPF转型已经成为必然趋势。

今天我们就从最常用的DatePicker控件入手,让你彻底掌握WPF开发的核心思路,告别转型焦虑!

🔍 痛点分析:为什么WinForm开发者转WPF这么难?

很多WinForm开发者在转型时都会遇到这些问题:

  • 思维方式转变:从代码驱动界面到XAML声明式开发
  • 数据绑定困惑:不理解双向绑定和MVVM模式
  • 样式定制迷茫:不知道如何自定义控件外观

其实,核心问题就是没有掌握WPF的设计哲学

💡 解决方案:5个实战技巧让你快速上手

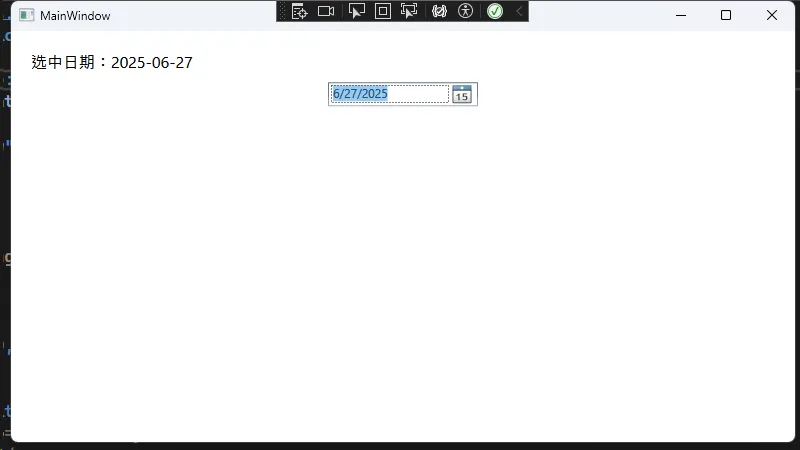

🎯 技巧1:基础使用对比,建立认知桥梁

WinForm中的做法:

C#
// 传统WinForm方式 dateTimePicker1.Value = DateTime.Now; var selectedDate = dateTimePicker1.Value;

WPF中的新思路:

XML
<Window x:Class="AppDateTimePicker.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:AppDateTimePicker" mc:Ignorable="d" xmlns:sys="clr-namespace:System;assembly=mscorlib" Title="MainWindow" Height="450" Width="800"> <Window.Resources> <sys:DateTime x:Key="now"> </sys:DateTime> </Window.Resources> <StackPanel Margin="20"> <!-- 实时显示选中日期 --> <TextBlock Text="{Binding ElementName=myDatePicker, Path=SelectedDate, StringFormat='选中日期:{0:yyyy-MM-dd}'}" FontSize="16" Margin="0,0,0,10" /> <!-- DatePicker控件 --> <DatePicker x:Name="myDatePicker" SelectedDate="{x:Static sys:DateTime.Now}" Width="150" /> </StackPanel> </Window>


⚠️ 关键坑点提醒:

  • WPF的SelectedDateDateTime?可空类型,记得判空!
  • 数据绑定使用{Binding}语法,不是直接赋值
C#
// WPF后台代码处理 DateTime? selectedDate = myDatePicker.SelectedDate; if (selectedDate.HasValue) { // 安全的日期处理 Console.WriteLine($"选中日期:{selectedDate.Value:yyyy-MM-dd}"); }

🎯 技巧2:掌握MVVM模式,实现UI与逻辑分离

XAML界面层:

XML
<Window x:Class="AppDateTimePicker.Window1" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:AppDateTimePicker" mc:Ignorable="d" Title="Window1" Height="450" Width="800"> <Window.DataContext> <!-- 直接实例化ViewModel --> <local:DateViewModel /> </Window.DataContext> <StackPanel Margin="20"> <TextBlock Text="{Binding SelectedDateModel, StringFormat='模型日期:{0:d}'}" FontSize="16" Margin="0,0,0,10" /> <!-- 双向绑定到ViewModel --> <DatePicker SelectedDate="{Binding SelectedDateModel, Mode=TwoWay}" Width="150" /> </StackPanel> </Window>

ViewModel业务层:

C#
using System; using System.Collections.Generic; using System.ComponentModel; using System.Linq; using System.Text; using System.Threading.Tasks; namespace AppDateTimePicker { public class DateViewModel : INotifyPropertyChanged { private DateTime? _selectedDateModel = DateTime.Now; public DateTime? SelectedDateModel { get => _selectedDateModel; set { if (_selectedDateModel != value) { _selectedDateModel = value; OnPropertyChanged(nameof(SelectedDateModel)); // 业务逻辑处理 ValidateDate(value); } } } private void ValidateDate(DateTime? date) { // 实际业务验证逻辑 if (date.HasValue && date.Value > DateTime.Now.AddYears(1)) { // 处理超出范围的日期 } } public event PropertyChangedEventHandler PropertyChanged; private void OnPropertyChanged(string propertyName) { PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName)); } } }

💎 最佳实践:

  • ViewModel负责业务逻辑,View只管显示
  • 使用INotifyPropertyChanged实现属性变更通知
  • Mode=TwoWay确保界面和数据双向同步

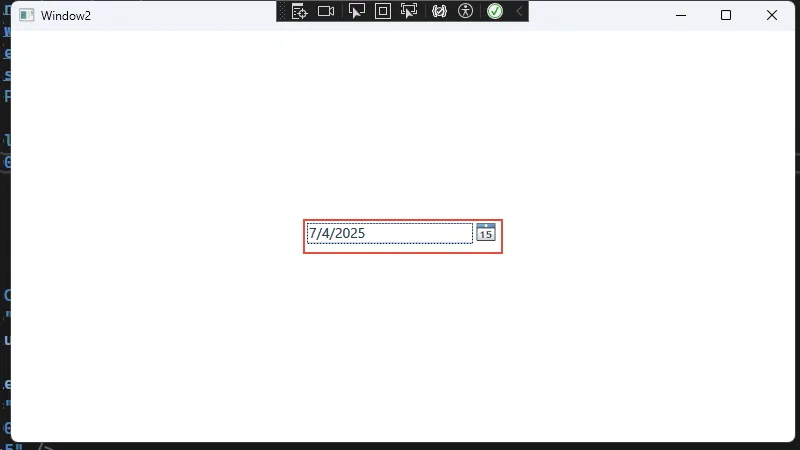

🎯 技巧3:样式定制,打造专业UI

自定义基础样式:

XML
<Window x:Class="AppDateTimePicker.Window2" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:AppDateTimePicker" mc:Ignorable="d" xmlns:sys="clr-namespace:System;assembly=mscorlib" Title="Window2" Height="450" Width="800"> <Window.Resources> <sys:DateTime x:Key="now"> </sys:DateTime> <!-- 可复用的DatePicker样式 --> <Style TargetType="DatePicker" x:Key="CustomDatePickerStyle"> <Setter Property="Margin" Value="5" /> <Setter Property="BorderBrush" Value="#3498db" /> <Setter Property="BorderThickness" Value="2" /> <Setter Property="Foreground" Value="#2c3e50" /> <Setter Property="FontSize" Value="14" /> <Setter Property="Width" Value="200" /> <Setter Property="Height" Value="35" /> <!-- 鼠标悬停效果 --> <Style.Triggers> <Trigger Property="IsMouseOver" Value="True"> <Setter Property="BorderBrush" Value="#e74c3c" /> </Trigger> </Style.Triggers> </Style> </Window.Resources> <!-- 应用自定义样式 --> <DatePicker SelectedDate="{x:Static sys:DateTime.Now}" SelectedDateFormat="Short" Style="{StaticResource CustomDatePickerStyle}" /> </Window>

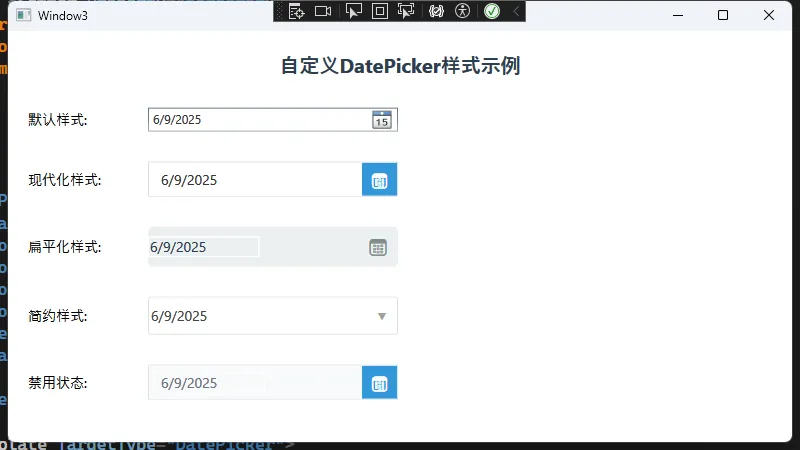

🎯 技巧4:高级定制,重写控件模板

XML
<Window x:Class="AppDateTimePicker.Window3" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:AppDateTimePicker" mc:Ignorable="d" xmlns:sys="clr-namespace:System;assembly=mscorlib" Title="Window3" Height="450" Width="800"> <Window.Resources> <!-- 完全自定义DatePicker外观 --> <Style TargetType="DatePicker" x:Key="ModernDatePickerStyle"> <Setter Property="Background" Value="White"/> <Setter Property="BorderBrush" Value="#ddd"/> <Setter Property="BorderThickness" Value="1"/> <Setter Property="Foreground" Value="#333"/> <Setter Property="FontSize" Value="14"/> <Setter Property="Height" Value="35"/> <Setter Property="Padding" Value="5,0"/> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="DatePicker"> <Border Background="{TemplateBinding Background}" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}"> <Grid> <Grid.ColumnDefinitions> <ColumnDefinition Width="*"/> <ColumnDefinition Width="35"/> </Grid.ColumnDefinitions> <!-- 文本框部分 --> <DatePickerTextBox x:Name="PART_TextBox" Grid.Column="0" Margin="0" Background="Transparent" BorderThickness="0" Foreground="{TemplateBinding Foreground}" Padding="{TemplateBinding Padding}" FontSize="{TemplateBinding FontSize}" VerticalContentAlignment="Center" HorizontalContentAlignment="Left"/> <!-- 自定义下拉按钮 --> <Button x:Name="PART_Button" Grid.Column="1" Content="📅" Width="35" Height="{TemplateBinding Height}" Background="#3498db" BorderBrush="{x:Null}" BorderThickness="0" Foreground="White" FontSize="14" Cursor="Hand" VerticalAlignment="Stretch" Focusable="False"> <Button.Style> <Style TargetType="Button"> <Setter Property="Background" Value="#3498db"/> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="Button"> <Border Background="{TemplateBinding Background}" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}"> <ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center"/> </Border> <ControlTemplate.Triggers> <Trigger Property="IsMouseOver" Value="True"> <Setter Property="Background" Value="#2980b9"/> </Trigger> <Trigger Property="IsPressed" Value="True"> <Setter Property="Background" Value="#1f618d"/> </Trigger> </ControlTemplate.Triggers> </ControlTemplate> </Setter.Value> </Setter> </Style> </Button.Style> </Button> <!-- 弹出日历 --> <Popup x:Name="PART_Popup" AllowsTransparency="True" Placement="Bottom" PlacementTarget="{Binding RelativeSource={RelativeSource TemplatedParent}}" StaysOpen="False"> <Border Background="White" BorderBrush="#ccc" BorderThickness="1" CornerRadius="3" Padding="1"> <Border.Effect> <DropShadowEffect Color="Black" Opacity="0.3" ShadowDepth="3" BlurRadius="5"/> </Border.Effect> <Calendar x:Name="PART_Calendar" SelectionMode="SingleDate"/> </Border> </Popup> </Grid> </Border> <!-- 控件状态触发器 --> <ControlTemplate.Triggers> <Trigger Property="IsMouseOver" Value="True"> <Setter Property="BorderBrush" Value="#3498db"/> </Trigger> <Trigger Property="IsFocused" Value="True"> <Setter Property="BorderBrush" Value="#2980b9"/> <Setter Property="BorderThickness" Value="2"/> </Trigger> <Trigger Property="IsEnabled" Value="False"> <Setter Property="Background" Value="#f8f9fa"/> <Setter Property="Foreground" Value="#6c757d"/> <Setter Property="BorderBrush" Value="#dee2e6"/> </Trigger> </ControlTemplate.Triggers> </ControlTemplate> </Setter.Value> </Setter> </Style> <!-- 扁平化设计样式 --> <Style TargetType="DatePicker" x:Key="FlatDatePickerStyle"> <Setter Property="Background" Value="#ecf0f1"/> <Setter Property="BorderBrush" Value="Transparent"/> <Setter Property="BorderThickness" Value="0"/> <Setter Property="Foreground" Value="#2c3e50"/> <Setter Property="FontSize" Value="14"/> <Setter Property="Height" Value="40"/> <Setter Property="Padding" Value="0,0"/> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="DatePicker"> <Border Background="{TemplateBinding Background}" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" CornerRadius="5"> <Grid> <Grid.ColumnDefinitions> <ColumnDefinition Width="*"/> <ColumnDefinition Width="40"/> </Grid.ColumnDefinitions> <!-- 文本框 --> <DatePickerTextBox x:Name="PART_TextBox" Grid.Column="0" Background="Transparent" BorderThickness="0" Foreground="{TemplateBinding Foreground}" Padding="{TemplateBinding Padding}" FontSize="{TemplateBinding FontSize}" VerticalContentAlignment="Center" HorizontalContentAlignment="Left"/> <!-- 图标按钮 --> <Button x:Name="PART_Button" Grid.Column="1" Content="📅" Width="40" Background="Transparent" BorderThickness="0" Foreground="#7f8c8d" FontSize="16" Cursor="Hand" Focusable="False"> <Button.Style> <Style TargetType="Button"> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="Button"> <Border Background="{TemplateBinding Background}" CornerRadius="3"> <ContentPresenter HorizontalAlignment="Center" VerticalAlignment="Center"/> </Border> <ControlTemplate.Triggers> <Trigger Property="IsMouseOver" Value="True"> <Setter Property="Background" Value="#d5dbdb"/> </Trigger> </ControlTemplate.Triggers> </ControlTemplate> </Setter.Value> </Setter> </Style> </Button.Style> </Button> <!-- 弹出日历 --> <Popup x:Name="PART_Popup" AllowsTransparency="True" Placement="Bottom" PlacementTarget="{Binding RelativeSource={RelativeSource TemplatedParent}}" StaysOpen="False"> <Border Background="White" BorderBrush="#bdc3c7" BorderThickness="1" CornerRadius="5" Padding="1"> <Border.Effect> <DropShadowEffect Color="Black" Opacity="0.2" ShadowDepth="2" BlurRadius="8"/> </Border.Effect> <Calendar x:Name="PART_Calendar" SelectionMode="SingleDate"/> </Border> </Popup> </Grid> </Border> <ControlTemplate.Triggers> <Trigger Property="IsMouseOver" Value="True"> <Setter Property="Background" Value="#d5dbdb"/> </Trigger> <Trigger Property="IsFocused" Value="True"> <Setter Property="Background" Value="#bdc3c7"/> </Trigger> </ControlTemplate.Triggers> </ControlTemplate> </Setter.Value> </Setter> </Style> <!-- 简约样式 --> <Style TargetType="DatePicker" x:Key="MinimalDatePickerStyle"> <Setter Property="Background" Value="White"/> <Setter Property="BorderBrush" Value="#e0e0e0"/> <Setter Property="BorderThickness" Value="1"/> <Setter Property="Foreground" Value="#424242"/> <Setter Property="FontSize" Value="14"/> <Setter Property="Height" Value="38"/> <Setter Property="Padding" Value="0,0"/> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="DatePicker"> <Border Background="{TemplateBinding Background}" BorderBrush="{TemplateBinding BorderBrush}" BorderThickness="{TemplateBinding BorderThickness}" CornerRadius="2"> <Grid> <Grid.ColumnDefinitions> <ColumnDefinition Width="*"/> <ColumnDefinition Width="30"/> </Grid.ColumnDefinitions> <!-- 文本框 --> <DatePickerTextBox x:Name="PART_TextBox" Grid.Column="0" Background="Transparent" BorderThickness="0" Foreground="{TemplateBinding Foreground}" Padding="{TemplateBinding Padding}" FontSize="{TemplateBinding FontSize}" VerticalContentAlignment="Center" HorizontalContentAlignment="Left"/> <!-- 下拉按钮 --> <Button x:Name="PART_Button" Grid.Column="1" Content="▼" Width="30" Background="Transparent" BorderThickness="0" Foreground="#9e9e9e" FontSize="10" Cursor="Hand" Focusable="False"/> <!-- 弹出日历 --> <Popup x:Name="PART_Popup" AllowsTransparency="True" Placement="Bottom" PlacementTarget="{Binding RelativeSource={RelativeSource TemplatedParent}}" StaysOpen="False"> <Border Background="White" BorderBrush="#e0e0e0" BorderThickness="1" CornerRadius="2" Padding="1"> <Border.Effect> <DropShadowEffect Color="Black" Opacity="0.15" ShadowDepth="1" BlurRadius="6"/> </Border.Effect> <Calendar x:Name="PART_Calendar" SelectionMode="SingleDate"/> </Border> </Popup> </Grid> </Border> <ControlTemplate.Triggers> <Trigger Property="IsMouseOver" Value="True"> <Setter Property="BorderBrush" Value="#2196f3"/> </Trigger> <Trigger Property="IsFocused" Value="True"> <Setter Property="BorderBrush" Value="#1976d2"/> <Setter Property="BorderThickness" Value="2"/> </Trigger> </ControlTemplate.Triggers> </ControlTemplate> </Setter.Value> </Setter> </Style> </Window.Resources> <Grid Margin="20"> <Grid.RowDefinitions> <RowDefinition Height="Auto"/> <RowDefinition Height="30"/> <RowDefinition Height="Auto"/> <RowDefinition Height="30"/> <RowDefinition Height="Auto"/> <RowDefinition Height="30"/> <RowDefinition Height="Auto"/> <RowDefinition Height="30"/> <RowDefinition Height="Auto"/> <RowDefinition Height="30"/> <RowDefinition Height="Auto"/> <RowDefinition Height="*"/> </Grid.RowDefinitions> <!-- 标题 --> <TextBlock Grid.Row="0" Text="自定义DatePicker样式示例" FontSize="20" FontWeight="Bold" Foreground="#2c3e50" HorizontalAlignment="Center"/> <!-- 默认样式 --> <StackPanel Grid.Row="2" Orientation="Horizontal"> <TextBlock Text="默认样式: " VerticalAlignment="Center" Width="120" FontSize="14"/> <DatePicker x:Name="DefaultDatePicker" Width="250" SelectedDate="{x:Static sys:DateTime.Now}" xmlns:sys="clr-namespace:System;assembly=mscorlib"/> </StackPanel> <!-- 现代化样式 --> <StackPanel Grid.Row="4" Orientation="Horizontal"> <TextBlock Text="现代化样式: " VerticalAlignment="Center" Width="120" FontSize="14"/> <DatePicker x:Name="ModernDatePicker" Style="{StaticResource ModernDatePickerStyle}" Width="250" SelectedDate="{x:Static sys:DateTime.Now}" xmlns:sys="clr-namespace:System;assembly=mscorlib"/> </StackPanel> <!-- 扁平化样式 --> <StackPanel Grid.Row="6" Orientation="Horizontal"> <TextBlock Text="扁平化样式: " VerticalAlignment="Center" Width="120" FontSize="14"/> <DatePicker x:Name="FlatDatePicker" Style="{StaticResource FlatDatePickerStyle}" Width="250" SelectedDate="{x:Static sys:DateTime.Now}" xmlns:sys="clr-namespace:System;assembly=mscorlib"/> </StackPanel> <!-- 简约样式 --> <StackPanel Grid.Row="8" Orientation="Horizontal"> <TextBlock Text="简约样式: " VerticalAlignment="Center" Width="120" FontSize="14"/> <DatePicker x:Name="MinimalDatePicker" Style="{StaticResource MinimalDatePickerStyle}" Width="250" SelectedDate="{x:Static sys:DateTime.Now}" xmlns:sys="clr-namespace:System;assembly=mscorlib"/> </StackPanel> <!-- 禁用状态示例 --> <StackPanel Grid.Row="10" Orientation="Horizontal"> <TextBlock Text="禁用状态: " VerticalAlignment="Center" Width="120" FontSize="14"/> <DatePicker x:Name="DisabledDatePicker" Style="{StaticResource ModernDatePickerStyle}" Width="250" IsEnabled="False" SelectedDate="{x:Static sys:DateTime.Now}" xmlns:sys="clr-namespace:System;assembly=mscorlib"/> </StackPanel> </Grid> </Window>


🚨 重要提醒:

  • 必须保持PART_TextBoxPART_Button这些名称
  • 这是WPF控件模板的命名约定,修改会导致功能失效

🎯 技巧5:日期范围限制与验证

XML
<Window x:Class="AppDateTimePicker.Window4" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:local="clr-namespace:AppDateTimePicker" mc:Ignorable="d" xmlns:sys="clr-namespace:System;assembly=mscorlib" Title="Window4" Height="450" Width="800"> <Window.Resources> <sys:DateTime x:Key="now"> </sys:DateTime> </Window.Resources> <StackPanel> <!-- 限制日期选择范围 --> <DatePicker x:Name="startDatePicker" DisplayDateStart="{x:Static sys:DateTime.Now}" DisplayDateEnd="{Binding ElementName=endDatePicker, Path=SelectedDate}" SelectedDateFormat="Short" /> <DatePicker x:Name="endDatePicker" DisplayDateStart="{Binding ElementName=startDatePicker, Path=SelectedDate}" SelectedDateFormat="Short" /> </StackPanel> </Window>

带验证的ViewModel:

C#
using System; using System.Collections.Generic; using System.ComponentModel; using System.Linq; using System.Text; using System.Threading.Tasks; namespace AppDateTimePicker { public class DateRangeViewModel : INotifyPropertyChanged { private DateTime? _startDate = DateTime.Now; private DateTime? _endDate = DateTime.Now.AddDays(30); public DateTime? StartDate { get => _startDate; set { if (_startDate != value) { _startDate = value; OnPropertyChanged(nameof(StartDate)); // 自动调整结束日期 if (_endDate.HasValue && value.HasValue && _endDate < value) { EndDate = value.Value.AddDays(1); } } } } public DateTime? EndDate { get => _endDate; set { if (_endDate != value) { _endDate = value; OnPropertyChanged(nameof(EndDate)); } } } public event PropertyChangedEventHandler? PropertyChanged; private void OnPropertyChanged(string propertyName) { PropertyChanged?.Invoke(this, new PropertyChangedEventArgs(propertyName)); } } }


💪 总结:三个关键转型要点

  1. 思维转变:从"控件操作"转向"数据驱动",让XAML和绑定为你工作
  2. 架构升级:拥抱MVVM模式,实现界面与逻辑的彻底分离
  3. 样式思维:善用Style和Template,一次定义处处使用

WPF的强大不仅仅体现在DatePicker上,整个框架都遵循这套设计哲学。掌握了这些核心概念,你会发现WPF开发比WinForm更加优雅和高效。


💬 互动话题:

你在WinForm转WPF过程中遇到过哪些坑?或者有什么独特的解决方案?欢迎在评论区分享你的经验!

如果觉得这篇文章对你有帮助,请转发给更多正在转型路上的同行,让我们一起在WPF的道路上走得更远!

🔖 关注我,获取更多C#开发实战技巧和最佳实践!
